Component Playgrounds MT40 User manual

Dear Customer:

Thank you for purchasing your equipment from Component Playgrounds!!! We are proud of our

commercial grade products made for kids of all ages & sizes, and we are confident that you will enjoy

your equipment for many years.

Because you have purchased a top of the line commercial grade product, you will need to be aware of

some specific shipping requirements that may be different from shipments you have received in the past

through other delivery companies (such as UPS), and you should follow the guidelines below carefully.

1. In most cases your product will arrive via common carrier truck line directly to your home with curbside

delivery only. This means the driver will facilitate the offloading of the shipment at the curb, or most

reasonable place near the curb and your house. You are then responsible to have someone physically

capable to help unload the product upon delivery and note the condition of the product as per

below instructions.

2. Your product may arrive on a pallet and upon delivery—locate the packing list (usually attached to the

hardware box & orange & black in color) and verify that each piece listed is with the shipment. *** Please

disregard any delivery driver stated “time crunches” or “needs to leave quickly” and inspect the

product to your satisfaction = this is your product so make sure it is all there in good condition or

noted properly before the driver leaves.***

3. If there are any parts/pieces missing, note this directly on the delivery receipt BEFORE you sign and

receive your copy of the receipt, with wording such as “missing xyz part” etc. Note: some shipments will

have more than one pallet so check both before noting missing.

4. Similar to #3 above, also note the condition of the pieces and if any parts have been damaged in

shipping note this directly on the delivery receipt BEFORE you sign and get your copy from the driver (in

particular inspect slides for damage).

5. If your shipment appears to have damage and /or missing pieces, a freight claim must be fi led with the

freight company w/in two business days. Component Playgrounds will assist you with this process if it is

necessary. Contact the shipping manager toll free @ 877-530-0222 for claims assistance.

6. Ask your driver to sign or initial the freight slip acknowledging any damage or discrepancies.

7. Get a copy of the signed delivery receipt from your delivery driver BEFORE he leaves.

8. If you are concerned or don’t know what you should do with a certain situation regarding the shipment,

please call the shipping manager toll free @ 877-530-0222 before the driver leaves.

All shortages and damaged items are the sole responsibility of the carrier. You are responsible to notify

Component Playgrounds of any shortages or damage relating to your shipment w/in 2 business days of

receipt of your equipment. After this time, any claim for shortage or loss cannot be honored.

Component Playgrounds cannot be responsible for replacement of any parts, missing or

damaged, that have not been properly noted on the delivery receipt. Component Playgrounds

cannot be responsible for damaged or missing pieces due to the fault of, or loss by the freight

company.

Thanks again & remember to tell your friends about your product from Component Playgrounds!

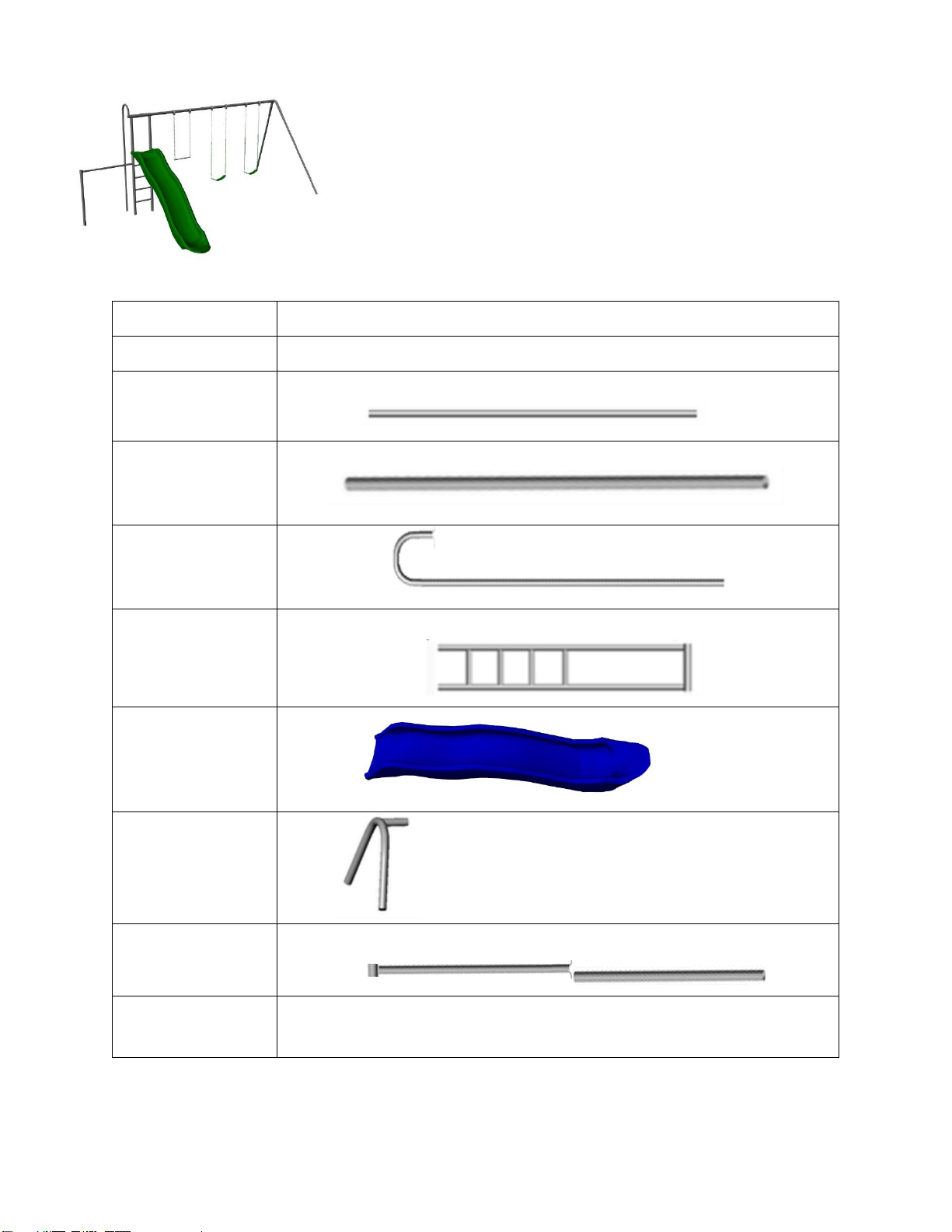

Parts Identification

MT40 Swing Set

Quantity

Description

Box Containing Swing Set Parts

1 7/8” X 9’ Leg

2 3/8” x 13’11”Top rail

Fire Pole

8’ Upright Ladder (Actual Length 10’)

Slide

Triple End with Sleeve

Turning Bar Cross Piece and 6’ Upright

Pieces Total

Installation Instructions

MT40

Required Tools

Wheelbarrow Hammer or Mallet

Shovel Open End or Box Wrenches: 5/8”, 9/16”, ¾”

Digging Bar or Pick Ratchet Handle & Sockets: 5/8”, 9/16”, ¾”, 17mm

Allen Wrench (Provided) Marker Pen

Ladder Tape Measure

Level Cordless/Electric Drill w/ the Following Bits: Phillips, 3/8”

PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE BEGINNING

*Before digging, please obey local laws by notifying your local utilities marking

organization*

1. Select an area in your yard that is reasonably level and meets the space requirement

for your equipment. Ground Space: 18’ x 15’. Play Space: 22’ x 24’.

2. Please refer to the top rail assembly sheet and assemble your top rail as instructed.

3. Position the top rail (see top rail assembly page) about 10’ from the selected spot

where you want the unit to finally stand. Using a tape measure and marker, mark

location of the swing hangers and the ladder along the top rail. (see top view on

assembly and installation instructions for measurements.)

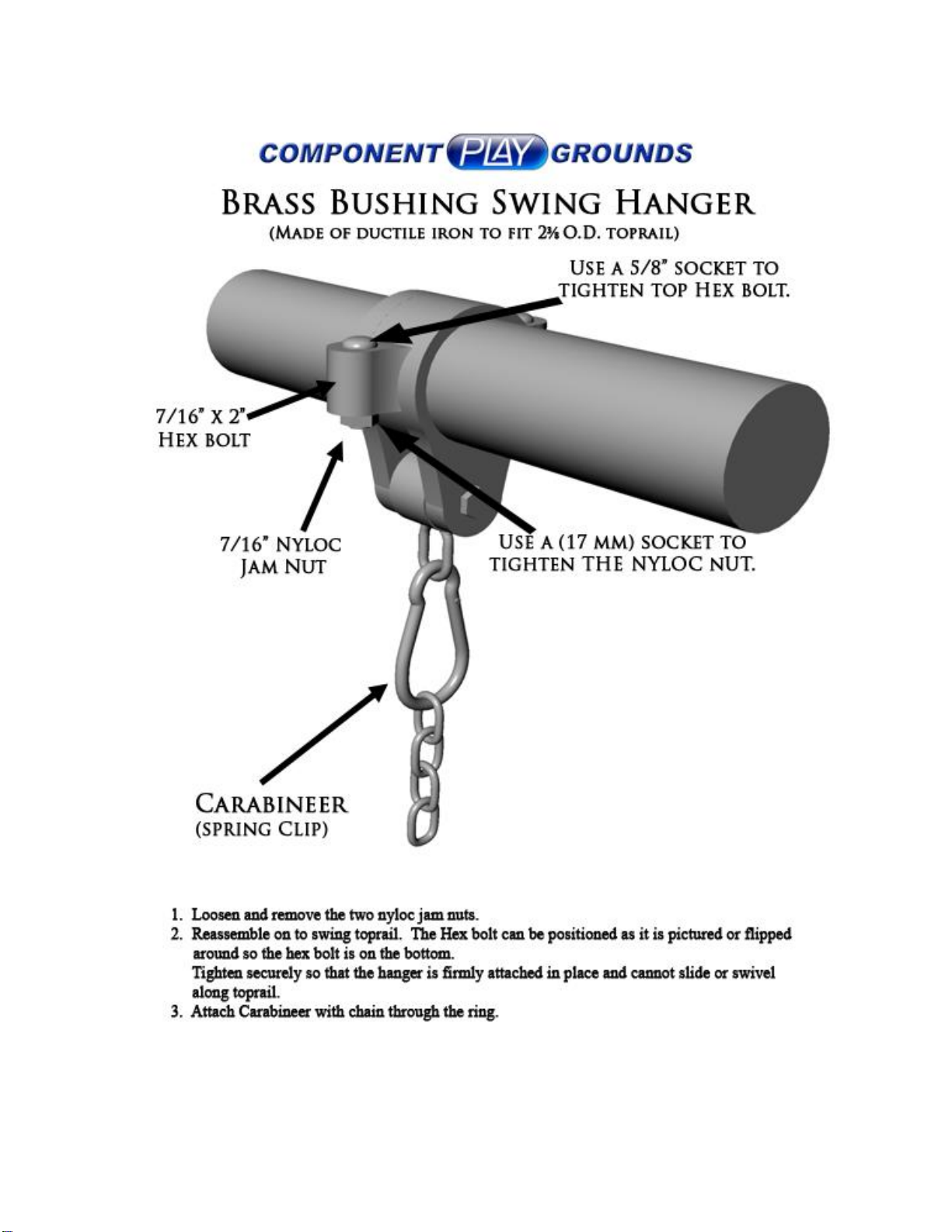

4. Assemble swing hangers (see swing hanger assembly sheet) and attach securely to

the top rail.

5. Using the hammer, install the plug into the open end of the top rail.

6. Locate position in your yard where the upright ladder will stand. Dig the hole for the

ladder (see Installation Instructions page #1). Lay the ladder onto the ground with

the bottom of the ladder laying just over the hole where it will finally stand. Hint: Be

sure to situate the ladder so that when the unit is finally standing the rungs will be

facing as desired in your space.

7. Turn the top rail onto its side on the ground. Slide the outrigger into the sleeve at

the top of the ladder and position it to the marks previously made. (see Installation

Instructions page #3). Loosely install set screws into the top of the ladder sleeve.

Bolt “A” frame legs into place (see installation instructions page #2).

8. Using two strong adults, stand the swing frame up, allowing the ladder to fall into

the hole previously dug. (Note: set will not be level at this point.) At this point,

check to make sure that the top rail is still in its proper place inside the ladder top

sleeve. Adjust as necessary by holding onto the ladder securely and pushing or

pulling the “A” frame section causing the outrigger to slide inside the top sleeve.

When you are satisfied that the top rail is in the proper position, securely tighten the

set screws in the top sleeve of the ladder.

9. With the ladder still standing in its hole, situate the “A” frame end to the desired

position in the play area. Determine location of the “A” frame legs and mark the

holes. Move the legs out of the way and dig the holes. (Keep most of the hole to the

inside of the leg). Place the legs into the holes.

10. Measure from about the middle of the top rail to the ground. This measurement

should be 8’. Determine the level of the swing set by using the level along the

length of the top rail. Remove from, or add soil to the holes as necessary to put the

unit to the correct height and to make it level.

11. Determine location of turning bar hole by placing the turning bar up to the ladder.

Mark and dig the hole. Attach the turning bar to the ladder. Check and adjust the

level of the turning bar. (See #4 fire pole and turning bar assembly.)

12. Determine the location for the fire pole by holding the fire pole to the top rail. Mark

and dig the hole. Attach the fire pole to the top rail and check and adjust the level

of the fire pole. (See #4)

13. Attach Slide bracket to Ladder (See plastic slide assembly sheet) and attach slide to

bracket as instructed.

14. Mix concrete according to package directions and pour into the holes. (See

installation instructions page #1.) You will use approximately 6-7 80 pound bags in

the ladder hole and 1 ½ bags in each of the leg holes.

15. Allow the concrete to cure completely before you use your swing set (3-5 days).

16. Attach chains and swing seats and enjoy your Component Playground.

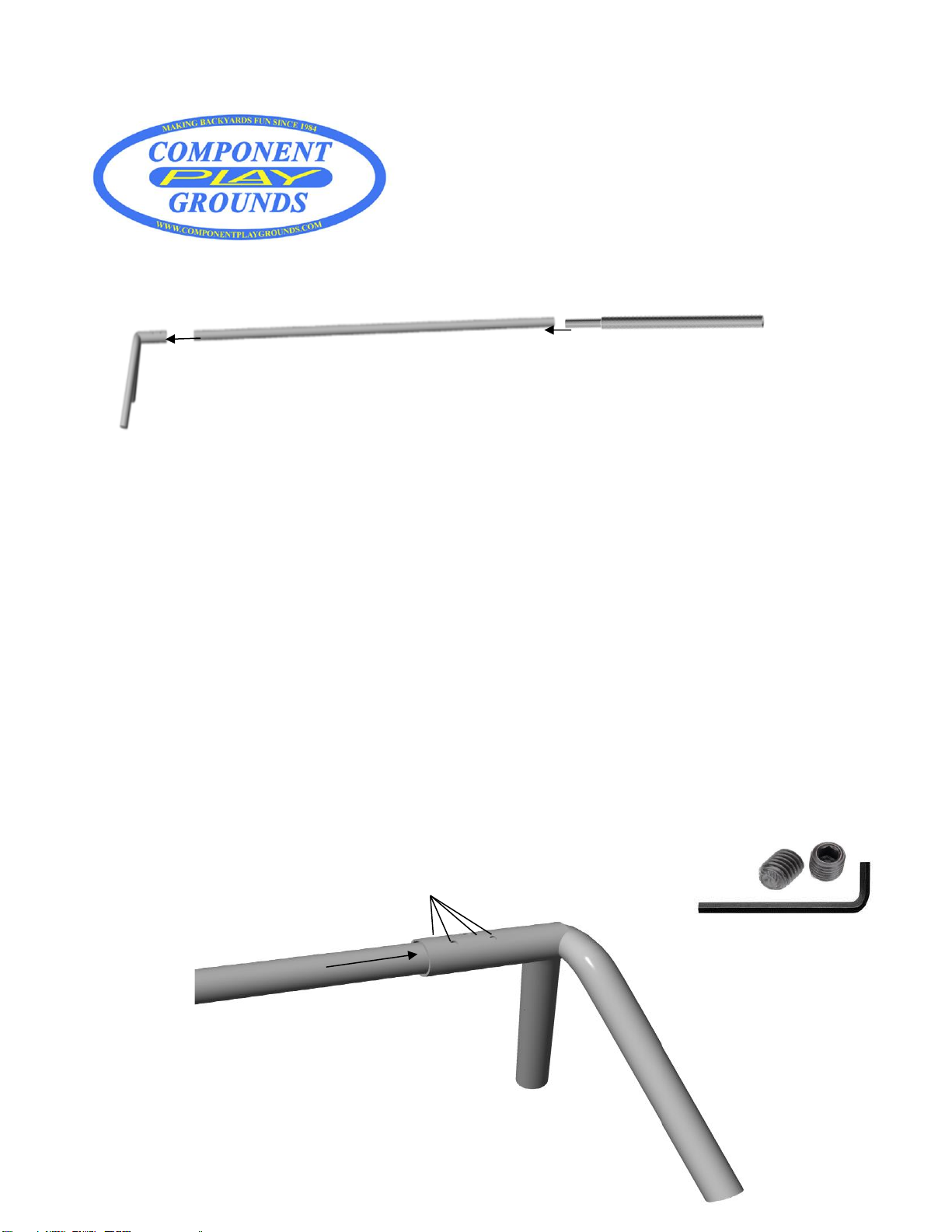

Top Rail Assembly

Step 1: Slide the undrilled end of the longer Top Rail as far as it will go into the

Sleeve of the Triple End.

Step 2: Slide the Swing Hangers and tighten onto the Top Rail during the Top Rail

Assembly process. (Refer to spacing diagram and graphic found above)

Step 3: Insert and tighten (4) 3/8” x 3/8” set screws into each of the Triple End

Sleeves using Allen Wrench provided.

Step 4: Slide smaller diameter part of shorter top rail into the open end of the

longer top rail which is already attached to triple end.

Step 5: Insert and tighten additional set screws to join top rails together

Step 1

Step 2

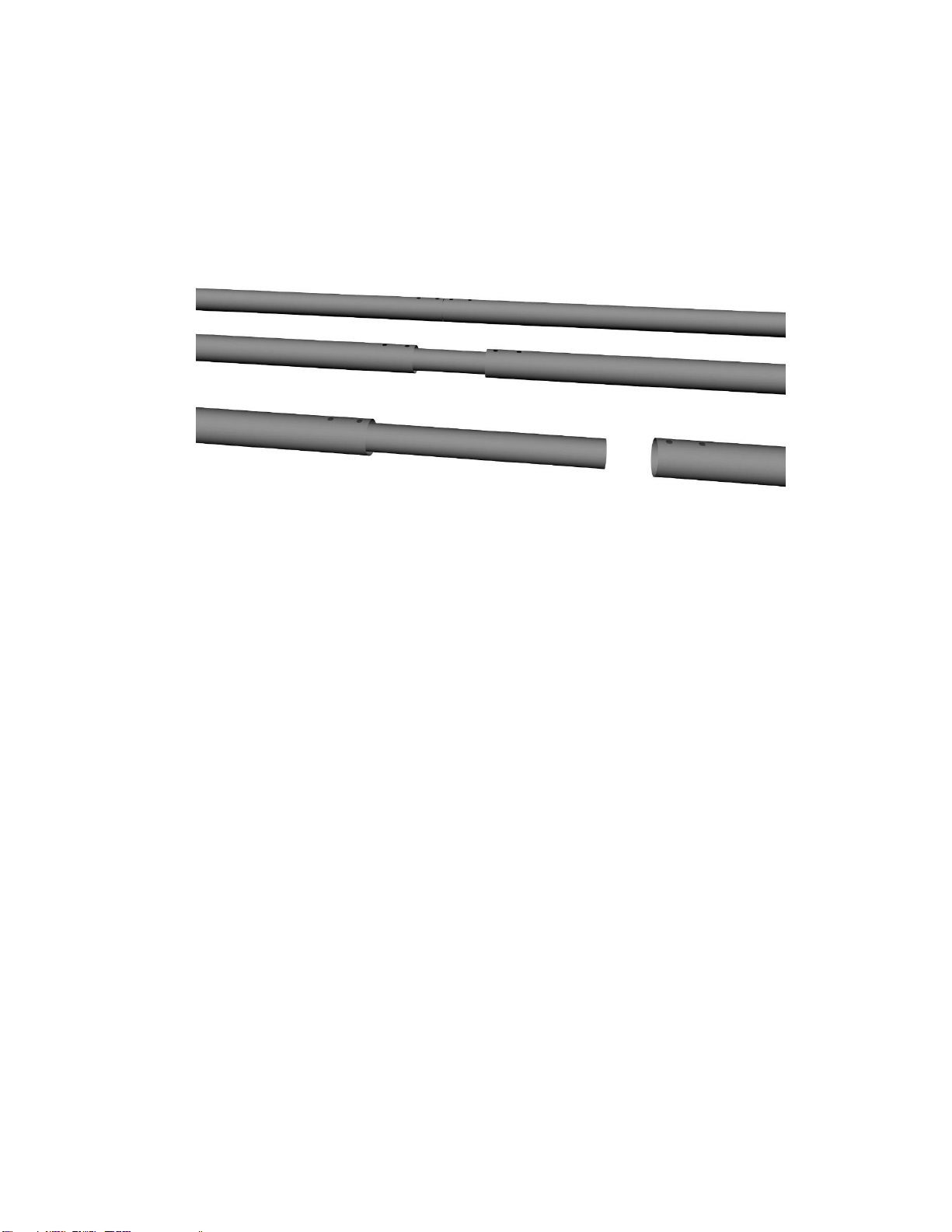

Two piece Top Rail

Assembly

*Make sure to line up the set screws so they make a straight line

as show in the graphic above.

Step 1:

Step 2:

Step 3:

Model MT40

GROUND SPACE 19’ X 15’

MINIMUM RESIDENTIAL

PLAY SPACE 23’ X 24’

Model MT40 Continued

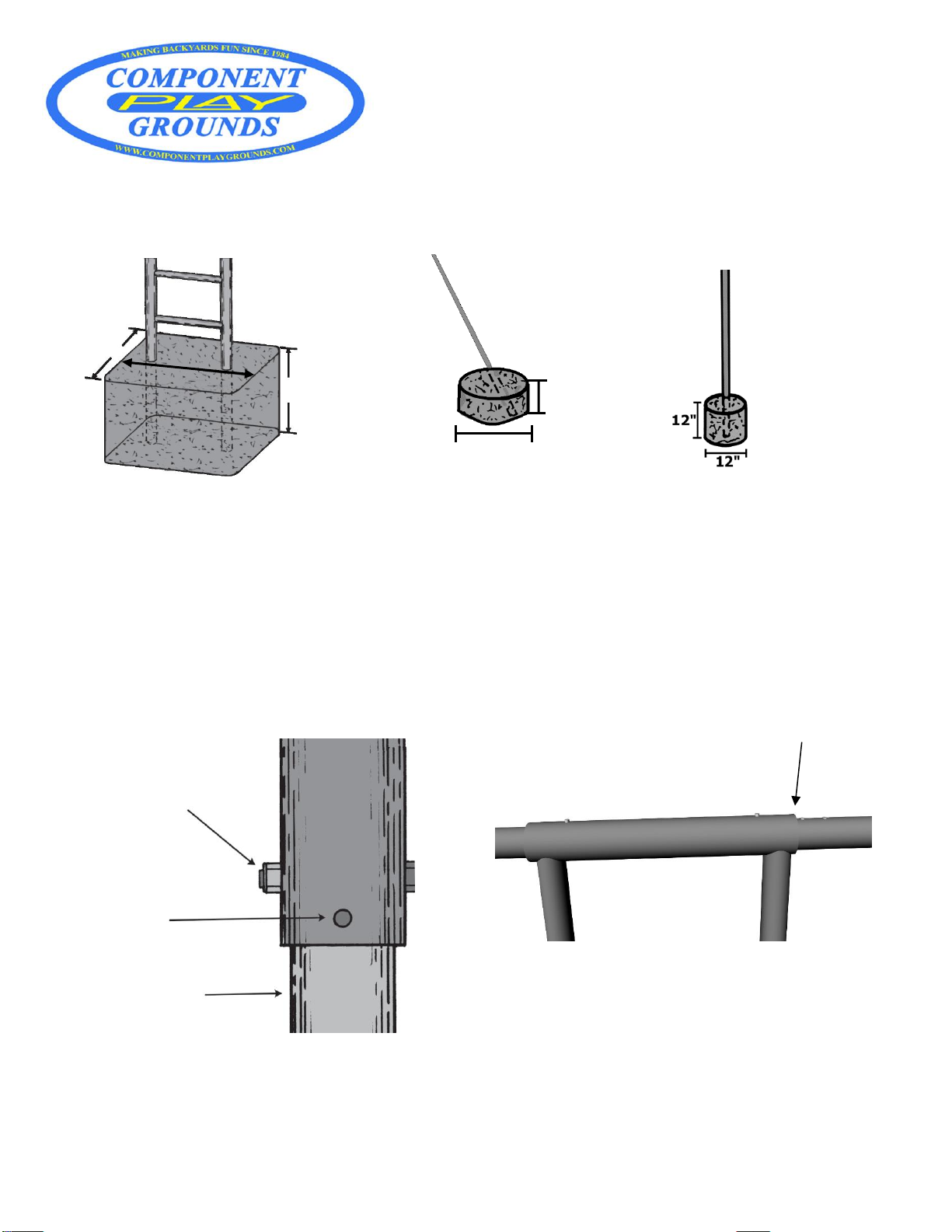

Installation Instructions

Holes 28”x20”x24”

(approx. 6-7 80 lb bags of

concrete mix)

(A) Upright Ladder

24”

20”

28”

(B) A Frame Legs

Holes 18” wide x 12”

deep (approx. 1 ½ 80

lb bags concrete mix

per hole.)

12”

18”

#1 Hole Sizes for Cementing in the Set

#2 A Frame Leg Assembly

3/8” x 2 ¾” Hex Bolt

with 3/8” Nyloc Nut

(1 each per leg)

3/8” x 3/8”

Set Screw

(1 each per leg)

Slide in leg, bolt in

place and secure

with set screw

A Frame

Leg

Slide Top Rail joint into

place about 1 inch inside

the Ladder Top Sleeve &

secure with two 3/8” x 3/8”

Set Screws

Ladder

#3 Ladder to Top Rail Assembly

Triple

End

Turning Bar

Holes 12” x 12”

deep (Approx. one

80 lb. bag of

concrete mix per

hole)

Set screw holes

Set screws

Top rail

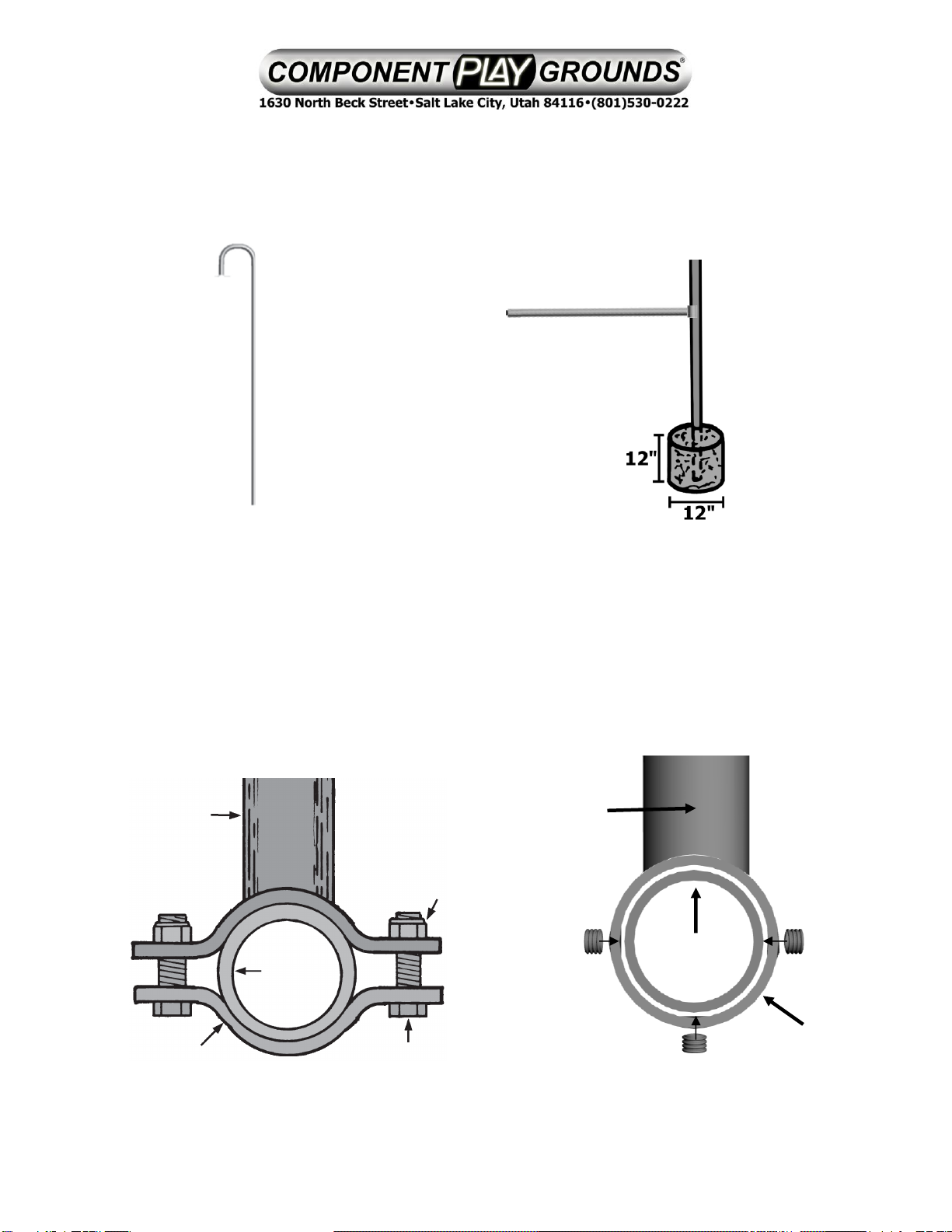

Installation Instructions

MT Turning Bar and Fire Pole add on

MT Fire Pole

Turning Bar

(Approximately one 80 lb.

bag of concrete mix)

• Determine Desired Location of Fire Pole on the Top Rail, or the

Turning Bar on the Upright Ladder Leg.

• Determine location of hole and dig hole as shown below.

• Clamp Fire Pole or Turning Bar into position, level and cement in

ground.

Turning Bar / Fire Pole

Turning Bar

Tighten

until clamps

are snug

against rail

Fire Pole or

Turning Bar

3/8” Nyloc

Nut

Top Rail or

Ladder Leg

2 3/8” Clamp

3/8 x 1 ½” Bolt

1 5/8” x 48”

Cross Piece

72” Upright

2 7/8” x 3” Sleeve

Set Screw
