Compaq StorageWorks NAS B3000 Instruction Manual
StorageWorks by Compaq
NAS B3000
Connection
NOTICE
© 2002 Compaq Information Technologies Group, L.P.
Compaq, the Compaq logo, and StorageWorks are trademarks of
Compaq Information Technologies Group, L.P.
All other product names mentioned herein may be trademarks of their
respective companies.
Compaq shall not be liable for technical or editorial errors or omissions
contained herein. The information is provided “as is” without warranty
of any kind and is subject to change without notice. The warranties for
Compaq products are set forth in the express limited warranty statements
accompanying such products. Nothing herein should be construed as
constituting an additional warranty.
Printed in the U.S.A.
StorageWorks NAS B3000 by Compaq
Connection Reference
First Edition (February 2002)
Part Number: 274867-001
Compaq Computer Corporation
274867- 001
Thank you for purchasing your new StorageWorksTM NAS
B3000 by Compaq.
The NAS B3000 introduces customers to the benefits of a
network attached storage (NAS) device. The NAS B3000 comes
with all device, storage, and software components needed for
immediate deployment into the workplace. It is optimized for
managing file services and data storage to a variety of clients
and devices running different operating systems. The NAS
B3000 is designed for customers who have rapidly growing
storage needs and are looking for ways to simplify
administration and improve performance and reliability in a
multiprotocol file-serving environment.
This poster is designed to demonstrate all the different
connection configurations that are available with your new
StorageWorks NAS B3000.
This poster provides the following
connection information:
·Port connectors
·Storage enclosure rear panel
·Connection options
Device Port Connectors
654321
7
1 2
3456
Device Port Connectors
Item Connector
1
Ethernet port 3
2
Ethernet port 2
3
Ethernet port 1
4
Ethernet port 0
5
Host bus adapter (HBA)
6
Host bus adapter (HBA)
7
LAN connector (for the RIB)

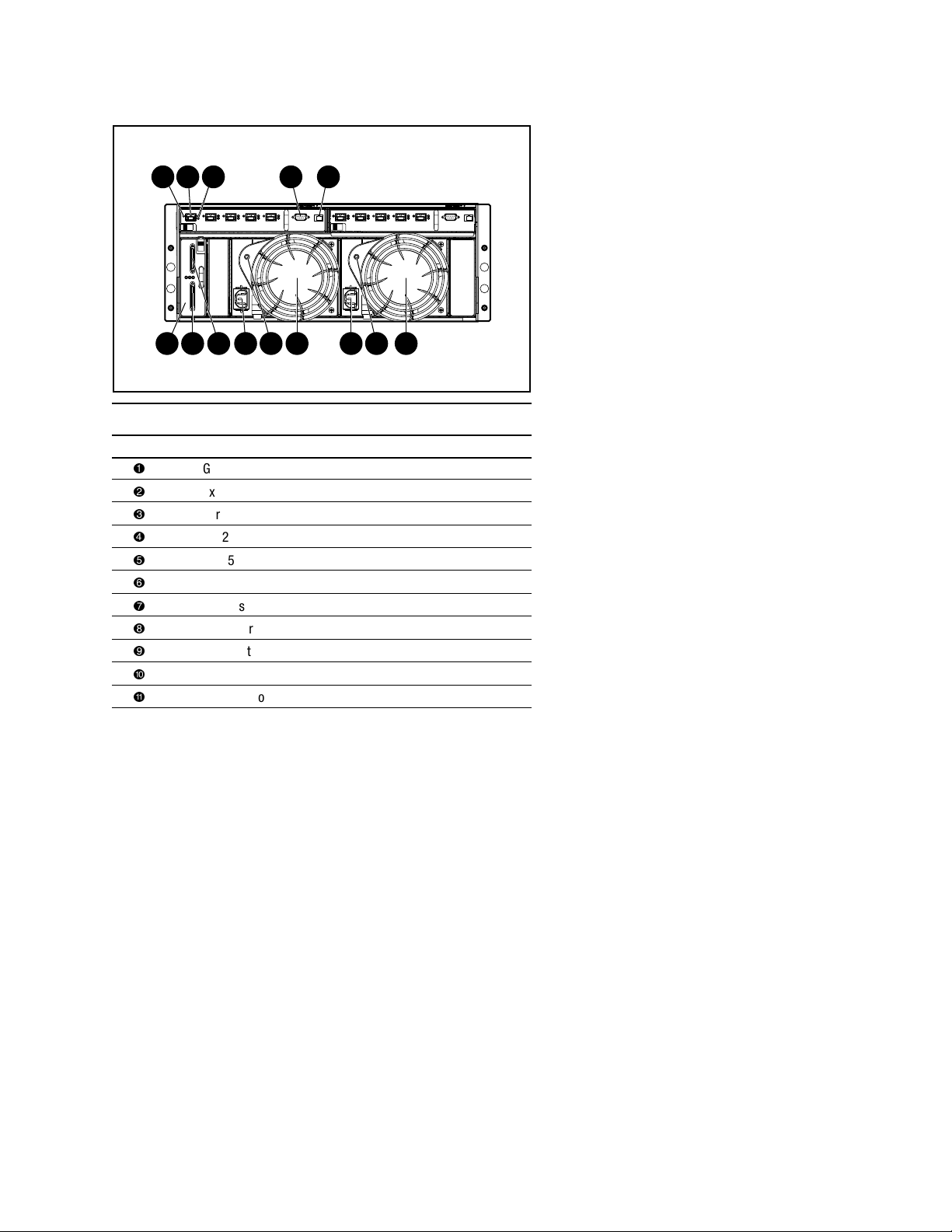

Storage Enclosure Rear Panel
1 3 4 5
67867810 911
2
Storage Enclosure Rear Panel
Reference # Identifier
1
Global service indicator
2
External port
3
Port link indicators (2)
4
RS-232 DB-9 serial port
5
RJ-45 Ethernet connector
6
Power supply/blower assemblies
7
Power supply/blower assembly indicators
8
AC power cord connectors
9
SCSI port A connector
-
SCSI port B connector
q
SCSI I/O module with an integrated EMU
Symbols on Equipment
Read the "About This Guide" chapter in the StorageWorks NAS
B3000 Quick Start Guide for definitions of the safety warning
symbols.
Connection Configurations
The following configurations are available to you with your
NAS B3000:
IMPORTANT Do not connect the storage enclosure until the SAN connection
wizard has completed.
N900 (non clustered)
654321
1. Connect the device to the external switches by attaching the
host bus adapter (HBA) to the designated switch port using a
fiber cable.
2. Connect the external switch to the storage enclosure using a
fiber cable.
N900 (non clustered)
654321
Connect the device to the I/O module on the storage enclosure
by attaching the HBA to the 2-GB Small Form Factor Pluggable
(SFP) Transceiver using a fiber cable.
N900s (non clustered with embedded
switch)
654321
Connect the device to the internal switch on the storage
enclosure by attaching the HBA to the designated switch port
using a fiber cable.
C900 (clustered)
654321 654321
1. Connect the two devices together by placing the Ethernet
connection (interconnect) into Eth Port 0 of each device.
2. Connect the device to the external switches by attaching the
host bus adapter (HBA) to the designated switch port using a
fiber cable.
3. Connect the external switch to the storage enclosure using a
fiber cable.
C900s (clustered with embedded switch)
654321 654321
1. Connect the two devices together by placing the Ethernet
connection (interconnect) into Eth Port 0 of each device.
2. Connect the devices to the internal switch on the storage
enclosure by attaching the HBAs to the designated switch
ports using a fiber cable.
NOTE: Some components are optional. The model you purchased may or may not
contain all components illustrated.
