Compaq V710 User manual
User’s
Guide
Compaq V710 Color Monitor
191716-001
1
•
Notice
Compaq Computer Corporation shall not be liable for technical or editorial
errors or omissions contained herein. The information in this guide is
subject to change without notice.
© 2000 Compaq Computer Corporation. Except for use in connection with the
accompanying Compaq prodcut, no part of this guide may be photocopied or
reproduced in any form without prior written consent from Compaq Computer
Corporation.
COMPAQ and the Compaq logo Registered in U.S. Patent and Trademark Office.
ENERGY STAR is a U.S. registered mark.
Microsoft, Windows, Windows NT, and other names of Microsoft products
referenced herein are trademarks or registered trademarks of Microsoft
Corporation.
All other product names mentioned herein may be trademarks and/or registered
trademarks of their respective companies.
The following word and symbols mark special messages throughout this guide:
User’s Guide
Compaq V710 Color Monitor
Compaq Computer Corporation
WARNING: Text set off in this manner indicates that
failure to follow directions could result in bodily harm
or loss of life.
CAUTION: Text set off in this manner indiciates that
failure to follow directions could result in damage to
equipment or loss of information.
First Edition (May 2000)
Part Number 191716-001
!
Notice1.fm Page 1 Tuesday, April 11, 2000 2:55 PM
2
Safety Instructions
1Before connecting the AC power
cord to an outlet, make sure the
voltage designation on your monitor
corresponds to the local electrical
supply.
2Never insert anything metallic into
the monitor openings. Doing so may
create the danger of electric shock.
3To avoid electric shock, never touch
the inside of the monitor. Only a
qualified technician should open the
monitor’s case.
4Never use your monitor if the power
cord has been damaged. Do not allow
anything to rest on the power cord,
and keep the cord away from areas
where people can trip over it.
5Be sure to hold the plug, not the cord,
when disconnecting the monitor from
an electric socket.
6Openings in the monitor cabinet are
provided for ventilation. To prevent
overheating, these openings should
not be blocked or covered. Also,
avoid using the monitor on a bed,
sofa, rug, or other soft surface. Doing
so may block the ventilation
openings in the bottom of the
cabinet. If you put the monitor in a
bookcase or some other enclosed
space, be sure to provide adequate
ventilation.
7Put your monitor in a location with
low humidity and a minimum of
dust.
8Do not expose the monitor to rain or
use it near water (in kitchens, near
swimming pools, etc.). If the monitor
accidentally gets wet, unplug it and
contact an authorized dealer
immediately. You can clean the
monitor with a damp cloth when
necessary, but be sure to unplug the
monitor first.
9Place the monitor on a solid surface
and treat it carefully. The screen is
made of glass and can be damaged if
dropped, hit or scratched.
10 Locate your monitor near an easily
accessible AC outlet.
11 If your monitor does not operate
normally – in particular, if there are
any unusual sounds or smells coming
from it – unplug it immediately and
contact an authorized dealer or
service center.
12 High temperatures can cause
problems. Don’t use your monitor in
direct sunlight, and keep it away
from heaters, stoves, fireplaces, and
other sources of heat.
13 Unplug the monitor when it is going
to be left unused for an extended
period of time.
14 Unplug your monitor from the AC
outlet before any service.
CAUTION
RISK OF ELECTRIC
SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Safety.fm Page 2 Tuesday, April 11, 2000 2:55 PM

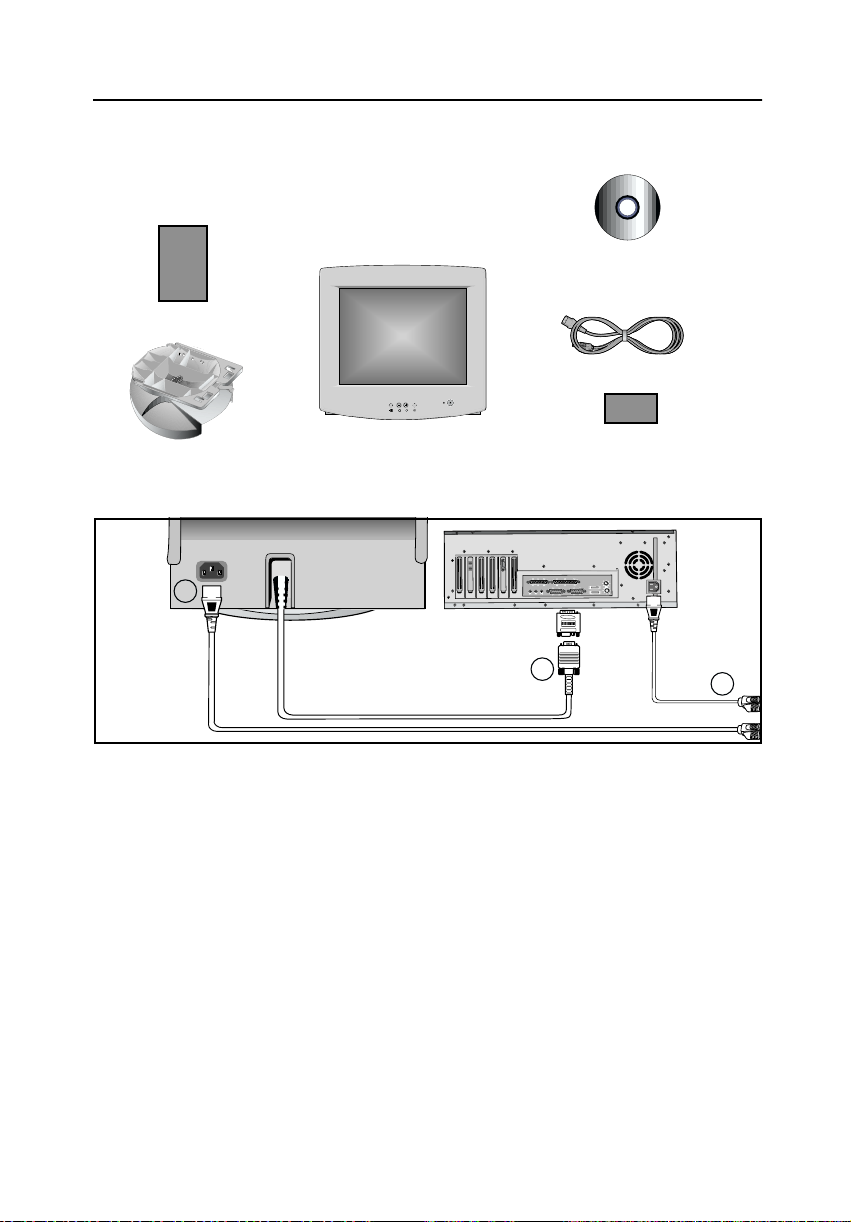

3
Compaq V710 Color Monitor
Please make sure the following items are included with your monitor. If any items are missing, contact
your dealer.
Connecting Your Monitor
1
Turn off your computer and unplug the
power cord.
2
Signal cable
Connect the end of the signal cable to
your computer’s video port (Video board,
video card, or graphics card).
3
Power port
Connect the power cord for your monitor
to the power port on the back of the
monitor.
4
Power cords
Plug the power cord for the monitor and
the power cord for your computer into a
nearby outlet.
5
Turn on your computer and monitor. If
your monitor displays an image,
installation is complete.
6
Install monitor driver
•
Insert the provided CD-ROM.
•
Refer to the Readme file on
the CD-ROM.
Guide
Stand Monitor
Power Cord
Warranty card
(Not available in all locations)
Driver and Documentation
CD-ROM
EXIT
EXIT MENU
MENU
MENU
3
4
2
body.fm Page 3 Tuesday, April 11, 2000 2:51 PM

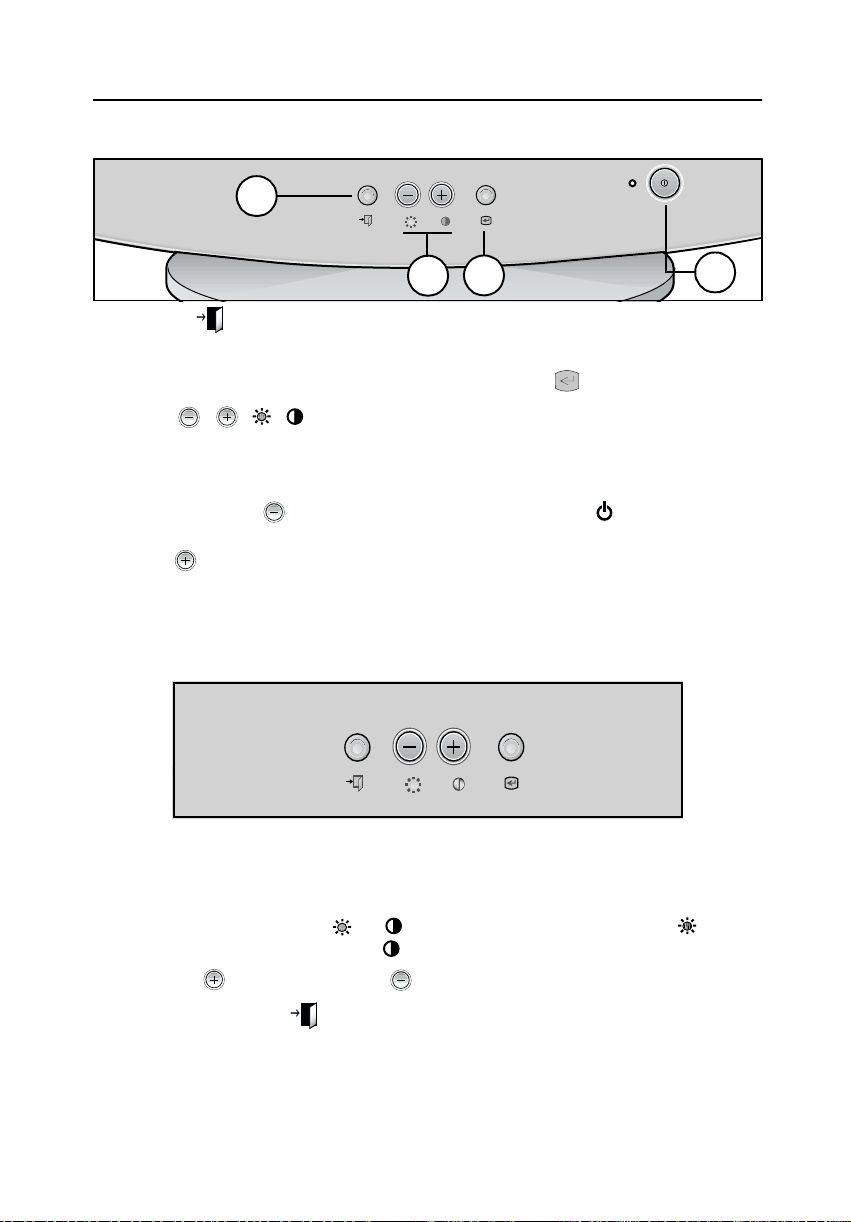

4
FrançaisEspañolDeutschItaliano EnglishPortuguese
Compaq V710 Color Monitor
Front Panel
1
EXIT ( ) button
Closes the on-screen menu. It is also used
to return to the previous menu when using
the on-screen menu system.
2
The / ( / ) buttons
These buttons allow you to select and
adjust items using the on-screen menu.
When adjusting an item using the on-
screen menu, the button lowers the
value of the selected function.
The button raises the value of the
selected function. These buttons are also
direct access buttons for the Contrast and
Brightness feature controls. (See the
section below on Direct Access Buttons.)
3
MENU ( ) button
Opens the on-screen menu. It is also used
to select a highlighted function, open a
sub-menu, or move between menus when
using the on-screen menu system.
4
Power button
The power button turns the monitor on
and off. The power indicator light glows
green during normal operation.
Direct Access Buttons
Most of the adjustments you make to your monitor will be accessed through the on-screen menu
described in the next section. The Contrast and Brightness features can also be accessed directly from
the front of your monitor.
1
With the menu off, press the or button on the front of your monitor. The button
accesses the Brightness feature. The button accesses the Contrast feature.
2
Push the button to increase or the button to decrease the value of the selection.
3
Press the EXIT button twice to exit the on-screen menu.
EXIT
EXIT MENU
MENU
MENU
1
234
EXIT
EXIT MENU
MENU
MENU
body.fm Page 4 Tuesday, April 11, 2000 2:51 PM
5
Operation
On-screen Menu System
Your monitor has an on-screen menu system, accessed by the buttons on the front of your monitor, that
allows you to adjust characteristics of the screen image. Display changes are indicated by on-screen
adjustment icons. Some functions have sub-menus.
1
Push the menu button to display the main menu.
Function icons are arranged across the top of the on-screen menu.
2
Push the or button to move through the icons.
The name of the function will appear below the rows of function icons.
3
To select a function or open a sub-menu, push the button. The screen will display the
options for adjustment. If there is a sub-menu, use the or button to highlight the feature
you want to adjust, then push the button to select it.
4
Use the and buttons to make adjustments. increases values and decreases
values. On-screen calibration numbers show the effect of your adjustment. If you are in a sub-
menu, use the EXIT button to return to the previous menu.
5
Push the EXIT button to exit and save your changes.
:
:
Brightness
Access Function
Exit Menu
Function selection
and
Menu navigation
Function icons
Active function
Adjustment icons
body.fm Page 5 Tuesday, April 11, 2000 2:51 PM
6
FrançaisEspañolDeutschItaliano EnglishPortuguese
Operation
Icon Monitor Function Control
Brightness
Background brightness of screen.
-– Decreases brightness
+ Increases brightness
Contrast
Contrast of screen image.
-– Decreases contrast
+ Increases contrast
Horizontal Position
Horizontal screen position.
-– Moves screen left
+ Moves screen right
Vertical Position
Vertical screen position.
-– Moves screen down
+ Moves screen up
Horizontal Size
Horizontal screen size.
-– Decreases size
+ Increases size
Vertical Size
Vertical screen size.
-– Decreases size
+ Increases size
:
Brightness
Access Function
:
Contrast
Access Function
:
H-Position
Access Function
:
Access Function
V-Position
:
Access Function
H-Size
:
Access Function
V-Size
body.fm Page 6 Tuesday, April 11, 2000 2:51 PM
7
Operation
Icon Monitor Function Control
Pincushion
Straightens screen vertical edges.
-– Curves image inward
+ Curves image outward
Geometry
Trapezoid
Width of top and bottom of screen.
-– Widens bottom of screen
+ Widens top of screen
Parallelogram
-– Skews screen image left
+ Skews screen image right
Rotation
-– Rotates entire screen left
+ Rotates entire screen right
Pinbalance
-– Curves vertical lines to left
+ Curves vertical lines to right
V-Linearity
-– Compresses image at top of screen
+ Compresses image at bottom of screen
1.
2.
:
Pincushion
Access Function
:
:
Geometry
Access Function
Exit Menu
+ - :
:
Trapezoid
Select Function
Previous Menu
body.fm Page 7 Tuesday, April 11, 2000 2:51 PM

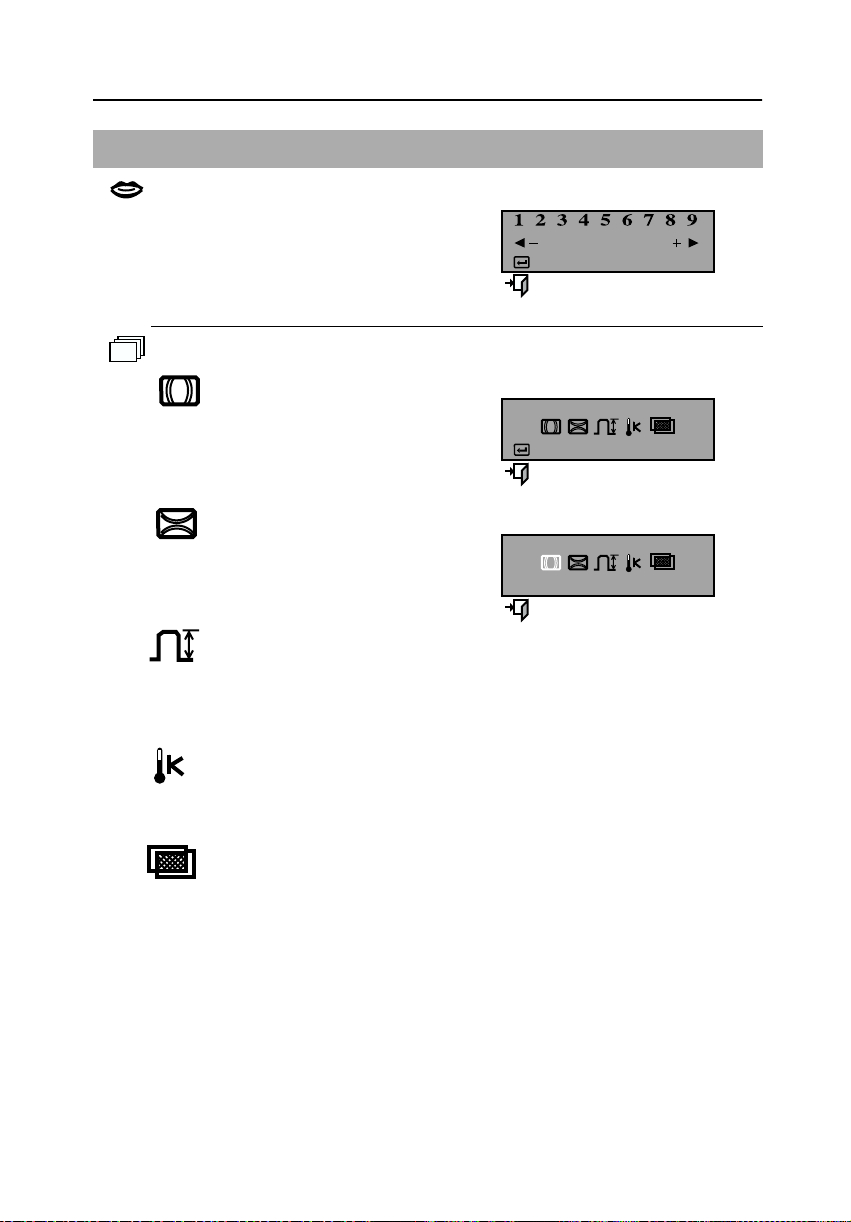

8
FrançaisEspañolDeutschItaliano EnglishPortuguese
Operation
Icon Monitor Function Control
Language
-– and + scroll through on-screen
language options.
(English/ Deutsch/ Francais/ Italiano
Português/ Español/ Svenska/ Russian/
Korean)
Advanced
H- Moiré
Corrects for on-screen moiré
pattern.
-– and + clear Horizontal Moiré
V- Moiré
Corrects for on-screen moiré
pattern.
-– and + clear Vertical Moiré
Video Input Level
Selects the video signal level
-– Select 0.7 V
+ Select 1.0 V
Color Temperature
-– 9300k more blue
+ 6500k more red
Halftone
-– Off
+ On
1.
2.
:
:
Language
Access Function
Exit Menu
English
:
:
Advanced
Access Function
Exit Menu
+ - :
:
H-Moiré
Select Function
Previous Menu
body.fm Page 8 Tuesday, April 11, 2000 2:51 PM

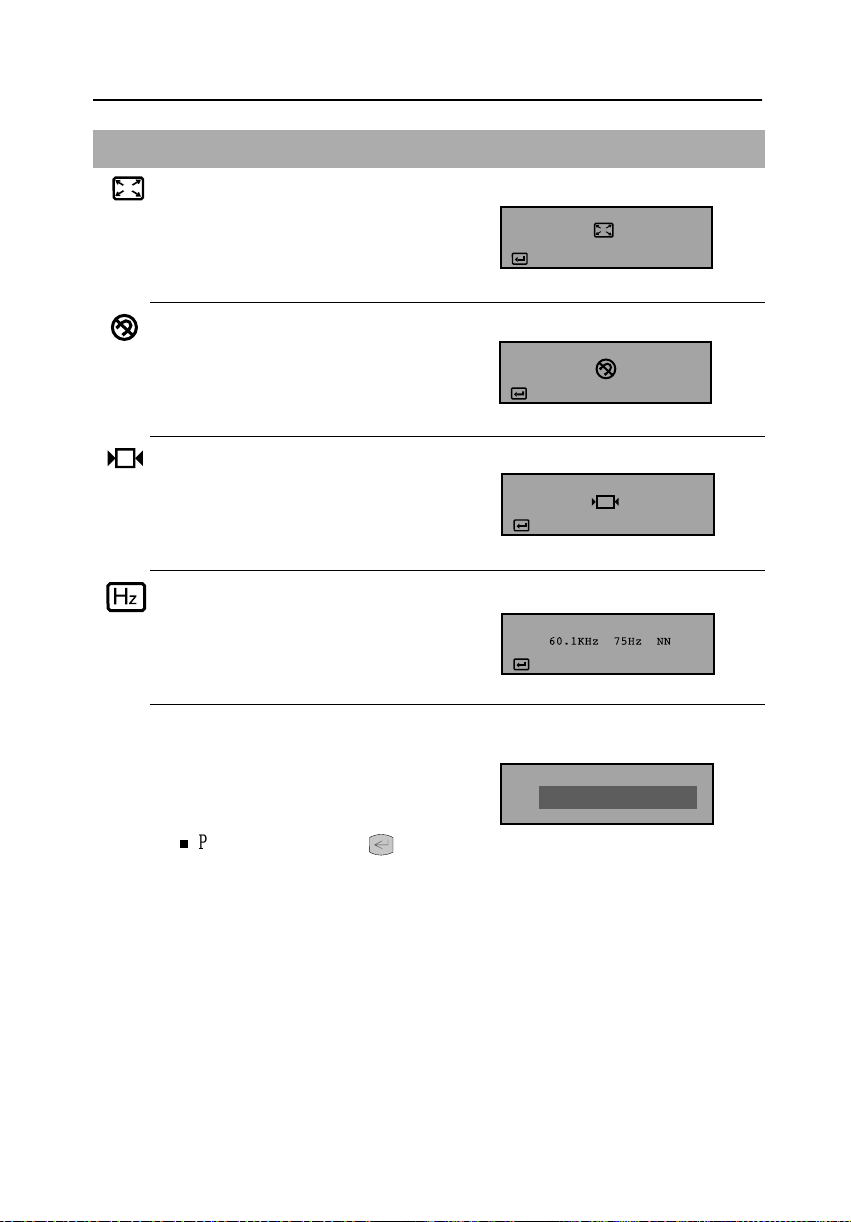

9
Operation
Icon Monitor Function Control
Zoom
-– Reduces view of display area
+ Enlarges view of display area
Degauss
Removes color distortion caused by
magnetic fields. Do not use more than
once in 30 minutes.
Recall
Returns monitor to original settings.
-– No
+ Yes
Display Timing
Monitor display settings.
-– Factory timing
+ User timing
OSD Lock/Unlock
Allows you to secure the current control
settings so that they cannot be inadvertently
changed. You can unlock the OSD controls at
any time by using the same procedure.
Push and hold the Menu ( ) button for
10 seconds or more to Lock or to Unlock.
OSD Lock/Unlock
:
Zoom
Access Function
:
Degauss
Access Function
:
Recall
Access Function
:
Display Timing
User Mode
Control Lock
Locked
body.fm Page 9 Tuesday, April 11, 2000 2:51 PM
Table of contents
Other Compaq Monitor manuals
Compaq
Compaq S920 User manual
Compaq
Compaq Q2022a User manual
Compaq
Compaq 307713-001 - V 75 - 17" CRT Display User manual
Compaq
Compaq 5017 - TFT - 15" LCD Monitor User manual
Compaq
Compaq 5700 User manual
Compaq
Compaq TFT500 User manual
Compaq
Compaq V70 User manual
Compaq
Compaq TFT1701 User manual
Compaq
Compaq P700 User manual
Compaq
Compaq TFT1720 User manual
Compaq
Compaq CV5500 User manual
Compaq
Compaq Compaq Q2159 User manual
Compaq
Compaq S900 User instructions
Compaq
Compaq TFT5000S User instructions
Compaq
Compaq TFT8030 User manual
Compaq
Compaq V40 User manual
Compaq
Compaq 2025 User manual
Compaq
Compaq MV-920 User manual
Compaq
Compaq Compaq P1610 User manual
Compaq
Compaq W19Q User manual
