Command Communications SS900 Manual
Table of Contents
Introduction …………………………………. 1
Unpacking the SS900……..……………….. 1
Connecting the SS900…………………….. 2, 3
Connecting each device
to the SS900…….……………………………. 3 - 5
Sound Card………………………………… 3
CD Player………..…………………………… 4
Voice Modem………………………………. 4
Stand Alone Speakers……………………… 5
Stand Alone MIC……………………………. 5
Using the SS900…………………………….. 6, 7
Audio………………………………………. 6
Telephone Conversations ………………….. 6, 7
Compatibility with other Command
Products………...……………………………. 7 – 11
Connecting the SS900 to ComSwitch®….…. 7, 8
Connecting the SS900 to HotCall®…………… 8
Connecting the SS900 to the HC4000..…….… 9
Connecting the SS900 to the HC2000..…….… 10
Connecting the SS900 to the HC2000..…….… 11
One Year limited warranty/
Service information………………………… 12 – 13
Registration information………………….. 13
FCC Rules Part 15—
Computing Devices………………………… 14
Industry Canada information…………….. 14, 15
International return policy………………… 15
Introduction
Thank you for purchasing the SoundSwitcher (SS900).
The SS900 is designed to operate and connect to virtually
any type of audio device with 3.5 mm plugs. Below are
some examples of the types of equipment that can be
connected:
zStereos zFM Cards
zCD Players zSound Cards
zVoice Modems zBoom Box
Most audio equipment with 3.5mm plugs
Unpacking the SS900
When you open the SS900 box for the first time, you
should find the following items:
If any of these items are damaged or missing, contact the
dealer where you purchased the unit, or call the number
listed in the “Service Information” section of this guide.
SS900 Operator’s Guide
Connecting the SS900
According to standard industry practice, surge protection
is recommended for the power and the telephone line
connections.
The rear panel of the SS900 includes seven (7) 3.5mm
jacks and one (1) telephone jack.
Plug one end of the provided telephone cable into the
SS900 jack labeled Line In. Plug the other end of this
cable into the telephone wall jack.
NOTE: You will need as many stereo 3.5mm patch cords
for the equipment you wish to connect. There are a variety
of these cables at your local electronics store. Some cables
have one wire and two plugs (one plug at each end of the
cable) or two wires and four plugs (two wire cable with a
plug at each end of each cable). You may use either of
these cables to connect equipment to the SS900. Be sure
that you purchase stereo cables instead of mono cables.
S
S9000 Operator’s Guide 2
NOTE: Sound cards, FM cards, and other computer
equipment may not be labeled with words, they may be
labeled with symbols. Refer to each product’s manual for
labeling.
Connecting each device to the SS900
Sound Card: Connect to SS900 jacks labeled Sound
Card. Using the provided 3.5mm cable, plug one end into
the SS900 jack labeled Speaker In. Plug the other end of
this same cable into the sound card jack labeled “Speaker
Out.” Using the other side of this cable, connect one plug
into the SS900 jack labeled MIC Out; plug the other end
of this same cable into the sound card jack labeled “MIC
IN.”
SS900 Operator’s Guide
CD Player (or FM Card): Connect to SS900 jack
labeled ACC2 – Using a standard 2-plug 3.5mm cable,
plug one end into the SS900 jack labeled Speaker In.
Plug the other end of this cable into the CD Player jack
labeled “Speaker Out.”
Voice Modem: Connect to SS900 jacks labeled ACC1 –
Using a standard 2-plug 3.5mm cable, plug one end into
the SS900 jack labeled Speaker In. Plug the other end of
this cable into the voice modem jack labeled “Speaker
Out.” Using another 3.5mm cable, plug one end of the
cable into the SS900 jack labeled MIC Out; plug the other
end of the cable into the voice modem jack labeled
“Speaker.”
S
S9000 Operator’s Guide 4
Stand Alone Speakers: Connect to SS900 jack labeled
External Speaker – Connect the 3.5mm plug from the
speakers into the SS900 jack labeled Speaker Out
NOTE: Amplified speakers are required for this
application, and must have their own power source.
Stand Alone MIC: Connect to SS900 jack labeled
External MIC – Connect the 3.5mm plug from the MIC
to the SS900 jack labeled MIC IN
SS900 Operator’s Guide
Using the SS900
Audio
There are two ways to listen to audio using the SS900;
through the speakers, or through the headset.
First, make sure that the device or equipment you wish to
listen to is turned ON, playing and selected on the SS900
(Sound Card, ACC 1, ACC 2).
To select the headset option, push the Headset Speaker
button IN. To select the speaker option, press and release
the Headset Speaker button.
Telephone Conversations
There are three ways to have a telephone conversation:
1. Use your telephone set
2. Use the headset with a MIC
3. Using the stand alone MIC
To place a call through the SS900, press the Phone
button and use your telephone set to dial.
When using the headset to listen to audio and a call comes
in, the SS900 will provide an audible alert through one
headset speaker. Press the Phone button to answer the
call.
S
S9000 Operator’s Guide 6
When using external speakers to listen to audio, and you
hear your telephone ring, press the Phone button in. You
will hear the caller through the external speakers and you
will speak to the caller through the external MIC.
NOTE: Amplified speakers are requireded for this
application to function properly.
When receiving a Call Waiting signal, press and release
the Flash button to answer the call.
Compatibility with other Command Products
The SS900 is compatible with the ComSwitch Telephone
Line Sharing products (CS7500, CS5500, CS3500), as
well as the HotCall Internet Call Waiting Devices
(HC4000, HC3000, HC2000).
For more information on Command Communications’
products and applications, contact Customer Service at:
Phone: 800-288-6794
Fax: 303-752-1903
email: [email protected]
The following pages describe applications and connection
to these devices.
Connecting the SS900 to ComSwitch®
ComSwitch products allow a single telephone line to share
a fax, phone, answering machine and modem –
automatically.
SS900 Operator’s Guide
Table of contents

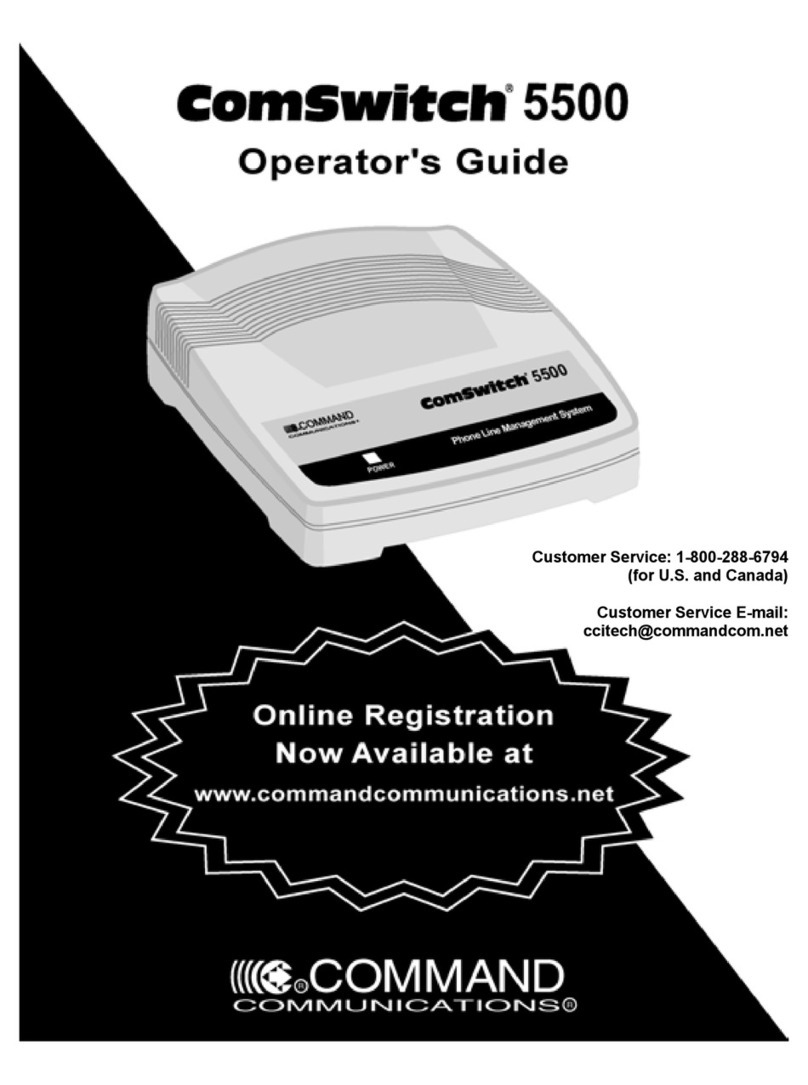

Other Command Communications Switch manuals
