Coleman Powersports RB200 Installation instructions
POWERSPORTS
CAUTION
THIS MINI BIKE WAS
SHIPPED WITHOUT
ENGINE OIL. ALWAYS
FILL WITH THE
CORRECT AMOUNT AND
GRADE OF ENGINE OIL
AS LISTED IN THE
OWNER’S MANUAL

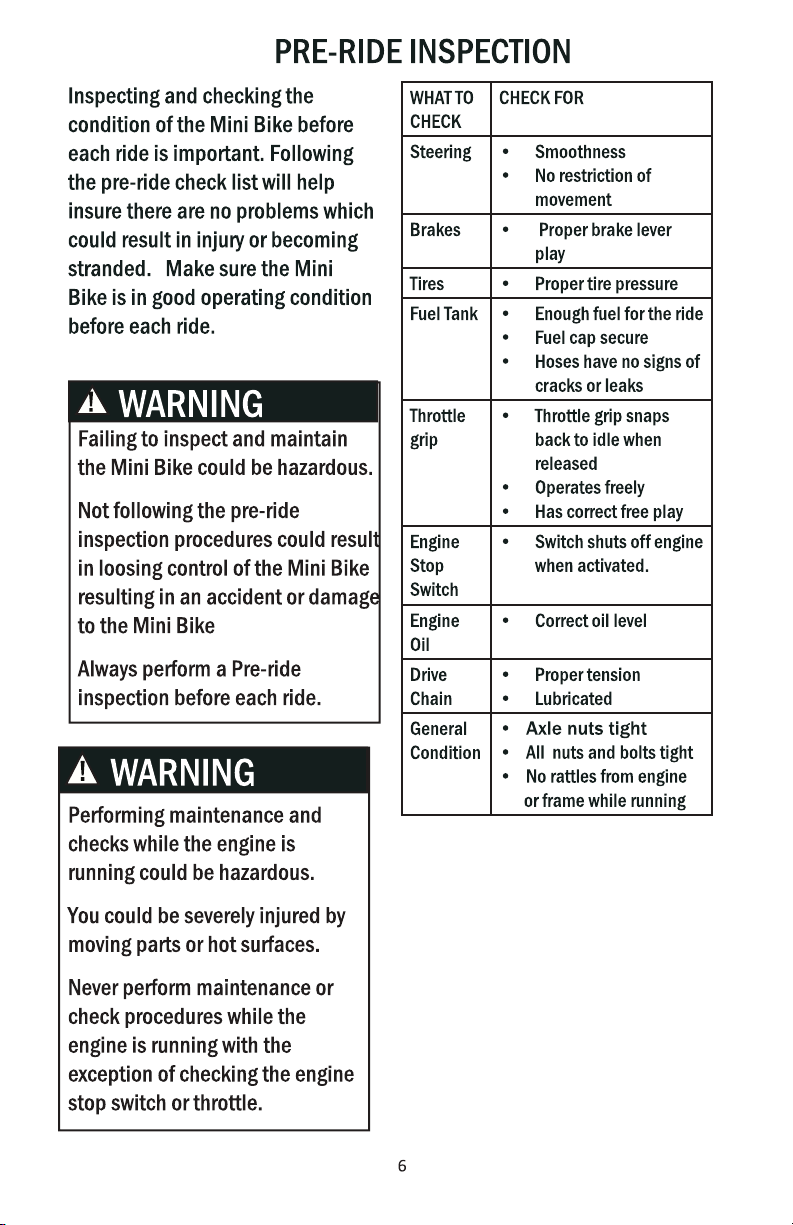

ASSEMBLY/PRE-RIDE
INSPECTION INSTRUCTIONS
NEVER ATTEMPT TO START THIS MINI BIKE WITHOUT READING
AND UNDERSTANDING THE OWNER’S/ OPERATOR’S MANUAL.
THE OWNER’S OPERATOR’S MANUAL PROVIDES INFORMATION
ON SAFETY, PARTS, FUNCTIONS, PRE-RIDE INSPECTION,
STARTING AND MAINTENANCE
WARNING
111020
For questions about these Assembly Instructions, call
Coleman Powersports toll free 888-405-8725
RB200
M6 x 16
M6
M12 Lock nut
REMOVAL FROM CRATE
HANDLEBAR ASSEMBLY
1Lift up handle bars and center
on fork assembly.
CAUTION:
While installing handlebars make sure
brake cables, throttle cable and on/off
switch wire are not kinked or pinched.
2. Attach handlebars using clamps
and M8 x 3 Bolts
Torque bolts 15 ft/lbs.
M8 x 32 Bolt
M12
s s
s
M6x16
M6
Insert pedal in right foot
peg bracket
POWERSPORTS
NEVER ATTEMPT TO START THIS MINI BIKE WITHOUT READING
AND UNDERSTANDING THE OWNER’S/ OPERATOR’S MANUAL.
THE OWNER’S/ OPERATOR’S MANUAL PROVIDES INFORMATION
PROVIDES INFORMATION ON SAFETY, PARTS, FUNCTIONS,
PRE-RIDE INSPECTION, STARTING AND MAINTENANCE
WARNING
(888) 405-8725
1775 E. University Dr., Tempe, AZ 85281
www.colemanpowersportsusa.com
www.facebook.com/colemanpowersportusa.com
www.instagram.com/colemanpowersports_usa
