cnsat Smart Antenna Selector User manual
This instruction manual provides all of the basic information you need to operate,
set up, troubleshoot, and maintain the Smart Antenna Selector unit.
Table of contents
1 Introduction
Safety Information...........................................................
System Overview.............................................................
2 Features and interface
Installation and mounting................................................
Button and connector layout............................................
3 Wiring Diagram
Application diagrams.....................................................
4 Operating instruction
Direct mode.........................................................
Smart mode.................................................
5 Using graphical interface
raphical interface information.................
1 Introduction
Safety Information
For your own safety, and for the safety of your passengers and/or
crew, be sure to read the following important notices.
WARNIN
Risk of Electric Shock
To avoid electric shock, do not open the Smart Antenna Selector chassis
enclosure.
WARNIN
Risk of Electric Shock
If any component of the Smart Antenna Selector system becomes damaged and/or
no longer functions normally, disconnect it from power, secure it from unintended
operation, and contact Technical Support.
All repairs or modifications must be performed by a trained technician.
WARNIN
Risk of Explosion
Do not operate the Smart Antenna Selector (or any other electrical device) in an
environment where flammable gases, vapors, or dusts are present.
WARNIN
Risk of Electric Shock
Failure to ground the Smart Antenna Selector system properly may cause an
unsafe floating ground condition, risking potentially lethal electric
shock. Refer to the Installation uide for details on the proper
grounding of the equipment.
System Overview
The Smart antenna selector allows to select the RF signal coming from two antennas
and route it directly to a designated TV distribution (DIRECT MODE see pag....) or
balance the same RF signal received from two antennas and route the better to each
TV distribution (SMART MODE see pag...).
The Smart Antenna Selector is designed to work with KVH TV series and HD series
antennas only
2 Features and interface
Installation and mounting
Plan the Smart Antenna Selector Installation :
-Select a mounting location in a dry,well-ventilated area away from any heat sources
or salt spray.
-The device can be mounted horizontally on a flat surface or inside a rack.
- For rack mount be sure to have enough space , the device need 3x19'' rack units
and 35 cm depth.
-Leave enough room behind the rear panel (horizontal mount) or below the rear
panel (vertical mount) to accommodate connecting the cables and making service
loops within the proper bend radius.
−Select a location where led lights and buttons will be visible to the user.
Installation
−Connect the RF cables coming from antenna A into “ANTENNA A” RF input
−Connect the RF cables coming from antenna B into “ANTENNA B” RF input
−Connect the “ ROUP A” antenna output to multiswich of a “TV DISTRIBUTION
A”
−Connect the “ ROUP B” antenna output to multiswich of a “TV DISTRIBUTION
B”

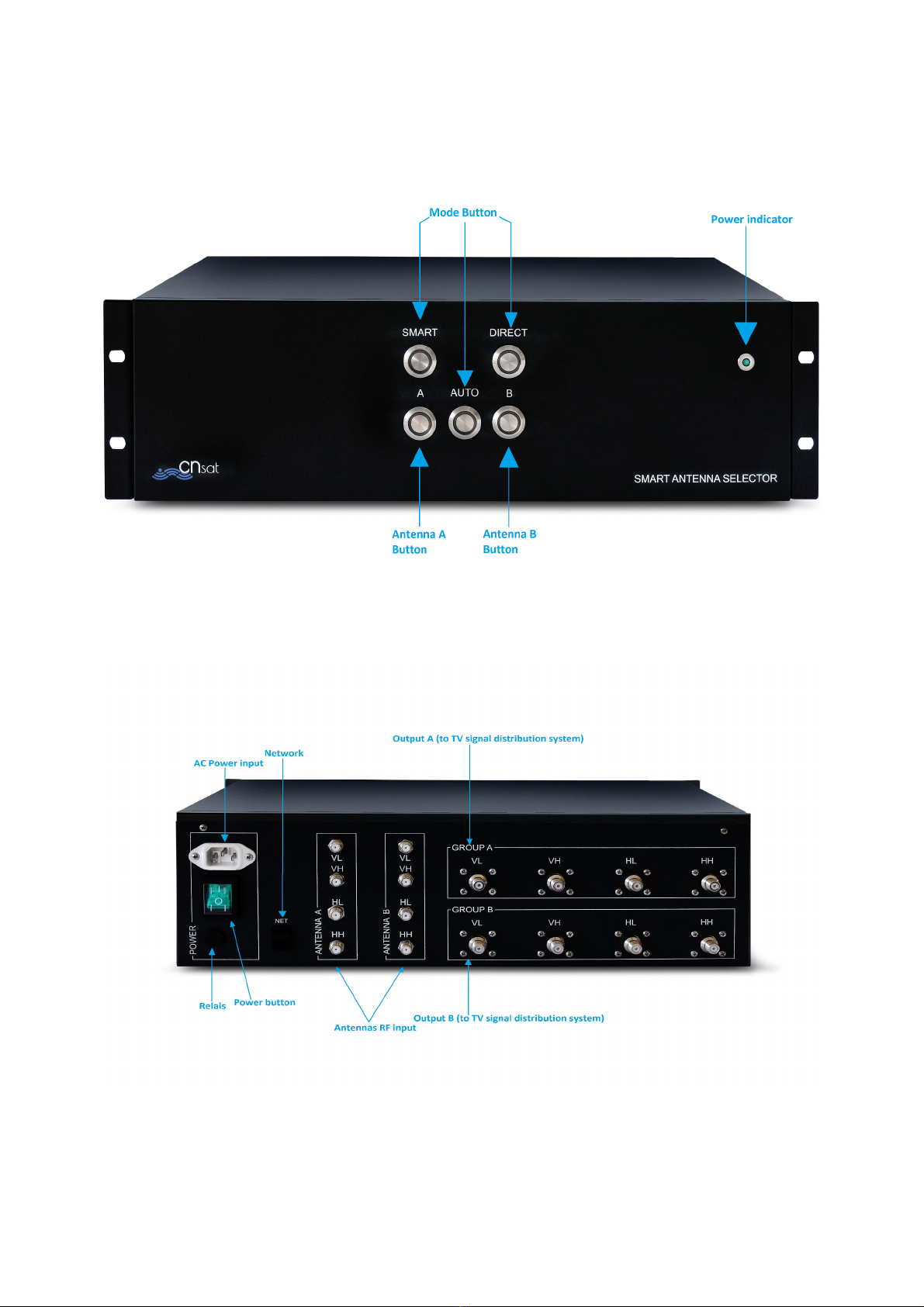

Button and connector layout
Front Panel :
Rear Panel :
3 Wiring diagrams
Application diagrams

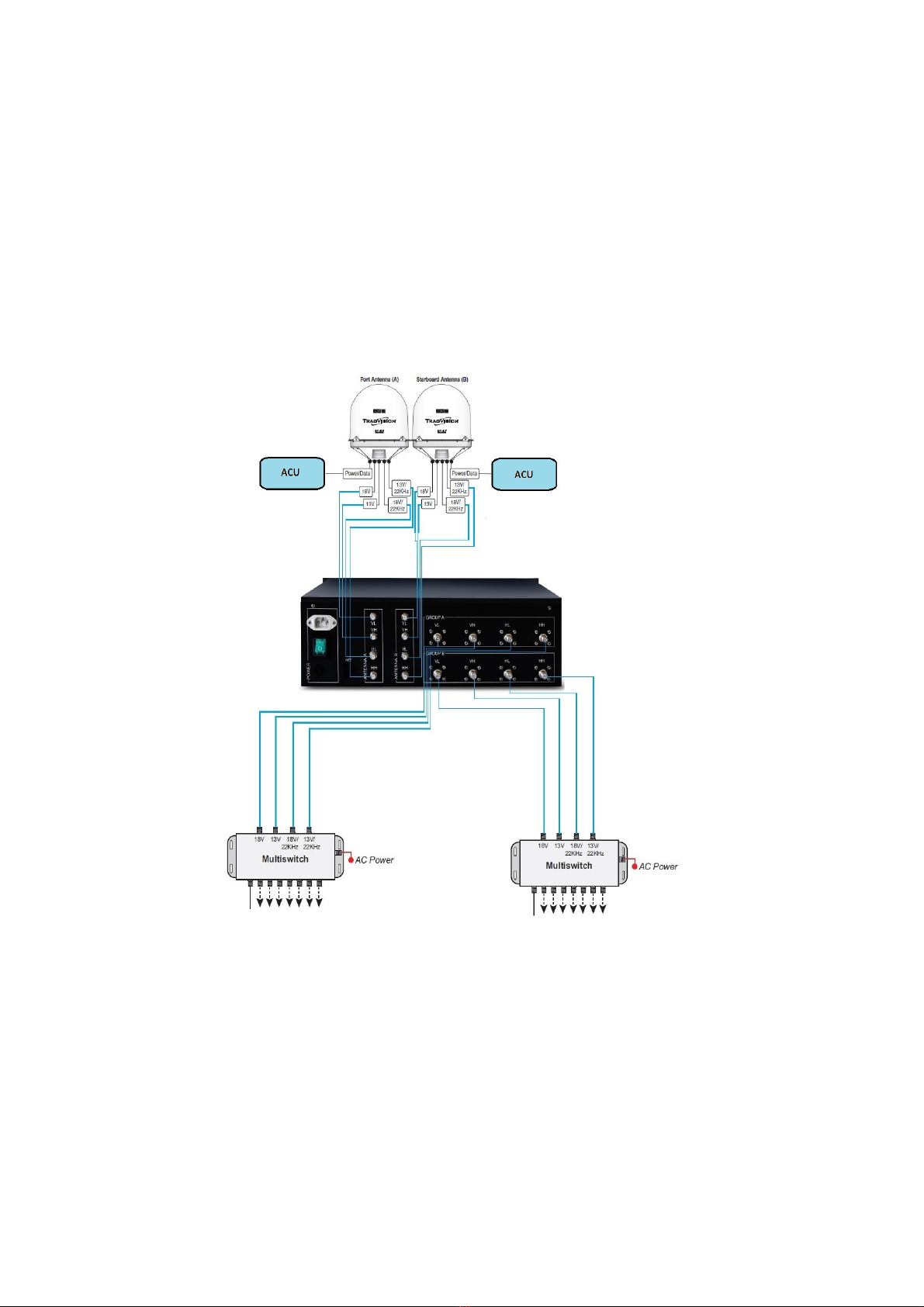

HD series connection example
TV series Connection example
4 Operating
Instruction

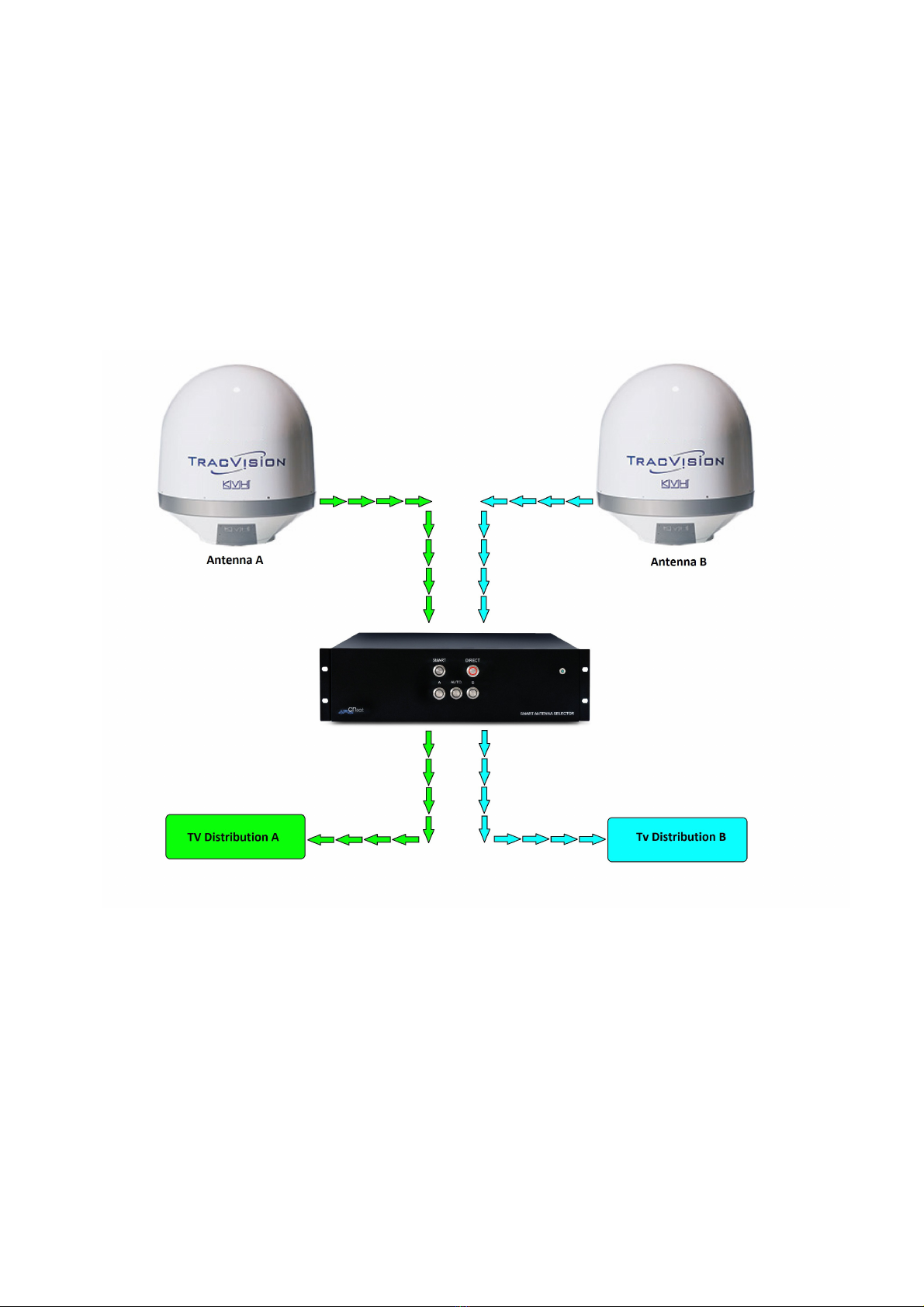

Direct Mode
This mode is useful to have the two antennas tracking different satellites and have
the two distributions working contemporary. For example, if you have a Sky UK and a
SKY Italy distributions (A and B) you have to select Astra 28E on
antenna A and Hotbird 13E on antenna B. Selecting DIRECT both distributions will
have signal and you can watch Sky UK and SKY Italy at the same time.
So, resuming antenna A supply distribution A and antenna B supply distribution B.
The vice-versa is not possible.
For use this function mode push “DIRECT” button on front panel .
