Clipper cutter User manual
NOTE: ALWAYS WEAR CUT-RESISTANT GLOVES WHEN WORKING WITH THE BELT CUTTER.
1. Remove Belt Cutter from carton and install handle using the cotter pin provided. Insert handle in the
socketuntilthegrooveinthehandlelinesupwiththecotterpinholeinthesocket.Insertandarethe
end of the cotter pin.
2. Install the 10" table extrusion by sliding the matching dovetails into the adjacent table section until it
butts up against the bottom beam. Install the three (3) 10-24 x 1-1/4" hex head screws through the
holes in the bottom beam to secure extrusion to beam.
3. Belt Cutter is now ready for use.

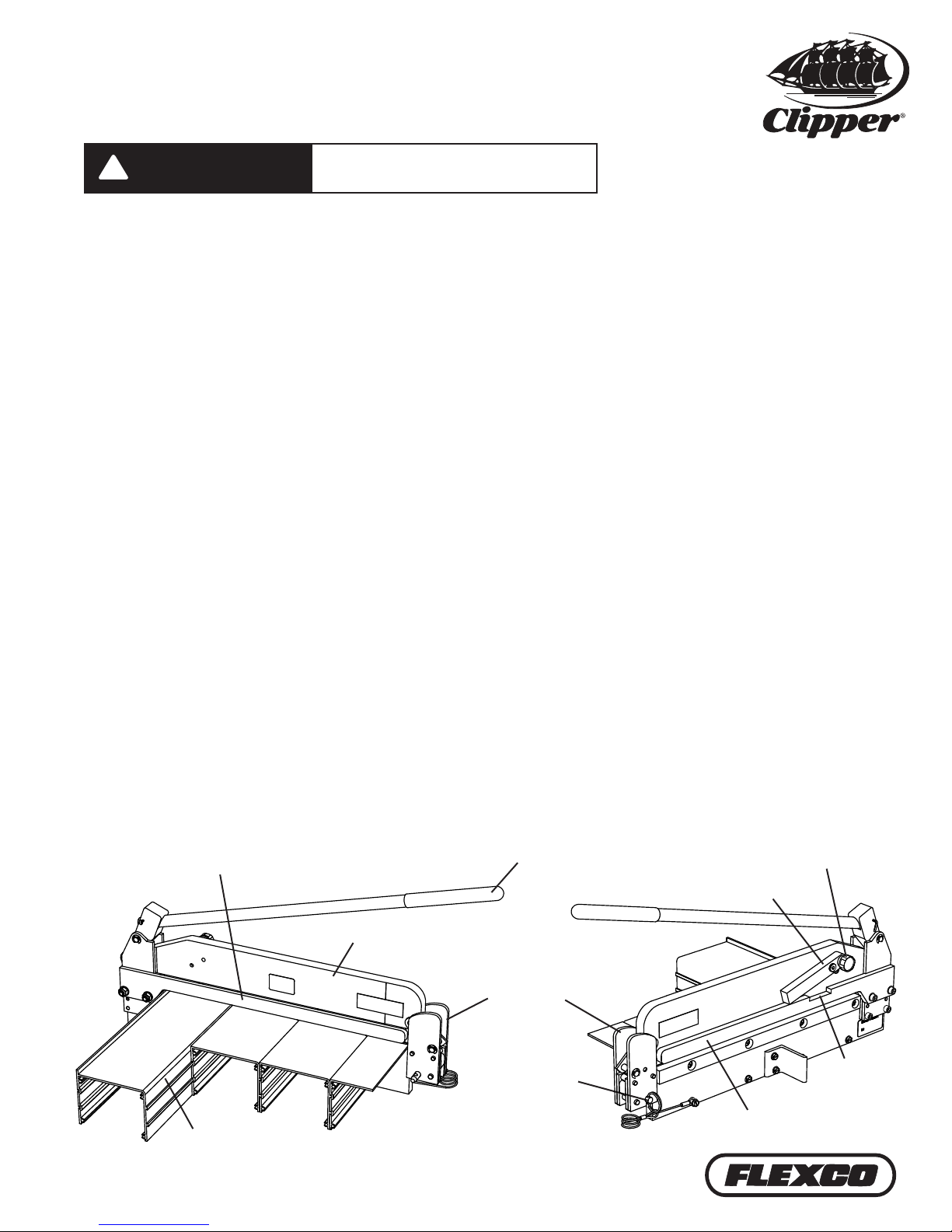

14" BELT CUTTER TABLE INSTALLATION
14" BELT CUTTER OPERATING INSTRUCTIONS
TO OPEN END BEAM - To allow a cut in the middle of a roll of belting:
NOTE: ALWAYS WEAR CUT-RESISTANT GLOVES WHEN WORKING WITH THE BELT CUTTER.
AVOID PLACING HANDS BENEATH THE BEAM, BLADE AND BEAM LATCH ASSEMBLY.
1. Lift handle to upright position.
2. To release the beam latch assembly, pull the release pin from the latch assembly.
3. Open end beam.
4. Ensure that the safety latch is positioned in the groove on the right blade guard.
TO CUT THE BELT:
NOTE: ALWAYS WEAR CUT-RESISTANT GLOVES WHEN WORKING WITH THE BELT CUTTER.
1. Insert belt under blade, ensuring that it is squared up with the 90°cutting table edge.
2. If the beam latch assembly is engaged, press handle down until belt is cut. If the top beam
is raised, lift top beam, rotate safety latch knob to disengage safety latch, lower top beam,
engage beam latch assembly, insert release pin, then press down on handle until belt is cut.
WARNING
!Keep ngers and hands away from
razor sharp blade at all times.
90° CUTTING TABLE
10" TABLE EXTRUSION
HANDLE
SAFETY LATCH
SAFETY LATCH
GROOVE
SAFETY LATCH KNOB
RIGHT BLADE GUARD
TOP BEAM
LEFT BLADE GUARD
BEAM LATCH
ASSEMBLY
RELEASE PIN
14" BELT CUTTER PARTS LIST
ITEM # DESCRIPTION ITEM # DESCRIPTION
03000 LOWER GUIDE END SPACE STUD ASSY G0710 10 - 24 X 1-1/4 HEX WASHER HEAD SCREW
03002 KNIFE BLADE LINKS GUIDE END G0722 10 - 24 X 3/8 ZN SOCKET HEAD SCREW
03004 LINK PIN G1150 SERIAL NO. LABEL
03005 LEVER SOCKET PIN G1230 GUARD SCREW
03079 RELEASE PIN LANYARD G2264 SCREW SOCKET HEAD CAP 1/4-20 x 7/16-3/8 SHLD
03196 3/32 X 1-1/2 COTTER PIN G2265 SCREW FLAT HEAD SOCKET CAP 1/4-20 x .75 BLACK
03275 STABILIZER SCREW G2266 NUT HEX NYLOCK FLNG 1/4-20 ZINC PL
03450 14" BELT CUTTER BLADE G2267 WASHER 1/4" MIL SPEC SS
03451 14" NYLON CUTTER BLOCK G2268 WASHER NO. 12 0.250 ID x 0.562 OD ZINC PL
03472 'E' RING 5/16 EXTERNAL TOOTH G2269 SCREW SOCKET HEAD CAP 1/4-20 x .5" BLACK
03484 .625 X 5-1/4" FOAM GRIP HANDLE G5616 RELEASE PIN
04454 CUTTER TABLE EXTRUSION 10" G6012 LONG LINK
04466 CUTTER TABLE EXTRUSION 5" G6013 14" BELT CUTTER TOP BEAM
04468 GUARD KIT 14" CUTTER GQ000 BLADE GUARD RIGHT
04469 EXTENSION TABLE GQ001 BLADE GUARD LEFT
G0110 BRAND LABEL GQ002 BOTTOM GUARD
G0625 14" BELT CUTTER HANDLE SOCKET GQ003 SAFETY LATCH
G0626 14" BELT CUTTER LEVER HANDLE GQ004 LATCH KNOB
G0627 STABILIZER Q1699 HAZARD LABEL
G0631 14" BELT CUTTER BOTTOM BEAM ASSY
2525 Wisconsin Avenue • Downers Grove, IL 60515-4200 • USA
Tel: (630) 971-0150 • Fax: (630) 971-1180 • E-mail: info@exco.com
Visit www.flexco.com for other Flexco locations and products.
©2014 Flexible Steel Lacing Company. 11/14. 1174
B
G6013
G0627
03275 (2)
G0710 (8)
G0631
03451 (INSIDE GROOVE OF G0631)
G1150
G1230 (2)
GQ002
G2264
GQ003
G2269
G2267
(2)
GQ004 (SECURE WITH G2265)
G2268 (2)
DETAIL B
03000
03002 (4)
03005 (3)
G5616
03079
GQ000
A
04454
04466 (2)
G0722 (7)
(BLADE SCREWS)
03450
G0110
G0626
03484
Q1699 (2)
GQ001
04469
G0625
03196
03472 (6)
G6012
03004 (3)
DETAIL A
G2266 (2)
