Cleveland
™
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900
Fax: 1-216-481-3782
Web Site: www.ClevelandRange.com
Email: Steam@ClevelandRange.com

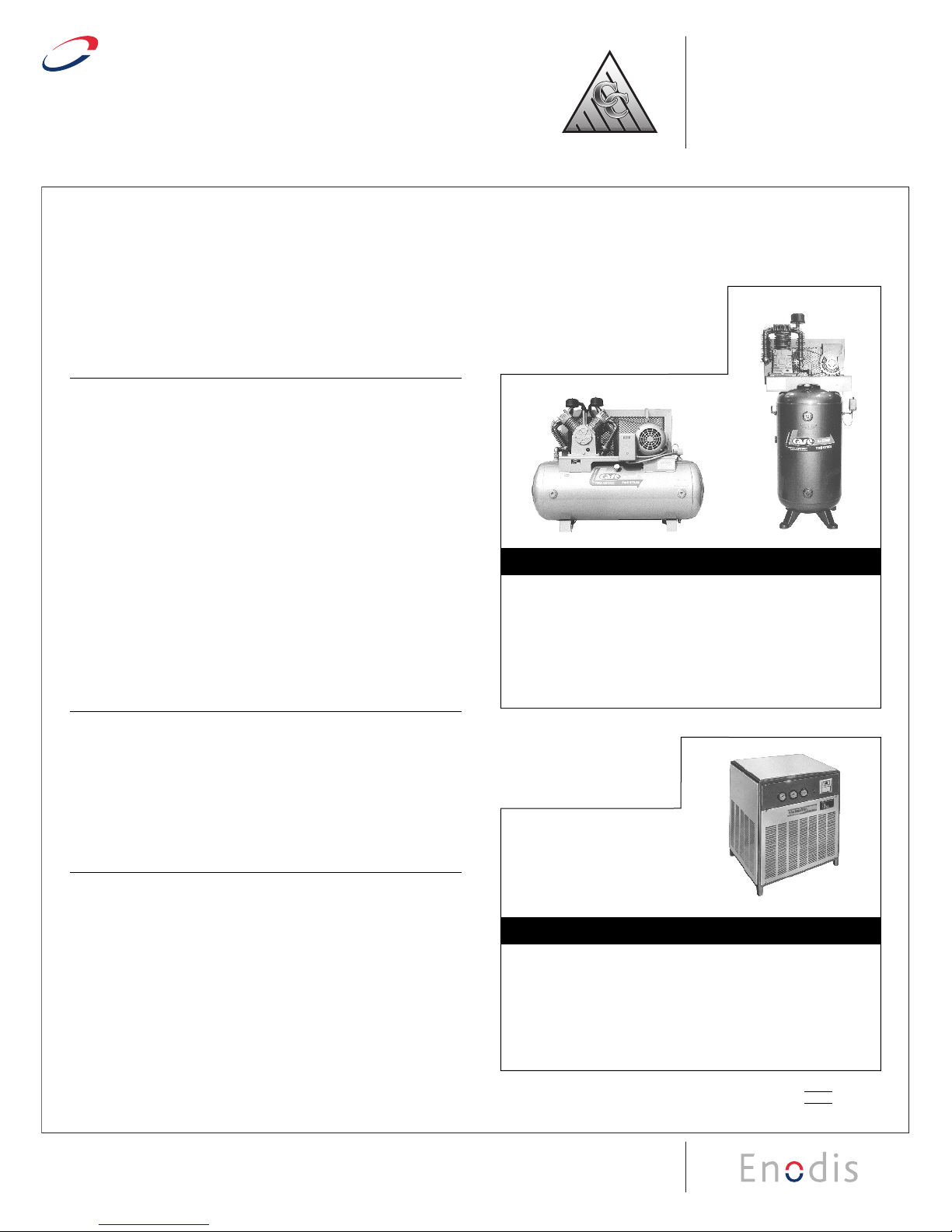

COOK CHILL SYSTEMS Cook/Chill S stems
SECT. XIV PAGE 55
0907
COMPRESSED AIR SYSTEMS
& REFRIGERATED AIR DRYERS
COMPRESSED AIR SYSTEMS
Cleveland Standard Features
IAir Compressor mounted on A.S.M.E. rated Receiver Tank
IBaldor high efficiency Motor
IMagnetic Starter with Thermal Overloads completely wired
and mounted
IBalanced Pump external and internal
ICast Iron Cylinders
IForged Crankshaft and Pistons
IHigh quality cast iron Piston Rings
ICast aluminum Finned Inner Coolers
IInner Cooler Safety Valve
IManual Drain for Air Receiver Tank
IAutomatic Start and Stop Control
I14 gauge Belt Guard
I1/2" Combination Filter/Pressure Regulator/Guage
I80 gallon Receiver Tank for CAS-5 & CAS-7.5
I120 gallon Receiver Tank for CAS-10 CAS-15 & CAS-20
IAccepted for use in U.S.D.A. Inspected Facilities
Options & Accessories
ËVibration Isolation Pads (set of four)
Ë3/4" Diameter Stainless Steel Flex Hose
ËRefrigerated Air Dryer with 37˚F Dew Point
ËProgrammable Automatic Drain Valve for Receiver Tank
ËLarger models availabe on request
Shall be CLEVELAND Mo el CAS-_____, COMPRESSED
AIR SYSTEM, consisting of Air Compressor & Receiver
Tank, ___ H.P. (horse power); High efficiency Bal or Motor
with magnetic Starter, Automatic Start an Stop Control;
balance External an Internal Pump; 14 gauge Steel; Belt
Guar ; 1/2" combination Filter / Pressure Regulator;
____ gallon Receiver Tank.
Short Form Specifications
REFRIGERATED AIR DRYERS
Cleveland Standard Features
INon-Cycling Dryer with double pass flooded Evaporator
IRated at 37°F (+20°F) Pressure Dew Point
IHigh efficiency Shell and Tube designed Heat Exchangers
for Compact Unit size and weight
ILow and High Refrigerant protection with Automatic
Shut-Down Device
IInternal Thermal Overload Protection
IFloat operated Drain Valve
IPower “on/off” Switch with Control Light
ILow ambient Fan Control
IAir cooled compact design cabinet type
IElectrical Supply Cord
IDesigned for wallmounting
IAccepted for use in U.S.D.A. Inspected Facilities
Shall be CLEVELAND Mo el CAS-AD__, _____, REFRIGERATED
AIR DRYER for Series “CAS” Compresse Air Systems. Rate at
37
°
F (+20
°
F) Pressure Dew Point; Air coole cabinet type; com-
pact esign with Shell an Tube Heat Exchanger; Automatic High
an Low Pressure Shut-Down evice; Thermal Overloa
Protection; Non-Cycling Dryer with ouble pass floo e
Evaporator; low ambient Fan Control; Float operate Drain Valve.
Short Form Specifications

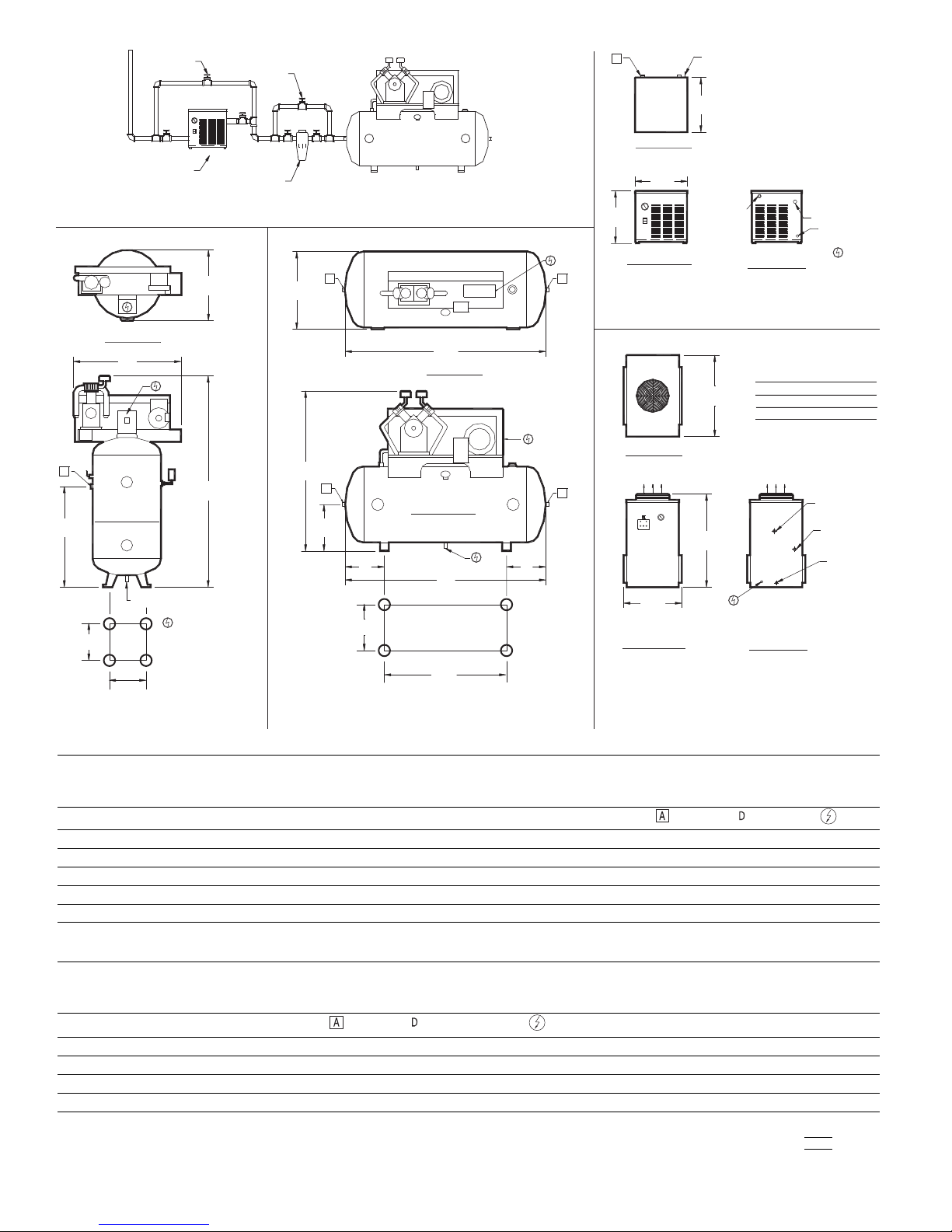

CAS-10
CAS-7.5
MODELS:
CAS-5 (VERTICAL)
CAS-7.5 (VERTICAL)
CAS-10 (HORIZONTAL)
CAS-15 (HORIZONTAL)
CAS-20 (HORIZONTAL)
MODELS:
CAS-ADA-25
CAS-ADA-40
CAS-ADA-60
CAS-ADA-80
