Classe Audio CP-47.5 User manual

CP-47.5

Classé

PREAMPLIFIER

SERVICE MANUAL

v 1.0

Index

Mechanical Assembly 3

PC Boards 17

Testing Procedures 30

Diagrams 33

CP-47.5

MECHANICAL

ASSEMBLY

1 MS-2347 PHILIPS

2 L1A2XR01

3 L1A3XR02

CP-47.5

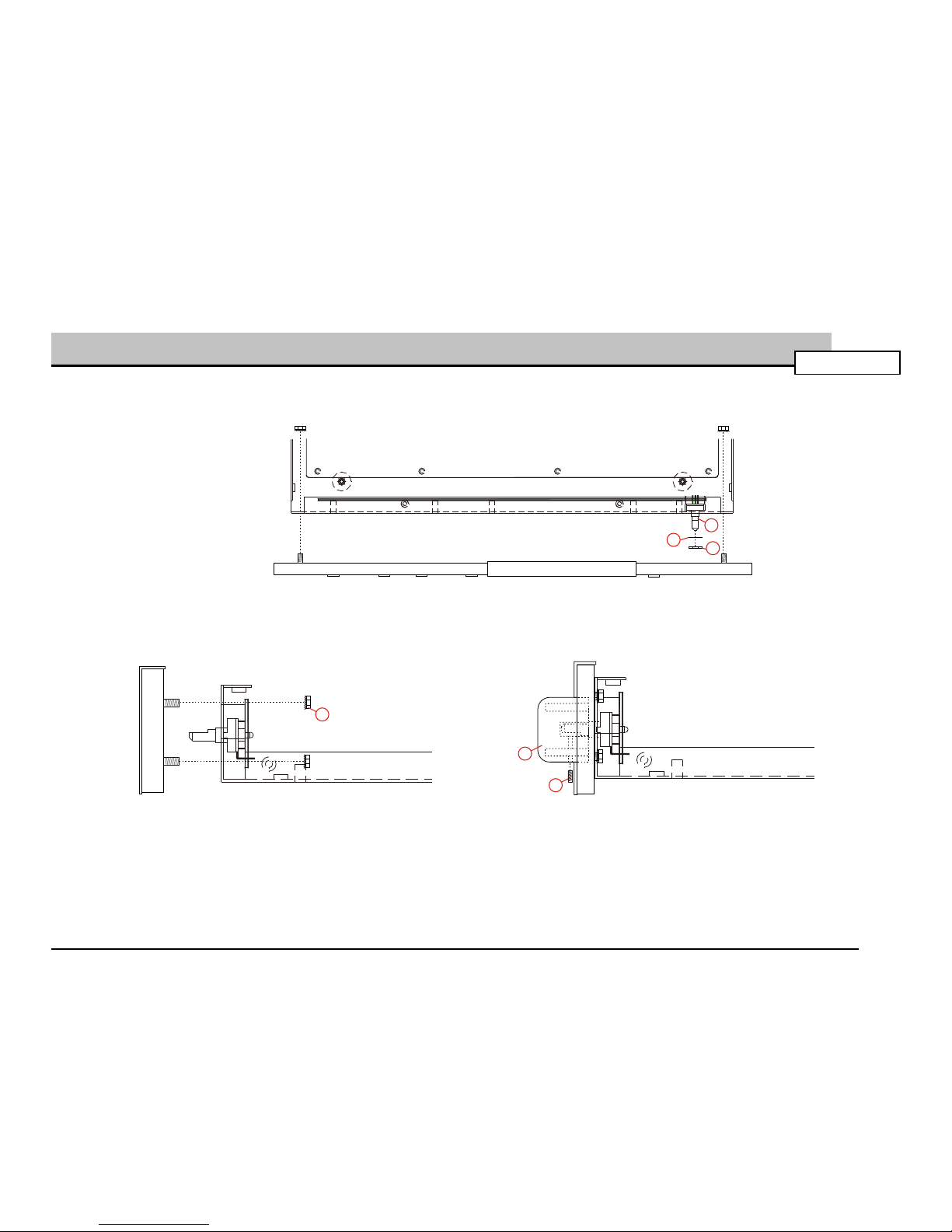

FACE PLATE ASSEMBLY

Classé - 1

MODEL CP-47.5MODEL CP-47.5

STANDBYSTANDBY SELECTOR

SELECTOR

<<TAPETAPE MUTEMUTE

3

1

2

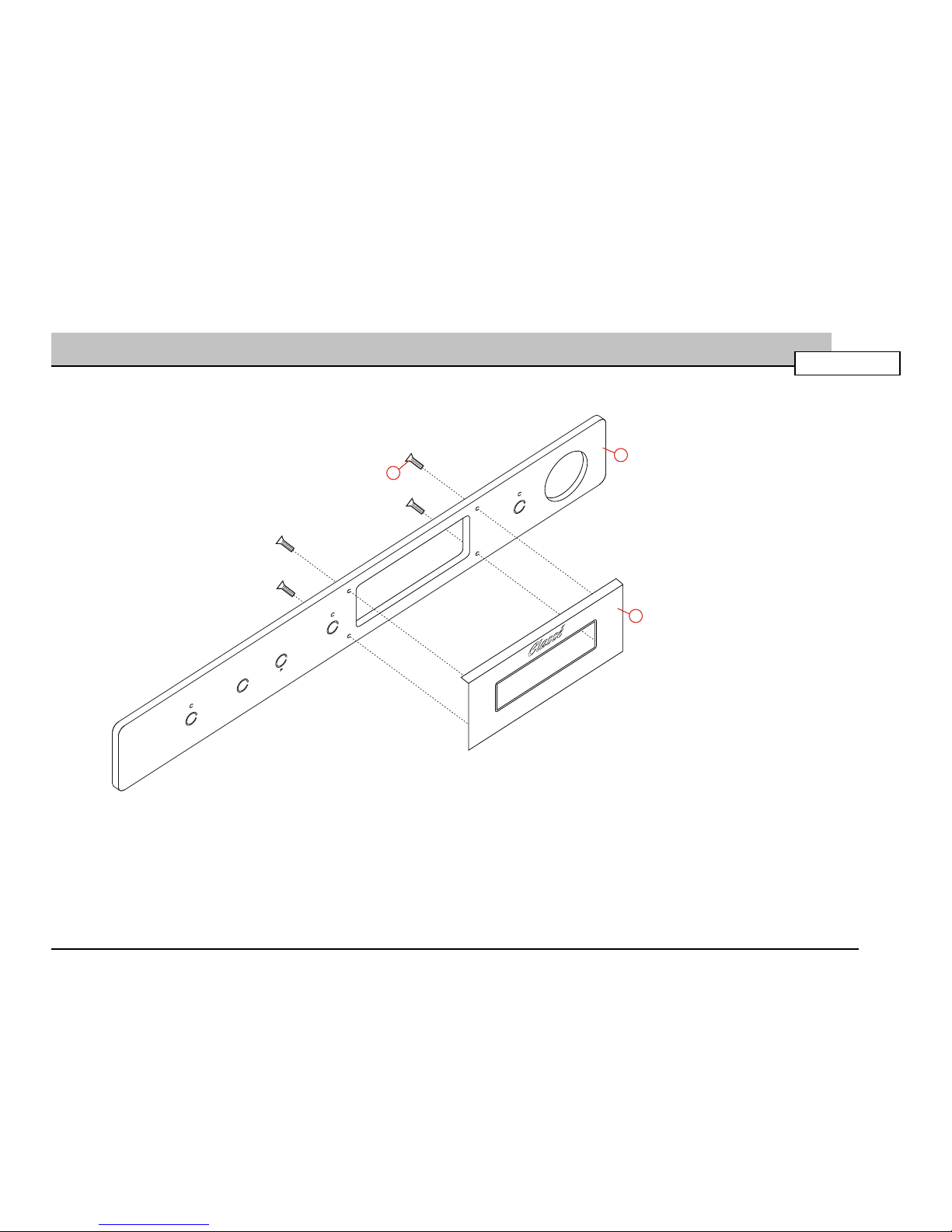

FACE PLATE ASSEMBLY

1

2

3

4

5 L214XR01-S

6

Classé - 2

CP-47.5

1

2

3

6

5

4

TOP VIEW

SIDE VIEW 1

SIDE VIEW 2

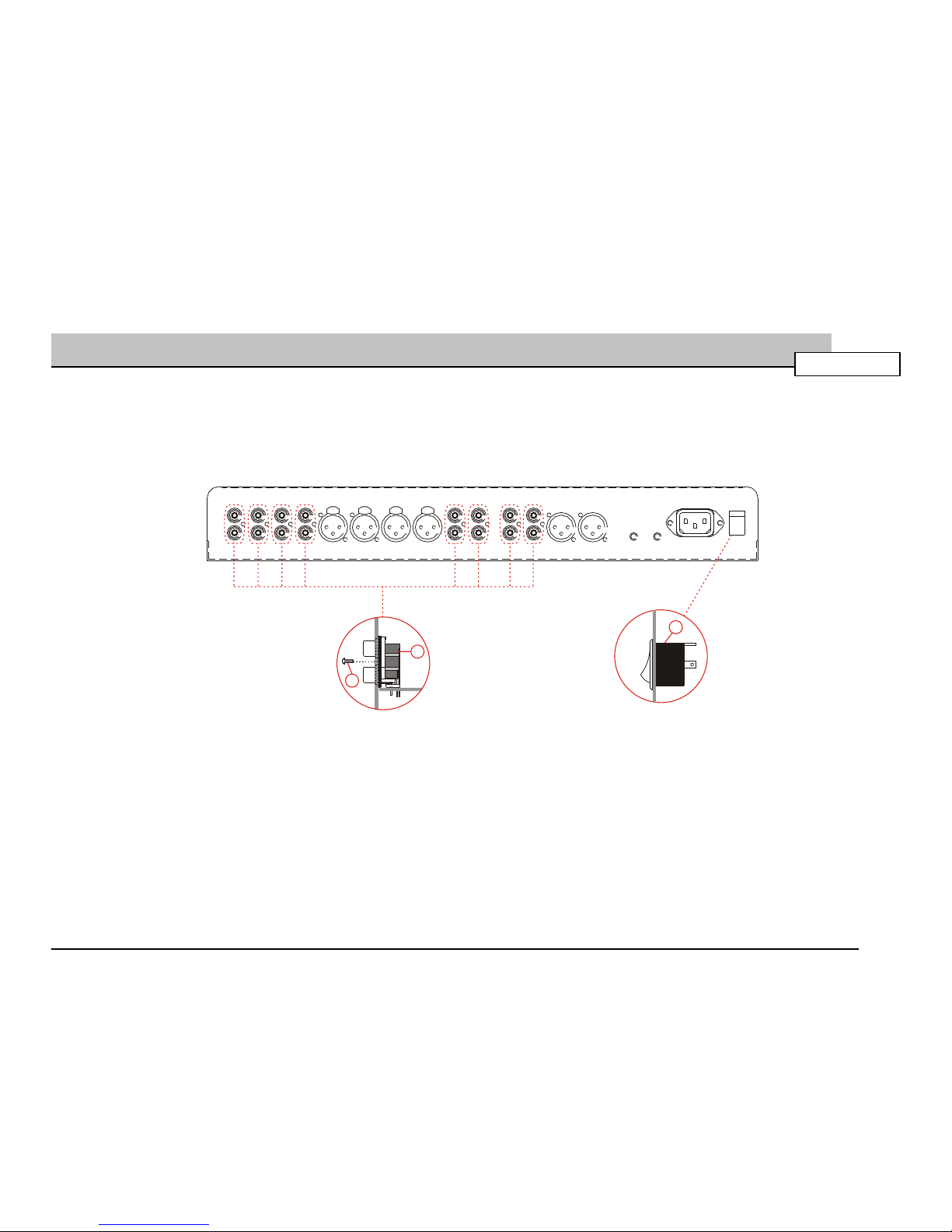

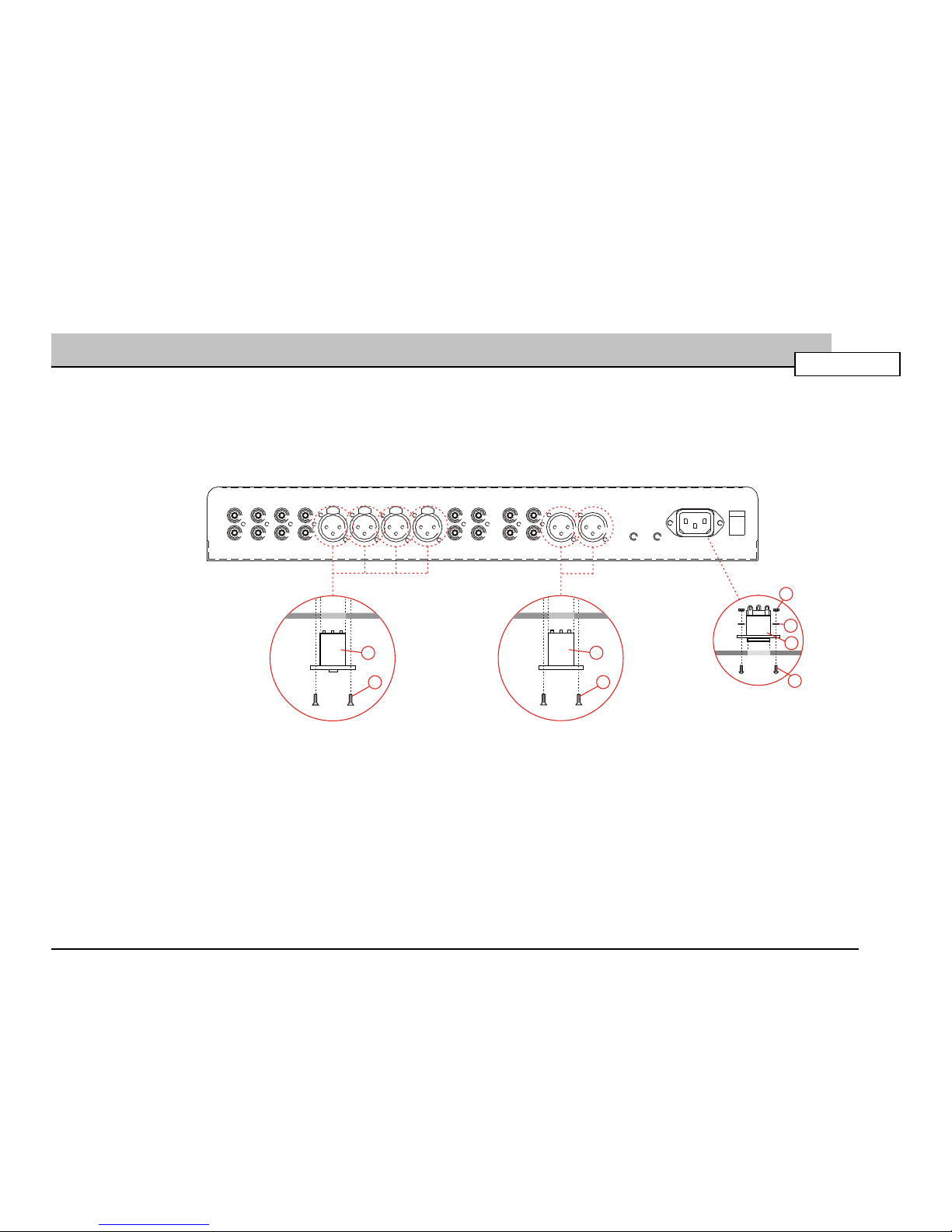

CHASSIS REAR VIEW

1

2

3

4

5

6

7

8

8

7

5

6

1

2

Classé - 3

3

4

CP-47.5

CHASSIS REAR VIEW

1

2

3

Classé - 3

CP-47.5

1

2

3

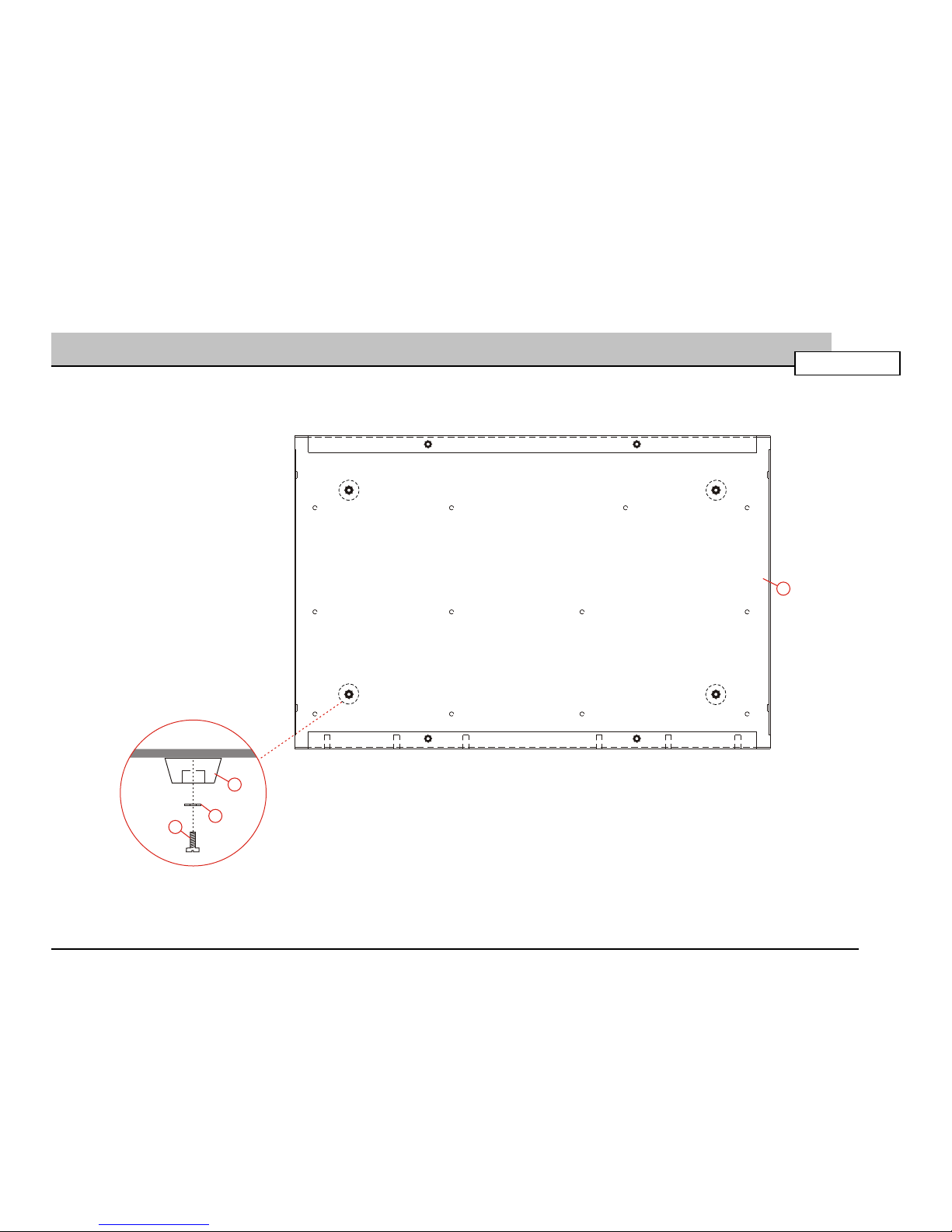

CHASSIS

1 PLA CAPFR1

2 HDW #8 FLAT WASHER

3 BZO 8-32x3/4” BHCS

4 L1A1XR03

Classé - 6

1

2

3

CP-47.5

4

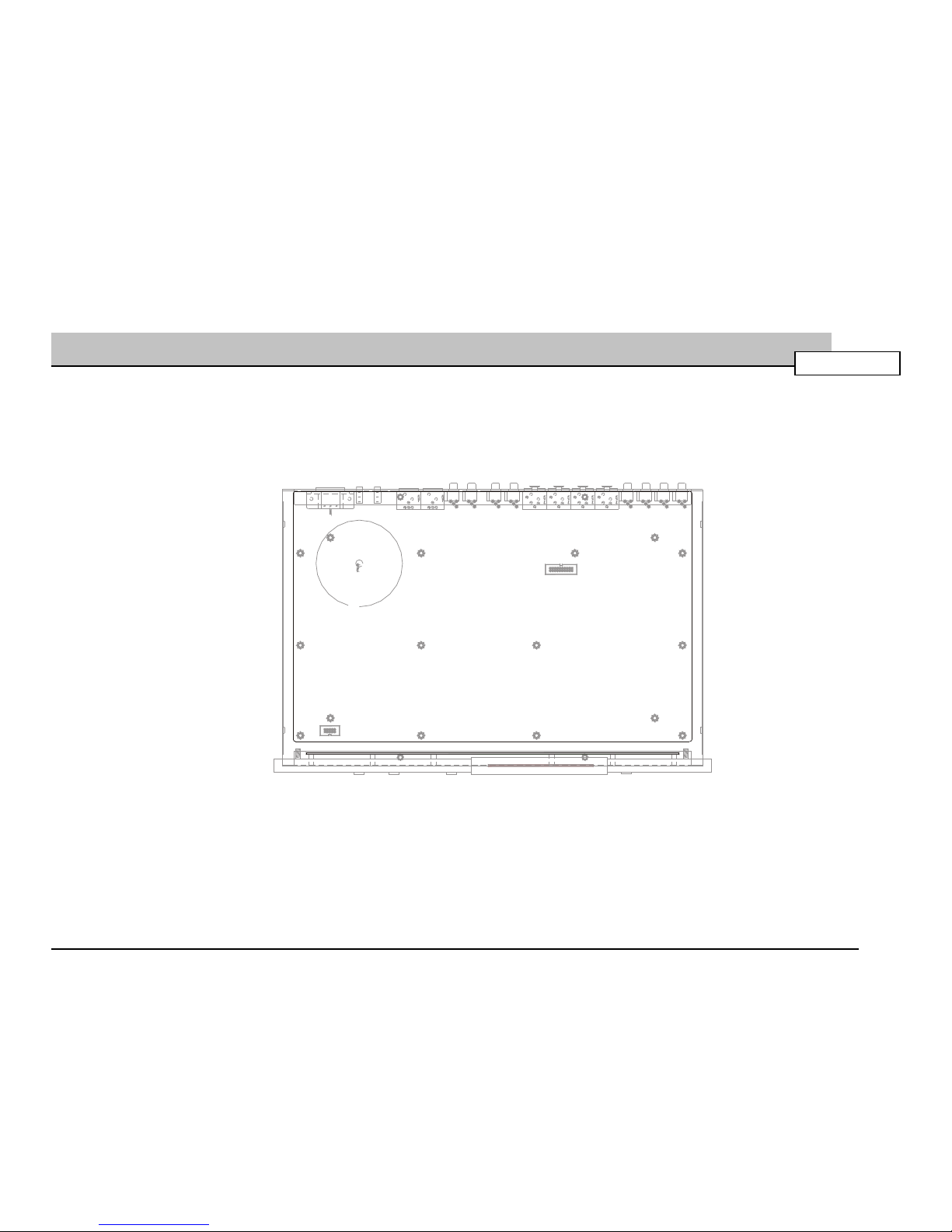

TOP VIEW

Classé - 8

PARTIAL ASSY

1 AVR BO51XR02

2 AVR BO50XR03

3 AVR BO1CXR00

4 TRANSFORMER

CP-47.5

TOP VIEW

Classé - 8

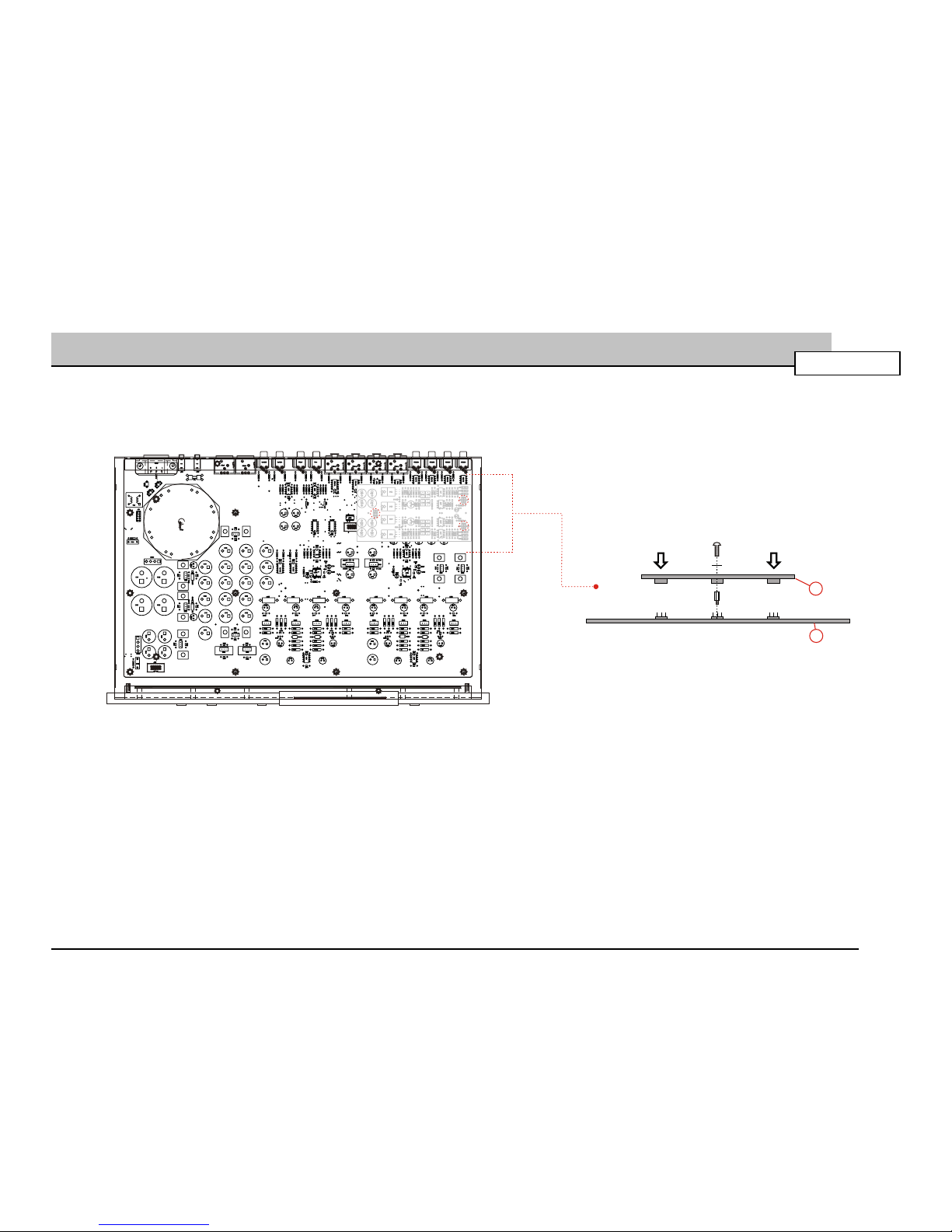

PHONO BOARD INSTALLATION

1

2

CP-47.5

SIDE VIEW

1

2
