Clarke IG2200 Instruction Manual
OPERATION & MAINTENANCE
INSTRUCTIONS
LS1209
2.2KW INVERTER GENERATOR
MODEL NO: IG2200
PART NO: 8877055
2
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
INTRODUCTION
Thank you for purchasing this CLARKE 2.2kW Inverter Generator
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL PROTECTION
One of the most damaging sources of pollution is oil. Do not throw away used
engine oil in with your domestic trash or down drains and sinks. Place it in a
leak proof container and dispose of it according to local regulations.
3
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
TABLE OF CONTENTS
INTRODUCTION .................................................................2
GUARANTEE .......................................................................2
ENVIRONMENTAL PROTECTION ........................................2
TABLE OF CONTENTS .........................................................3
GENERAL SAFETY RULES ...................................................4
Work area ........................................................................................ 4
Positioning the generator .............................................................. 4
Fire prevention ................................................................................ 4
Prevention of electric shock .......................................................... 5
Additional safety rules for generators .......................................... 5
SAFETY SYMBOLS ...............................................................6
GENERATOR OVERVIEW ....................................................7
UNPACKING AND ASSEMBLY ...........................................8
BEFORE USING THE GENERATOR ......................................8
Earth point ....................................................................................... 8
Checking the air filter ..................................................................... 9
Check the engine oil level ............................................................. 10
Check the fuel level ....................................................................... 11
USING YOUR GENERATOR ................................................12
Starting the engine ......................................................................... 12
Connecting electrical devices ..................................................... 14
Economy switch ............................................................................. 16
Indicator lights ................................................................................. 16
Shutting down the generator ........................................................ 17
MAINTENANCE ..................................................................18
Engine oil (every 20 hours of use) .................................................. 18
Air filter (every 50 hours of use) ...................................................... 19
Spark plug (every 50 hours of use) ................................................ 20
Fuel tank filter .................................................................................. 21
TROUBLESHOOTING ..........................................................22
PARTS AND SERVICING .....................................................22
SPECIFICATIONS ................................................................23
DECLARATION OF CONFORMITY .....................................24
NOTES ................................................................................26
4
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
GENERAL SAFETY RULES
WORK AREA
•Always use in a well ventilated area.
•Always position the exhaust outlet away from people.
•Read these safety instructions before using the equipment.
• Keep children away from the generator

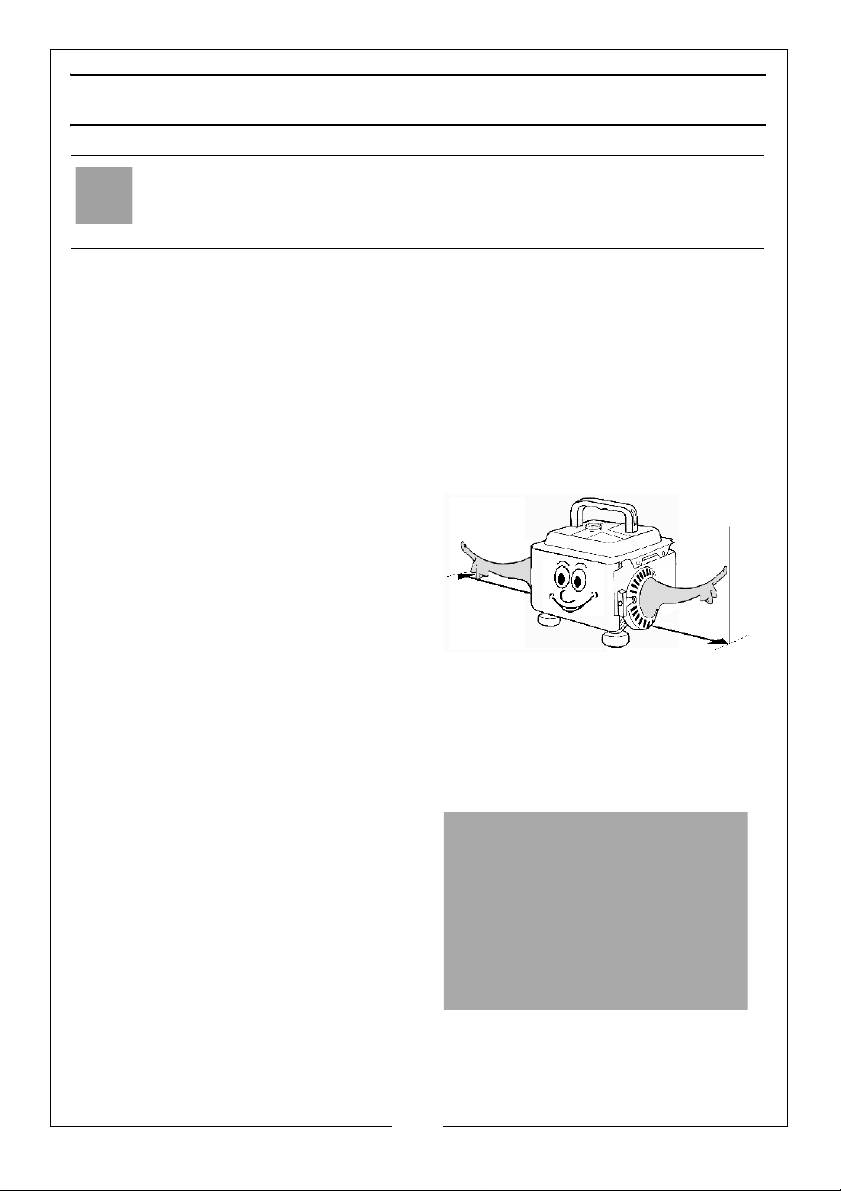

POSITIONING THE GENERATOR
1.
1M (3ft)
1M (3ft)
Keep the generator at least 1 m (3
ft) from buildings or other
equipment, or the engine may
overheat.
2. Place the generator on a solid,
flat surface.
3. Make sure the surrounding area is
free from any material that could
burn or be damaged by heat.
4. Never move or tilt the generator whilst it is switched on.
FIRE PREVENTION
1. Always switch the engine OFF
when refuelling.
2. Always refuel in a well ventilated
area.
3. Never refuel while smoking or in
the vicinity of an open flame.
4. Never overfill the tank, fill to the
level specified (See “Check the
fuel level” on page 11.).
5. Never smoke whilst refuelling and avoid smoking or using a naked flame
near the generator.
WARNING: EXHAUST FUMES CAN BE EXTREMELY DANGEROUS IF INHALED
5
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
6. Never start the engine if there is spilled fuel. Any spillage must be wiped
clean and the generator allowed to dry before attempting to start the
engine.
PREVENTION OF ELECTRIC SHOCK
1. Never use the generator in wet
conditions unless it is well protected/
covered. Under these conditions,
adequate ventilation MUST be provided
2. Never operate the generator with wet
hands
3. Never use water or any other liquids to
clean the generator.
4. Make sure you ground (earth) the
generator.
ADDITIONAL SAFETY RULES FOR GENERATORS
1. Always make sure the applied load
does not exceed the generator rating.
Overloading the generator is
dangerous and could cause serious
damage.
2.
Always
disconnect the generator when
carrying out any maintenance.
3. Always allow the generator to reach
operating speed before connecting a
load.
4. Never allow the generator to run out of
fuel when a load is connected.
5. Never transport the generator with fuel
in the tank.
6. Never connect the generator to a
commercial or residential power supply;
e.g. ring main.
7. Never allow the generator air vents to
become blocked.
6
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
SAFETY SYMBOLS
Caution - The user should be aware of a general hazard
Dangerous Voltage
Flammable
Hot Surface - Do not touch
Poisonous fumes - Do not use the generator in an
enclosed space.
Read Instruction manual before use.
7
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
GENERATOR OVERVIEW
NO DESCRIPTION NO DESCRIPTION
1 Air Vent Knob 10 Earthing Point
2 Fuel Cap 11 Economy Control Switch
3 Fuel Valve Knob 12 AC Sockets
4 Starting Handle 13 DC Socket
5 Left Side Maintenance Cover 14 DC Circuit Breaker
6 Top Maintenance Cover 15 Overload Indicator
7 Muffler 16 Output Indicator
8 Choke 17 Oil Alarm Indicator
9 Engine ON/OFF Switch 18 Primer Bulb
8
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
UNPACKING AND ASSEMBLY
Unpack your Generator and check the following items are present. Should
there be any missing or damaged during transit contact your Clarke dealer
immediately.
• 1 x Inverter Generator
• 1 x Spark Plug Box Spanner
• 1 x Screwdriver/Tommy Bar
• 1 x Container with Spout for Oil Filling
• 1 x Operating & Instruction Manual
• 1 x 12V Battery Connector Lead
• 1 x Oil Drain Tube
BEFORE USING THE GENERATOR
IMPORTANT: Generators should ALWAYS be earthed. Make sure you ground
(earth) the generator.
Before using your generator check that:
• The generator is in good condition and free from any damage.
• The generator is clean and free from fuel or oil spillage.
• The generator is correctly located for use (See page 4).
• There is no leakage.
NOTE: To avoid accidental spillage of fuel, always use a funnel to fill the
fuel tank. If fuel is spilled it must be removed from the unit before
attempting to start the engine.
EARTH POINT
Always connect the generator to an
earth point. The earth terminal is
shown on the right.
9
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
CHECKING THE AIR FILTER
1. Remove the left side
maintenance panel.
2. Remove the three air filter cover
screws shown on the right.
3. Slide out the air filter cover.
4. Remove the air filter element.
5. If the air filter is damaged contact
Clarke spare parts department for
a replacement.
• If the filter is dirty, wash it in a
solution of warm water and
mild detergent and rinse
thoroughly. Leave the filter to
dry completely, once it is dry
immerse the filter in clean engine oil and sqeeze the filter to remove
excess oil.
6. Replace the filter into its original position and replace and secure the air
filter cover then Replace the left side maintenance panel.
WARNING: DO NOT USE FLAMMABLE SOLVENTS OR PETROL TO CLEAN THE
AIR FILTER.
10
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
CHECK THE ENGINE OIL LEVEL
NOTE: Place the generator on a level surface and check the oil level as
follows.
1. Remove the maintenance panel
shown on the right.
2. Turn the oil filler cap anti-
clockwise and remove from the oil
reservoir, wipe the dipstick with a
clean cloth.
3. Insert the dipstick back into the oil
filler tube and then remove it
again.
4.
Max Level
Min. Level
If the oil is below the Min. level on
the dipstick, Fill the oil reservoir
with fresh oil.
• Do not fill above the max level
mark (0.45 litres)
• We recommend the use of
SAE30 oil in this generator.
• Do not tilt the generator when
adding engine oil. This could
result in overfilling and damage
to the engine.
5. Replace the oil filler cap.
6. Replace the left side maintenance panel.
WARNING: YOUR GENERATOR MAY NOT BE SUPPLIED WITH OIL, ALWAYS
ENSURE THAT THERE IS SUFFICIENT OIL BEFORE USE.
WARNING: TO CARRY OUT THIS CHECK, THE ENGINE MUST BE OFF.
