Clarke CAG900 Installation and operation manual

OPERATING & MAINTENANCE

INSTRUCTIONS

Model No. CAG900

PART NO: 6470144

GC0614

ANGLE GRINDER

Parts & Service: 020 8988 7400/E-mail:Part[email protected] or [email protected]

INTRODUCTION

Thank you for purchasing this CLARKE Angle Grinder.

Before attempting to use the machine, please read this manual thoroughly

and follow the instructions carefully. In doing so you will ensure the safety of

yourself and that of others around you, and you can look forward to your

purchase giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL PROTECTION

Do not dispose of this product with general household waste.

Through purchase of this product, the customer is taking on the

obligation to deal with the WEEE in accordance with the WEEE

regulations in relation to the treatment, recycling & recovery and

environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws governing

Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal

facility.

Parts & Service: 020 8988 7400/E-mail:[email protected] or [email protected]

TABLE OF CONTENTS

INTRODUCTION ..................................................................................2

GUARANTEE ........................................................................................2

ENVIRONMENTAL PROTECTION .........................................................2

TABLE OF CONTENTS ..........................................................................3

GENERAL SAFETY RULES ..................................................................... 4

ANGLE GRINDER SAFETY INSTRUCTIONS ...........................................6

DISC SAFETY INSTRUCTIONS ..............................................................7

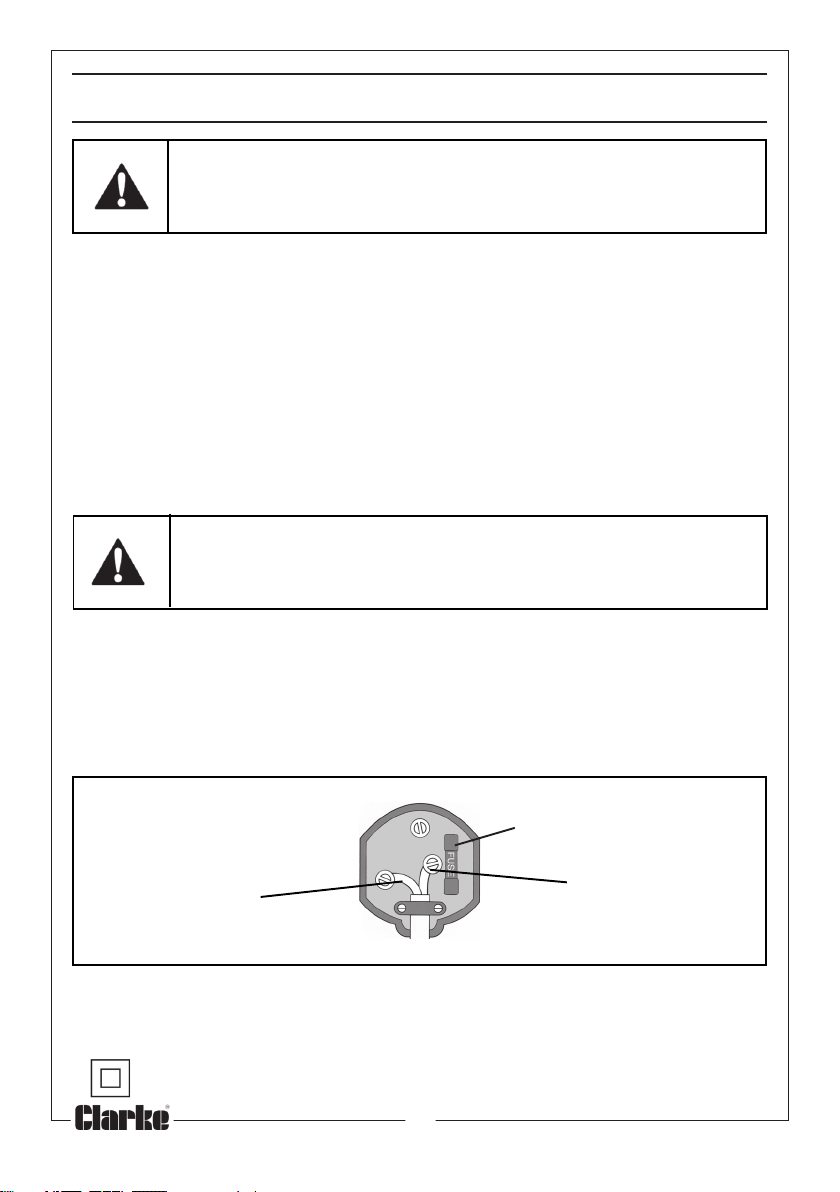

ELECTRICAL CONNECTIONS .............................................................. 8

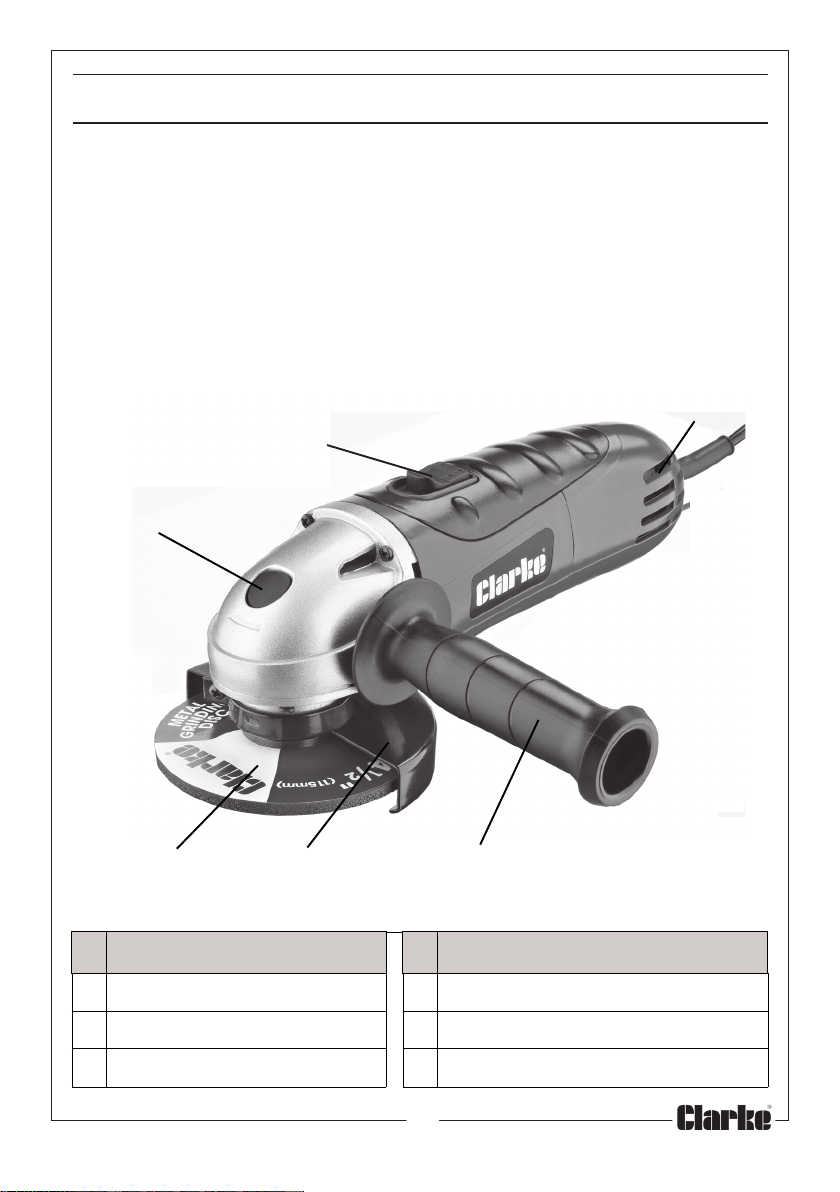

OVERVIEW ..........................................................................................9

OPERATION .........................................................................................10

MAINTENANCE ...................................................................................12

FAULT FINDING ................................................................................... 13

COMPONENT PARTS ...........................................................................14

CONSUMABLE SPARES........................................................................16

SPECIFICATION ...................................................................................16

VIBRATION EMISSIONS .......................................................................17

DECLARATION OF CONFORMITY.......................................................19

Parts & Service: 020 8988 7400/E-mail:Part[email protected] or [email protected]

GENERAL SAFETY RULES

WORK AREA

1. Keep the work area clean and well lit. Cluttered and dark areas invite

accidents.

2. Do not operate power tools in explosive atmospheres such as in the

presence of flammable liquids, gasses or dust. Power tools create sparks

which may ignite dust or fumes.

3. Keep children and bystanders away while operating a power tool.

Distractions can cause you to loose control.

ELECTRICAL SAFETY

1. Power tools must match the power outlet. Never modify the plug in any

way. Do not use adaptor plugs with earthed (grounded) power tools.

Correct plugs and outlets will reduce the risk of electric shock.

2. Do not expose power tools to rain or wet conditions. Any water entering

power tools will increase the risk of electric shock.

3. Do not abuse the electrical cable. Never use the cord for pulling or un-

plugging the power tool. Keep the cable away from sources of heat, oil,

sharp edges or moving parts. Damaged or tangled cables increase the

risk of electric shock.

4. When operating a power tool outdoors, use an extension cable suitable

for outdoor use. Using the correct cable reduces the risk of electric shock.

PERSONAL SAFETY

1. Stay alert, watch what you are doing and use common sense when you

are operating a power tool. Do not operate a power tool when you are

tired, ill or under the influence of alcohol, drugs or medication.

2. Wear personal protective equipment including eye protection. Safety

equipment such as a dust mask, non-skid shoes or hearing protection used

for appropriate conditions will reduce personal injuries. Use a face or dust

mask if operation is particularly dusty. Wear ear protectors/defenders as

the noise level of this machine can exceed 85dB (A). If working at floor

level, always wear knee pads.

3. Do not over-reach. Keep your proper footing and balance at all times. This

enables better control of the power tool in unexpected situations.

4. Avoid accidental starting of the machine. Ensure the switch is in the off

position and the locking button disengaged before plugging the machine

in to the power supply. Carrying power tools around with your finger on

the trigger or plugging in power tools that are switched on invites

accidents.

Parts & Service: 020 8988 7400/E-mail:[email protected] or [email protected]

5. Dress properly. Do not wear loose clothing or jewellery which may get

caught in moving parts. Wear protective hair covering to contain long

hair. For best footing, wear rubber soled footwear. Keep floor clear of oil,

scrap wood, etc.

6. Concentrate on the job in hand, no matter how trivial it may seem. Be

aware that accidents are caused by carelessness due to familiarity.

7. Switch the machine OFF immediately after the task is completed.

POWER TOOL USE AND CARE

1. Do not force the machine. Use the correct power tool for your application.

It will do a better and safer job at the rate for which it was designed.

2. Do not use the power tool if the switch does not turn it on and off. Any

power tool that cannot be controlled with the switch is dangerous and

must be repaired.

3. Disconnect the power tool from the power supply before making any

adjustments, changing accessories, or storing the tool. These measures will

reduce the risk of the power tool starting accidentally.

4. Store power tools out of the reach of children and do not allow persons

unfamiliar with these instructions to operate the power tool. Power tools

are potentially dangerous in the hands of untrained users.

5. Maintain power tools in top condition. Keep tools/ machines clean for the

best and safest performance. Check for misalignment or binding of

moving parts, broken parts, or any condition that may affect the power

tool’s operation. If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

6. Use recommended accessories. The use of improper accessories could be

hazardous.

7. Machine cleanliness. Do not allow the ventilation slots in the machine to

become blocked with dust.

8. Check the power tool for damage before using the machine. Any

damaged part should be inspected to ensure that it will operate properly

and perform its intended function. Check for alignment of moving parts,

breakage of parts, mountings, and any other condition that may affect

the machine’s operation. Any damage should be properly repaired or the

part replaced. If in doubt, DO NOT use the machine. Consult your local

dealer.

SERVICE

1. When necessary, have your power tools serviced or repaired by a

qualified person using identical replacement parts. This will ensure that the

safety of the power tool is maintained.

Parts & Service: 020 8988 7400/E-mail:Part[email protected] or [email protected]

ANGLE GRINDER SAFETY INSTRUCTIONS

1. Before starting work, always consider that the use of hand held angle

grinders for grinding and cutting operations can present risks to the user.

Full observation of the safety instructions in this user guide is essential.

2. Always use the correct tool for the job. Always assess the job. You should

never force a small angle grinder to do the job of a heavy tool. Do not

use tools for purposes not intended.

3. Always allow the angle grinder to run up to full operating speed before

applying it to the job.

4. Stop the angle grinder at regular intervals for a short break to rest hands

and arms.

5. Never bump the angle grinder disc on the workpiece, or let the disc hit

any other objects while grinding.

6. Suitable eye and face protection must be worn when using an angle

grinder. Always wear a dust mask.

7. Never carry the tool by the mains lead or pull it to disconnect it from the

mains socket. Keep the mains lead away from heat, oil and sharp edges.

8. Use clamps or vices to hold the workpiece. Failure to secure the

workpiece could result in serious injury.

9. Keep all handles and grips dry and clean.

10. If working outdoors, always use an approved cable extension suitable for

the power rating of this tool (see specifications), the conductor size should

also be at least the same size as that on the machine, or larger. When

using a cable reel, always unwind the cable completely. We strongly

recommend that this machine is connected to the mains supply via a

Residual Current Device (RCD).

11. Keep the mains cable well away from the disc and ensure an adequate

electrical supply is close at hand so that the operation is not restricted by

the length of the cable.

12. A guard or other part that is damaged should be properly repaired or

replaced, by an authorised service centre, unless otherwise indicated in

this user guide. Have defective switches replaced by an authorised

service facility.

13. Ensure all wheels and discs are fitted in accordance with the instructions.

14. Ensure that sparks and particles resulting from grinding do not create a

hazard, Use screens where appropriate.

15. When switching off, the disc will continue to rotate for a few seconds after

the angle grinder is switched off. Always wait until the disc has completely

stopped before putting the angle grinder down.

16. Do not operate the spindle lock while the spindle is still spinning.

Parts & Service: 020 8988 7400/E-mail:[email protected] or [email protected]

17. Do not use the angle grinder without the disc guard. Make sure that the

guard is securely fitted before operating the angle grinder.

18. Always hold the angle grinder with both hands. Ensure that the workpiece

is kept at waist height where possible. Never use the angle grinder

between the legs whilst sitting on the floor.

19. For cutting, always feed the disc into the work so that an upcutting action

is achieved.

20. Do not allow bystanders (children or adults) to be nearby when using an

angle grinder.

DISC SAFETY INSTRUCTIONS

1. Check the speed of the disc before fitting. Never use a disc with a rated

speed less than the no load speed of your angle grinder and only use

discs that comply with EN12413. See Specifications on page 16. Check

that the speed marked on the wheel dimensions is compatible with the

grinder. Check that discs are specifically for hand held angle grinder use.

2. Inspect the disc carefully before use. Never use a disc that is chipped,

cracked or damaged. Fragments from a broken or damaged disc can

cause serious injury. Ensure defective discs are destroyed and not used.

3. Bonded abrasive products are breakable and must therefore be handled

with utmost care. The use of damaged or improperly mounted or used

abrasive products is dangerous and can cause serious injuries.

4. Always refer to the label for specified usage and observe the safety

information. Do not use for purposes other than specified. Discs for wet

cutting applications must not be used with this angle grinder.

5. Always use the correct disc for it’s intended task. Using the incorrect disc

can cause serious injury.

6. Allow the disc and tool to do the work. Never force the disc onto the

workpiece as this could cause kickback and/or shatter the disc causing

serious injury. Kickback can occur in the event of a disc jam.

7. Do not use cutting discs for side grinding. Do not put sideways pressure on

cutting discs.

8. Do not use separate reducing bushes or adapters to adapt large hole

abrasive wheels. Do not force a disc onto a machine or alter the size of

the arbor hole.

9. Abrasive products shall be handled and transported with care. Abrasive

products shall be stored in such a manner that they are not subjected to

mechanical damage and harmful environmental influences. It is

recommended that discs are stored in the case provided to protect them

from damage and hazardous material.

Please keep these instructions in a safe place for future reference.

Parts & Service: 020 8988 7400/E-mail:Part[email protected] or [email protected]

ELECTRICAL CONNECTIONS

WARNING! Read these electrical safety instructions thoroughly

before connecting the product to the mains supply.

Before switching the product on, make sure that the voltage of your electric-

ity supply is the same as that indicated on the rating plate. This product is

designed to operate on 230VAC 50Hz. Do not connect it to any other power

source.

This product may be fitted with a non-rewireable plug. If it is necessary to

change the fuse in the plug, the fuse cover must be refitted. If the fuse cover

becomes lost or damaged, the plug must not be used until a suitable re-

placement is obtained.

If the plug has to be changed because it is not suitable for your socket, or

due to damage, it should be cut off and a replacement fitted, following the

wiring instructions shown below. The old plug must be disposed of safely, as

insertion into a mains socket could cause an electrical hazard.

WARNING! The wires in the power cable of this product are

coloured in accordance with the following code:

Blue = Neutral Brown = Live

If the colours of the wires in the power cable of this product do not corre-

spond with the terminal markings of your plug, proceed as follows.

• The wire which is coloured Blue must be connected to the terminal which

is marked Nor coloured Black.

• The wire which is coloured Brown must be connected to the terminal

which is marked Lor coloured Red.

Plug must be BS1363/A approved.

Always fit a 13 Amp fuse.

Neutral Live

(Blue) (Brown)

Ensure that the outer sheath of the cable is firmly held by the clamp

We strongly recommend that this productis connected to the mains supply

via a Residual Current Device (RCD).

If in doubt, consult a qualified electrician. DO NOT attempt repairs yourself.

This symbol indicates that this is a Class II product and does not require

an earth connection.

Parts & Service: 020 8988 7400/E-mail:[email protected] or [email protected]

OVERVIEW

When unpacking, check for damage or shortages etc. Any found should be

reported to your CLARKE dealer where the appliance was originally

purchased. This CAG900 Angle Grinder is supplied with the following

components:

• 1 x Disc Guard

• 1 x Grinding Disc

•1 x Pin Spanner

•1 x Side Handle

•Pair Carbon Brushes

3 2 4

oN noitpircseD oN noitpircseD

1reggirT4eldnaHediS

2drauGcsiD5nottuBkcoLeldnipS

3csiDgnittuC/gnidnirG6stneVriA

Parts & Service: 020 8988 7400/E-mail:Part[email protected] or [email protected]

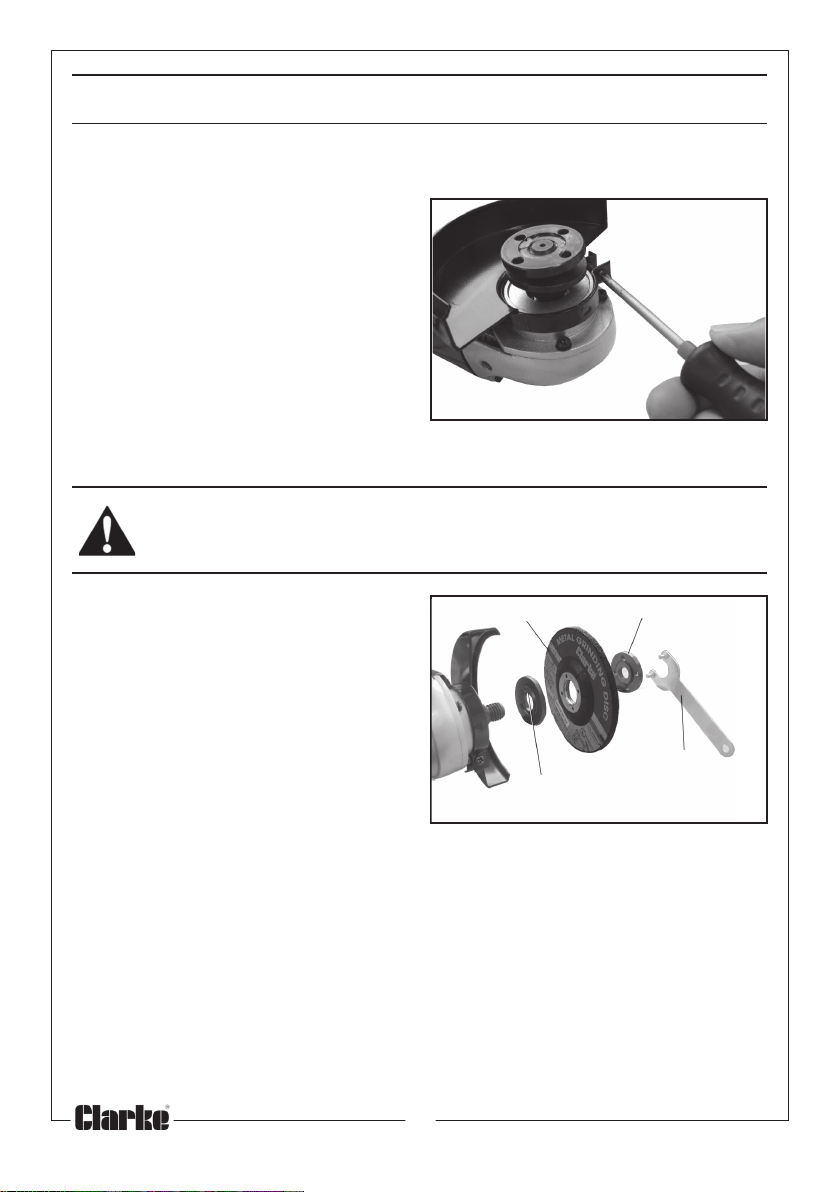

BEFORE USE

FITTING / ADJUSTING THE DISC GUARD

Slide the disc guard over the end of

the grinder.

Rotate the guard to the required

position and secure by tightening the

screw into the square nut until the

guard is clamped in place.

The guard should be fitted to give

maximum protection from the disc

when fitted in the working position.

FITTING/REMOVING THE DISC

Ensure the disc guard is correctly fitted before installing the disc.

WARNING: MAKE SURE THAT THE GRINDER IS SWITCHED OFF AND

UNPLUGGED FROM THE MAINS SUPPLY BEFORE FITTING OR REMOVING

THE DISC.

1. Press and hold the spindle lock

button.

• You may need to turn the spindle

by hand to fully engage the

spindle lock.

2. Use the pin spanner supplied to

loosen & remove the outer flange.

3. Ensure that the inner flange is

fitted correctly with the raised flat

surfaces pointing inwards as

shown to engage with the flat

section on the spindle.

4. Place the grinding disc over the spindle to sit on the inner flange.

• If the grinding wheel supplied is a ‘Depressed Centre’type, mount it as

shown, i.e. with the depressed centre towards the machine.

• For standard discs ensure the raised section of the outer flange is pointing

towards the disc.

5. Screw on the outer flange with the centre boss facing inwards so as to sit

inside the apperture of the disc. Tighten securely with the pin spanner.

• When using thin discs, the outer flange can be reversed so that the raised

section is pointing away from the disc.

Disc Outer flange

pin spanner

Raised surface

of inner flange

This manual suits for next models

Table of contents

Other Clarke Grinder manuals

Clarke

Clarke CBG8W Installation and operation manual

Clarke

Clarke METALWORKER CHDBG900 Instruction Manual

Clarke

Clarke Metalworker CBG6250LW Instruction Manual

Clarke

Clarke METALWORKER CBG6RZ Installation and operation manual

Clarke

Clarke CBG8W Installation and operation manual

Clarke

Clarke Contractor CON1050 Installation and operation manual

Clarke

Clarke METALWORKER CBG6RZ Manual

Clarke

Clarke CAG800B Installation and operation manual

Clarke

Clarke Metalworker CBG8370L Instruction Manual

Clarke

Clarke Metalworker CBG6250L Instruction Manual

Clarke

Clarke CAG2350B Installation and operation manual

Clarke

Clarke CBG8W Installation and operation manual

Clarke

Clarke CONTRACTOR CON1050B Installation and operation manual

Clarke

Clarke Metalworker CBG8370LW Instruction Manual

Clarke

Clarke CAT83 Installation and operation manual

Clarke

Clarke air CAT143 Installation and operation manual

Clarke

Clarke X-Pro CAT206 Installation and operation manual

Clarke

Clarke CAG2350C Installation and operation manual

Clarke

Clarke Metalworker CAG122 Installation and operation manual

Clarke

Clarke METALWORKER CAG121 Installation and operation manual

Clarke

Clarke CAG2350 Instruction Manual

Clarke

Clarke CAT143 Installation and operation manual

Clarke

Clarke CON115 Installation and operation manual

Clarke

Clarke CAT133 Installation and operation manual

Popular Grinder manuals by other brands

Parkside

Parkside PWS 230 C3 Translation of the original instructions

SUHNER ABRASIVE

SUHNER ABRASIVE ASC 9 Technical document

PTA

PTA P1322 Operation manual

Crown

Crown CT13313 Original instructions

Parkside

Parkside 280250 instructions

Climax

Climax VM2150 Series operating manual

Jet

Jet JPSG-618M1 Operating instructions and parts manual

Makita

Makita GA4030 instruction manual

DeWalt

DeWalt DWEN202 Original instructions

Grizzly

Grizzly G2790 instruction manual

Fein

Fein MSf843-1a Original instructions

Bosch

Bosch GWS 14,4 V PROFESSIONAL operating instructions

RAMSET

RAMSET CBAGR18 owner's manual

Bosch

Bosch 8-115 Z Original instructions

STEELE PRODUCTS

STEELE PRODUCTS SP-PB008 owner's manual

MW TOOLS

MW TOOLS ME15W manual

Caravaggi

Caravaggi SP 20 User & maintenance manual

SUHNER ABRASIVE

SUHNER ABRASIVE UWK 10-R125 Technical document
