Clarity XL40D User manual
XL40D
XL40D

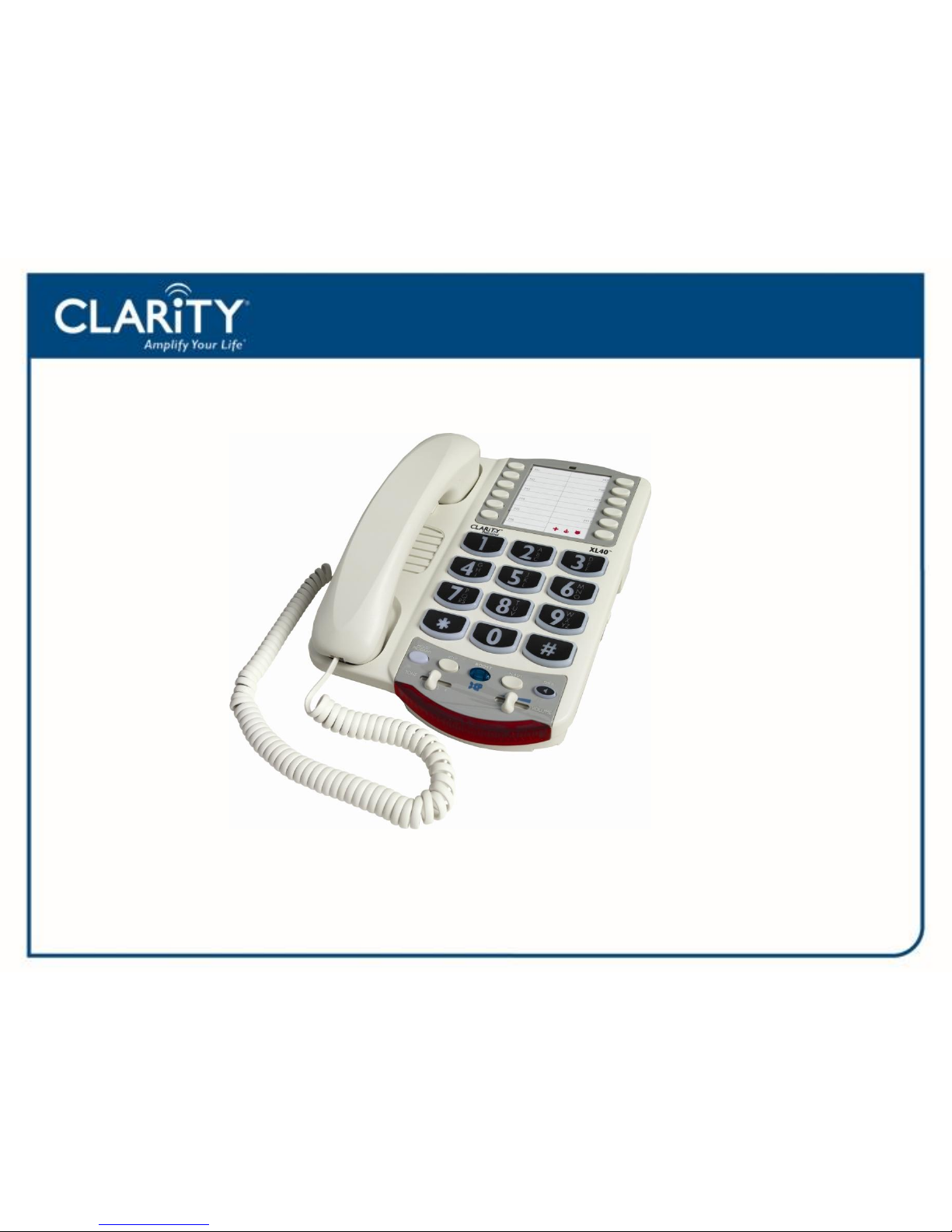

The Clarity Professional XL40D offers our
patented Digital Clarity Power that uses
digital technology to enhance the volume and
clarity of your phone conversations. Up to 50
decibels of amplification, the XL40D is ideal
for those with severe hearing loss or low
vision.
This is also a ClarityLogic enabled
telephone. This allows the phone to
communicate directly with a Clarity
representative during a troubleshooting call
for accurate and immediate results.
Major Upgrades
New Features
•Upgraded from 40dB to 50dB
• Digital Clarity Power™
•ClarityLogic ™ enabled
•Four Tone Settings: Low Frequency, Flat Amplification,
Clarity Power and MBC Low
•Talking Keypad
•Speakerphone
•Outgoing Speech Amplification up to 15 decibels
•Smart Plex Technology
•Bed Shaker Port
Parts Checklist
XL40D
XL40D Base
Handset
Mounting Bracket
Coiled Handset Cord
Telephone Cords
AC Adapter
User Guide
Quick Start Guide
Product Layout
XL40D
Boost Button
Tone Selector Switch
Volume Slider
Memory
Buttons
Speaker Button
Product Layout
XL40D
2. 3.
1. Voice Mail/Missed Call Indicator
The light will illuminate green for
a new Voice Mail. When there is no
new voice mail the light will display
red when the Ringer is OFF.
2. Missed Call Indicator
This light will illuminate when there
is a missed call.
3. Visual Ringers
The visual ringers will flash to alert
of an incoming call.
4. Low Battery Indicator
This light will illuminate to indicate
the back up battery is bad.
4.
1.

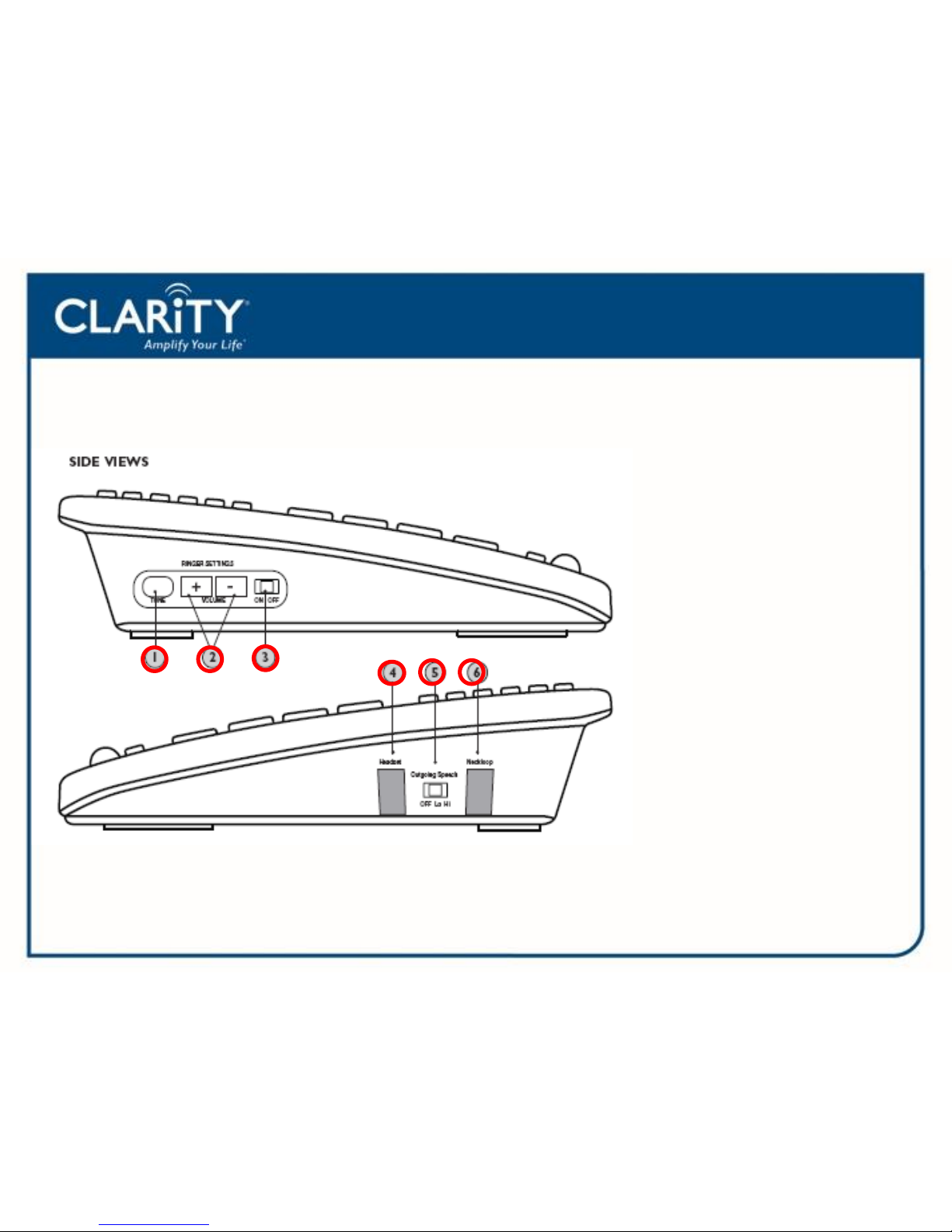

Product Layout
XL40D
1. Ringer Tone
2. Ring Volume
3. Ringer On/Off
4. Headset Port
5. Outgoing Speech
Amplification
6. Neckloop Port
Product Layout
XL40D
7. Bedshaker Port
8. Phone Line
9.AC Adapter
Product Layout
XL40D

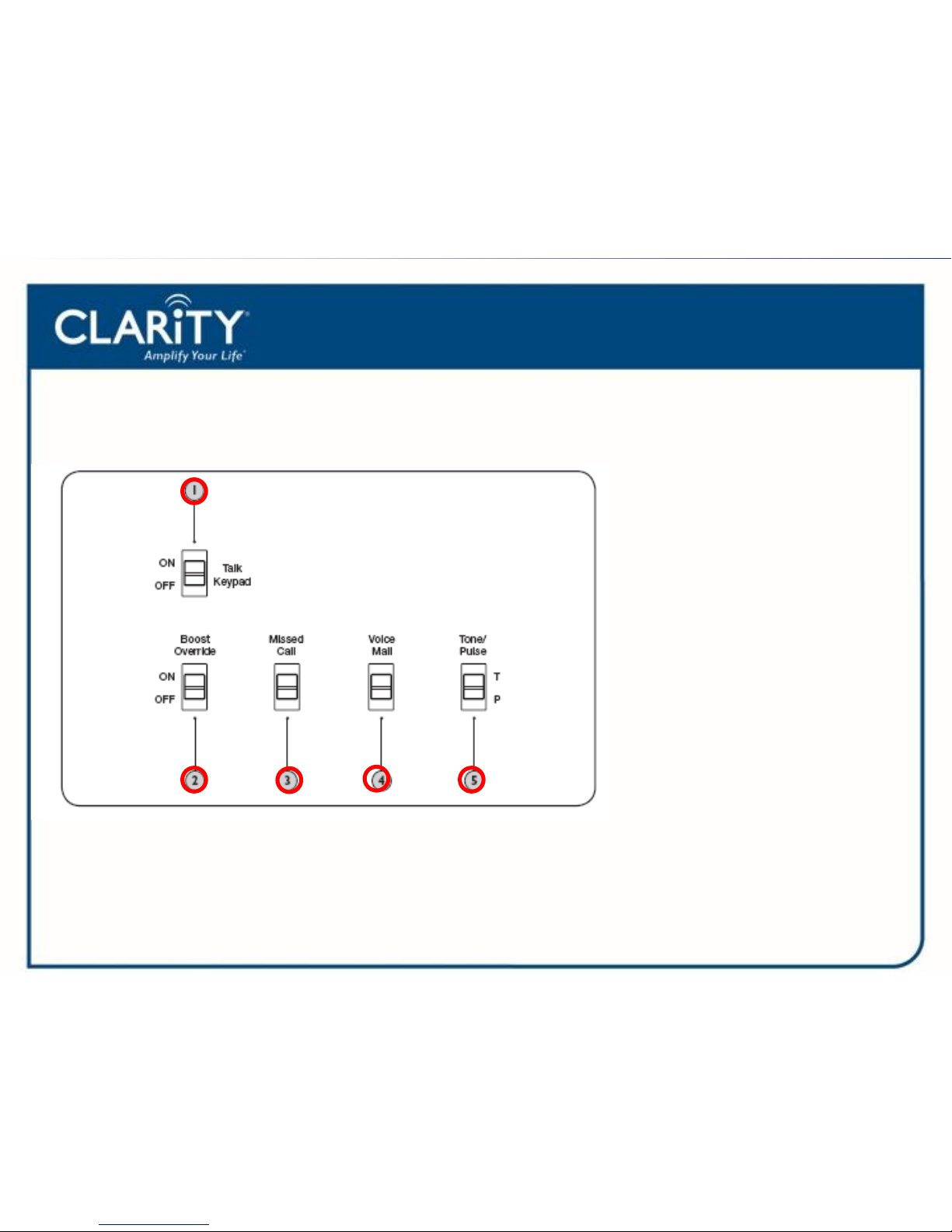

Bottom View
1. Talk Keypad Switch
2. Boost Override Switch
3. Missed Call Switch
4. Voice Mail Switch
5. Tone/Pulse Switch
1. Connect telephone line to “Line” jack of phone and to the wall jack
2. Connect handset cord to telephone
3. Connect AC Adapter to telephone, and then to wall outlet.
Installation
XL40D
