Clarion VA700 User manual

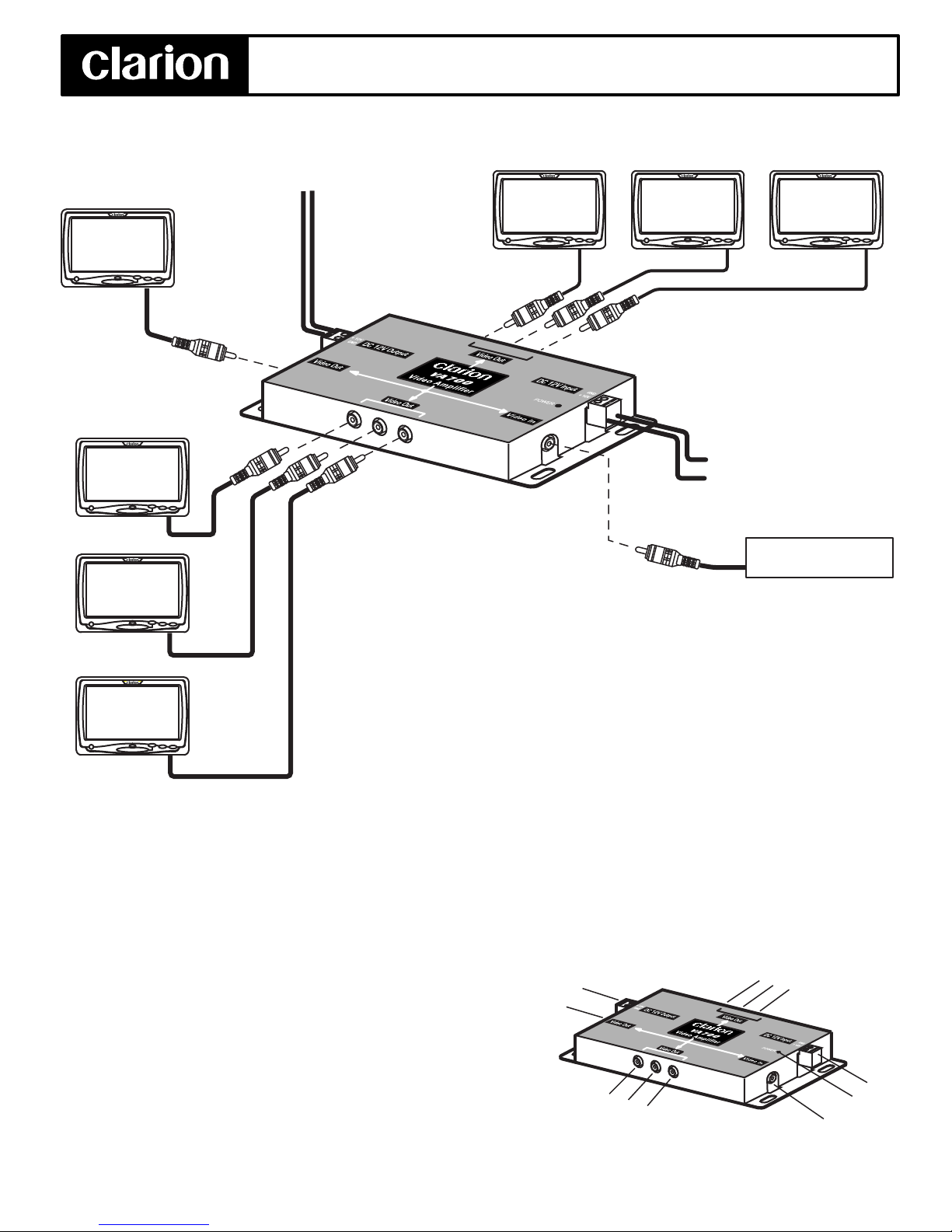

VA700 Video Distribution Amplifier Installation Instructions

Composite Video Input

Ground - Power Input

+12V - Ignition

Output to second VA700

Ground +12V

Features

 7 Video Outputs



 1 Video Input

 1 DC Input

 1 DC Output (for connection to second VA700)

Specifications



 Video Level of Input/Output: 1.0Vp-p into a 75 ohm load

 Bandwidth:   5Hz ~ 10MHz

 Operating Voltage:  10.8 ~ 15.6V DC

 Max. Current Consumption: 240mA

 Max. Power Consumption: 3.3W



 Dimensions (H x L x W): 5/6" x 5 1/8" x 3 1/4"

     21mm x 130mm x 81mm  

Parts List

 (1) Main Unit

 (1) 0.5A Fuse

 (2) 2-pin Power Connectors

 (1) Black GND Wire

10-VA700-00 (Rev. 1) 2001 Clarion Corporation of America

1

2

3

4

4

4

444

4

5

Description

 1. DC 12V Input

 2. Power Indicator LED

 3. Composite Video Input

 4. Composite Video Outputs

 5. DC 12V Output
