Claas QUANTUM 3500 Guide

QUANTUM 3500 - 6800

Technical Systems

QUANTUM 6800

Technical Systems QUANTUM TIC

10/04

TIC QUANTUM Technical Systems

10/04

Chapters 1 Technical Data

3 Operation

10 Brakes

11 Hydraulic System

12 Electric System / Diagnosis

Technical Systems QUANTUM TIC

10/04

TIC QUANTUM Technical Data

10/04 1-1

1.0 QUANTUM 2500 K, 2500 P, 3500 K, 3500 P, 3800 K, 3800 P..............................................................2

1.1 QUANTUM 3500 K, 3500 P, 3500 S, 3800 K, 3800 P, 2500 K, 2500 P..............................................2

1.2 QUANTUM 5500 S-18, 5500 S-16, 5500 S, 4500 S, 6800 S ..............................................................5

1.3 QUANTUM 6800 P, 6500 P, 5500 P-18, 5500 GT, 5500 P, 4500 P ...................................................8

Technical Data QUANTUM TIC

1-2 10/04

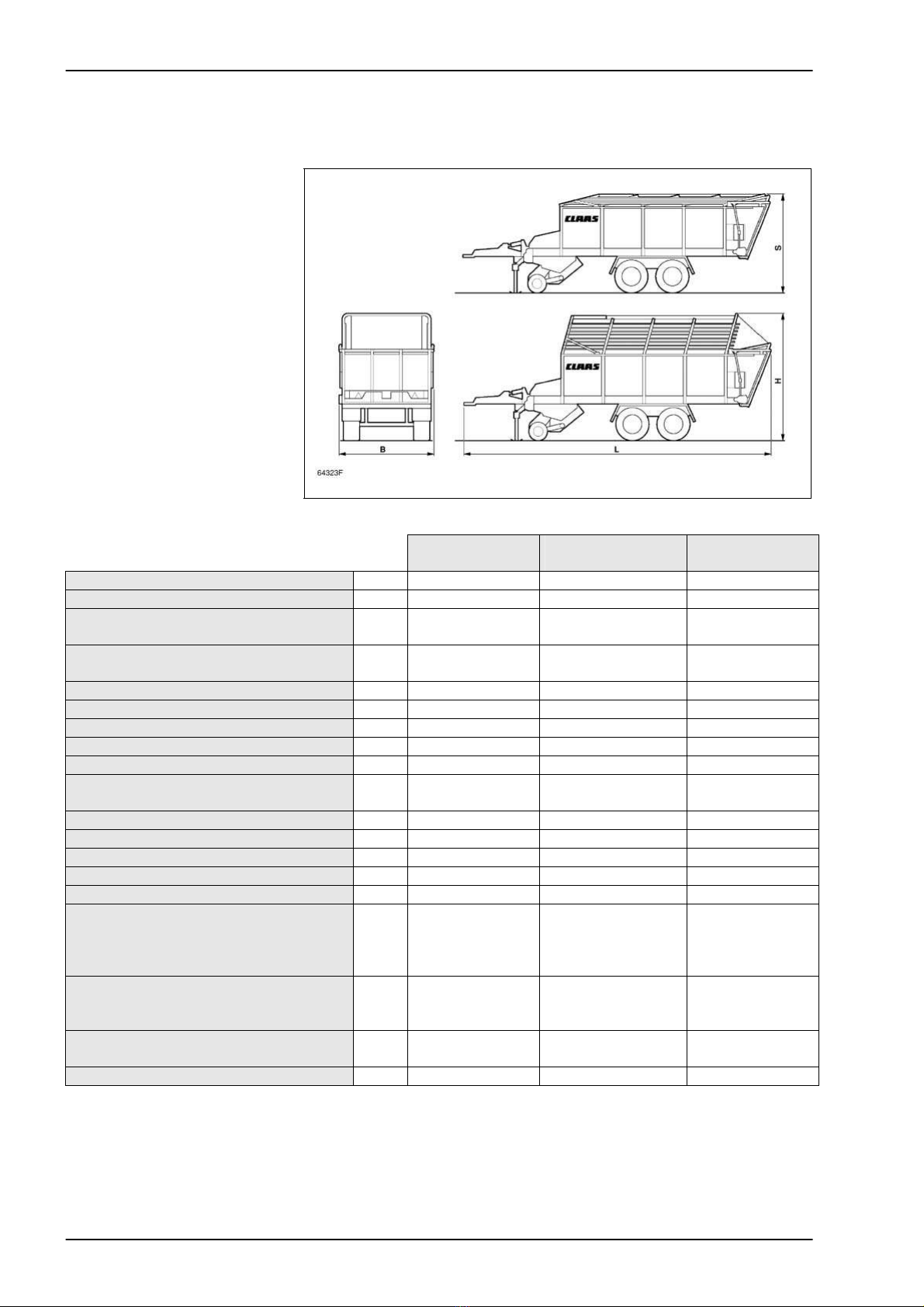

1.0 QUANTUM 2500 K, 2500 P, 3500 K, 3500 P, 3800 K, 3800 P

1.1 QUANTUM 3500 K, 3500 P, 3500 S, 3800 K, 3800 P, 2500 K, 2500 P

QUANTUM

3500 K

QUANTUM

3500 P

QUANTUM

3500 S

Length (L) mm 8,100 8,100 8,200

Width (B) mm 2,550 2,550 2,550

Height (H) – dry forage assembly folded

mm 3,410 3,600 3,600

Height (S) – dry forage assembly folded

down

mm 2,600 3,050 3,050

Track width mm 1,850 1,850 1,850

Pick-up width mm 1,800 1,800 1,800

Platform height mm 1,180 1,180 1,180

Loading capacity (acc. to DIN 11741) m326.6 28 25.6

Kerb weight kg 5,160 5,200 5,860

Permissible total weight (Rückmatic /

compressed air)

8,000/11,000 8,000/11,000 8,000/11,000

Number of cutting knives 33 33 33

Shortest theoretical length of cut mm 45 45 45

Number of pick-up tines per tine bar 26 26 26

Tine spacing mm 61 61 61

PTO speed min-1 1,000 1,000 1,000

Tyres - Rückmatic up to 40 km/h

- compressed air up to 40 km/h

- compressed air up to 60 km/h

19.0/45-17

500/50-17 10 PR

555/45-17 10 PR

500/50-17 10 PR

19.0/45-17

500/50-17 10 PR

19.0/45-17

500/50-17 10 PR

555/45-17 10 PR

Tyre pressure - with tyres 500/50-17

555/45-17

19.0/45-17

bar

3.5

3.0

3.5

3.0

3.5

3.0

Tightening torque of wheel nuts - wagon

wheels

Nm 300 300 300

Sound pressure level dB(A) 70 70 70

TIC QUANTUM Technical Data

10/04 1-3

QUANTUM

2500 K

QUANTUM

2500 P

Length (L) mm 8,100 8,100

Width (B) mm 2,550 2,550

Height (H) – dry forage assembly folded up mm 3,410 3,600

Height (S) – dry forage assembly folded down mm 2,600 3,050

Track width mm 1,850 1,850

Pick-up width mm 1,800 1,800

Platform height mm 1,180 1,180

Loading capacity (acc. to DIN 11741) m326.6 28

Kerb weight kg 4,500 4,750

Permissible total weight

(Rückmatic / compressed air)

8,000/11,000 8,000/11,000

Number of cutting knives 33 33

Shortest theoretical length of cut mm 40 40

Number of pick-up tines per tine bar 26

Tine spacing mm 61 61

PTO speed min-1 540 540

Tyres - Rückmatic up to 40 km/h

- compressed air up to 40 km/h

- compressed air up to 60 km/h

15.0/55-17

19.0/45-17

500/50-17 10 PR

555/45-17 10 PR

15.0/55-17

19.0/45-17

500/50-17 10 PR

555/45-17 10 PR

Tyre pressure - with tyres 500/50-17

555/45-17

9.0/45-17

15.0/55-17

bar

3.5

3.0

3.5

3.0

3.5

Tightening torque of wheel nuts - wagon

wheels M18x1.5

M20x1.5

270

380

270

380

Sound pressure level dB(A) 70 70

Technical Data QUANTUM TIC

1-4 10/04

QUANTUM

3800 K

QUANTUM

3800 P

Length (L) mm 9,250 9,250

Width (B) mm 2,550 2,550

Height (H) – dry forage assembly folded up mm 3,410 3,600

Height (S) – dry forage assembly folded down mm 2,600 3,050

Track width mm 1,850 1,850

Pick-up width mm 1,800 1,800

Platform height mm 1,180 1,180

Loading capacity (acc. to DIN 11741) m331.8 33.2

Kerb weight kg 5,550 5,650

Permissible total weight (compressed air) 11,000 11,000

Number of cutting knives 33 33

Shortest theoretical length of cut mm 45 45

Number of pick-up tines per tine bar 26 26

Tine spacing mm 61 61

PTO speed min-1 1.000 1.000

Tyres

- compressed air up to 40 km/h

- compressed air up to 60 km/h

500/50-17 10 PR

555/45-17 10 PR

500/50-17 10 PR

555/45-17 10 PR

Tyre pressure - with tyres 500/50-17

555/45-17

19.0/45-17

bar

3.5

3.0

3.5

3.0

Tightening torque of wheel nuts - wagon

wheels M18x1.5

M20x1.5

270

300

270

300

Sound pressure level dB(A) 70 70

TIC QUANTUM Technical Data

10/04 1-5

1.2 QUANTUM 5500 S-18, 5500 S-16, 5500 S, 4500 S, 6800 S

QUANTUM

5500 S-18

QUANTUM

5500 S-16

QUANTUM

6800 S

Length (L) mm 9,250 9,250 10,500

Width (B)

- Standard

- with tyres 700/45-22.5

- with tyres 600/55-R26.5

- with tyres 700/50-R26.5

- with tyres 800/40-R26.5

2,550

2,720

2,550

2,720

2,550

2,750

2,930

Height (H) - dry forage assembly folded

- with tyres 800/40-R26.5

3,990

3,930

3,990

4,000

Height (S) - dry forage assembly folded

- with tyres 800/40-R26.5

3,290

3,230

3,290

3,300

Track width - with tyres 22.5

- with tyres 26.5

1,950

2,000

Pick-up width mm 1,800 1,800 1,800

Platform area mm 2,160 x 5,700 2,160 x 5,700 2,160 x 5,700

Loading capacity (acc. to DIN 11741) m331 31 38

Kerb weight

with tyres 800/40-R26.5

incl. forced steering

8,340

7,600

8,810

9,350

Permissible total weight 18,000 16,000 20,000

Number of cutting knives 33 33 33

Shortest theoretical length of cut mm 45 45 45

Number of pick-up tines per tine bar 26 26 26

Tine spacing mm 61 61 61

PTO speed min-1 1,000 1,000 1,000

Technical Data QUANTUM TIC

1-6 10/04

QUANTUM

5500 S-18

QUANTUM

5500 S-16

QUANTUM

6800 S

Tyres:

- up to 40 km/h without AGS

- up to 50 km/h without AGS

- up to 60 km/h without AGS

- up to 60 km/h air suspension

- Pick-up wheels

700/45-22.5 12PR

600/55-22.5 12PR

650/50-R22.5 12PR

16x6.5-8 4PR

555/45-17 154F

550/45-R22.5

555/45-17 154F

500/55-20 12PR

16x6.5-8 4PR

700/45-22.5 12PR

700/50-R26.5

800/40-R26.5

650/50-R22.5 12PR

600/55-R26.5

16x6.5-8 4PR

Tyre pressure

- with tyres: 555/45-17

500/55-20

600/55-22.5

550/45-R22.5

650/50-R22.5

700/45-22.5

600/55-R26.5

700/50-R26.5

800/40-R26.5

Pick-up wheels

bar

3.0

1.5

2.5

3.0

4.5

3.0

2.5

3.0

1.5

3.0

1.5

2.5

Tightening torque of wheel nuts

M18 x x1.5

M20 x 1.5

M22 x x1.5

380

510

270

510

Sound pressure level dB(A) 70 70 70
