CITROEN C4 Dag 2008 User manual



114

F A M I L I A R I S A T I O N

Directional headlamps

This lighting function automatically

improves forward vision when cornering.

EXTERIOR

Lane departure warning system

Above 50 mph, this system is activated

automatically if you inadvertently wander

from your lane.

Visual and audible parking

assistance, front/rear

This system warns you if an obstacle

is detected when manoeuvring the

vehicle.

Guide-me-home lighting

The headlamps stay on for a short

period after switching off the ignition.



F A M I L I A R I S A T I O N

Press once to lock the vehicle.

Press again to unlock the vehicle.

Remote control

Unfolding/folding the key.

Unlocking the vehicle.

Locking the vehicle.

Manual central locking

OPENING

In addition...

A long press on button

locks the

vehicle and closes the windows.

Two successive presses on button

deadlocks the vehicle.

Activating/deactivating

guide-me-home lighting.



125



124



F A M I L I A R I S A T I O N

Unlock the vehicle with the remote con-

trol or the key.

Press up on the lever and lift the tail-

gate.

Tailgate

Spare wheel and tools

Access to the spare wheel

Lift the carpet, then remove the tool

holder to gain access to the wheel.

OPENING

Access to the tools

The tools are located in a protective

holder in the spare wheel.

Fuel tank

Opening the fuel ﬁ ller ﬂ ap.

Removing the ﬁ ller cap.

If your spare wheel is of different

dimensions to the wheels on the

vehicle, it is essential to use it only

on a temporary basis, and to not

drive above 80 km/h (50 mph).

To open the fuel ﬁ ller ﬂ ap, pull at its

notched edge. There is a fuel label on

the inside of the ﬂ ap.

Locking filler cap

Turn the key a quarter turn to lock and

unlock the ﬁ ller cap.

When refuelling, place the cap on the

carrier on the inside face of the ﬁ ller

ﬂ ap.

Fuel tank capacity: 60 litres approxi-

mately.



110, 112



163

F A M I L I A R I S A T I O N

INTERIOR

Translucent instrument panel

This system gives optimum contrast,

whatever the external light level.

Cruise control/Speed limiter

These two systems allow the vehicle’s

speed to be maintained at a programmed

level.

Scented air freshener

The air freshener distributes scented

air throughout the cabin. It is located

in the centre air vent

Audio and communication

systems

These systems make use of the latest

technologies: MP3-compatible audio,

Bluetooth® hands-free kit, GPS mobile

phone.

F A M I L I A R I S A T I O N

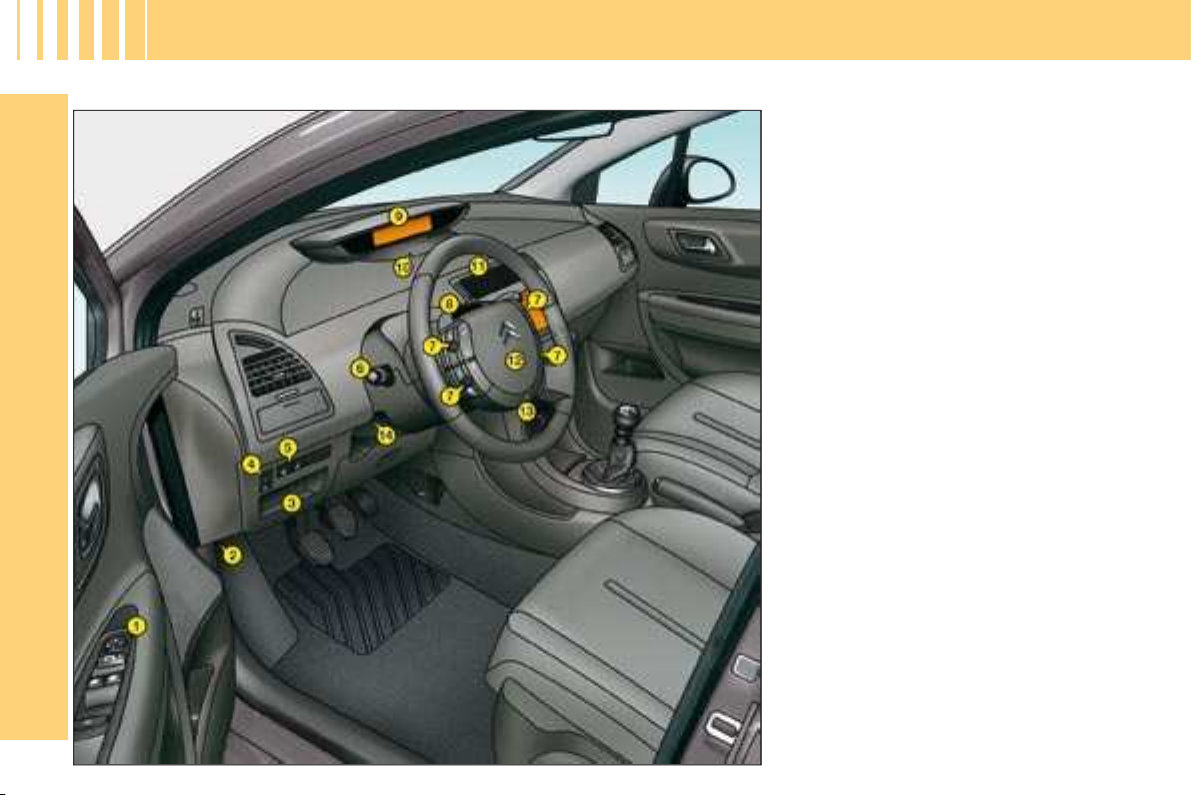

DASHBOARD

Controls:

• Mirrors.

• Windows.

• Child safety

Bonnet release.

Fusebox cover.

Headlamp adjustment.

Controls:

• ESP.

• Parking assistance.

• Lane departure warning system.

• Anti-intrusion alarm.

Controls:

• Lighting.

• Direction indicators.

• Front fog lamps

• Rear fog lamps.

Fixed centred controls.

Direction indicator warning lamps.

Speed indicator

10.

Controls:

• Trip mileage recorder reset

button.

• Display lighting rheostat.

• Display of alerts and status of

functions.

11.

Centre air vents.

12.

Driver’s airbag.

13.

Horn

14.

Steering column adjustment lever.

F A M I L I A R I S A T I O N

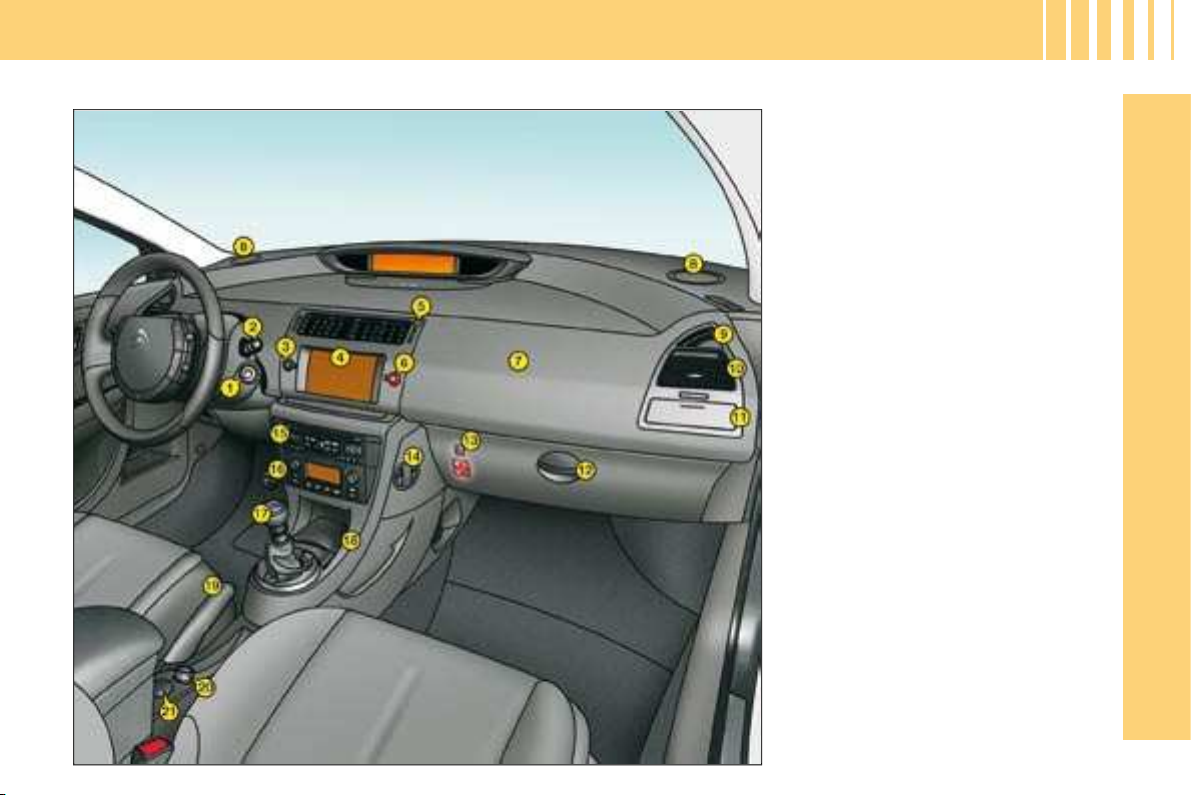

DASHBOARD

Steering lock and ignition switch.

Controls:

• Windscreen wiper.

• Screen wash.

• Rear screen wiper.

• Trip computer.

Control for central locking of doors

and boot.

Multifunction display.

Scented air freshener.

Hazard lamps control.

Passenger’s airbag.

Loudspeaker (Tweeter)

(left and right).

Side window demister vent

(left and right).

10.

Lateral air vent (left and right).

11.

Storage drawer (left and right).

12.

Lower glovebox.

• Handbook pack storage.

13.

Key-operated switch:

• Passenger’s airbag activation/

deactivation.

. Carrier bag hook.

15.

Radio-CD or NaviDrive radio navigation.

16.

Air conditioning or heating/ventilation.

17.

Gear lever.

18.

Ashtray.

19.

Handbrake.

20.

Cigar lighter.

21.

12-volt accessory socket (150 W max).

USB socket.

F A M I L I A R I S A T I O N

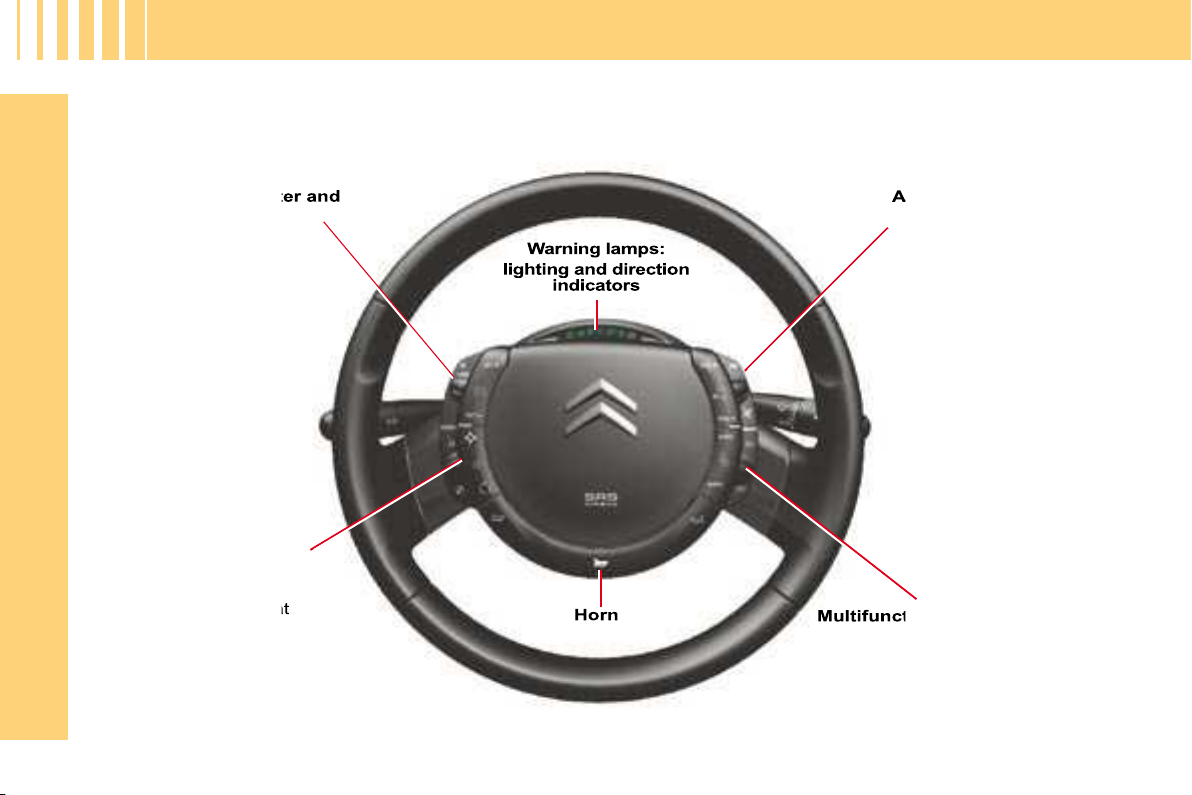

FIXED CENTRED CONTROLS STEERING WHEEL

Controls for speed limiter and

cruise control

Audio system

controls

Function

controls:

Multifunction display controls

- Display lighting rheostat

- Voice recognition

- Air recirculation

- Telephone

- Personal button

F A M I L I A R I S A T I O N

Controls for speed limiter and

cruise control

Audio system controls

See "Audio" or your Navidrive instructions

Selection of speed

limiter or cruise

control

Activation of speed

limiter and

Deactivation/

Reactivation

of cruise control and

speed limiter

Search for

higher radio

frequencies

Scrolling of

memorised

stations

Decrease speed/

Activate cruise

control

Increase speed/

Activate cruise

control

Increase sound

volume

Reduce

sound

volume

Mute

FIXED CENTRED CONTROLS STEERING WHEEL

F A M I L I A R I S A T I O N

Display

lighting

rheostat

Starting voice

recognition

(See "Audio" or

your Navidrive

instructions)

Access to "Main

menu"*

Scrolling in the

multifunction

display

Telephone pick-

elephone pick-

up/hang-up

(See "Audio" or

your Navidrive

instructions)

Personal button:

- Black panel (default function), or

- Interior lamp on/off, or

- Log of alerts, or

- Status of functions

Give a long press on this button to

display the personalisation menu.

Selection of the type of

information displayed on the

right of the screen (radio,

trip computer, navigation/

guidance…) and for screen

A, choice of activation/deac-

tivation of your functions and

choice of your adjustments

Cancel the current

operation or return to the

previous screen

Air recirculation

Validation of the function selected or the

value modiﬁ ed

Pick up/hang up

(See "Audio" or your Navigation instructions)

* Incompliancewithnational

legislation, in some coun-

tries the "menu" control is

deactivated when driving.

Display the

"Directory" menu

(See "Audio" or

your Navidrive

instructions)

FIXED CENTRED CONTROLS STEERING WHEEL



F A M I L I A R I S A T I O N

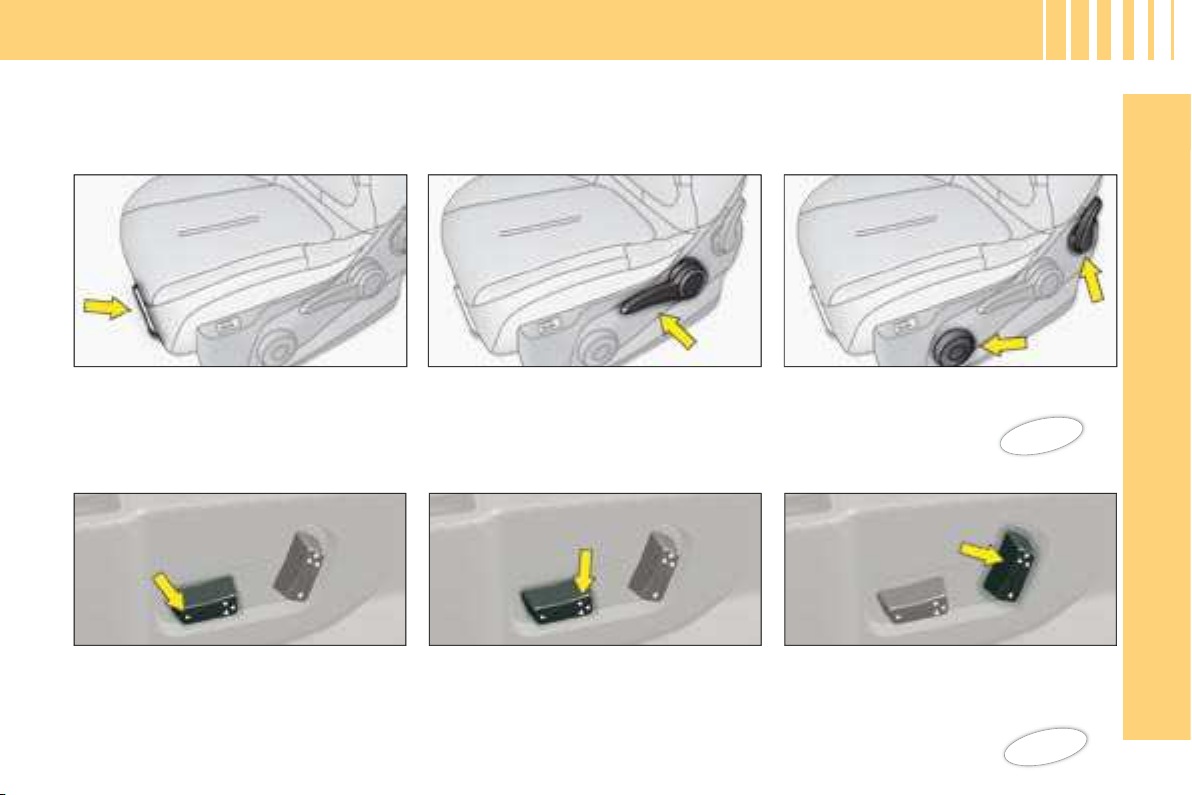

SITTING COMFORTABLY

Front seats

Forwards-backwards

Driver’s seat cushion height and angle

adjustment

Seat back angle and lumbar

adjustment

Manual adjustments

Electrically operated adjustments

(driver’s seat only)

Forwards-backwards

Seat cushion height and angle

adjustment

Seat back angle and lumbar

adjustment
