Cisco 8800 Series User manual

●

●

Configure a Mobile Device with Cisco IP

Phone 8800 Series Multiplatform Phone

Objective

The Cisco IP Phone 8800 Series Multiplatform Phones allow you to pair your mobile device

such as phone or tablet through Bluetooth. This connection allows you to make and answer

phone calls on either the mobile device or the IP Phone. This ability to use the mobile line on

your IP phone is called Intelligent Proximity.

To configure a mobile device on your IP Phone, you have to configure the Bluetooth settings

first. The Bluetooth icon on the Graphical User Interface (GUI) of the phone indicates that

Bluetooth is on irrespective of whether a device is connected or not. To learn how to

configure the Bluetooth settings on your IP Phone, click here.

After configuring your mobile device, your IP phone displays an additional phone line with

your mobile phone number. This article provides instructions on how to configure a mobile

device on your Cisco IP Phone 8800 Series Multiplatform Phone.

Applicable Devices

8800 Series

Software Version

11.0.1 — 8851, 8861

Configure a Mobile Device on your IP Phone

Pair the Mobile Device with your IP Phone

Step 1. On your mobile device, toggle the Bluetooth switch to enable Bluetooth. The device

will start to discover nearby Bluetooth-enabled devices.

Note: In this example, iPhone6s is used.

Step 2. Press the Applications button on your IP Phone.

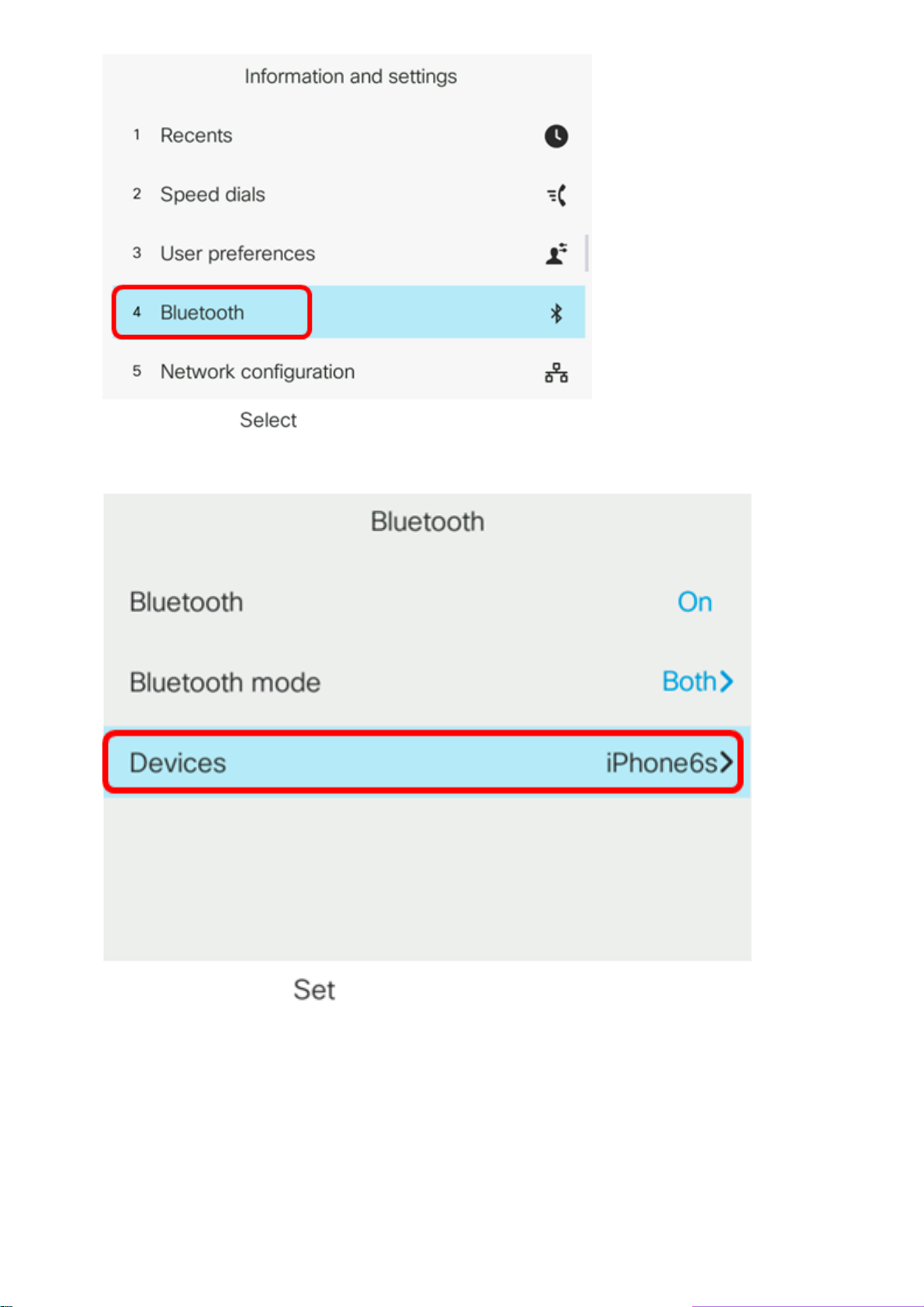

Step 3. Choose Bluetooth using the Navigation cluster button.

Step 4. Choose Devices.

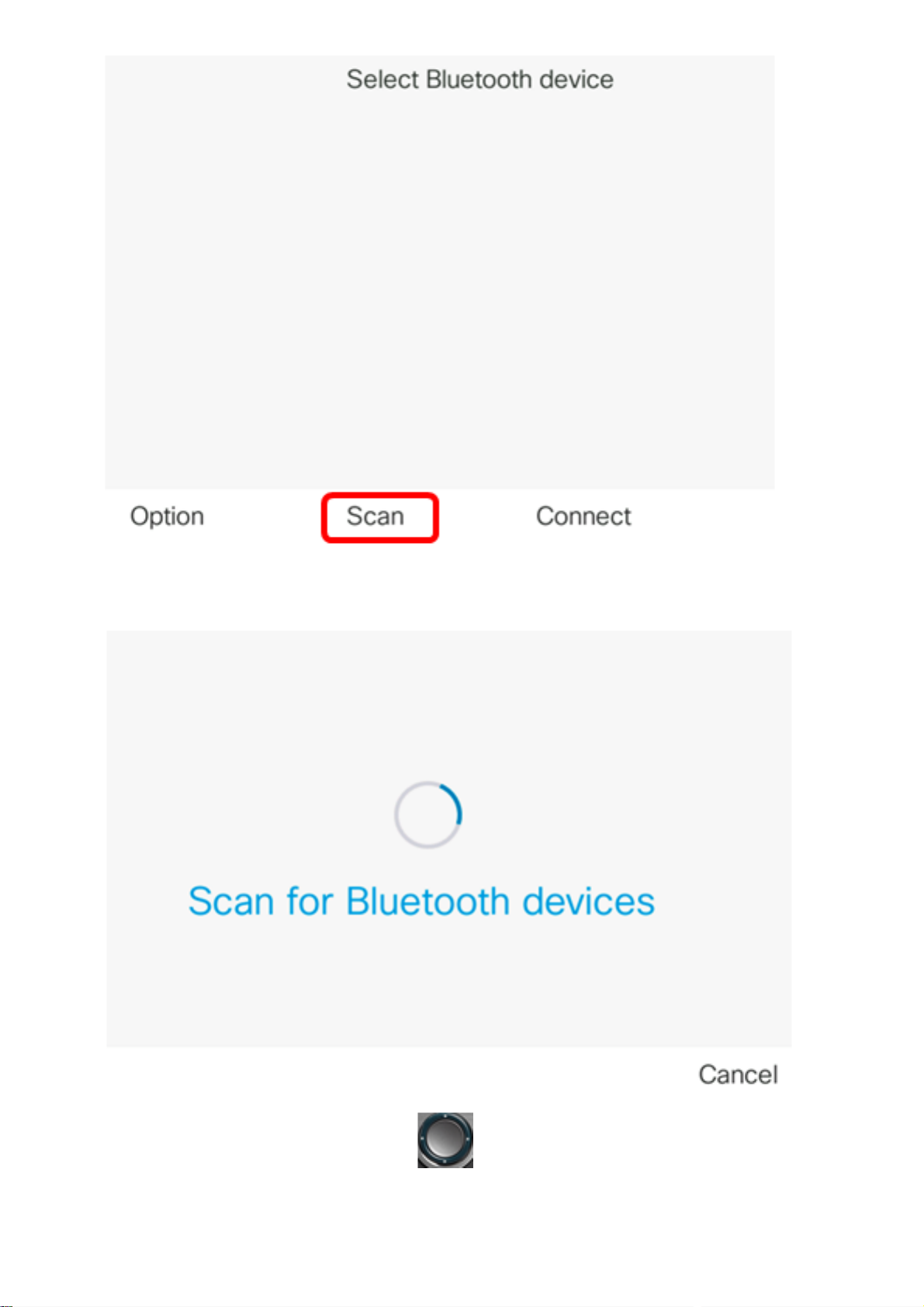

Step 5. Press the Scan softkey to search for your Bluetooth-enabled mobile device.

The IP Phone will start scanning for available Bluetooth devices. Once done, all detected

Bluetooth devices will be displayed.

Step 6. Press the Navigation cluster up or down button to choose your preferred

mobile device then press the Connect softkey.

Note: In this example, iPhone6s is chosen.

Step 7. On your mobile device, a Bluetooth Pairing Request with the device ID of your IP

Phone should appear. Confirm the PIN code then tap Pair.

Note: In this example, the device ID is SEP5006AB7086D6 and the PIN code is 256728.

Step 8. Press the OK softkey on your IP Phone.

Once the Bluetooth device has been paired, a check icon will be displayed next to the

configured mobile device.

On your mobile phone, the device ID of the IP Phone should display as Connected.

Step 9. Press the Applications button on your IP Phone. The mobile device extension

should be displayed in the GUI of your IP Phone.

Step 10. (Optional) You will be prompted to save your mobile contacts to your IP Phone.

Press Yes to store all of your mobile contacts on your IP Phone. Otherwise, press the No

softkey.

Note: In this example, Yes is chosen.

Note: For instructions on how to manage the mobile contacts on your IP Phone, click here.

You should now have successfully paired your mobile device with your Cisco IP Phone 8800

Series Multiplatform Phone.

Disconnect or Remove a Mobile Device from your IP Phone

Step 1. Press the Applications button on your IP Phone.

Step 2. Choose Bluetooth using the Navigation cluster button.

Step 3. Choose Devices.

Step 4. (Optional) To disconnect a paired Bluetooth device, press the Disconnect softkey.
