Cirrus Screens Harbour 2 User manual

Harbour 2

In Ceiling Tab Tensioned

Projection Screen

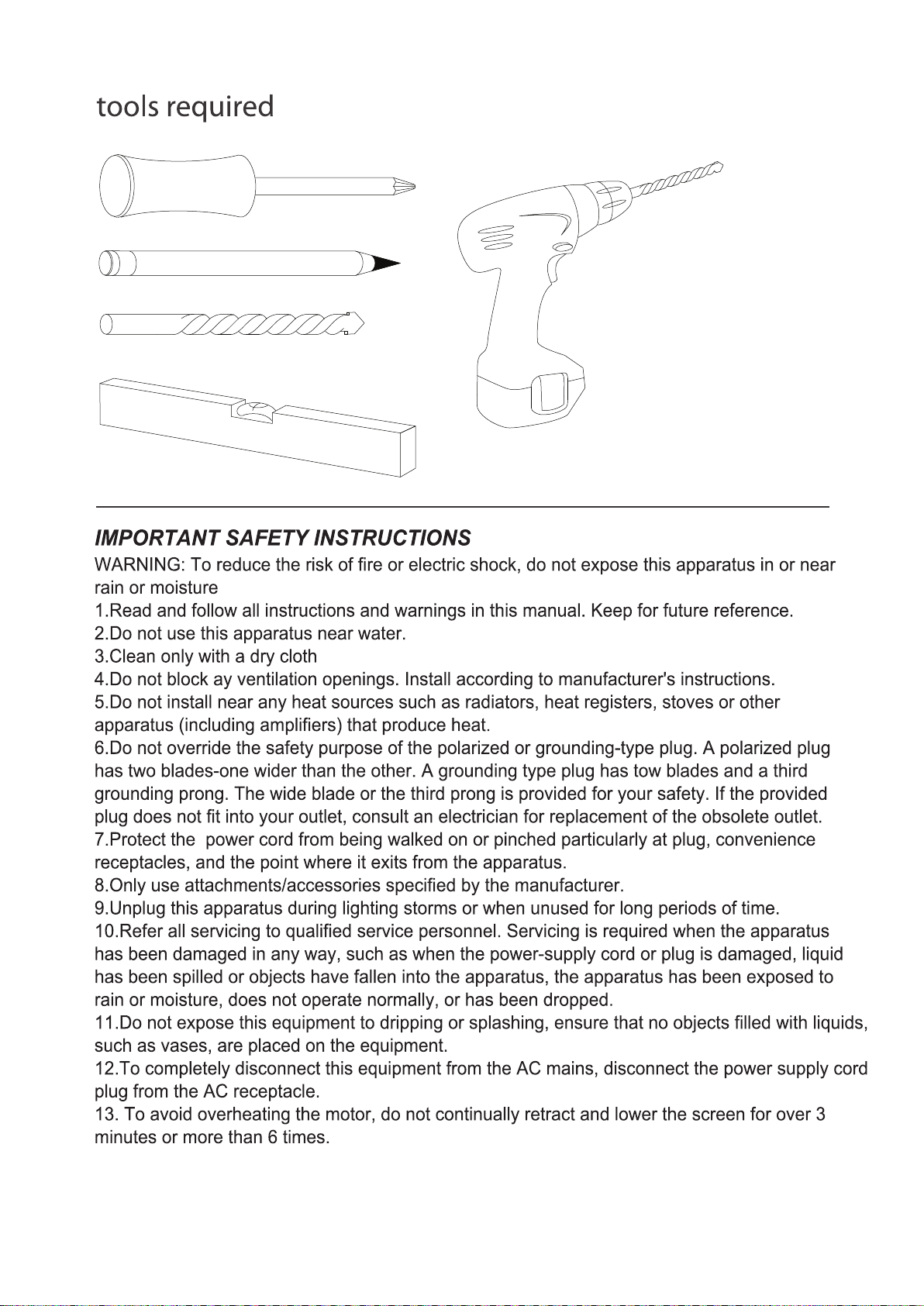

X2

X12

X10

X10

X8 X8

X2 X2

X2

RF Remote

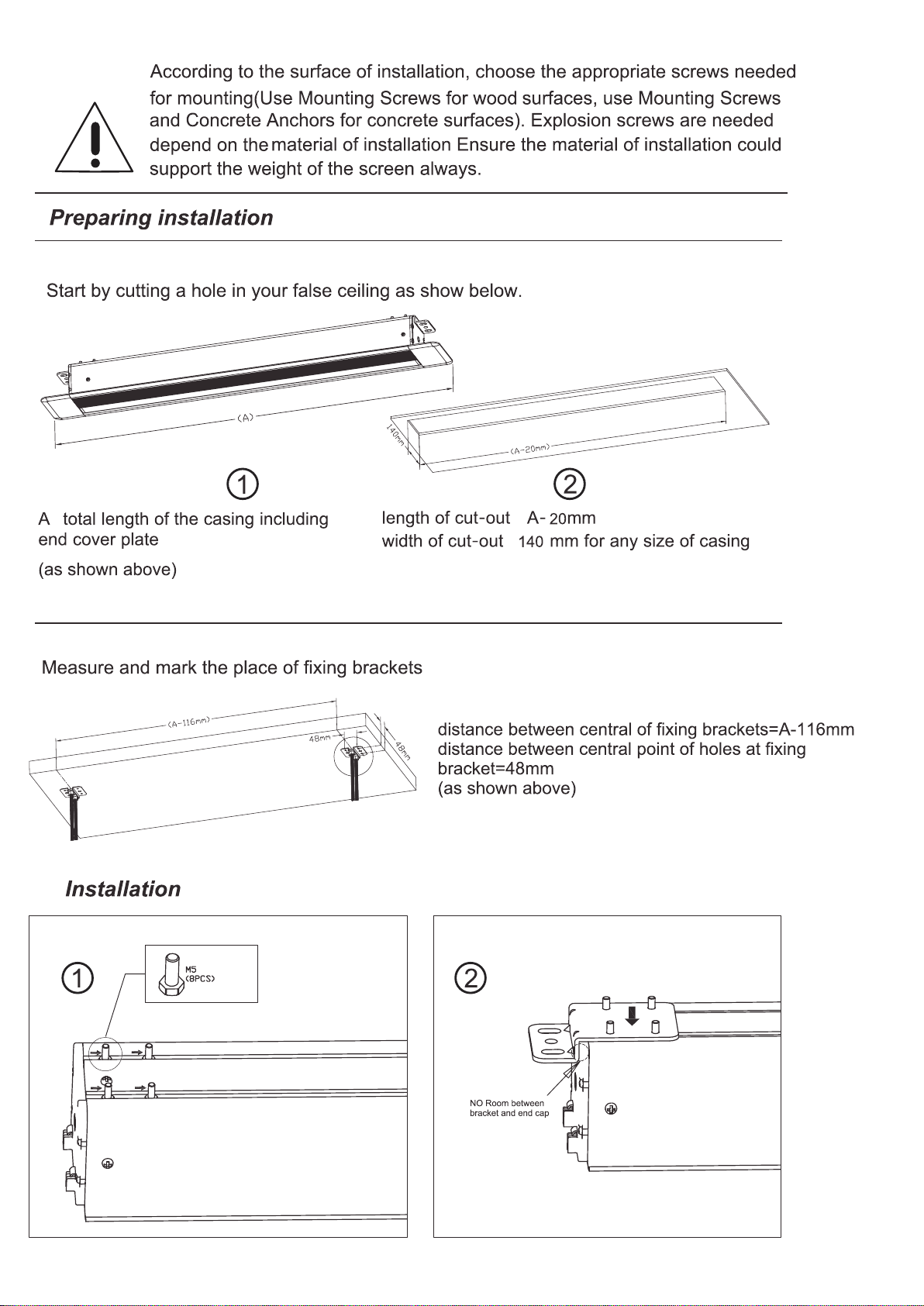

1

2

RF control does not work

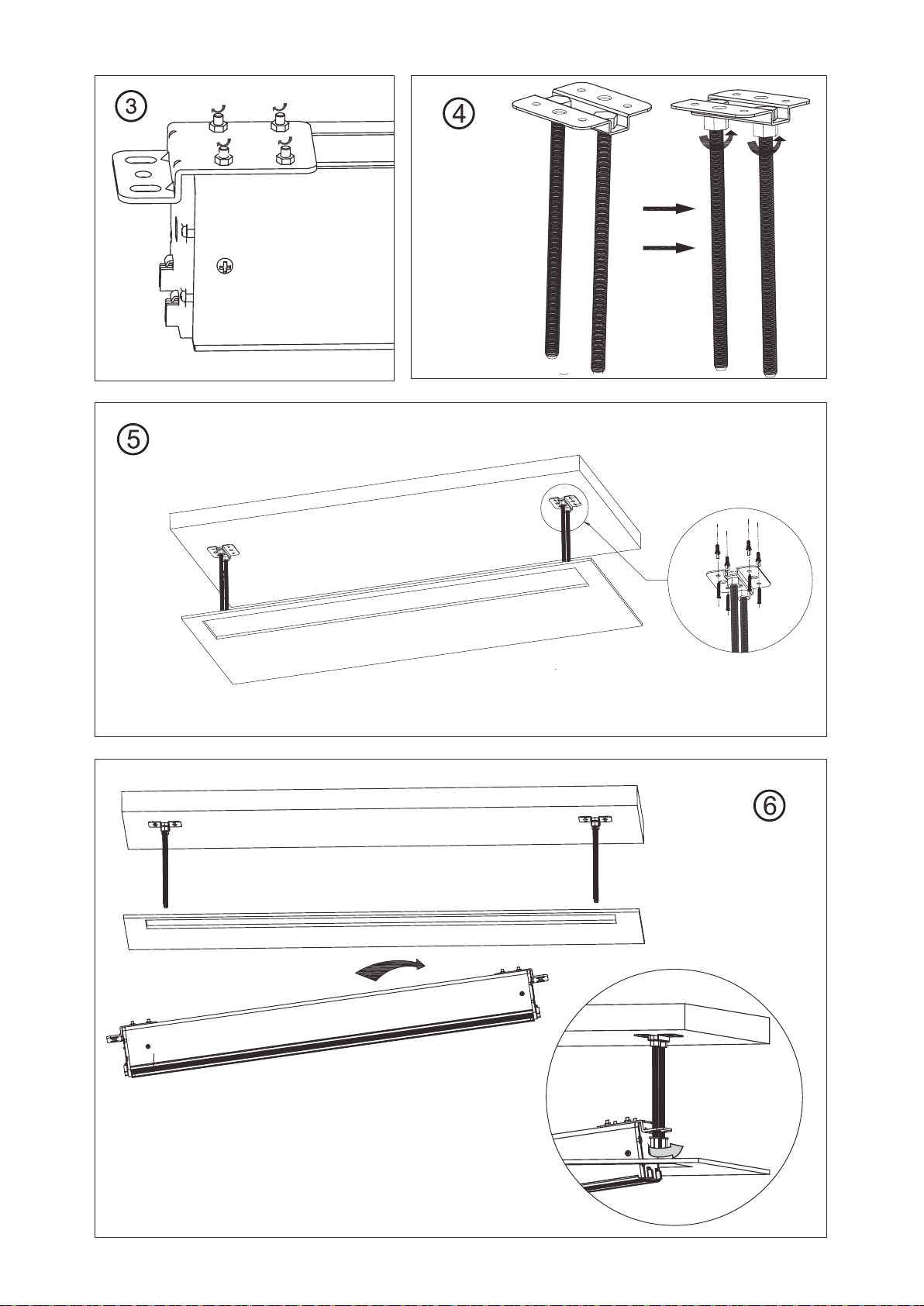

3

=

=

4

5

6

7

8

9

Adjustment Button

Please remove the grommet before making the adjustment.

Adjusting The Black Drop

We only recommend the experienced AV installer to undertake below procedures:

Downwards

Ensure that the screen is in the CLOSED

Stand in reach of the screen while holding the RF remote.

Press the DOWN button of the RF remote, when the screen goes down about to the desired

position, press the adjustment button.

Press the adjustment button repeatedly until the screen reaches the desired position.

Press the UP button of the RF remote to save the settings.

Upwards

Ensure that the screen is in the OPENED

Stand in reach of the screen while holding the RF remote.

Press the UP button of the RF remote, when the screen goes up about to the desired position,

press the adjustment button.

Press the adjustment button repeatedly until the screen reaches the desired position.

Press the DOWN button of the RF remote to save the settings.

CAUTION: To avoid the bottom bar from going too far into the casing, please follow

the above procedures with strict accordance.

It is the responsibility of the installer to verify drop and retraction limit controls. We only

recommend that experienced AV installers adjust the motor limits of the projection screen.

The upper limit should never be adjusted - it controls the point at which the screen stops

Improperly adjusting the limits of the motor will cause damage to the screen and motor and

will void all warranty.
