Christie Q Series User manual

Q Series

DWU1052/DHD1052

Quick Setup Guide

020-000860-01

DWU1052/DHD1052

Quick Setup Guide 020-000860-01 Rev. 1 (12-2015)

LIT MAN USR DWU/DHD1052 CON

Projector

DWU1052/DHD1052

User's Manual

Quick Setup Guide

Thank you for purchasing this projector.

Install the projector according to the

environment and manner the projector will

be used in.

Projector top

Projector bottom

This manual is intended to explain only how to setup this product.

For proper use

of this product, refer to this manual and the other manuals for this product.

Refer to tables T-1 to T-2 at the back of User's Manual (concise) as well as the

following to determine the screen size and projection distance. The values shown

in the table are calculated for a full size screen.

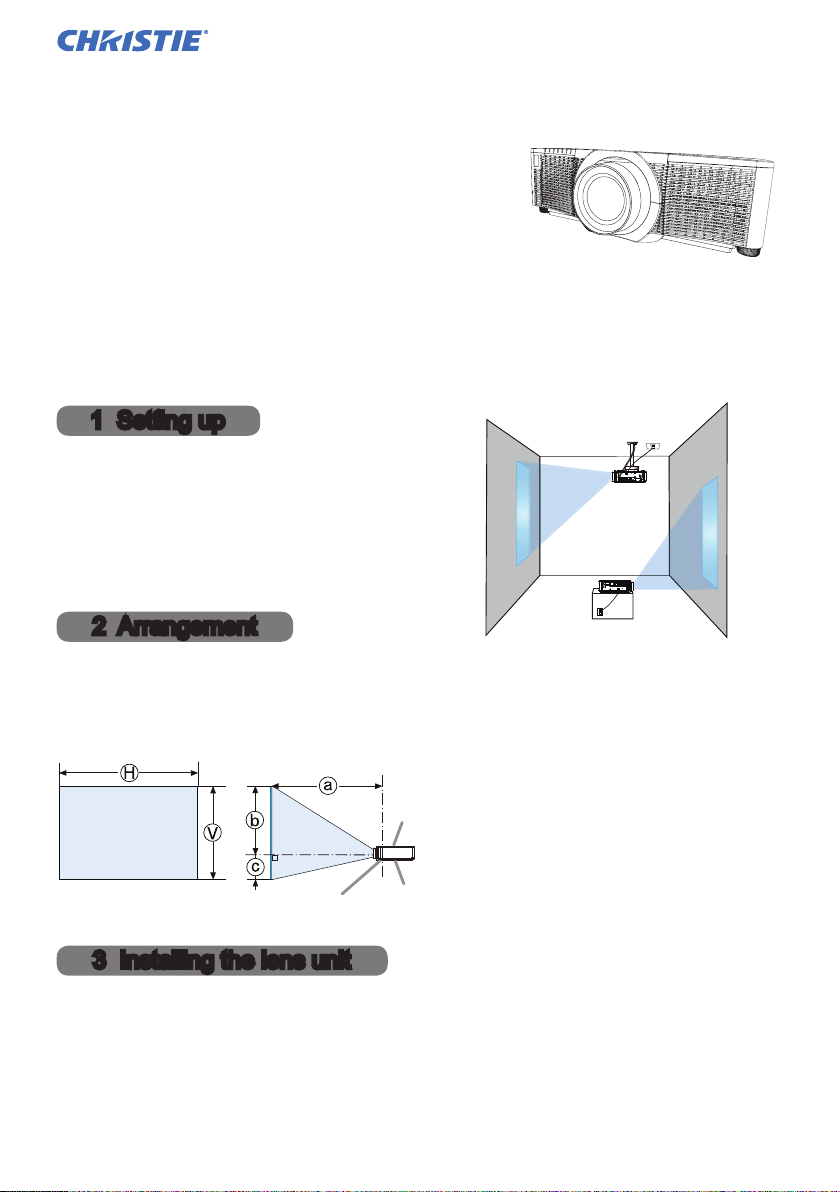

1 Setting up

2 Arrangement

3 Installing the lens unit

See the manual of the optional lens.

Follow this manual step by step for a quick installation.

Ⓗ×Ⓥ : Screen size

ⓐ : Projection distance

ⓑ,ⓒ: Screen height

Elevator feet

DWU1052/DHD1052

Quick Setup Guide 020-000860-01 Rev. 1 (12-2015)

LIT MAN USR DWU/DHD1052 CON

Before connecting the projector to a device, consult the manual of the device to

con rm that the device is suitable for connecting with this projector and prepare

the required accessories, such as a cable in accord with the signal of the device.

Consult your dealer when the required accessory did not come with the product or

the accessory is damaged.

After making sure that the projector and the devices are turned off, perform the

connection, according to the following instructions.

Before connecting the projector to a network system, be sure to read User's

Manual - Network Quick Setup Guide too.

Computer

(Wired)

Remote

control

Monitor

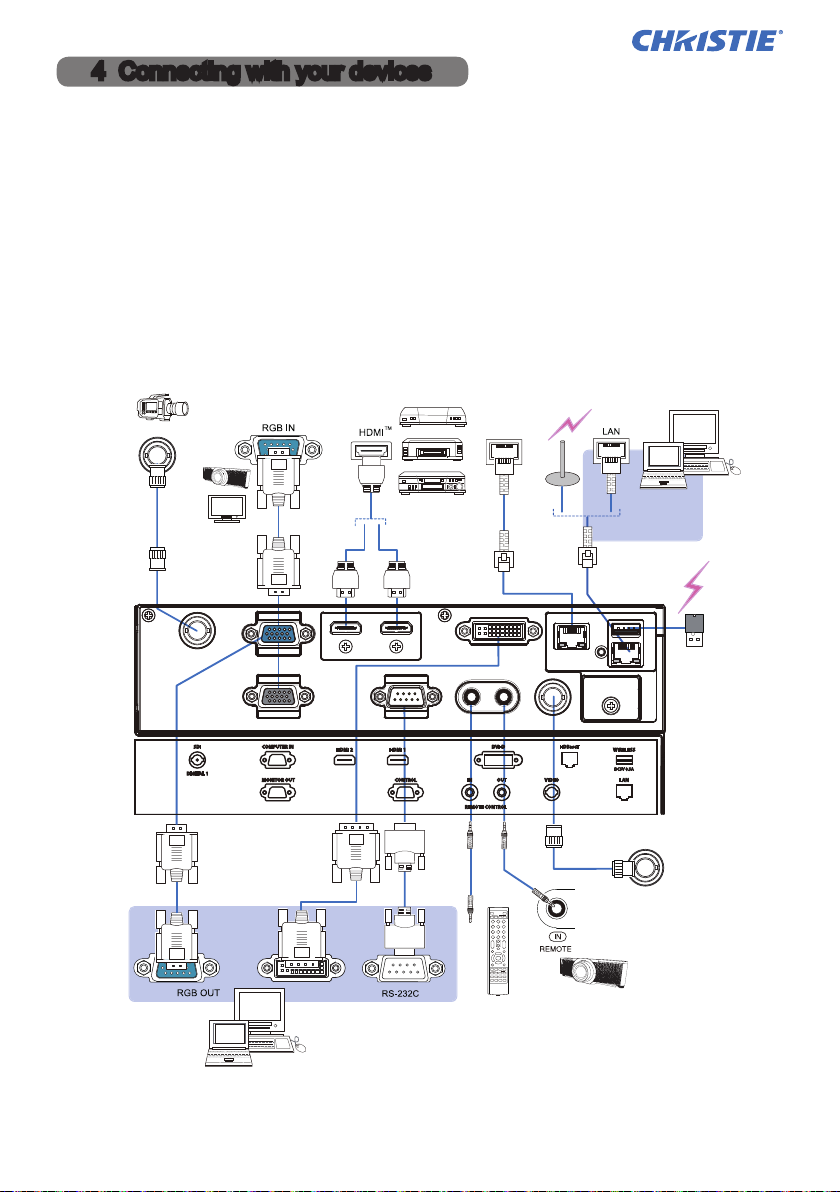

4 Connecting with your devices

USB

wireless

adapter

(optional)

VCR/DVD/Blu-ray DiscTM

player Computer

Another

projector

Access

point

HDBaseT

DVI

VIDEO OUT

SDI OUT

Camera for

commercial use

DWU1052/DHD1052

Quick Setup Guide 020-000860-01 Rev. 1 (12-2015)

LIT MAN USR DWU/DHD1052 CON

Use the supplied cable tie

to fasten the cables.

USB wireless adapter: USB-WL-11N-NS

Temperature range: 0 ~ 45 °C (Operating)

Cable tie

1. Loosen the screw on the bottom left of the WIRELESS port.

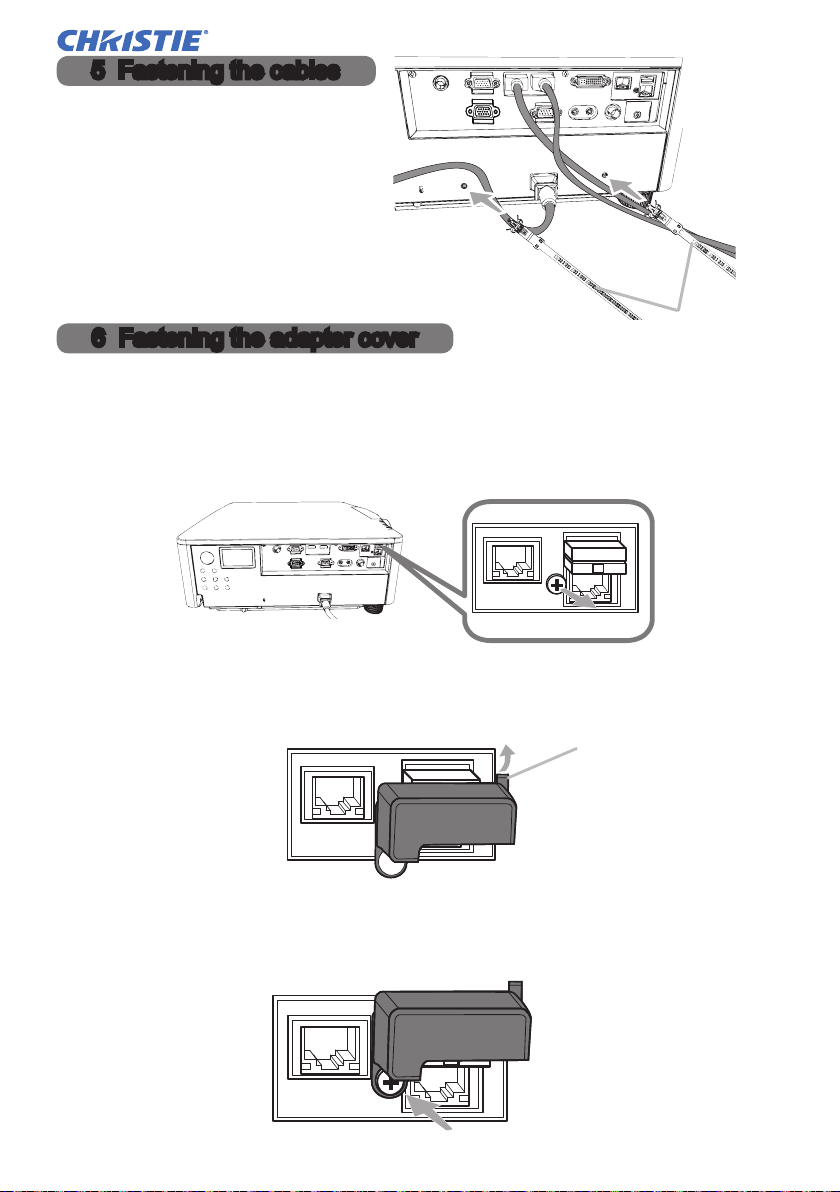

5 Fastening the cables

6 Fastening the adapter cover

Tab

2. Insert the tab of the cover into the hole at the upper right of the WIRELESS

port in the direction of the arrow.

3. Align the screw holes on the projector and the cover. Then insert the screw

removed from the projector into the hole and tighten the screw.

DWU1052/DHD1052

Quick Setup Guide 020-000860-01 Rev. 1 (12-2015)

LIT MAN USR DWU/DHD1052 CON

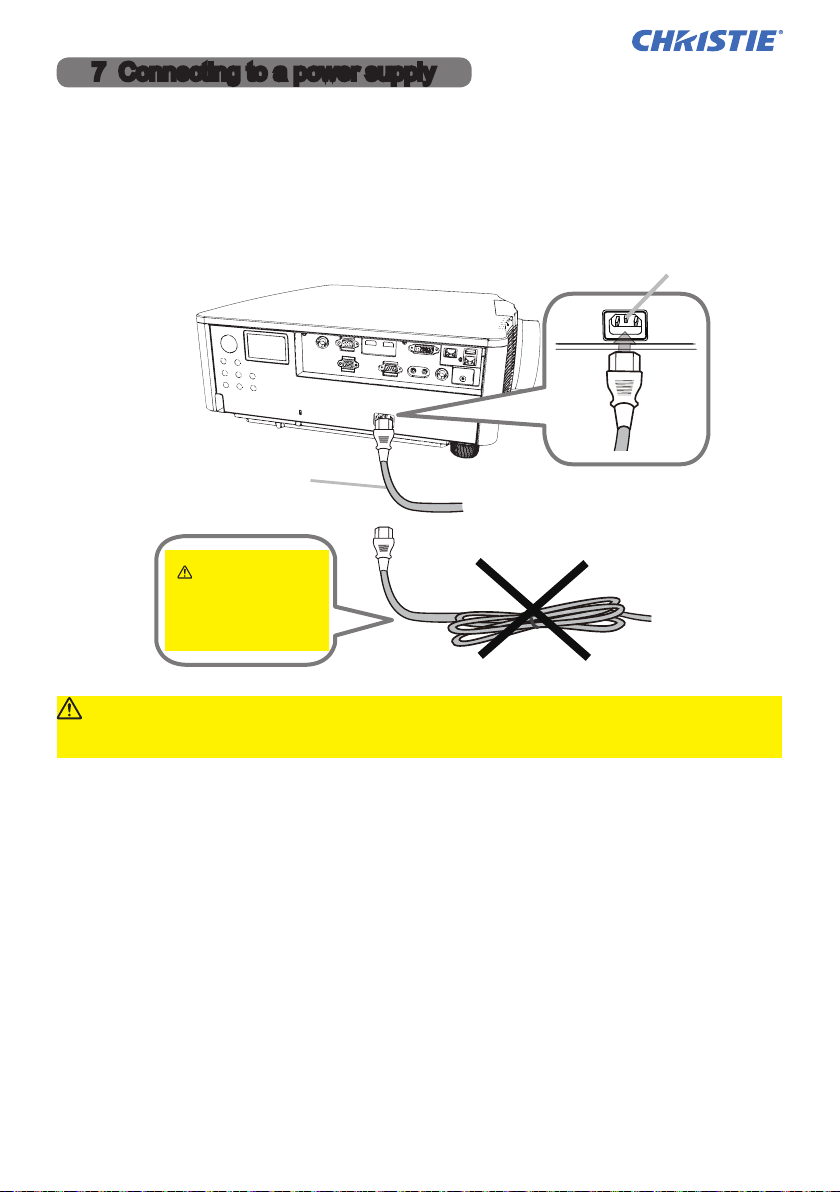

1. Insert the connector of the power cord into the AC (AC inlet) of the projector.

2. Firmly plug the power cord’s plug into the outlet. In a couple of seconds after

the power supply connection, the POWER indicator will light up in steady

orange.

WARNING ►Use the supplied power cable only.

►Do not use tied power cord.

7 Connecting to a power supply

Power cord

WARNING

►Do not use

tied power cord.

DWU1052/DHD1052

Quick Setup Guide 020-000860-01 Rev. 1 (12-2015)

LIT MAN USR DWU/DHD1052 CON

Insert the batteries into the remote control before using it.

(Batteries are not included.)

21 3

1. Make sure that the power cord is rmly and correctly connected to the

projector and the outlet.

2. Make sure that the POWER indicator is lighted in steady orange.

Press STANDBY/ON button on the projector or the ON button on the remote

control.

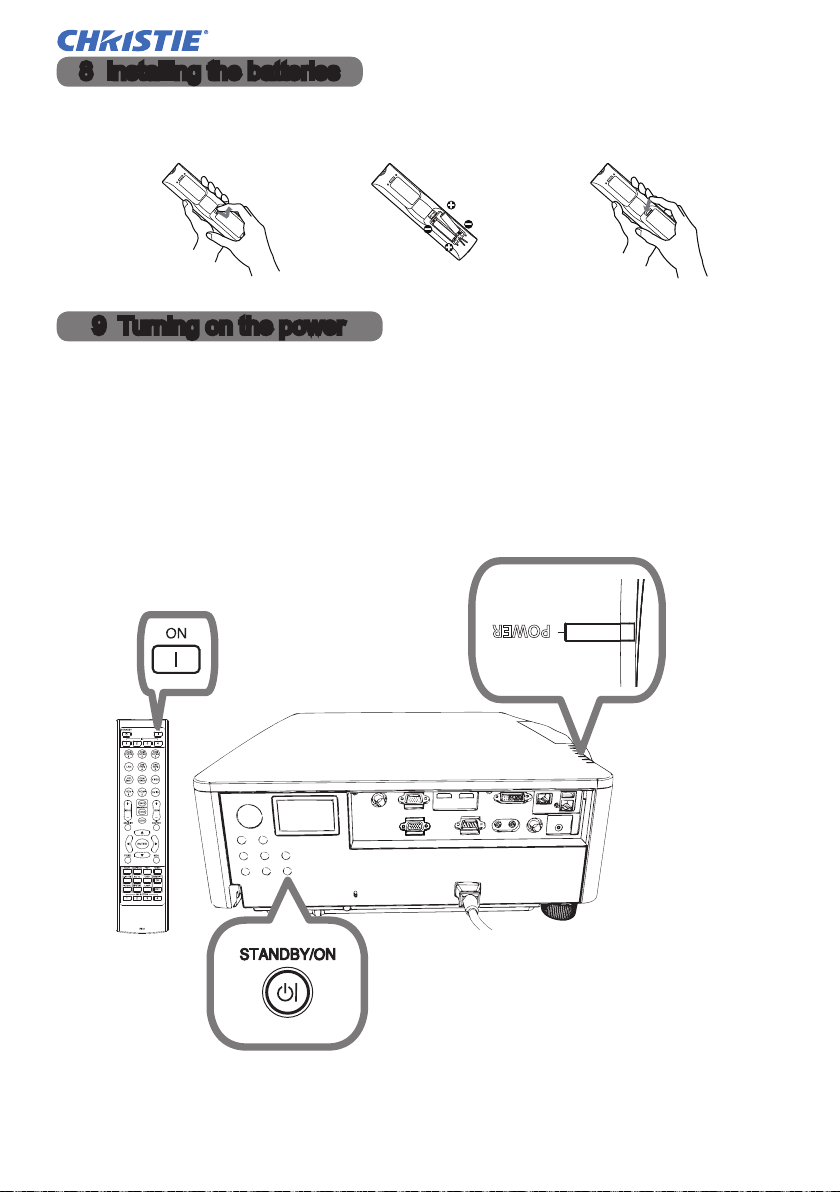

8 Installing the batteries

9 Turning on the power

The projection lamp will light up and POWER indicator will begin blinking in green.

When the power is completely on, the indicator will stop blinking and light in

steady green.

POWER

indicator

ON button

STANDBY/ON

button

POWER

TEMP

LAMP 1

LAMP 2

SECURITY

SHUTTER

FILTER

DWU1052/DHD1052

Quick Setup Guide 020-000860-01 Rev. 1 (12-2015)

LIT MAN USR DWU/DHD1052 CON

INPUT button

Press ASPECT button on the remote control.

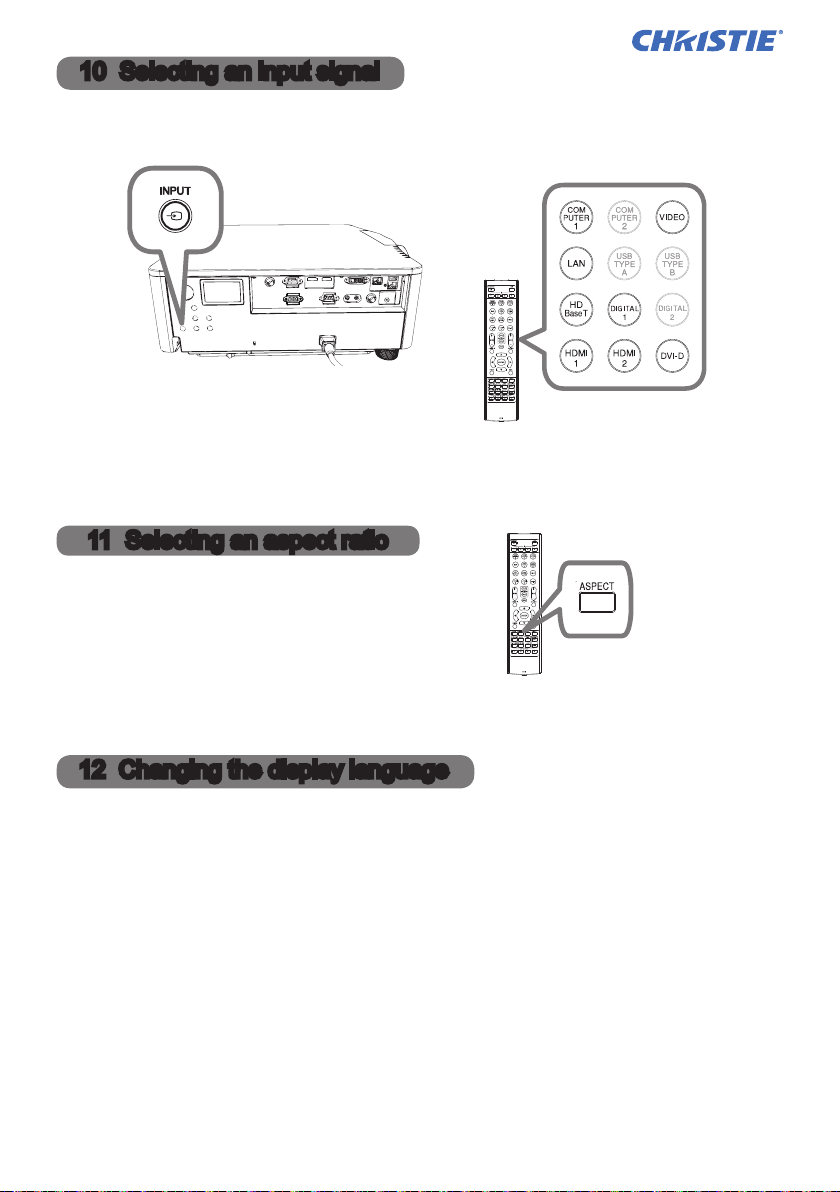

10 Selecting an input signal

11 Selecting an aspect ratio

Press the INPUT button of the projector or the input buttons of the remote

control.

ASPECT

button

Follow the on-screen display (OSD) for proper operation.

12 Changing the display language

1. Press the MENU button on the remote control or the control panel of the

projector.

2. From EASY MENU, select LANGUAGE.

Then, select your desired language.

Buttons for input ports

DWU1052/DHD1052

Quick Setup Guide 020-000860-01 Rev. 1 (12-2015)

LIT MAN USR DWU/DHD1052 CON

1. To start the MENU, press the MENU button. The MENU you last used (EASY

or ADVANCED) appears. EASY MENU has priority to appear just after

powered on.

2. (1) Use the ▲/▼ cursor buttons to select an

item to operate. If you want to change it to the

ADVANCED MENU, select the ADVANCED

MENU.

(2) Use the ◄/► cursor buttons to operate the

item.

In the EASY MENU

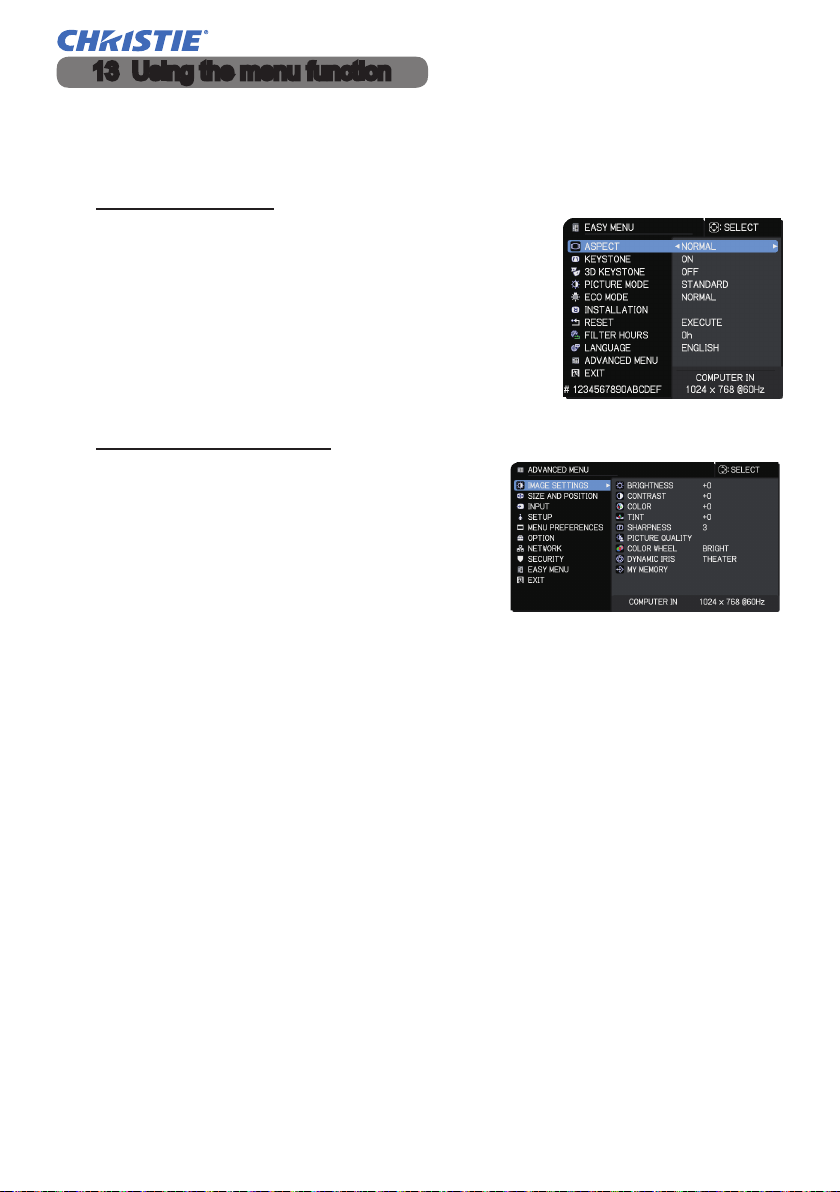

13 Using the menu function

(1) Use the ▲/▼ cursor buttons to select a

menu. If you want to change it to the EASY

MENU, select the EASY MENU. The items

in the menu appear on the right side.

In the ADVANCED MENU

3. To close the MENU, press the MENU button again or select EXIT and press

the ◄ cursor button or ENTER button. Even if you do not do anything, the

dialog will automatically disappear after about 30 seconds.

(2) Press the ► cursor button or ENTER

button to move the cursor to the right side.

Then use the ▲/▼ cursor buttons to select

an item to operate and press the ► cursor

button or ENTER button to progress. The

operation menu or dialog of the selected

item appears.

(3) Use the buttons as instructed in the OSD to operate the item.

DWU1052/DHD1052

Quick Setup Guide 020-000860-01 Rev. 1 (12-2015)

LIT MAN USR DWU/DHD1052 CON

Wired or wireless connection is available for this projector.

For wired connection, use LAN cable to connect

(Refer to User's Manual - Network Quick Setup Guide too.)

Before connecting to the network, contact the network administrator.NOTE

15 Connecting to the network

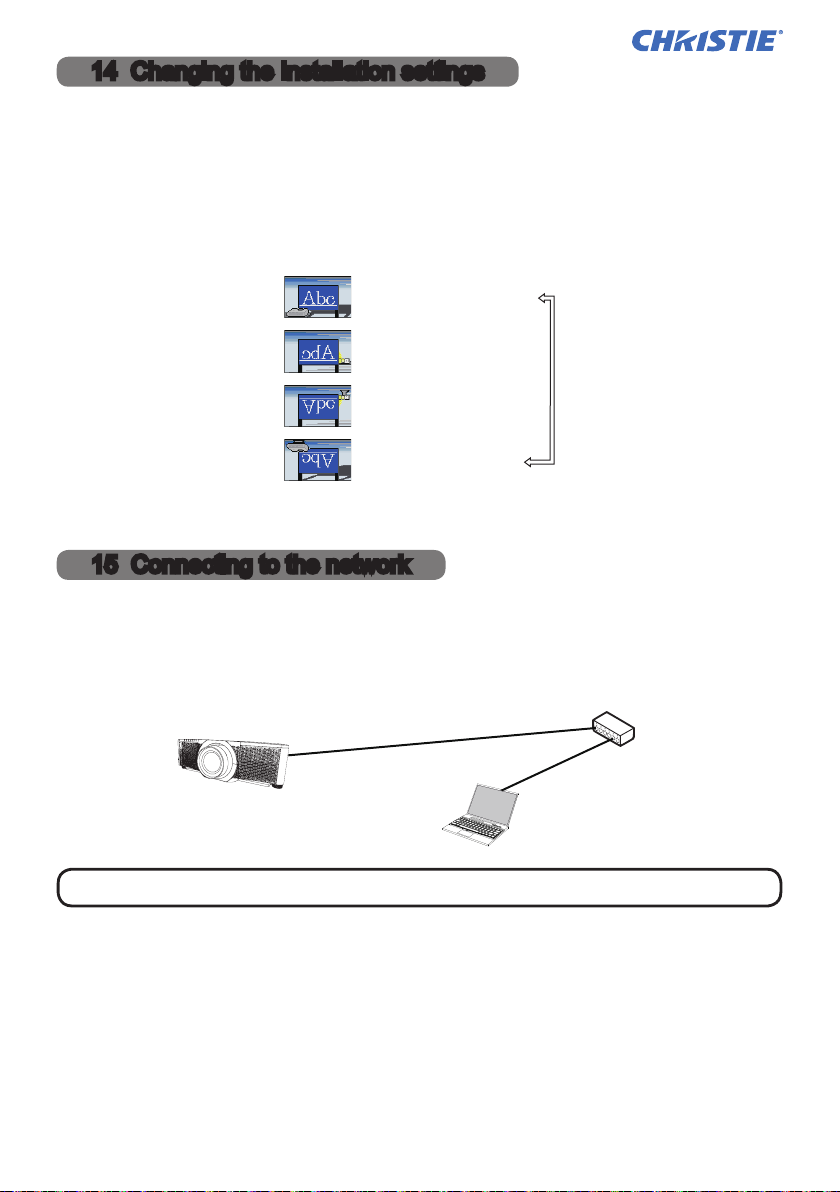

14 Changing the Installation settings

1. Press the MENU button, then follow below.

2. Choose according to your settings.

EASY MENU > ADVANCED MENU > SETUP > INSTALLATION

FRONT / DESKTOP

REAR / DESKTOP

REAR / CEILING

FRONT / CEILING



hub

DWU1052/DHD1052

Quick Setup Guide 020-000860-01 Rev. 1 (12-2015)

LIT MAN USR DWU/DHD1052 CON

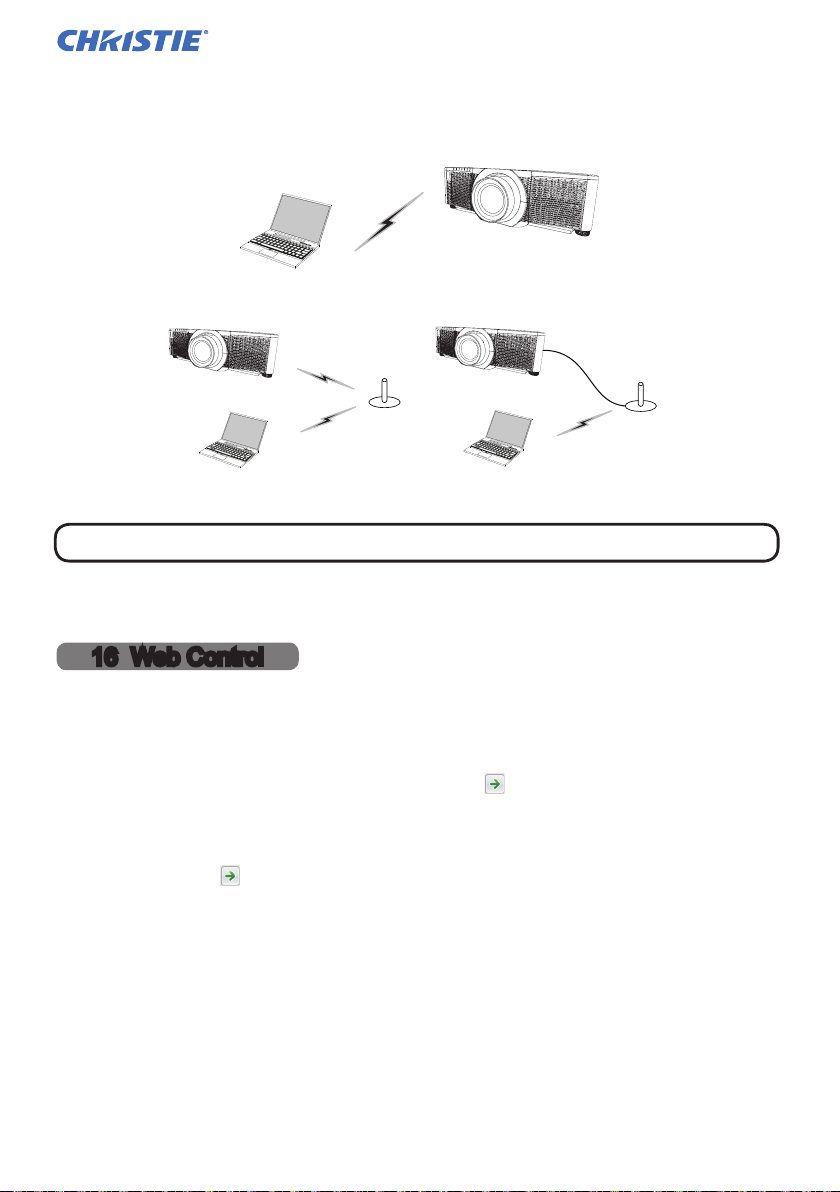

For wireless connection, use USB wireless adapter (USB-WL-11N-NS).

(Refer to User's Manual - Network Quick Setup Guide too.)

Without an access point communication (Simple Access Point)

With an access point communication (Infrastructure)

Before connecting to the network, contact the network administrator.

NOTE

Use Projector Web Control or Crestron e-Control to adjust or control the projector

using a network from a web browser on a computer which is connected to the

same network.

Enter the projector's IP address into URL input box of the Web browser as the

example below, and then press the Enter key or button.

Example: If the IP address of the projector is set to 192.168.1.10:

Enter “http://192.168.1.10/” into the address bar of the web browser and press the

Enter key or click button.

16 Web Control
