CHIEF PSB-2306 User manual
INSTALLATION INSTRUCTIONS
Chief Manufacturing, a products division of Milestone AV Technologies
8401 Eagle Creek Parkway, Savage, MN 55378
P: 800.582.6480 / 952.894.6280 F: 877.894.6918 / 952.894.6918
8804-000211 RevC
©2009 Milestone AV Technologies,
a Duchossois Group Company
07/09
ALL COMPONENTS MUST BE SECURELY FASTENED TO A
STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4
TIMES THE COMBINED WEIGHT OF ALL COMPONENTS
PLUS THE EQUIPMENT BEING MOUNTED. IF IT CANNOT
SUPPORT THIS WEIGHT, THE STRUCTURE MUST BE
REINFORCED.
THE MAXIMUM WEIGHT TO BE INSTALLED ON THE
MOUNT IS
200
POUNDS (
90.72
KG).
PSB-2306
PLASMA/LCD DISPLAY MOUNTING BRACKET

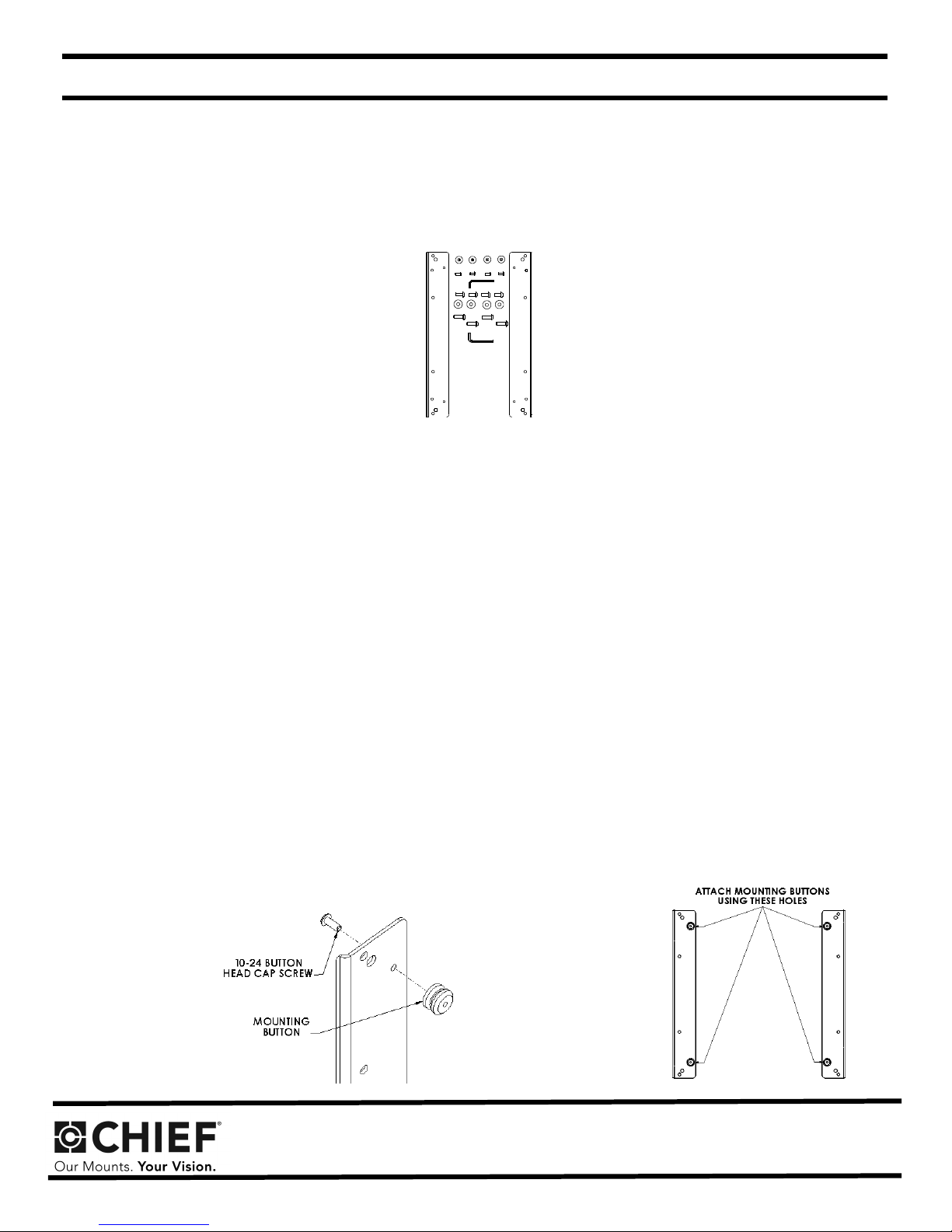

Prior to assembly, unpack carton completely and verify contents.
If you are missing any of the following components, please contact Customer Service.
(2) Interface Brackets (4) Mounting Buttons - Tapped
(4) 10-24 X .5 Button Head Cap Screws (4) M8 x 25 mm Button Head Cap Screw
(4) .875 x .33 x .375 Nylon Spacer (4) M8 x 20 mm Button Head Cap Screw
(1) M5 Allen Key (1) 1/8” Allen Key
BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY
PLASMA/LCD DISPLAYS ARE EXTREMELY FRAGILE.
1. Using a 10-24 button head cap screw inserted from back side of bracket, secure mounting button,
with chamfered hole of mounting button (larger surface) facing bracket, to bracket (four places) (see
Figure 2 & Figure 3). Make sure bends of interface bracket face away from buttons.
CAUTION!
Figure 1
WARNING!
Figure 2 Figure 3
2. Place Nylon spacers over mounting holes on back of screen. Attach mounting brackets to the display
using the M8 screws (see Figure 4 & Figure 5).
3. With the aid of another person, lift your display up to the Chief Mount, aligning buttons of mounting
brackets with slots in the Chief Mount.
4. Lower safety catch on the Chief Mount to secure your display, making sure catch is completely
engaged.
Figure 4 Figure 5
