Chicago Electric HOBBY ARC WELDER User manual

HOBBY ARC WELDER

Model 55594

ASSEMBLY AND OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at: http://www.harborfreight.com

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor Freight Tools.

For technical questions, please call 1-800-444-3353.

TO PREVENT SERIOUS INJURY,

READ AND UNDERSTAND ALL WARNINGS

AND INSTRUCTIONS BEFORE USE.

REV 07d

SKU 55594 For technical questions, please call 1-800-444-3353. Page 2

PRODUCT SPECIFICATIONS

GENERAL SAFETY RULES

WARNING!

READ AND UNDERSTAND ALL INSTRUCTIONS

Failure to follow all instructions listed below may result in

electric shock, fire, and/or serious injury.

SAVE THESE INSTRUCTIONS

WORK AREA

1. Keep your work area clean and well lit. Cluttered benches and dark areas

invite accidents.

2. Do not operate welding equipment in explosive atmospheres, such as in the

presence of flammable liquids, gases, or dust. Welding equipment creates

SAVE THIS MANUAL

You will need this manual for the safety warnings and precautions, assembly, operating,

inspection, maintenance and cleaning procedures, parts list and assembly diagram.

Keep your invoice with this manual. Write the invoice number on the inside of the front

cover. Keep this manual and invoice in a safe and dry place for future reference.

UNPACKING

When unpacking, check to make sure all the parts shown on the Parts List on page 20

are included. If any parts are missing or broken, please call Harbor Freight Tools at the

number shown on the cover of this manual as soon as possible.

REV 05l

stnemeriuqeRlacirtcelE

spmA02/zH06/esahPelgniS/CAV021:tupnIrewoP

)tiucrichcnarbpmA02detacidedaseriuqeR(

noitcetorPlamrehTnI-tliuB

rekcoRffO/NO:epyThctiwSrewoP

gulPdednuorG,gnorP-3;C3xGWA41:epyTdroCrewoP

epyTr

edleWCRA

yticapaCgnidleWkcihT"4/1otpU

yticapaCedortcelEretemaiD"46/5ot"61/1

tnerruCgnidleW)hgiH(pmA07/)woL(p

mA55

elcyCytuD )hgiH(pmA07@%6/)woL(pmA55@%01

seirosseccA pmalCgnidnuorG/redloHedortcelE/sneL01#htiwdleihS

ecaF

snoisnemiDllarevOpeeD"8/3-7xH"4/3-01xW"4/1-11

thgieWtinUsdnuoP5.72

SKU 55594 For technical questions, please call 1-800-444-3353. Page 3

sparks which may ignite the dust or fumes.

3. Keep bystanders, children, and visitors away while operating welding equip-

ment. Distractions can cause you to lose control. Protect others in the work area

from arc rays, sparks, and slag. Provide barriers or shields as needed.

ELECTRICAL SAFETY

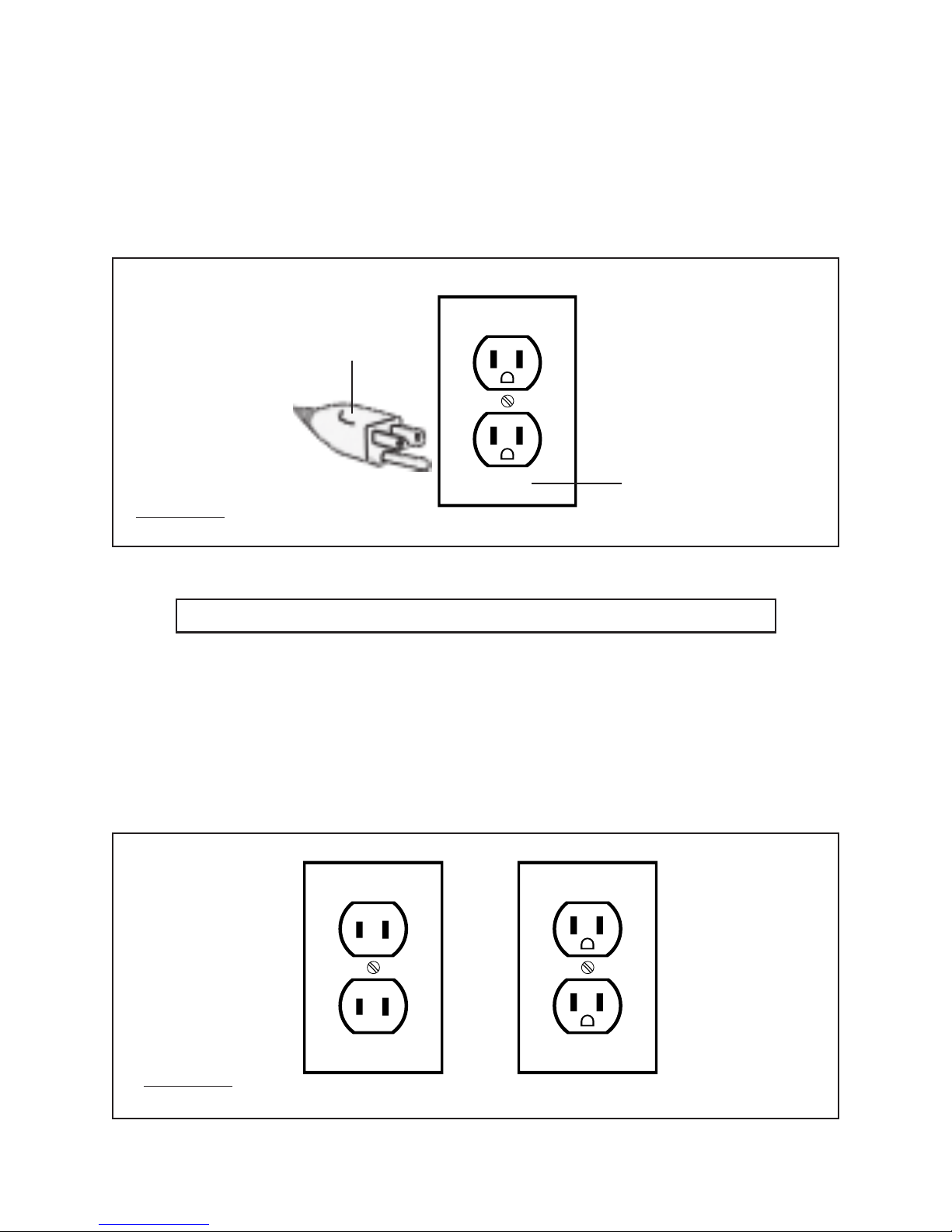

4. Grounded welding equipment must be plugged into an outlet properly installed

and grounded in accordance with all codes and ordinances. Never remove

the grounding prong or modify the plug in any way. Do not use any adapter

plugs. Check with a qualified electrician if you are in doubt as to whether the

outlet is properly grounded. If the welding equipment should electrically

malfunction or break down, grounding provides a low resistance path to carry

electricity away from the user.

5. Double insulated tools are equipped with a polarized plug (one blade is

wider than the other). This plug will fit in a polarized outlet only one way. If

the plug does not fit fully in the outlet, reverse the plug. If it still does not

fit, contact a qualified electrician to install a polarized outlet. Do not

change the plug in any way. Double insulation eliminates the need for the

three wire grounded power cord and grounded power supply system.

6. Avoid body contact with grounded surfaces such as pipes, radiators,

ranges, and refrigerators. There is an increased risk of electric shock if your

body is grounded.

7. Do not expose welding equipment to rain or wet conditions. Water entering

welding equipment will increase the risk of electric shock.

8. Do not abuse the Power Cord. Never use the Power Cord to carry welding

equipment or pull the Plug from an outlet. Keep the Power Cord away from

heat, oil, sharp edges, or moving parts. Replace damaged Power Cords

immediately. Damaged Power Cords increase the risk of electric shock.

9. When operating welding equipment outside, use an outdoor extension cord

marked “W-A” or “W”. These extension cords are rated for outdoor use, and

reduce the risk of electric shock.

PERSONAL SAFETY

10. Stay alert. Watch what you are doing, and use common sense when

operating welding equipment. Do not use welding equipment while tired or

under the influence of drugs, alcohol, or medication. A moment of inattention

while operating welding equipment may result in serious personal injury.

SKU 55594 For technical questions, please call 1-800-444-3353. Page 4

11. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.

Keep your hair, clothing, and gloves away from hot or moving parts. Loose

clothes, jewelry, or long hair can be caught in hot or moving parts. (See page 5,

number 3, for recommended safety clothing.)

12. Avoid accidental starting. Be sure the Power Switch is off before plugging

in. Plugging in welding equipment with the Power Switch on invites accidents.

13. Remove adjusting keys or wrenches before turning on the welding

equipment. A wrench or a key that is left attached to an electrically charged

part of the welding equipment may result in personal injury.

14. Do not overreach. Keep proper footing and balance at all times. Proper

footing and balance enables better control of the welding equipment in

unexpected situations.

15. Use safety equipment. Always wear eye protection. Dusk mask, non-skid

safety shoes, hard hat, or hearing protection must be used for appropriate

conditions.

TOOL USE AND CARE

16. Use clamps (not included) or other practical ways to secure and support

the workpiece to a stable platform. Holding the work by hand or against your

body is unstable and may lead to loss of control.

17. Do not force the welding equipment. Use the correct equipment for your

application. The correct equipment will do the job better and safer at the rate for

which it is designed.

18. Do not use the power tool if the Power Switch does not turn it on or off.

Any equipment that cannot be controlled with the Power Switch is dangerous and

must be replaced.

19. Disconnect the Power Cord Plug from the power source before making any

adjustments, changing accessories, or storing the welding equipment.

Such preventive safety measures reduce the risk of starting the welding

equipment accidentally.

20. Store idle welding equipment out of reach of children and other untrained

persons. Welding equipment is dangerous in the hands of untrained users.

SKU 55594 For technical questions, please call 1-800-444-3353. Page 5

21. Maintain welding equipment with care. Keep equipment clean and dry.

Properly maintained equipment is less likely to malfunction and is easier to

control. Do not use damaged welding equipment. Tag damaged equipment “Do

not use” until repaired.

22. Check for misalignment or binding of moving parts, breakage of parts, and

any other condition that may affect the equipment’s operation. If damaged,

have the equipment serviced before using. Many accidents are caused by

poorly maintained equipment.

23. Use only accessories that are recommended by the manufacturer for your

model. Accessories that may be suitable for one type of welding equipment may

become hazardous when used on another type of equipment

SERVICE

24. Equipment service must be performed only by qualified repair personnel.

Service or maintenance performed by unqualified personnel could result in a risk

of injury.

25. When servicing welding equipment, use only identical replacement parts.

Follow instructions in the

“Inspection, Maintenance, And Cleaning”

section

of this manual. Use of unauthorized parts or failure to follow maintenance

instructions may create a risk of electric shock, burns, or other injury.

SPECIFIC SAFETY RULES

1. Maintain a safe working environment. Keep the work area well lit. Make sure

there is adequate surrounding workspace. Always keep the work area free of

obstructions, grease, oil, trash, and other debris. Do not use the Welder in areas

near flammable chemicals, dusts, and vapors.

2. Maintain labels and nameplates on the Welder. These carry important

information. If unreadable or missing, contact Harbor Freight Tools for a

replacement.

3. Prevent eye injury and burns. Wearing and using personal safety clothing and

safety devices reduce the risk of injury. Wear ANSI approved safety impact

eyeglasses with a welding helmet featuring at least a number 10 shade lens

rating. Leather leggings, rubber soled, fire resistant shoes or boots should be

worn when using this Welder. Do not wear pants with cuffs, shirts with open

pockets, or any clothing that can catch and hold molten metal or sparks. Keep

clothing free of grease, oil, solvents, or any other flammable substances. Wear

dry, insulating gloves and protective clothing. Wear an approved head covering

SKU 55594 For technical questions, please call 1-800-444-3353. Page 6

5. Do not perform welding or cutting operations near chlorinated hydrocarbon

vapors produced by degreasing or painting. The heat generated by arc rays

can react to form phosgene, a highly toxic gas.

6. Irritation of the eyes, nose, and throat are symptoms of inadequate

ventilation. Take immediate steps to improve ventilation. Do not continue

operations if symptoms persist.

7. When welding or cutting in small areas, the operator should be externally

accompanied by another person (standing

near

the enclosed work area) to

observe accident prevention procedures.

8. When welding or cutting, be aware that high frequency radiation may be

produced which can interfere with radio navigation, safety devices,

computers, and communications equipment. Before operating, have a

qualified technician check out that possibility.

9. Keep high frequency source doors and panels tightly shut. Keep spark

gaps at the correct settings. Use proper grounding and shielding to minimize the

possibility of interference. Keep all cables close together and close to the

ground. Locate the welding or cutting operation as far as possible from sensitive

electronic equipment, or have the electronic equipment shut down temporarily.

10. Prevent accidental fires. Remove any combustible material from the work

area. When possible, move the work to a location well away from combustible

to protect head and neck. Use aprons, cape, sleeves and shoulder covers, and

bibs designed and approved for welding procedures. When welding overhead or

in confined spaces, wear flame resistant ear plugs or ear muffs to keep sparks

out of ears.

4. Avoid overexposure to fumes and gases. Always keep your head out of the

fumes. Do not breathe the fumes. Use enough ventilation or exhaust, or both, to

keep fumes and gases from your breathing zone and general area. Where

ventilation is questionable, have a qualified technician take an air sampling to

determine the need for corrective measures. Use mechanical ventilation to

improve air quality. If engineering controls are not feasible, use an approved

respirator. Work in a confined area only if it is well ventilated, or while wearing an

air-supplied respirator. Follow OSHA guidelines for

Permissible Exposure Limits

(PEL’s) for various fumes and gases. Follow the American Conference of

Governmental Industrial Hygienists recommendations for

Threshold Limit Values

(TLV’s) for fumes and gases. Have a recognized specialist in Industrial Hygiene

or Environmental Services check the operation and air quality and make

recommendations for the specific welding situation.

SKU 55594 For technical questions, please call 1-800-444-3353. Page 7

materials. If relocation is not possible, protect the combustibles with a cover

made of fire resistant material. Remove or make safe all combustible materials

for a radius of 35 feet (10 meters) around the work area. Use a fire resistant

material to cover or block all open doorways, windows, cracks, and other

openings. Enclose the work area with portable fire resistant screens. Protect

combustible walls, ceilings, floors, etc., from sparks and heat with fire resistant

covers. If working on a metal wall, floor, ceiling, etc., prevent ignition of

combustibles on the other side by moving the combustibles to a safe location. If

relocation of the combustibles is not possible, designate someone to serve as a

fire watch, equipped with a fire extinguisher, during the welding process and at

least one half hour after the welding is completed. Do not place the torch on any

material other than bare concrete until the torch is completely cooled. Do not

weld on materials having a combustible coating or combustible internal structure

such as walls or ceilings, without an approved method for eliminating the hazard.

Do not dispose of hot slag in containers holding combustible materials. Keep a

fire extinguisher nearby, and know how to use it. After welding, make a thorough

examination for evidence of fire. Be aware that easily visible smoke or flame

may not be present for some time after the fire has started. Do not weld in

atmospheres containing dangerously reactive or flammable gasses, vapors,

liquids, and dust. Provide adequate ventilation in work areas to prevent

accumulation of flammable gases, vapors, or dust. Do not apply heat to a

container that has held an unknown substance or a combustible material whose

contents, when heated, can produce flammable or explosive vapors. Clean and

purge containers before applying heat. Vent closed containers, including

castings, before preheating or welding.

11. Read and understand all instructions and safety precautions as outlined in

the manufacturer’s manual for the material you will weld.

12. Industrial applications must follow OSHA requirements.

13. Never plug the Power Cord of this product into an electrical outlet while

standing on a wet or damp surface.

14. Connect the earth ground as near as possible to the operating area. Earth

connections to structural parts of the building or other places distant to the

operating area will reduce their effectiveness and increase the danger of electric

shock.

15. In addition to grounding the workpiece with the Welder Grounding Clamp,

an earth grounding of the workpiece is recommended. Ground it directly to

an earth pipe or grounding rod with a separate cable of appropriate size.

IMPORTANT: Only a qualified, certified electrician should perform this

procedure.

SKU 55594 For technical questions, please call 1-800-444-3353. Page 8

16. Do not touch the welding wire if you are in contact with the workpiece,

ground, or another welding wire from a different machine.

17. Do not allow the welding wire to touch earth ground. Accidental earth

discharges may cause overheating and fire hazards.

18. Do not pass equipment cables through or near lifting chains, crane cables,

or any electrical lines.

19. Never use the Welder near water. Ensure that the surrounding area and cutting

objects are dry. Do not spray water or other liquids on or near the Welder.

20. Avoid all direct contact between the skin and wet garments and metal parts

under electrical power. Check that gloves and protective clothing are dry.

21. Never leave the Welder unattended when it is plugged into an electrical

outlet. Make sure to unplug it from its electrical outlet before leaving the area.

22. Do not unplug the Welder by pulling on the Power Cord. Keep the Power

Cord away from heated surfaces.

23. Always turn off the Welder in the event of a power failure.

24. Significant DC electrical voltage exists after turning off and unplugging the

Welder. Discharge the electrode to ground before handling.

25. Performance of this Welder may vary depending on variations in local line

voltage. Extension cord usage may also affect tool performance.

26. Always turn off the Welder and unplug the unit from its electrical outlet

before performing any inspection, maintenance, or cleaning procedures.

27. Use the right tool or attachment for the right job. Do not attempt to force a

small tool or attachment to do the work of a larger industrial tool or attachment.

There are certain applications for which this product was designed. It will do the

job better and more safely at the rate for which it was intended. Do not modify

this product, and do not use this product for a purpose for which it was not

intended.

28. WARNING! The brass components of this product contain lead, a

chemical known to the State of California to cause birth defects (or other

reproductive harm).

(California Health & Safety code 25249.5, et seq.)

SKU 55594 For technical questions, please call 1-800-444-3353. Page 9

29. WARNING! This product, when used for welding, cutting, and similar

applications, produces chemicals known to the State of California to cause

cancer and birth defects (or other reproductive harm).

(California Health & Safety code 25249.5, et seq.)

Improperly connecting the grounding wire can result in the risk of electric

shock. Check with a qualified electrician if you are in doubt as to whether the

outlet is properly grounded. Do not modify the power cord plug provided with

the tool. Never remove the grounding prong from the plug. Do not use the

tool if the power cord or plug is damaged. If damaged, have it repaired by

a service facility before use. If the plug will not fit the outlet, have a proper

outlet installed by a qualified electrician.

GROUNDED TOOLS: TOOLS WITH THREE PRONG PLUGS

1. Tools marked with “Grounding Required” have a three wire Cord and three prong

grounding Plug. The Plug must be connected to a properly grounded Outlet. If

the tool should electrically malfunction or break down, grounding provides a low

resistance path to carry electricity away from the user, reducing the risk of electric

shock. (See Figure A, next page.)

2. The grounding prong in the Plug is connected to the green wire inside the Cord to

the grounding system in the welding equipment. The green wire in the Cord

GROUNDING

WARNING!

30. WARNING! People with pacemakers should consult with their physician(s)

before using this product. Operation of electrical equipment in close proximity to

a heart pacemaker could cause interference or failure of the pacemaker.

31. WARNING! Welding and cutting fumes and gases may be hazardous if

inhaled for long periods of time.

32. WARNING! The warnings, precautions, and instructions discussed in this

instruction manual cannot cover all possible conditions and situations that may

occur. It must be understood by the operator that common sense and caution

are factors which cannot be built into this product, but must be supplied by the

operator.

SAVE THESE INSTRUCTIONS

SKU 55594 For technical questions, please call 1-800-444-3353. Page 10

must be the only wire connected to the equipment’s grounding system and must

never be attached to an electrically “live” terminal. (See Figure A.)

3. Your welding equipment must be plugged into an appropriate outlet, properly

installed and grounded in accordance with all codes and ordinances. The plug

and outlet should look like those in the following illustration. (See Figure A.)

FIGURE A

THREE PRONG

PLUG

120 VOLT

GROUNDED

ELECTRICAL OUTLET

THIS PRODUCT

USES A

THREE PRONG PLUG

DOUBLE INSULATED TOOLS: TOOLS WITH TWO PRONG PLUGS

1. Tools marked “Double Insulated” do not require grounding. They have a special

double insulation system which satisfies OSHA requirements and complies with

the applicable standards of Underwriters Laboratories, Inc., the Canadian

Standard Association, and the National Electrical Code. (See Figure B.)

2. Double insulated tools may be used in either of the 120 volt outlets shown in the

following illustration. (See Figure B.)

FIGURE B

This manual suits for next models

Table of contents

Other Chicago Electric Welding System manuals

Chicago Electric

Chicago Electric 91811 User manual

Chicago Electric

Chicago Electric 64057 User manual

Chicago Electric

Chicago Electric 68888 User manual

Chicago Electric

Chicago Electric 40388 Installation manual

Chicago Electric

Chicago Electric 68886 User manual

Chicago Electric

Chicago Electric 98958 Assembly instructions

Chicago Electric

Chicago Electric 93793 Installation manual

Chicago Electric

Chicago Electric 97994 Installation manual

Chicago Electric

Chicago Electric 91814 User manual

Chicago Electric

Chicago Electric 91220 User manual

Chicago Electric

Chicago Electric 8878 Parts list manual

Chicago Electric

Chicago Electric 55525 Parts list manual

Chicago Electric

Chicago Electric MIG 180 User manual

Chicago Electric

Chicago Electric MIG 200 93804 User manual

Chicago Electric

Chicago Electric 95136 Assembly instructions

Chicago Electric

Chicago Electric 98357 Installation manual

Chicago Electric

Chicago Electric 61433 Assembly instructions

Chicago Electric

Chicago Electric 63583 User manual

Chicago Electric

Chicago Electric DUAL MIG 132T 40092 User manual

Chicago Electric

Chicago Electric 95424 Assembly and User manual

Chicago Electric

Chicago Electric 62719 Assembly instructions

Chicago Electric

Chicago Electric 97717 Installation manual

Chicago Electric

Chicago Electric 68888 User manual

Chicago Electric

Chicago Electric 92652 User manual

Popular Welding System manuals by other brands

Berner

Berner PLASMACUT 54 instruction manual

Pro Spot

Pro Spot PR-155 Assembly instructions

Forney

Forney 210 operating manual

Thermal Arc

Thermal Arc 400S operating manual

Lincoln Electric

Lincoln Electric HANDYMIG 170I Operator's manual

GYS

GYS PROTIG 201 AC/DC Original instructions

TAFA

TAFA 30*8B35 owner's manual

Lincoln Electric

Lincoln Electric INVERTEC V350-PRO CE Technical specifications

ESAB

ESAB Buddy Arc 145 instruction manual

CIGWELD

CIGWELD 636804 use instructions

Red-D-Arc

Red-D-Arc DC-400 Operator's manual

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 owner's manual

Elettro

Elettro HI-MIG 3000 SYNERGIC instruction manual

WIA

WIA Weldmatic 270 CP132-2 Operator's manual

Sonics

Sonics H520T instruction manual

Miller

Miller Big Blue 400D owner's manual

NewArc

NewArc RT2000 Operational manual

Hypertherm

Hypertherm powermax1000 Operator's manual
