10” RANDOM ORBIT POLISHER/WAXER

Model 45813

ASSEMBLY AND OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit ourWeb site at:http://www.harborfreight.com

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor Freight Tools.

For technical questions, please call 1-800-444-3353.

PRODUCT SPECIFICATIONS

SAVE THIS MANUAL

You will need this manual for the safety warnings and precautions, assembly,

operating, inspection, maintenance and cleaning procedures, parts list and as-

sembly diagram. Keep your invoice with this manual. Write the invoice number

on the inside of the front cover. Keep this manual and invoice in a safe and dry

place for future reference.

GENERAL SAFETY RULES

WARNING!

READ AND UNDERSTAND ALL INSTRUCTIONS

Failure to follow all instructions listed below may result in

electric shock, fire, and/or serious injury.

SAVE THESE INSTRUCTIONS

WORK AREA

1. Keep your work area clean and well lit. Cluttered benches and dark areas

invite accidents.

2. Do not operate power tools in explosive atmospheres, such as in the

presence of flammable liquids, gases, or dust. Power tools create sparks

which may ignite the dust or fumes.

SKU 45813 PAGE 2

Item Description

Electrical Requirements 120 Volt/60 Hz/Single Phase/.9 Amp (Start Up), .65 Amp (Rated load)

Pad Diameter/Thickness 10” x 1-1/2”

Oscillations Per Minute 2580

Power Switch Type Slide

Accessories Waxing Bonnet (Qty. 1) / Polishing Bonnet (Qty. 1)

Weight 4.90 Pounds

E194601

3. Keep bystanders, children, and visitors away while operating a power tool.

Distractions can cause you to lose control. Protect others in the work area from

debris such as chips and sparks. Provide barriers or shields as needed.

ELECTRICAL SAFETY

4. Grounded tools must be plugged into an outlet properly installed and

grounded in accordance with all codes and ordinances. Never remove the

grounding prong or modify the plug in any way. Do not use any adapter

plugs. Check with a qualified electrician if you are in doubt as to whether

the outlet is properly grounded. If the tools should electrically malfunction or

break down, grounding provides a low resistance path to carry electricity away

from the user.

5. Double insulated tools are equipped with a polarized plug (one blade is

wider than the other). This plug will fit in a polarized outlet only one way. If

the plug does not fit fully in the outlet, reverse the plug. If it still does not

fit, contact a qualified electrician to install a polarized outlet. Do not

change the plug in any way. Double insulation eliminates the need for the

three wire grounded power cord and grounded power supply system.

6. Avoid body contact with grounded surfaces such as pipes, radiators,

ranges, and refrigerators. There is an increased risk of electric shock if your

body is grounded.

7. Do not expose power tools to rain or wet conditions. Water entering a power

tool will increase the risk of electric shock.

8. Do not abuse the Power Cord. Never use the Power Cord to carry the tools

or pull the Plug from an outlet. Keep the Power Cord away from heat, oil,

sharp edges, or moving parts. Replace damaged Power Cords immedi-

ately. Damaged Power Cords increase the risk of electric shock.

9. When operating a power tool outside, use an outdoor extension cord

marked “W-A” or “W”. These extension cords are rated for outdoor use, and

reduce the risk of electric shock.

PERSONAL SAFETY

10. Stay alert. Watch what you are doing, and use common sense when oper-

ating a power tool. Do not use a power tool while tired or under the influ-

ence of drugs, alcohol, or medication. A moment of inattention while operat-

ing power tools may result in serious personal injury.

SKU 45813 PAGE 3

11. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.

Keep your hair, clothing, and gloves away from moving parts. Loose

clothes, jewelry, or long hair can be caught in moving parts.

12. Avoid accidental starting. Be sure the Power Switch is off before plugging

in. Carrying power tools with your finger on the Power Switch, or plugging in

power tools with the Power Switch on, invites accidents.

13. Remove adjusting keys or wrenches before turning the power tool on. A

wrench or a key that is left attached to a rotating part of the power tool may result

in personal injury.

14. Do not overreach. Keep proper footing and balance at all times. Proper

footing and balance enables better control of the power tool in unexpected

situations.

15. Use safety equipment. Always wear eye protection. Dust mask, non-skid

safety shoes, hard hat, or hearing protection must be used for appropriate

conditions.

TOOL USE AND CARE

16. Use clamps (not included) or other practical ways to secure and support

the workpiece to a stable platform. Holding the work by hand or against your

body is unstable and may lead to loss of control.

17. Do not force the tool. Use the correct tool for your application. The correct

tool will do the job better and safer at the rate for which it is designed.

18. Do not use the power tool if the Power Switch does not turn it on or off.

Any tool that cannot be controlled with the Power Switch is dangerous and must

be replaced.

19. Disconnect the Power Cord Plug from the power source before making any

adjustments, changing accessories, or storing the tool. Such preventive

safety measures reduce the risk of starting the tool accidentally.

20. Store idle tools out of reach of children and other untrained persons. Tools

are dangerous in the hands of untrained users.

21. Maintain tools with care. Keep cutting tools sharp and clean. Properly

maintained tools with a sharp cutting edge are less likely to bind and are easier

to control. Do not use a damaged tool. Tag damaged tools “Do not use” until

repaired.

SKU 45813 PAGE 4

22. Check for misalignment or binding of moving parts, breakage of parts, and

any other condition that may affect the tool’s operation. If damaged, have

the tool serviced before using. Many accidents are caused by poorly main-

tained tools.

23. Use only accessories that are recommended by the manufacturer for your

model. Accessories that may be suitable for one tool may become hazardous

when used on another tool.

SERVICE

24. Tool service must be performed only by qualified repair personnel. Service

or maintenance performed by unqualified personnel could result in a risk of injury.

25. When servicing a tool, use only identical replacement parts. Follow

instructions in the

“Inspection, Maintenance, And Cleaning”

section of this

manual. Use of unauthorized parts or failure to follow maintenance instructions

may create a risk of electric shock or injury.

SPECIFIC SAFETY RULES

1. Maintain labels and nameplates on the Polisher/Waxer. These carry impor-

tant information. If unreadable or missing, contact Harbor Freight Tools for a

replacement.

2. Always wear safety impact eye goggles and heavy work gloves when using

the Polisher/Waxer. Using personal safety devices reduce the risk for injury.

Safety impact eye goggles and heavy work gloves are available from Harbor

Freight Tools.

3. Maintain a safe working environment. Keep the work area well lit. Make sure

there is adequate surrounding workspace. Always keep the work area free of

obstructions, grease, oil, trash, and other debris. Do not use a power tool in

areas near flammable chemicals, dusts, and vapors. Do not use this product in a

damp or wet location.

4. Make sure to read and understand all instructions and safety precautions

as outlined in the manufacturer’s manual for the vehicle you will

wax/polish.

5. When using a hand-held power tool, always maintain a firm grip on the tool

with both hands to resist starting torque.

SKU 45813 PAGE 5

6. Always keep the extension cord away from moving parts on the tool.

7. Avoid unintensional starting. Make sure you are prepared to begin work

before turning on the Polisher/Waxer.

8. Do not force the Polisher/Waxer. This tool will do the work better and safer at

the speed and capacity for which it was designed. Do not force the rotating Pad

(part #26) into the vehicle being waxed/polished. Apply moderate pressure,

allowing the Pad to rotate freely without being forced.

9. When waxing/polishing a vehicle, do not run the vehicle in an enclosed

area. Carbon monoxide is a colorless, odorless, vapor emitted from a vehicle’s

running engine that may cause severe injury or death if inhaled.

10. Never lay the Polisher/Waxer down until the Rotating Pad (part #20)

has come to a complete stop. The Rotating Pad can grab the surface and pull

the tool out of your control.

11. Make sure the vehicle being waxed/polished is free from burrs and any

other foreign matter which could damage the tool.

12. Never leave the Polisher/Waxer unattended when it is plugged into an

electrical outlet. Turn off the tool, and unplug it from its electrical outlet before

leaving.

13. Always unplug the Polisher/Waxer from its electrical outlet before perform-

ing and inspection, maintenance, or cleaning procedures.

14. WARNING! Some dust created by power sanding, sawing, grinding, drilling,

and other construction activities, contain chemicals known (to the State of Cali-

fornia) to cause cancer, birth defects or other reproductive harm. Some ex-

amples of these chemicals are: lead from lead-based paints, crystalline silica

from bricks and cement or other masonry products, arsenic and chromium from

chemically treated lumber. Your risk from these exposures varies, depending on

how often you do this type of work. To reduce your exposure to these chemicals:

work in a well ventilated area, and work with approved safety equipment, such as

those dust masks that are specially designed to filter out microscopic particles.

(California Health & Safety Code 25249.5, et seq.)

15. WARNING! People with pacemakers should consult their physician(s)

before using this product. Operation of electrical equipment in close proximity to

a heart pacemaker could cause interference or failure of the pacemaker.

SKU 45813 PAGE 6

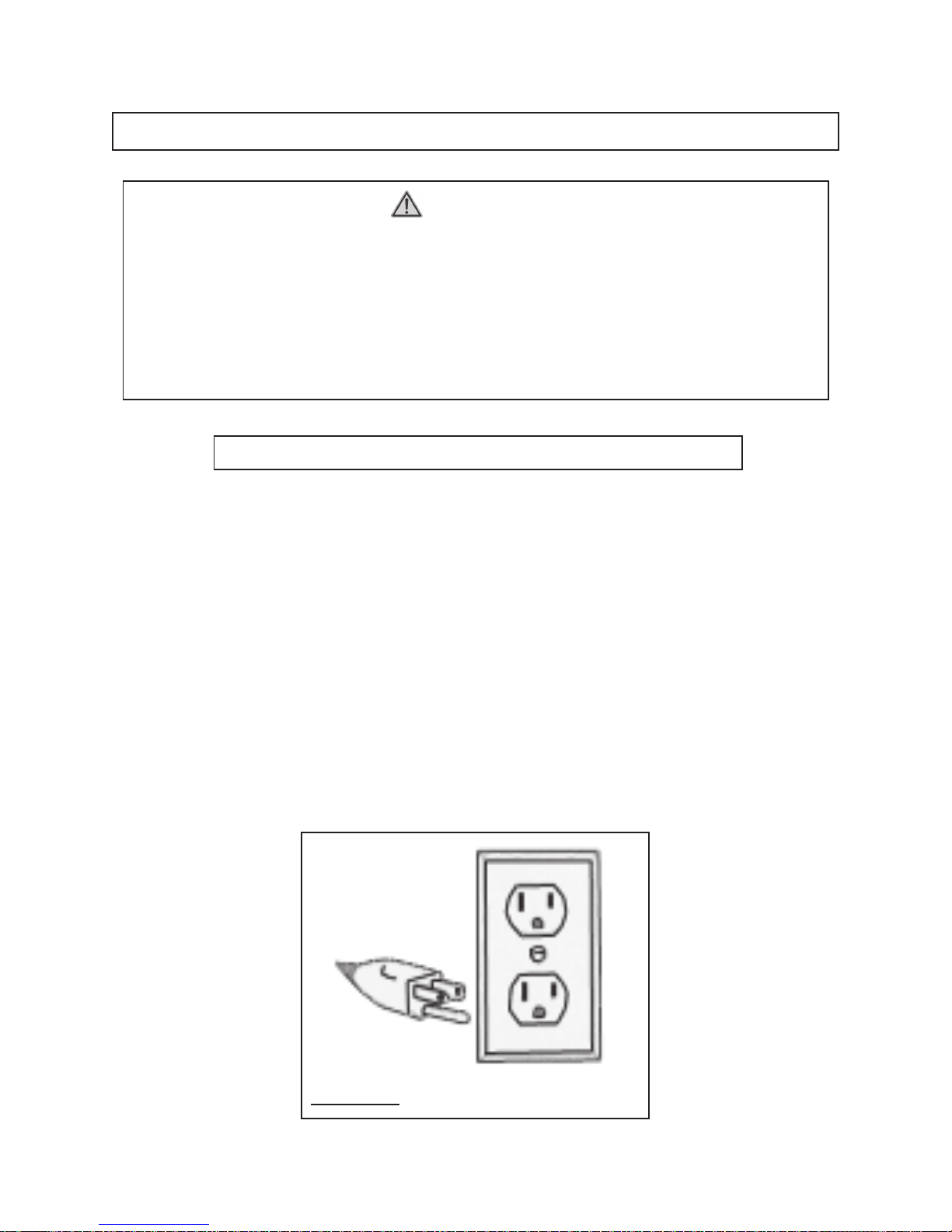

GROUNDING

WARNING!

Improperly connecting the grounding wire can result in the risk of electric

shock. Check with a qualfified electrician if you are in doubt as to whether the

outlet is properly grounded. Do not modify the power cord plug provided with

the tool. Never remove the grounding prong from the plug. Do not use the

tool if the power cord or plug is damaged. If damaged, have it repaired by

a service facility before use. If the plug will not fit the outlet, have a proper

outlet installed by a qualified electrician.

GROUNDED TOOLS: TOOLS WITH THREE PRONG PLUGS

1. Tools marked with “Grounding Required” have a three wire cord and three prong

grounding plug. The plug must be connected to a properly grounded outlet. If

the tool should electrically malfunction or break down, grounding provides a low

resistance path to carry electricity away from the user, reducing the risk of elec-

tric shock. (See Figure A.)

2. The grounding prong in the plug is connected through the green wire inside the

cord to the grounding system in the tool. The green wire in the cord must be the

only wire connected to the tool’s grounding system and must never be attached

to an electrically “live” terminal. (See Figure A.)

3. Your tool must be plugged into an appropriate outlet, properly installed and

grounded in accordance with all codes and ordinances. The plug and outlet

should look like those in the following illustration. (See Figure A.)

FIGURE A

SKU 45813 PAGE 7

FIGURE B

SKU 45813 PAGE 8

DOUBLE INSULATED TOOLS: TOOLS WITH TWO PRONG PLUGS

4. Tools marked “Double Insulated” do not require grounding. They have a special

double insulation system which satisfies OSHA requirements and complies with

the applicable standards of Underwriters Laboratories, Inc., the Canadian

Standard Association, and the National Electrical Code. (See Figure B.)

5. Double insulated tools may be used in either of the 120 volt outlets shown in the

following illustration. (See Figure B.)

EXTENSION CORDS

Grounded

tools require a three wire extension cord.

Double Insulated

tools

can use either a two or three wire extension cord.

2. As the distance from the supply outlet increases, you must use a heavier gauge

extension cord. Using extension cords with inadequately sized wire causes a

serious drop in voltage, resulting in loss of power and possible tool damage.

(See Figure C, next page.)

3. The smaller the gauge number of the wire, the greater the capacity of the cord.

For example, a 14 gauge cord can carry a higher current than a 16 gauge cord.

(See Figure C.)

4. When using more than one extension cord to make up the total length, make

sure each cord contains at least the minimum wire size required.

(See Figure C.)

5. If you are using one extension cord for more than one tool, add the nameplate

amperes and use the sum to determine the required minimum cord size.

(See Figure C.)

6. If you are using an extension cord outdoors, make sure it is marked with the

suffix “W-A” (“W” in Canada) to indicate it is acceptable for outdoor use.

7. Make sure your extension cord is properly wired and in good electrical condition.

Always replace a damaged extension cord or have it repaired by a qualified

electrician before using it.

8. Protect your extension cords from sharp objects, excessive heat, and damp or

wet areas.

SKU 45813 PAGE 9

RECOMMENDED MINIMUM WIRE GAUGE FOR EXTENSION CORDS*

(120 VOLT)

NAMEPLATE

AMPERES

(

At Full Load

)

EXTENSION CORD LENGTH

Feet 50

Feet 75

Feet 100

Feet 150

Feet

0 – 2.0 18 18 18 18 16

2.1 – 3.4 18 18 18 16 14

3.5 – 5.0 18 18 16 14 12

5.1 – 7.0 18 16 14 12 12

7.1 – 12.0 18 14 12 10 -

12.1 – 16.0 14 12 10 - -

16.1 – 20.0 12 10 - - -

* Based on limiting the line voltage drop

to five volts at 150% of the rated amperes.

FIGURE C

SYMBOLOGY

Double Insulated

Canadian Standards

Association

Underwriters

Laboratories, Inc.

Volts Alternating Current

Amperes

No Load Revolutions

per Minute (RPM)

noxxxx/min.

V ~

UNPACKING

When unpacking, check to make sure all the parts shown on the Parts List on page 14

are included. If any parts are missing or broken, please call Harbor Freight Tools at the

number shown on the cover of this manual as soon as possible.

ASSEMBLY AND OPERATING INSTRUCTIONS

NOTE: For additional information regarding the parts listed in the following pages, refer

to the Assembly Diagram on page 14.

1. CAUTION: Always make sure the Power Cord (part #14) of the Polisher/Waxer is

unplugged from its electrical outlet

prior

to making any adjustments to the tool.

2. Place a clean

terry cloth

Waxing Bonnet (part #28) securely onto the Pad

(part #26). (See Figure D,next page.)

3. NOTE: Prior to waxing/polishing a vehicle, make sure it’s surface has been thor-

oughly cleaned and is free of dust, dirt, oil, grease, etc.

4. Apply about two tablespoons of wax (not included) evenly on the terry cloth

Waxing Bonnet (part #28). Do not apply the wax directly to the surface of the

vehicle. The amount of wax needed will vary according to the size of the vehicle

being waxed. NOTE: Avoid using too much wax. For additional applications of

wax to the Waxing Bonnet, reduce the amount of wax. The Waxing Bonnet will not

absorb as much wax in subsequent applications. (See Figure D.)

5. Plug the Power Cord (part #14) of the Polisher/Waxer into an electrical extension

cord (not included). Then, plug the extension cord into a grounded, 120 volt,

electrical outlet. (See Figure D.)

6. In order to keep the extension cord out of the way,

hang it over your shoulder.

7. NOTE: Always start and stop the Polisher/Waxer while it is held firmly against the

surface of the vehicle. Failure to do so may result in theWaxing Bonnet

(part #28) being thrown from the Pad (part #26). (See Figure D.)

8. Grip the Polisher/Waxer firmly with both hands. Then turn the Power Switch

(part #13) to its “ON”position and allow the Pad (part #26) to rotate to its fullest

speed. (See Figure D.)

9. Begin applying wax to the vehicle. Apply the wax to all flat surfaces with

broad,

SKU 45813 PAGE 10 REV 06/05

IMPORTANT

Carefully inspect the condition of the accessory before use and check the accessory

continuallyduringuse. Ifanydamageisnoted,stopimmediatelyand replacetheaccessory

withanundamagedone. Harbor FreightToolscannot be heldresponsiblefordamage

caused by using a damaged accessory on this tool.

Table of contents

Other Chicago Electric Sander manuals

Chicago Electric

Chicago Electric 41213 Installation manual

Chicago Electric

Chicago Electric 69820 Assembly instructions

Chicago Electric

Chicago Electric 62216 Original instruction manual

Chicago Electric

Chicago Electric 90045 Installation manual

Chicago Electric

Chicago Electric 94338 Assembly instructions

Chicago Electric

Chicago Electric 95020 User manual

Chicago Electric

Chicago Electric 93431 User manual

Chicago Electric

Chicago Electric 92158 Parts list manual

Chicago Electric

Chicago Electric 95020 Parts list manual

Chicago Electric

Chicago Electric 67256 Installation manual

Chicago Electric

Chicago Electric 90045 User manual

Chicago Electric

Chicago Electric 96435 Installation manual

Chicago Electric

Chicago Electric 41213 User manual

Chicago Electric

Chicago Electric 40118 User manual

Chicago Electric

Chicago Electric 62297 Assembly instructions

Chicago Electric

Chicago Electric 92623 User manual

Chicago Electric

Chicago Electric 66891 Installation manual

Chicago Electric

Chicago Electric 92194 User manual

Chicago Electric

Chicago Electric 90979 User manual

Chicago Electric

Chicago Electric 94748 Parts list manual

Chicago Electric

Chicago Electric 69924 User manual

Chicago Electric

Chicago Electric 93431 Installation manual

Chicago Electric

Chicago Electric 69696 Assembly instructions

Chicago Electric

Chicago Electric 43424 Assembly and User manual

Popular Sander manuals by other brands

Oliver

Oliver 6305 owner's manual

Jet

Jet 22-44 Pro-3 Operating instructions and parts manual

Makita

Makita M9204 technical information

Makita

Makita M9204 instruction manual

Craftsman

Craftsman 351.215131 Operator's manual

Clarke

Clarke Woodworker CBS1-5B Operation & maintenance instructions

Chicago Pneumatic

Chicago Pneumatic CP9778 Operator's manual

Nitto Kohki

Nitto Kohki BB-20 instruction manual

Ferm

Ferm FEOS-135 user manual

Unior

Unior 1510 Operating instruction

stayer

stayer ls1200 operating instructions

Jet

Jet JSG-96 Operating instructions and parts manual

Parkside

Parkside PDS 290 B2 Operation and safety notes

Status

Status XPA Series Original instructions

Clarke

Clarke EZ Sand Operator's manual

Craftsman

Craftsman 113.22521 owner's manual

Craftsman

Craftsman 113.225831 owner's manual

CLAS

CLAS OP 1429 manual
