Chenbro SK31101 Series User manual
SK31101 Series
SK31101 Series
Storage Expansion Kit User Manual
January 2020 Version 1.0
A document provides an overview of product features, functions, architecture, and support specifications.
SK31101 Series
│ 2
DISCLAIMERS
No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document.
Chenbro disclaims all express and implied warranties, including without limitation, the implied warranties of merchantability, fitness
for a particular purpose, and non-infringement, as well as any warranty arising from course of performance, course of dealing, or
usage in trade.
This document contains information on products, services and/or processes in development. All information provided here is subject
to change without notice. Contact your Chenbro representative to obtain the latest Configuration Guide.
The products and services described may contain defects or errors known as errata which may cause deviations from published
specifications. Current characterized errata are available on request.
Chenbro, and the Chenbro logo are trademarks of Chenbro Micom Co., Ltd.in the worldwide.
*Other names and brands may be claimed as the property of others
© 2019 Chenbro Micom Co., Ltd.
SK31101 Series
Table of Contents│ 3
Table of Contents
List of Figures................................................................................................................................................4
List of Tables .................................................................................................................................................5
1. Product Overview..........................................................................................................................6
1-1 Front Panel..............................................................................................................................7
1-2 Back Panel...............................................................................................................................8
1-3 Front Control Panel .................................................................................................................9
1-4 System Dimensions ...............................................................................................................10
1-5 System Level Environmental Specifications............................................................................11
1-6 System Packaging.................................................................................................................12
2. Installation and Removal .............................................................................................................13
2-1 Storage Kit Installation...........................................................................................................13
2-2 HDD Tray Installation & Removal ...........................................................................................15
2-3 Storage Kit Fan Module Maintenance....................................................................................16
3. Backplane....................................................................................................................................17
3-1 Storage Backplane Options....................................................................................................18
3-2 3.5” 12Gbps SAS/SATA Backplane ..........................................................................................19
4. Maintenance and Service ............................................................................................................21
SK31101 Series
List of Figures│ 4
List of Figures
Figure 1 Front panel.................................................................................................................................7
Figure 2 Back panel..................................................................................................................................8
Figure 3 Front control panel.....................................................................................................................9
Figure 4 Chassis dimensions...................................................................................................................10
Figure 5 Storage kit installation-1...........................................................................................................13
Figure 6 Storage kit installation-2...........................................................................................................13
Figure 7 Storage kit installation-3...........................................................................................................14
Figure 8 3.5” HDD installation (screw type)............................................................................................15
Figure 9 3.5” HDD removal (screw type).................................................................................................15
Figure 10 2.5” HDD/SSD installation (screw type).....................................................................................16
Figure 11 2.5” HDD/SSD removal (screw type) .........................................................................................16
Figure 12 Storage kit fan module installation-1 ........................................................................................16
Figure 13 Storage kit fan module installation-2 ........................................................................................17
Figure 14 Storage kit fan module removal-1.............................................................................................17
Figure 15 Storage kit fan module removal-2.............................................................................................17
Figure 16 Drive tray LED identification .....................................................................................................17
Figure 17 Backplane front view................................................................................................................19
Figure 18 Backplane rear view .................................................................................................................20
SK31101 Series
List of Tables│ 5
List of Tables
Table 1 Chenbro SK31101 series specifications.........................................................................................6
Table 2 Front control panel ......................................................................................................................9
Table 3 System environmental specifications summary..........................................................................11
Table 4 System packaging information ...................................................................................................12
Table 5 Product weight information .......................................................................................................12
Table 6 Drive power LED/activity LED behavior ......................................................................................17
Table 7 Backplane specifications ............................................................................................................19
Table 8 Connector and pin header function description .........................................................................20
SK31101 Series
Product Overview│ 6
1. Product Overview
The SK31101 series is designed with standard mounting holes for converting 1 x 5.25" drive bay into 1 x 3.5" SATA hot-swap hard
drive bay. This chapter provides a high-level overview of the system features and available options as support for different storage
configurations within this product series. More details for each major component, feature, or option are provided in the following
chapters.
Table 1 Chenbro SK31101 series specifications
Feature
Description
Dimension
(D x W x H)
171.0 x 146.0 x 43.0 (mm)
6.73" x 5.75" x 1.69"
Drive Bay
1 x 3.5" HDD Tray
Indicator
1 x Power Status, 1 x HDD Status
System Security
Key Lock
Front Control
N/A
Cooling Fan
N/A
Material
SGCC
Net Weight
0.5 kg
Backplane
12Gbps SAS/SATA
Connector (To Drive)
1 x SFF8680
Connector (To Host)
1 x SATA 7-pin
Package Contents
1 x SK32303, 3 x 700 mm SATA Cable, 1 x 600 mm Signal Cable, 1 x Key (2pcs/1set)
SK31101 Series
Product Overview│ 7

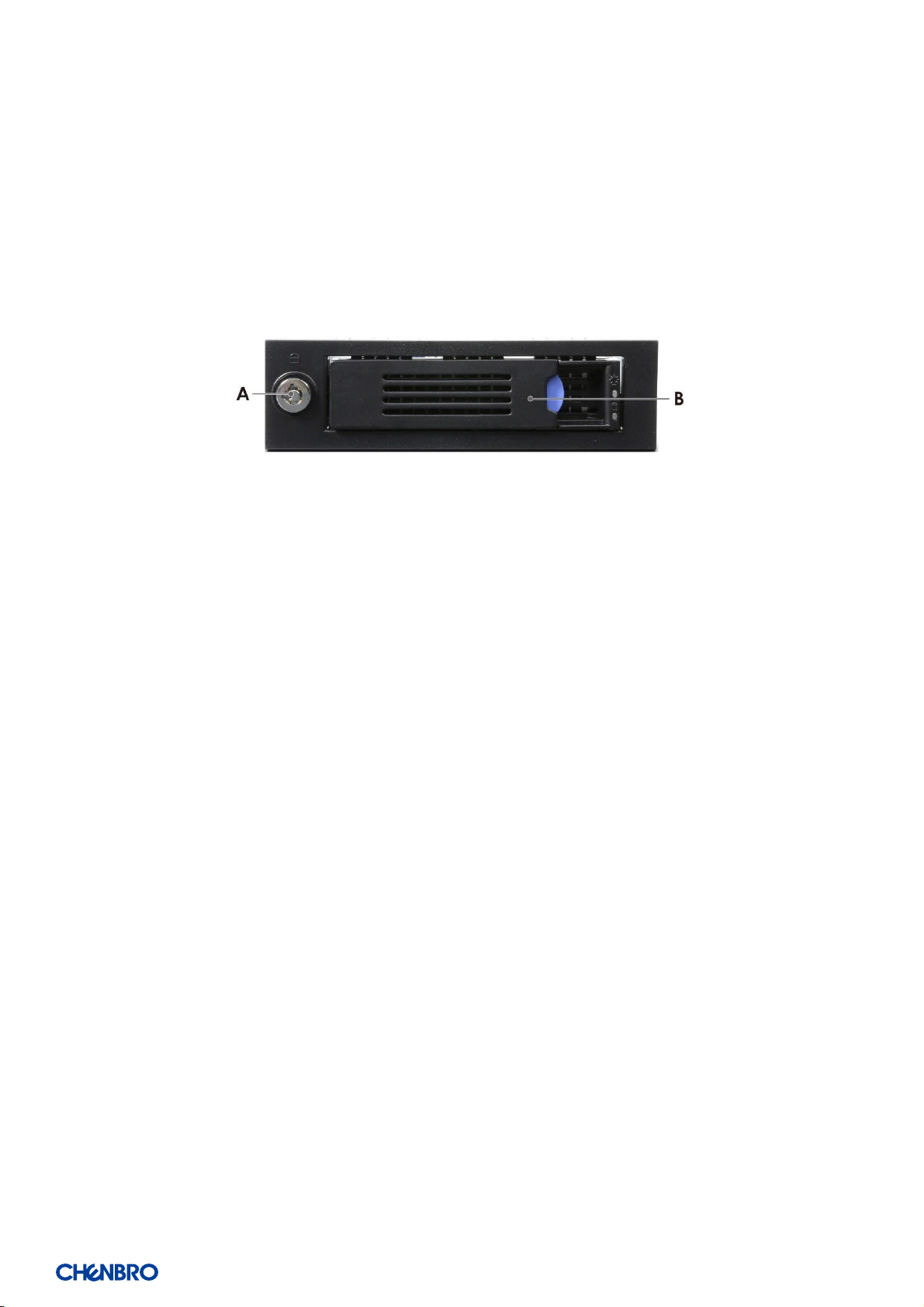

1-1 Front Panel
Figure 1 Front panel
A. Alarm Mute B. 3.5” Storage Drive Bay
SK31101 Series
Product Overview│ 8

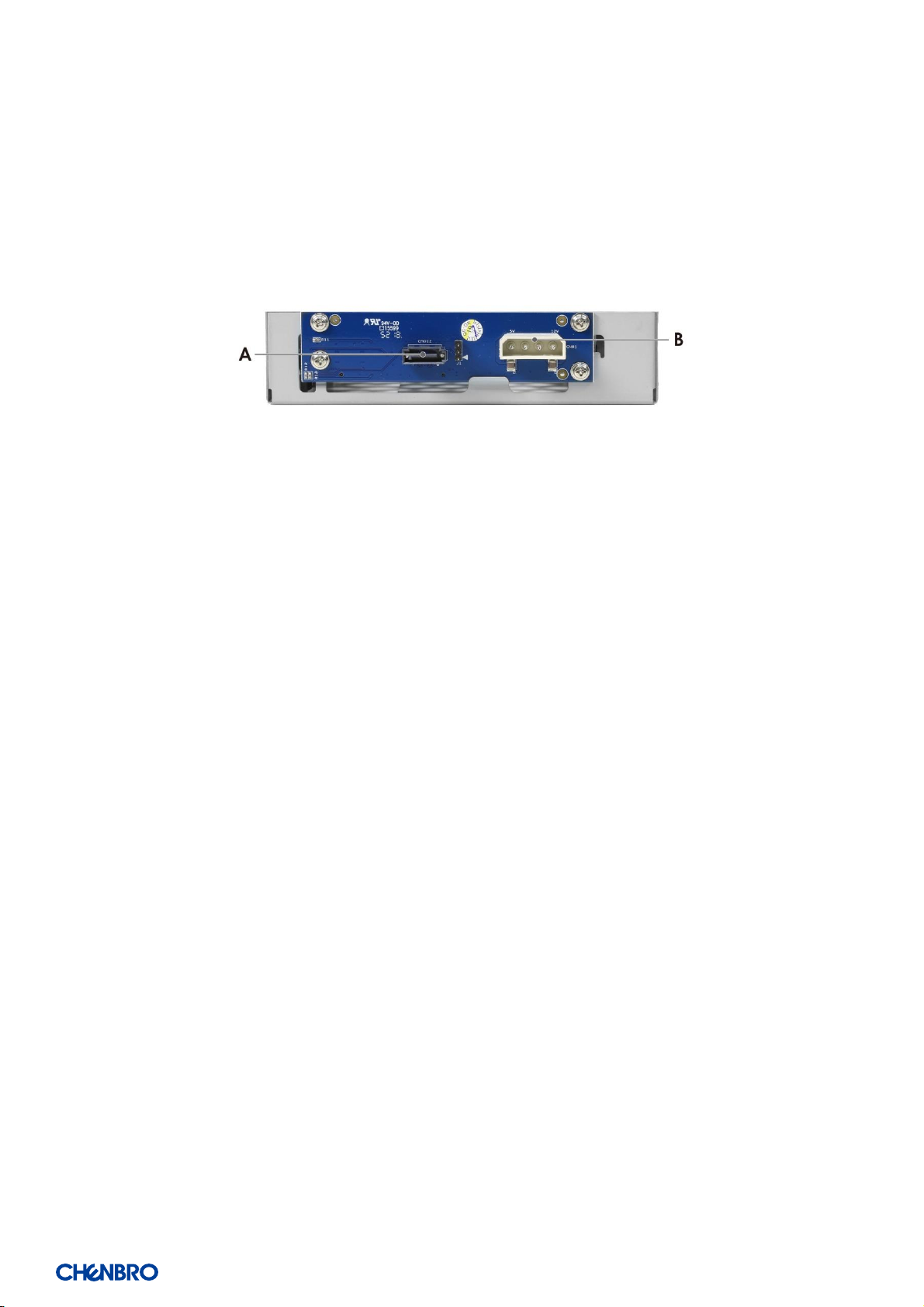

1-2 Back Panel
Figure 2 Back panel
A. SATA 3.0 Connector B. Power Connector
SK31101 Series
Product Overview│ 9

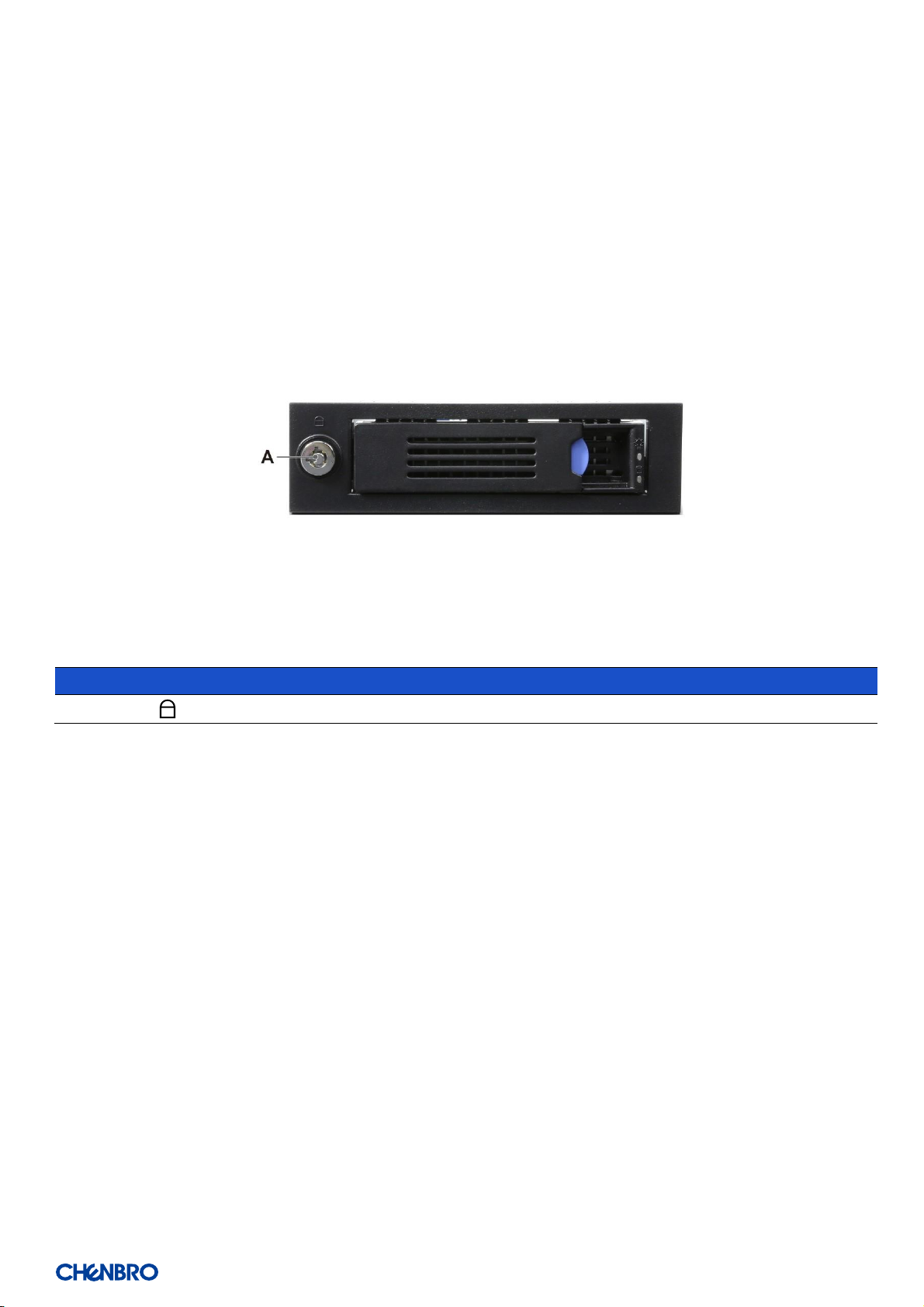

1-3 Front Control Panel
Figure 3 Front control panel
Table 2 Front control panel
Label
ICON
Indicator, button or connector
A
Key Lock
SK31101 Series
Product Overview│ 10

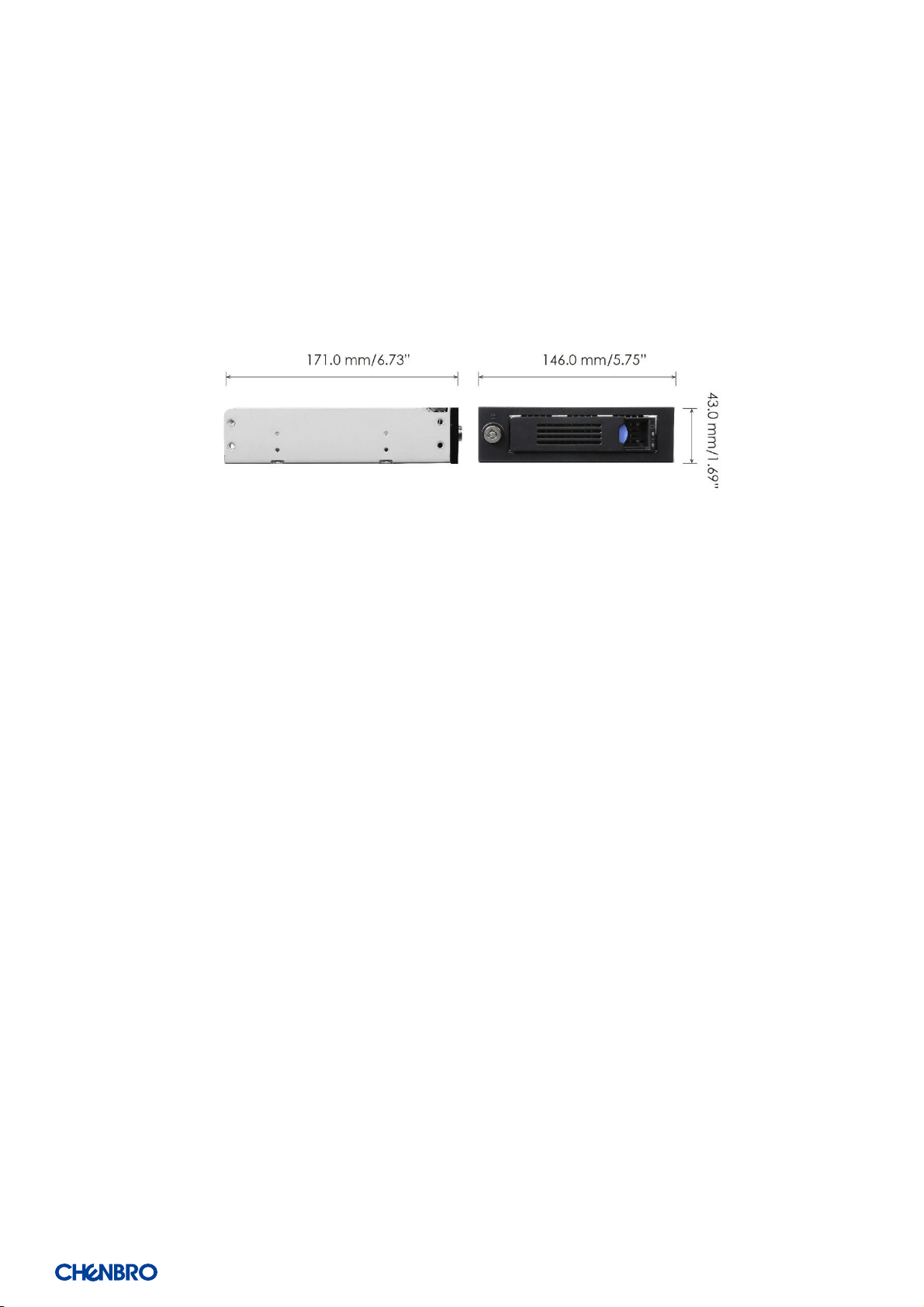

1-4 System Dimensions
Figure 4 Chassis dimensions
