Chauvet SparkleDrape LED User manual

Quick Reference Guide

SparkleDrape™ LED QRG

Page 2 of 8

About this

Guide

The SparkleDrape™ LED Quick Reference Guide (QRG) only contains the

product’s connection and mounting information,

as well as the menu options

and the DMX values.

Disclaimer

•This Quick Reference Guide DOES NOT replace the product’s User

Manual, which you can download from the CHAUVET® Web site

(www.chauvetlighting.com).

•Read

ALL the disclaimers and safety notes in this document as well as

those in the product’s User Manual before installing, operating, or

maintaining this product.

Safety Notes

Before working with this product, read the following Safety Notes carefully.

The notes include important safety information about installation, usage, and

maintenance.

•Always connect this product to a grounded circuit to avoid the risk of

electrocution.

•Always disconnect this product from the power source before cleaning it

or replacing the fuse.

•Make sure the power cord is not crimped or damaged.

•Never disconnect this product from power cord by pulling or tugging on

the cord.

•If mounting this product overhead, always secure it to a fastening device

using a safety cable.

•Make sure there are no flammable materials close to the unit while

operating.

•Always make sure that the voltage of the outlet to which you are

connecting this product is within the range stated on the decal or rear

panel of the product.

•This product is for indoor use only! (IP20) To prevent risk of fire or

shock, do not expose this product to rain or moisture.

•Always install this product in a location with adequate ventilation, at

least 20 in (50 cm) from adjacent surfaces.

•Be sure that no ventilation slots on the unit’s housing are blocked.

•Never connect this product to a dimmer.

•Make sure to replace the fuse with the same type and rating.

•Never carry this product from the power cord or any moving part.

Always use the hanging/mounting bracket or the handles.

•The maximum ambient temperature (Ta) is 104° F (40° C). Do not

operate this product at higher temperatures.

•In the event of a serious operating problem, stop using the unit

immediately.

•Never try to repair this product. Repairs carried out by unskilled people

can lead to damage or malfunction. Please contact the nearest authorized

technical assistance center.

SparkleDrape™ LED QRG

Page 3 of 8

What is

Included

•One SparkleDrape™ LED

•One SparkleDrape™ Controller

•One Power Cord

•One Signal Cable

•One Carrying Bag

•Replacement LEDs

•Reusable Zip Ties (Tie Wraps)

•One Warranty Card

•One Quick Reference Guide

Product

Description

The SparkleDrape™ LED is a sparkling LED drape perfect for DJ

backdrops providing bright single color LEDs, 17 eye-catching programs,

and support for 8 channels of DMX. The SparkleDrape™ LED

also comes

equipped with a sound activation mode and the ability to choose and run

your favorite program without a DMX-512 console.

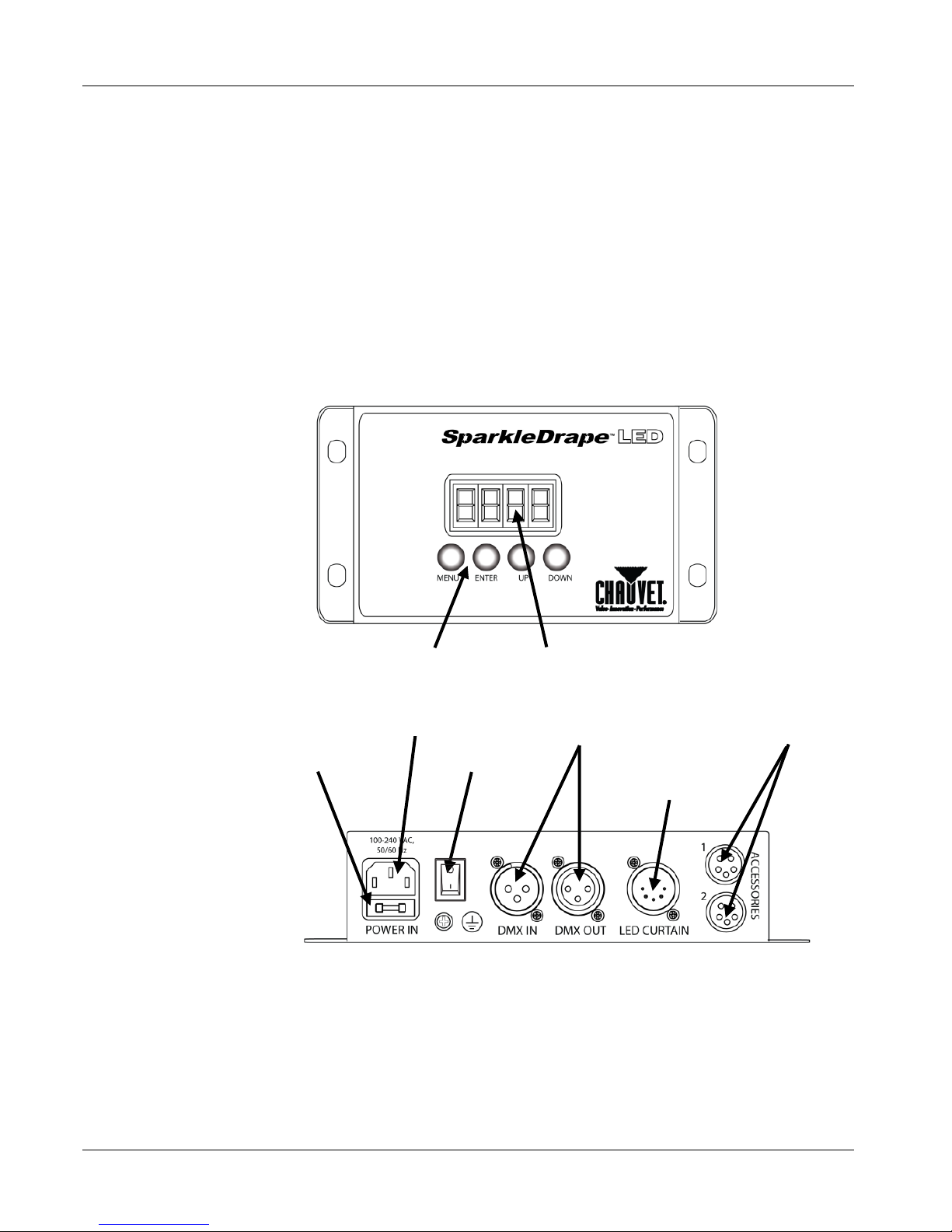

Product Overview

Front Panel

Top Panel

Fuse Holder

DMX In/Out

On/Off Switch

LED Display

Button Menu

Power In

Curtain Input

Accessory Inputs

SparkleDrape™ LED QRG

Page 4 of 8

AC Power

This product has an auto-ranging power supply that can work with an input

voltage range of 100~240 VAC, 50/60 Hz.

Fuse

Replacement

1. Disconnect this product/product from the power outlet.

Wedge the tip of a flat head screwdriver into the slot of the fuse holder

and pry the safety cap out of its housing. It will pull the installed fuse

with it.

3. Remove the blown fuse from its safety cap and replace it with a fuse of

the exact same type and rating (F 2 A, 250 V).

4. Insert the fuse holder back in its place, and reconnect power.

DMX Linking

The SparkleDrape™ LED can work with a DMX controller when linked

using a regular DMX serial connection.

If you are not familiar with the DMX standard, please download the

DMX

Primer document from www.chauvetlighting.com.

DMX

Connection

The SparkleDrape™ LED uses a regular DMX data connection for its 8-

channel personality.

Download the SparkleDrape™ LED User Manual and refer to the Setup

chapter to learn how to connect this product for DMX operation, and the

Operation chapter to learn in detail how to configure this product

for DMX

operation.

SparkleDrape™ LED QRG

Page 5 of 8

Mounting

Before mounting this product, read the Safety Notes at the beginning of this

Guide and in the product’s User Manual.

The mounting instructions are

provided in the Setup chapter of the User Manual.

Product

Mounting

Diagram

Grommets foreasy truss mounting

and various stand applications

SparkleDrape™ LED QRG

Page 6 of 8

Programming

For details on how to program this product, please refer to the product’s

User Manual.

Control Panel

Description

Button Function

<MENU>

Exits from the current menu or function

<ENTER>

Enables the currently displayed menu or sets the currently

selected value into the selected function

<UP>

Navigates upwards through the menu list and increases the

numeric value when in a function

<DOWN>

Navigates downwards through the menu list and decreases the

numeric value when in a function

Start Address

To ensure full access to all channels in each DMX mode, the highest

recommended DMX addresses are as follows:

Menu Options

Main Level Programming Levels Description

1. DMX Mode

Addr.

A001~512

Sets DMX starting address

2. Speed

1~20

Sets auto program speed

3. Program

1~17

Sets auto program

4. Lights On

ALL

Turns on all lights

5. Sound Active

Soud

Sets Sound Active mode

SparkleDrape™ LED QRG

Page 7 of 8

DMX Values

8-CH

Channel

Function Value Percent/Setting

1 Dimmer

000 ó007

No function (default for Ch. 7 functions)

008 ó255

0~100%

2 Strobe

000 ó010

No function

011 ó255

Strobe (slow to fast)

Red

000 ó255 0~100%

Green

000 ó255

0~100%

Blue

000 ó255

0~100%

White

000 ó255

0~100%

7 Programs

000 ó009

No function

010 ó023

Color chase

024 ó037

All on fading

038 ó051

4 color chase

052 ó065

Single color strobe

066 ó079

All on strobe

080 ó093

Red On

094 ó107

Green On

108 ó121

Blue On

122 ó135

White On

136 ó149

Red + Green On

150 ó163

Red + Blue On

164 ó177

Blue + Green On

178 ó191

Red + White On

192 ó205

Red strobe

206 ó219

Green strobe

220 ó233

Blue strobe

234 ó255

White strobe

Speed

000 ó255

Slow to fast

SparkleDrape™ LED QRG

Page 8 of 8

World Headquarters

CHAUVET®

General Information

Address: 5200 NW 108th Avenue

Sunrise, FL 33351

Voice: (954) 577-4455

Fax: (954) 929-5560

Toll free: (800) 762-1084

United Kingdom and Ireland

CHAUVET® Europe Ltd.

General Information

Address: Unit 1C

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK

NG16 6NT

Voice: +44 (0)1773 511115

Fax: +44 (0)1773 511110

Technical Support

Voice: (954) 577-4455 (Press 4)

Fax: (954) 756-8015

Email: tech@chauvetlighing.com

Technical Support

Email: uktech@chauvetlighting.com

World Wide Web

www.chauvetlighting.com

World Wide Web

www.chauvetlighting.co.uk

Outside the US, United Kingdom, or Ireland, contact your distributor of

record. Follow their instructions to request support or to return a product.

Visit our Web site for contact details.

SparkleDrape™ LED QRG – Rev. 03

Printed in the P. R. C.
