Char-Broil Alpine User manual
WARNING
NEVER LEAVE FIRE UNATTENDED!
Do not allow small children near flame. Hot embers can
fly out in breezy conditions. Adequate fire extinguishing
material should be readily available.
WARNING
CARBON MONOXIDE HAZARD
Burning charcoal inside can kill you. It gives off carbon
monoxide, which has no odor. NEVER burn charcoal
inside homes, vehicles or tents.
Read and follow all safety statements, warnings,
assembly instructions and use & care directions before
attempting to assemble.
CAUTION
CAUTION
Some parts may contain sharp edges – especially as
noted in manual. Wear protective gloves if necessary.
WARNING
Do not use this unit on or near combustible surfaces or
structures such as wood decks, dry leaves or grass, vinyl
or wood siding, etc. SEE OWNER’S MANUAL FOR
IMPORTANT SAFETY INFORMATION.
CAUTION
THIS UNIT IS HEAVY!
DO NOT assemble without a helper.
42804047 (12-14-05)
0420110104501134
For Outdoor Use Only
Alpine
Outdoor Fireplace
WARNING
All surfaces can be hot during use. Use protection as
required to prevent burning.
STOP!
Missing a part?
No need to go back to the store!
The store where you made your purchase
does not stock parts for this item. If you
need parts, whether they are missing or
damaged, call the Customer Service toll
free Help Line.
Call us and we
will gladly ship
the part you need.
Call Our Help Line
To insure your satisfaction
and for follow-up service,
register your product
online at:
www.grillregistration.com
PARTS LIST
ITEM DESCRIPTION
55710102 BASE KIT
55710103 ASH PAN
55710104 DOOR FRAME KIT
55710105 SIDE PANEL KIT
55710106 TOP KIT
55710107 DOOR KIT
55710108 CHIMNEY PIPE / TOP KIT
29000991 LOG RACK
42000096 HARDWARE BAG
42804047 ASSEMBLY INSTRUCTIONS
Tools needed for assembly: adjustable wrench, Phillips screwdriver.

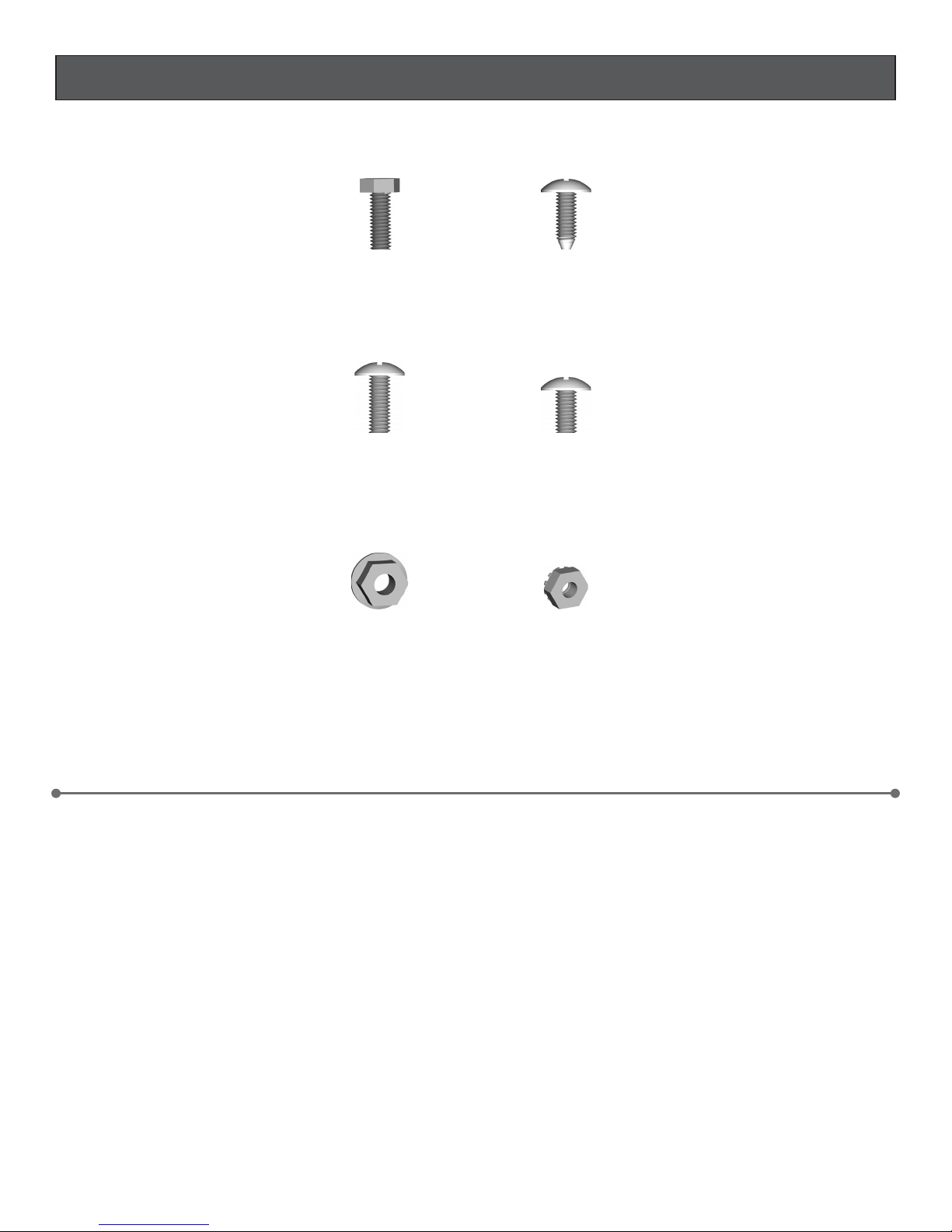

HARDWARE
Hardware is shown actual size. You may have spare hardware after assembly is complete.
#10-24
Flange
Qty. 18
Nut
#10-24x1/2”
Machine Screw
Qty. 10
#10-24x1/2”
Hex-Head Machine Screw
Qty. 8
#10-24x3/8”
Machine Screw
Qty. 8
#10-24
Hex-Keps Nut
Qty. 8
#10x1/2”
Self-Tapping Screw
Qty. 1
Attach door frames to front and rear edge of ash pan using three and three
per side. Hinge mounts should face inward.
#10-24x1/2” machine screws #10-24
flange nuts
1
#10-24x1/2”
Machine screw
#10-24 Flange nut
Door frame
Hinge mounts
facing inward.

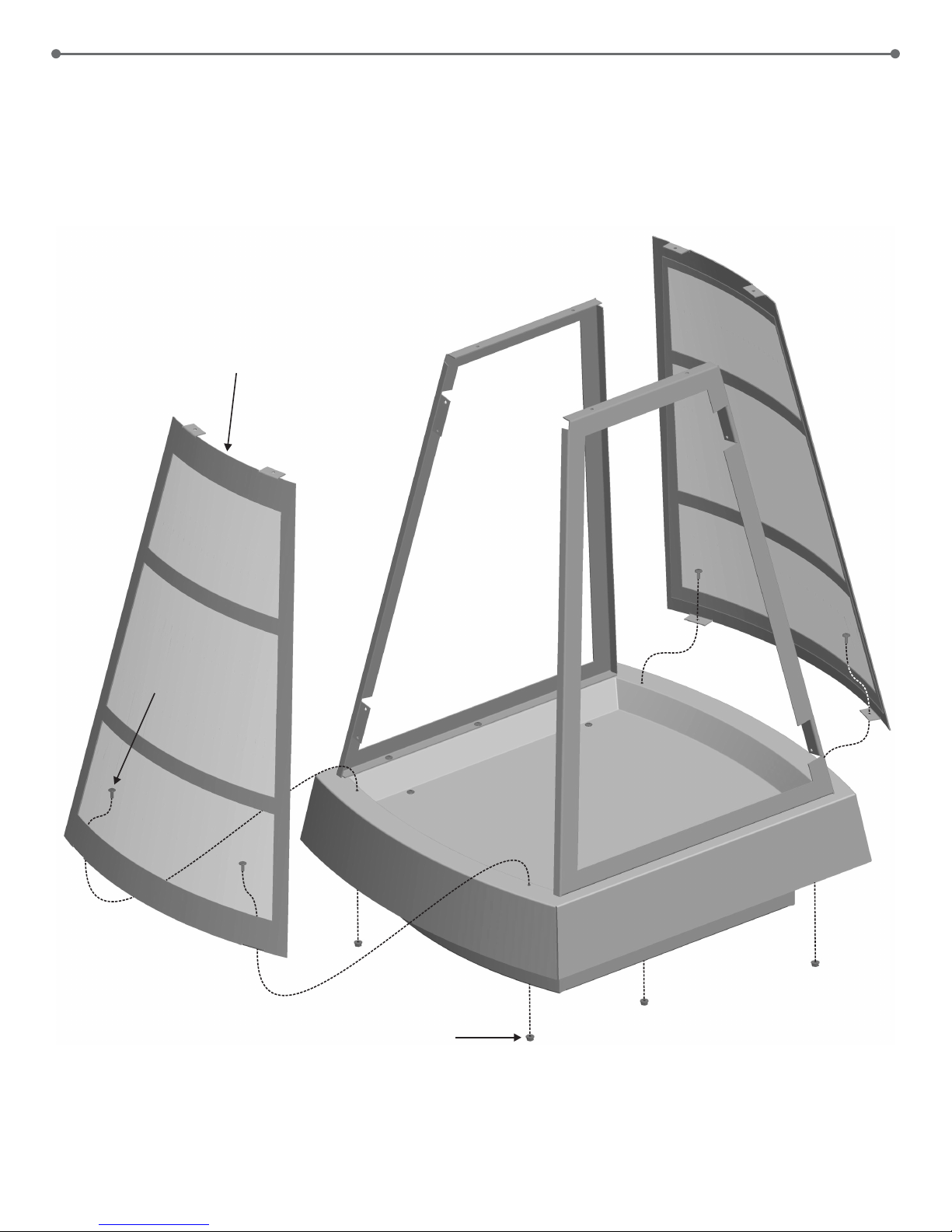

Attach side panels to side edges of ash pan using two and two
per panel. When assembled, side panels will lean against door frames.
#10-24x1/2” machine screws #10-24 flange nuts
2
#10-24x1/2”
Machine screw
#10-24 Flange nut
Side panel
Attach tabs beneath top to tabs on side panels and doors frames using eight
and eight .
#10-24x1/2” hex-head machine
screws #10-24 flange nuts
3
Top
#10-24x1/2” Hex-head machine screw
Door
frame
Side
panel
Top
#10-24
Flange nut
Attach door hinges to hinge mounts on door frames using two and two
per hinge.
#10-24x3/8” machine screws #10-24 hex-
keps nuts
4
DoorDoor
frame
#10-24x3/8”
Machine screw
#10-24
Hex-keps
nut
Door
Align hole in chimney pipe with hole in
top and secure using one
. Place chimney top onto
pipe. Place log rack inside of fireplace on
ash pan.
#10x1/2” self-
tapping screw
5Chimney top
Chimney pipe
Log rack
#10x1/2”
Self-tapping screw
USE & MAINTENANCE
It is recommended that coals and ashes are removed from your fireplace between each use. Coals and ash that build up
can restrict air flow to the fire. MAKE SURE COALS AND ASH ARE COOL TO THE TOUCH BEFORE REMOVING.
If your fireplace gets wet, be sure to dry it. Wet ashes can promote rust formation. It is recommended that your fireplace be
covered when not in use. NEVER COVER A HOT OR WARM FIREPLACE. Allow it to cool first.
This fireplace is not intended to be used for a primary heat source. Do not overfill it.
The temperatures produced by wood-burning, outdoor fireplaces can vary with the type and amount of combustible being
used. While formulated to withstand high temperatures, painted surfaces can fade, peel, and eventually rust due to the
extreme, damaging heat that wood-burning fires can produce.
Comparable to the patina effect of copper and bronze, rust is the natural occurrence that results on surfaces that are not
protected by paint or porcelain and are exposed to air and moisture. High-temperature paint can be used if the rustic
appearance of your outdoor fireplace is not desired.
Outdoor fireplaces that feature a porcelain coating are still susceptible to rust spots on the screens. Fireplace mesh
screens can not be porcelain coated and will require touch-up with paint that is rated for use in high-temperature
applications.
Copper, chrome and other metallic surfaces often found on outdoor fireplaces will patina, change color, and blacken with
exposure to outdoor conditions, heat, and smoke. Cleaning these surfaces regularly after each use with an appropriate
metal polish can help reduce these effects.
If you notice any of these surface conditions before the outdoor fireplace is used, contact the Char-Broil Service Center for a
replacement of the defective component. Manufacturing defects are covered under Char-Broil's 90 Day Limited Warranty.
Steel and Cast Iron Surfaces
Copper and other Metallic Surfaces
WARNING
CALIFORNIA PROPOSITION 65
Combustion by-products produced when using this
product contain chemicals known to the State of
California to cause cancer, birth defects, and other
reproductive harm.
Limited Warranty
Manufacturer warrants to the original consumer-purchaser only that this product shall be free from defects in workmanship and
materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning with the
date of purchase. Upon proof of purchase as provided herein, Manufacturer will repair or replace the parts listed below which are
proven defective during the applicable warranty period. Such repair or replacement shall be free of charge to you except for
shipping costs.
This limited warranty is applicable in the United States and Canada only, is only available to the original owner of the product and
is not transferable. Manufacturer requires reasonable proof of your date of purchase. Therefore, you should retain your sales slip
or invoice and register your new product immediately. Defective parts subject to this limited warranty will not be replaced without
registration or proof of purchase. Register online at www.grillregistration.com or complete and return via mail the Product
Registration Card included with this product and retain your sales receipt for proof of purchase.. If registration information is not
available, the proof of purchase will be required.
Repair or replacement of defective parts is your exclusive remedy under the terms of this limited warranty. Manufacturer will not
be responsible for any consequential or incidental damages arising from the breach of either this limited warranty or any
applicable implied warranty, or for failure or damage resulting from acts of God, improper care and maintenance, grease fire,
accident, alteration, replacement of parts by anyone other than Manufacturer, misuse, transportation, commercial use, abuse,
hostile environments (inclement weather, acts of nature, animal tampering), improper installation or installation not in accordance
with local codes. This limited warranty does not cover scratches, dents, corrosions or discoloring by heat, abrasive and chemical
cleaners or any tools used in the assembly or installation of the appliance, surface rust, or the discoloration of stainless steel
surfaces. This limited warranty will not reimburse you for the cost of any inconvenience, food reimbursement, personal injury or
property damage. If an original replacement part is not available, a comparable replacement part will be sent. You will be
responsible for all shipping charges of parts under the terms of this limited warranty.
THIS LIMITED WARRANTY IS THE SOLE EXPRESS WARRANTY GIVEN BY THE MANUFACTURER.
ANY IMPLIED WARRANTY PROTECTION ARISING
UNDER THE LAWS OF ANY STATE, INCLUDING IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE OR USE, IS HEREBY LIMITED IN DURATION TO THE DURATION OF THIS LIMITED WARRANTY.
Neither dealers nor the retail establishment selling this product has any authority to make any additional warranties or to promise
remedies in addition to or inconsistent with those stated above. Manufacturer's maximum liability, in any event, shall not exceed
the purchase price of the product paid by the original consumer. This warranty only applies to units purchased from an authorized
retailer.
NOTE: Some states do not allow an exclusion or limitation of incidental or consequential damages, so some of the above
limitations or exclusions may not apply to you. This limited warranty gives you specific legal rights as set for herein. You may
also have other rights which vary from state to state. In the state of California only, if refinishing or replacement of the product is
not commercially practicable, the retailer selling this product or the Manufacturer will refund the purchase price paid for the
product, less the amount directly attributable to use by the original consumer-purchaser prior to discovery of the nonconformity. In
addition, in the state of California only, you may take the product to the retail establishment selling this product in order to obtain
performance under this limited warranty.
If you wish to obtain performance of any obligation under this limited warranty, you should write to:
ALL COMPONENTS - 90 DAYS
NO PRODUCT
PERFORMANCE SPECIFICATION OR DESCRIPTION WHEREVER APPEARING IS WARRANTED BY MANUFACTURER
EXCEPT TO THE EXTENT SET FORTH IN THIS LIMITED WARRANTY.
Consumer Warranty Service / P. O. Box 1240
Columbus, GA 31902-1240
