Char-Broil 466270909 User manual

PRODUCT GUIDE

MODEL 466270909

IMPORTANT: Fill out the product record information below.

}

Serial Number

Date Purchased

Seeratinglabelongrillforserialnumber.

Forsupportandto registeryour

grill,pleasevisit usat

www.charbroil.com

Ifyouhavequestionsorneed

assistanceduringassembly,

pleasecall1-888-430-7870.

Estimated assembly time: 30 minutes

The following are trademarks registered by W.C. Bradley Co. in the U.S. Patent and Trademark Office: Char-Broil@; America's Legendary Barbeque Company@;

American Gourmet@; Banders®; BrushHawg®; CB940®; Char-Diamonds®; Char-Broil Charcoal/Gas®; DiamondFlame@; Everybody Grills®; Everybody Outside®;

FastStart®; Fireball®; Firenzy®; FlavorMaster®; Grill2Go®; Grill2Go® Express®; Grill Lovers®; H20 Smoker@; Keepers of the Flame®; New Braunfels Smoker

Company@; Oklahoma Joe's®; Patio Bistro@; Patio Caddie®; Patio Kitchen®; Precision Flame®; Quantum@; Santa Fe@; Sear and Grill@; Sierra@; Signature

Series@; The Big Easy@; The Minute Grill@; Trentino@; Wild West Tradition®; and the following marks:

TM TM TM TM TM TM

The following are trademarks of W.C. Bradley Co.: Commercial Series ; Designer Series ; Grill2Go@ Advantage ; Longhorn ; Double Chef ; QuickSet ;

TM TM TM TM TM

Ready When YouAre ; Hog and Yard Bird ;You Bring the Party ; SureFire ;Universal Grill Parts

TEC is a trademark of Tec Infrared Grills.

Protected under oneor moreofthe following U.S.Patents:4,989,579; 5,421,319; 5,458,309;5,579,755; 5,996,573;6,114,666; 6,135,104;6,209,533; 6,279,566;6,331,108; 6,484,900; 6,526,876;6,595,197;6,640,799; 6,640,803; 6,729,873;6,739,473; 6,749,424;

6,863,100;6,935,327; 6,951,213;6792,935;7,047,590;D364,535;D372,637;D373,70t ;D377,735;D383,035;D397,9t0; D405,643;I}406,005; D4Od,OO9;I}413,043;D4t3,229; I}414,982; D4t5,388; I}4t6,164; D4t6,441; I}417,587;D417,588; D422,516;D423,876;

D428,303;D430,772;D435,396;D436,004;D438,059; D438,060; D438,427;D439,110;D442,505;D443,179;D443,354;D443,464;D447,384; D447,385; D447,909;D448,610;D448,614;D448,6t5; D448,616;D448,975;D449,492;D450,544; D451,759;D454,028;

D454,03t; Ii)455,205;D455,206;D456,202;D456,222;D456,223;I}457,789; D458,520;D458,760;D458,802; D459,088; I}459,148 D459,149;D459,16t; I}459,163; D459,586;D459,943;D460,312;D460,313;1}460,318;D461,359;D465,123;D465,693;D466,307;

D466,439;D466,752;D473,4t4; Ii)474,371;D477,498;D477,50t; D477,504; D477,506;I}477,746; D478,471; D478,472;D480,914; D49t,4t0; I)494,009; D494,413;D498,523;D500,359;D504,048;D530,098;D535,000;Canada: 87,743;87,744; 97,504; 99,355;

102,037; 104,2OO;2,315,567;2,336,036;France: O10231 ;0tO,422;0t 0,590; O10,849;1,089,646;Germany:1,089,646;South Korea:384,565;China:99,127,066.5;UnitedKingdom:2,099,402;1,089,646.OtherPatents Pending.

For Your Safety .................................... 2-3

Use and Care ..................................... 4-9

Limited Warranty.................................... 10

Parts List .......................................... 11

Parts Diagram...................................... 12

Assembly ....................................... 13-22

Troubleshooting.................................. 23-25

Registration Card ................................... 27

Safety Symbols

The symbols and boxes shown below explain what each heading

means. Read and follow all ofthe messages found throughout

the manual.

WARNING: Indicatesan potentially hazardous situation

which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION: Indicatesa potentiallyhazardoussituationor

unsafe practicewhich, if not avoided, may result in minor

or moderateinjury,

DANGER: Indicatesan imminentlyhazardous situation

which, if not avoided,will resultin death or serious injury,

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open lid.

4. If odor continues, keep away from the

appliance and immediately call your gas

supplier or your fire department.

1. Do not store or use gasoline or other

flammable liquids or vapors in the vicinity of

this or any other appliance.

2. An LP cylinder not connected for use shall not

be stored in the vicinity of this or any other

appliance.

CAUTION

For residential use only. Do not use for commercial

cooking.

CAUTION:

Read and follow all safety statements,assembly

instructions,and use and care directions beforeattempting

to assemble and cook.

INSTALLER/ASSEMBLER:

Leavethis manualwith consumer.

CONSUMER:

Keepthis manualfor future reference.

WARNING:

Failureto follow all manufacturer's instructionscould result

in serious personal injuryand/or property damage.

CAUTION:

Some partsmay containsharp edges- especially as noted

in the manual!Wear protectivegloves if necessary.

CALiFORNiAPROPOSiTiON65

1.Combustionby-productsproducedwhenusing

thisproductcontainchemicals known to the State of

California to cause cancer, birth defects, and other

reproductive harm.

2. This product contains chemicals, including lead

and lead compounds, known to the State of

California to cause cancer, birth defects or other

reproductive harm.

Wash your hands after handling this product.

Installation Safety Precautions

•Use grill, as purchased, only with LP (propane) gas and the

regulator/valve assembly supplied. A conversion kit must be

purchased for use with naturalgas.

• Grill installation must conform with local codes, or in their

absence of local codes, with either the National Fuel Gas

Code,ANSI Z223.1/NFPA 54, Natural Gas and Propane

Installation Code, CSAB149.1, or Propane Storage and

Handling Code, B149.2, or the Standard for Recreational

Vehicles,ANSI A 119.2/NFPA1192,and CSAZ240 RV Series,

Recreational Vehicle Code,as applicable.

• All electrical accessories (such as rotisserie) must be

electrically grounded in accordance with local codes, or

National Electrical Code,ANSI/NFPA 70 or Canadian

Electrical Code, CSA C22.1. Keep any electrical cords and/or

fuel supply hoses away from any hotsurfaces.

• This grill issafety certified for use in the United States and/or

Canada only. Donot modifyfor use in any other location.

Modification wilt result in a safety hazard.

c.uTio.

Using pots larger than 6 quarts in capacity could

exceed weight limit of the

side burner shelf,

resulting in failure

of grill cart

components.

Do not attempt to repair or alter the

hose/valve/regulator for any "assumed" defect. Any

modification to this assembly will void your warranty

and create the risk of agas leak and fire. Use only

authorized replacement parts supplied by

manufacturer.

• NEVERstore a spare LP cylinder under or near the

appliance or in an enclosed area.

• Never fill a cylinder beyond 80% full.

• If the information in two points above is not

followed exactly, afire causing death or serious

injury may occur.

• An over filled or improperlystored cylinder is a

hazard due to possiblegas release from the safety

relief valve. This could cause an intense fire with

risk of property damage, serious injury or death.

• If you see, smell or hear gasescaping, immediately

get away from the LP cylindedapplianceand call

your fire department.

LP Tank Removal, Transport And Storage

• Turn OFF all control knobs and LP tank valve. Turn coupling

nut counterclockwise by handonly - do not use tools to

disconnect. Lift LP tank wire upward off of LP tank collar, then

lift LP tank up and off of support bracket. Installsafety cap onto

LP tank valve.Always use cap and strap supplied with valve.

Failure to use safety cap as directed may result in serious

personal injuryand/or property damage.

LPTank v-- SafetyCap

RetainerStrap

• A disconnected LP tank in storage or being transported must

have a safety cap installed (as shown). Do notstore an LPtank

in enclosed spaces such as a carport, garage, porch, covered

patio or other building. Never leavean LP tank inside a vehicle

which may become overheated bythe sun.

• Do notstore an LPtank in an area where children play.

LP Cylinder

*The LP cylinder used with your grill must meet the

following requirements:

,Use LP cylinders only with these required measurements: 12"

(30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.)

capacity maximum.

,LP cylinders must be constructed and marked in accordance

with specifications for LPcylinders of the U.S. Department of

Transportation (DOT) or for Canada, CAN/CSA-B339,

cylinders, spheres and tubes for transportation of dangerous

goods. Transport Canada (TC). See LP cylinder collar for

marking.

,LP cylinder valve must have:

,Type 1 outlet compatible with

regulatoror grill.

,Safety reliefvalve.

,UL listed Overfill Protection OPDHandWheel

Device (OPD). This OPD safety

feature is identified by a unique triangular hand wheel. Use

only LP cylinders equipped with this type of valve.

,LP cylinder must be arranged for vapor withdrawal and include

collar to protect LP cylinder valve.Always keep LP cylinders in

upright position during use, transit or storage.

LP cylinder in upright position for vapor withdrawal

LP (Liquefied Petroleum Gas)

•LP gas is nontoxic, odorless and colorless when produced. For

Your Safety, LPgas has been given an odor (similar to rotten

cabbage) so that it can be smelled.

•LP gas is highly flammableand may ignite unexpectedly when

mixedwith air.

LP Cylinder Filling

•Use only licensed and experienced dealers.

•LP dealer must purge new cylinder before filling.

•Dealer should NEVER fill LP cylinder more than 80% of LP

cylinder volume. Volumeof propane in cylinder wilt vary by

temperature.

•Afrosty regulator indicates gas overfill. Immediately close LP

cylinder valve and call local LP gas dealer for assistance.

•Do not releaseliquid propane (LP) gas into the atmosphere.

This is a hazardous practice.

•Toremove gas from LP cylinder,contact an LP dealer or call a

local fire department for assistance. Check the telephone

directory under "Gas Companies" for nearest certified LP

dealers.

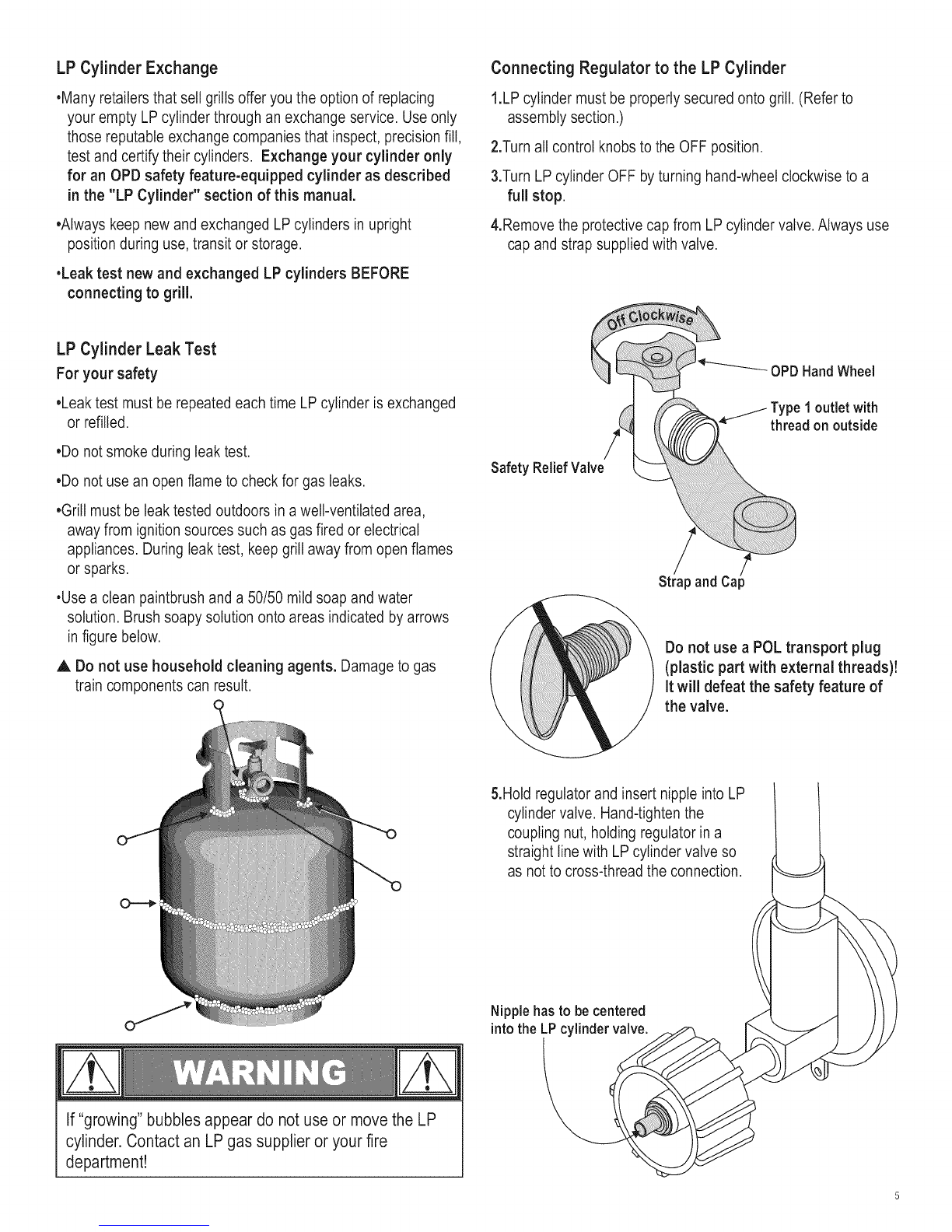

LP Cylinder Exchange

•Many retailers that sell grills offer you the option of replacing

your empty LP cylinder through an exchange service. Use only

those reputable exchange companiesthat inspect, precision fill,

test and certify their cylinders. Exchange your cylinder only

for an OPD safety feature-equipped cylinder as described

in the "LP Cylinder" section of this manual.

•Always keep new and exchanged LP cylinders in upright

position during use, transit or storage.

•Leak test new and exchanged LP cylinders BEFORE

connecting to grill.

Connecting Regulator to the LP Cylinder

1.LP cylinder mustbe properly secured onto grill. (Refer to

assembly section.)

2.Turn all control knobs to the OFF position.

3.Turn LP cylinder OFF by turning hand-wheel clockwise to a

full stop.

4.Remove the protective cap from LP cylinder valve.Always use

cap and strap supplied with valve.

LP Cylinder Leak Test

For your safety

•Leak test must be repeated each time LP cylinder isexchanged

or refilled.

*Do notsmoke during leak test.

*Do notuse an open flame to check for gas leaks.

*Grill must be leak tested outdoors in a well-ventilated area,

away from ignitionsources such as gas fired or electrical

appliances. Duringleak test, keep grill away from open flames

or sparks.

•Use a clean paintbrush and a 50/50 mild soap and water

solution. Brush soapy solution onto areas indicated byarrows

in figure below.

ADo not use household cleaning agents. Damage to gas

train components can result.

Safety Relief Valve

OPD Hand Wheel

//- Type1outlet with

threadon outside

Strapand Cap

Do not use a POL transport plug

(plastic part with external threads)!

It will defeat the safety feature of

the valve.

5.Hold regulatorand insert nipple into LP

cylinder valve. Hand-tightenthe

coupling nut, holding regulator in a

straight line with LP cylinder valve so

as not to cross-thread the connection.

Nipplehasto be centered

intothe LPcylinder valve.

If"growing"bubblesappear do not useor move the LP

cylinder.Contact an LPgas supplieror your fire

department!

Holdcoupling nut and regulator

asshownfor properconnection

to LPcylindervalve.

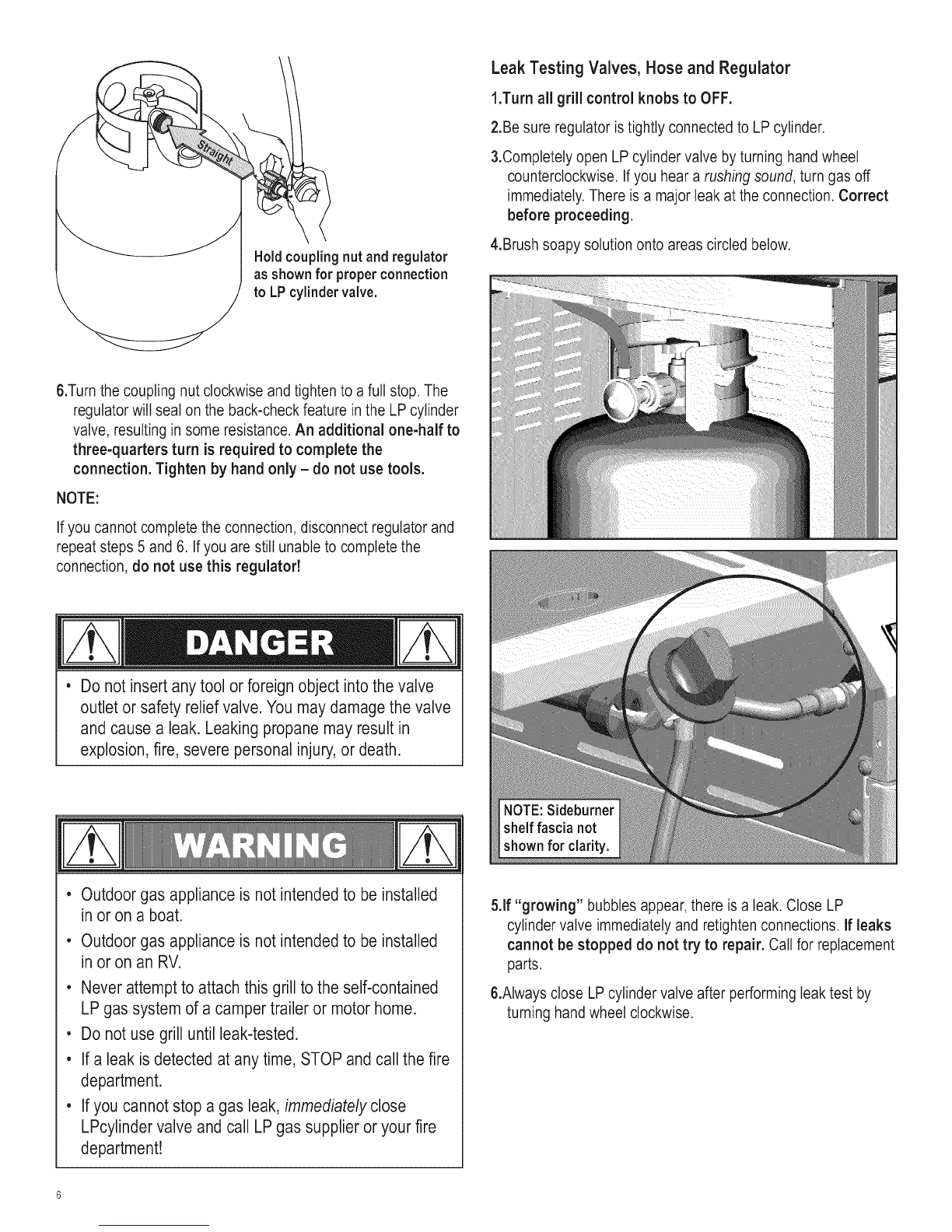

Leak Testing Valves, Hose and Regulator

1.Turn all grill control knobs to OFF.

2.Be sure regulator istightly connected to LP cylinder.

3.Completely open LP cylinder valve by turning hand wheel

counterclockwise. If you hear a rushing sound, turn gas off

immediately.There is a major leak at the connection. Correct

before proceeding.

4.Brush soapy solution onto areas circled below.

6.Turn the coupling nut clockwiseand tighten to a full stop. The

regulatorwill seal on the back-checkfeature in the LP cylinder

valve, resulting in some resistance.An additional one-half to

three-quarters turn is required to complete the

connection. Tighten by hand only - do not use tools.

NOTE:

If you cannot complete the connection, disconnect regulatorand

repeat steps 5 and 6. If you are still unable to completethe

connection, do not use this regulator!

Do not insertanytool or foreignobject intothe valve

outlet or safety relief valve. You maydamage thevalve

and cause a leak. Leaking propane mayresult in

explosion,fire, severepersonal injury,or death.

Outdoorgas appliance is not intendedto beinstalled

in or on a boat.

Outdoorgas appliance is not intendedto beinstalled

in or on an RV.

. Never attemptto attach this grill to the self-contained

LPgas system of a campertrailer or motorhome.

. Do not usegrill until leak-tested.

. If a leak is detectedat any time, STOPand callthe fire

department.

. If you cannot stop a gas leak,immediately close

LPcylindervalve and call LPgas supplieror yourfire

department!

5.If "growing" bubbles appear, there is a leak. Close LP

cylinder valve immediately and retighten connections. If leaks

cannot be stopped do not try to repair. Callfor replacement

parts.

6.Always close LPcylinder valve after performing leak test by

turning hand wheel clockwise.

For SafeUse of Your Grill and to Avoid Serious

Injury:

•Do not letchildren operate or play near grill.

• Keepgrill area clear and freefrom materials that burn.

• Do not blockholes in sidesor backof grill.

• Check burnerflames regularly.

• Use grill only inwell-ventilated space. NEVERuse in

enclosedspace suchas carport, garage, porch,

covered patio,or under anoverhead structureof any

kind.

Do not use charcoal or ceramic briquetsin a gasgrill.

(Unlessbriquets aresupplied with your grill.)

Usegrill at least 3ft. from any wall or surface.

Maintain 10ft. clearanceto objects that cancatch fire

or sources of ignition such as pilot lightsonwater

heaters,liveelectrical appliances,etc.

• Apartment Dwellers:

Checkwith managementto learnthe requirements

and fire codes for using an LPgasgrill in your

apartmentcomplex. If allowed, useoutside onthe

ground floorwith a three (3)foot clearance fromwalls

or rails. Donot useonor under balconies.

•NEVERattempt to light burner with lid closed.A

buildup of non-ignited gas inside a closed grill is

hazardous.

•Never operategrill with LP cylinderout of correct

position specified in assembly instructions.

•Always close LP cylinder valve and remove

coupling nut before moving LP cylinder from

specified operation position.

Safety Tips

,A, Beforeopening LP cylinder valve, check the coupling nutfor

tightness.

,A, When grill is not in use, turn off all control knobs and LP

cylinder valve.

,A, Never move grill while in operation or still hot.

,A, Use long-handled barbecue utensils and oven mitts to avoid

burnsand splatters.

,A, Maximum load for sideburner and side shelf is 10 Ibs.

,A, The grease tray must be inserted into grill and emptied after

each use. Do not remove grease tray until grill has

completely cooled.

,A, Clean grill often, preferably after each cookout. If a bristle

brush is used to clean any of the grill cooking surfaces,

ensure no loose bristles remain on cooking surfaces prior to

grilling. It is not recommendedto clean cooking surfaces

while grill is hot.

,A, If you notice grease or other hot material dripping from grill

onto valve, hoseor regulator, turn off gas supply at once.

Determinethe cause, correct it,then clean and inspect valve,

hoseand regulator before continuing. Perform a leak test.

,A, Keep ventilation openings in cylinder enclosure (grill cart) free

and clear of debris.

,A, Donot store objects or materials inside the grill cart

enclosure that would blockthe flow of combustion air to the

undersideof either the control panel or the firebox bowl.

,A, The regulator may make a humming or whistling noiseduring

operation. This will notaffect safety or use of grill.

,A, If you have a grill problem see the "Troubleshooting Section".

,A, If the regulator frosts, turn off grill and LP cylinder valve

immediately.This indicatesa problemwith the cylinder and it

should notbe used on any product. Return to supplier!

•Putting out grease fires by closing the lid is not possible.

Grills are well ventilated for safety reasons.

• Do not use water on a grease fire. Personal injury may

result, ifa grease fire develops, turn knobs and LP

cylinder off.

• Do not leave grill unattended while preheating or burning

off food residue on HI. if grill has not been regularly

cleaned, a grease fire can occur that may damage the

product.

Main Burner ignitor Lighting

A Do not lean over grill while lighting.

1. Turn (_ OFF all Gas Burner Control Valves.

2. Turn ON gas source or tank.

3. Open lid during lighting.

4. To ignite any main burner, turn the main burner control

knob to the _I: position.

5. Push and hold ELECTRONIC IGNITOR button until the

burner lights.

6. Once burner has ignited, turn knob to desired setting.

7. If ignition does not occur in 5 seconds, turn the burner

control to 1_ OFF, wait 5 minutes, and repeat the lighting

procedure.

8. Repeat steps 4 through 7 for the remaining main burners.

Lighting instructions continued on next page.

Turn controls and gas source or tank OFF when not

in use. CAUTIo.

If ignitiondoes NOToccur in 5seconds, turn the

burner controls OFF,wait 5 minutes and repeat the

lighting procedure. If the burner does not ignitewith

the valve open, gas will continue to flow out of the

burner and could accidently ignite with risk of injury.

Match-Lighting

ADo not lean over grill while lighting.

1. Turn (_ OFF all burner control valves.

2. Open lid. Turnon gas at LP cylinder.

3. Place lit match into match holder (hanging from cart side

panel), then into lighting hole on right or left side of grill.

4. Push in and turn far right or far left burner knob to HIGH_.

Be sure burner lights and stays lit.

5. Light adjacent burners in sequence by pushing knobs in and

turning to HIGH(_.

Side Burner Lighting Instructions:

,& Do not lean over grill while lighting.

1. Turn(_ OFF all gas burner control valves.

2. Turn ONgas source or tank.

3. Open lid during lighting.

4. Toignite SIDEBURNER, turn sideburner knobto the _h)

position.

5. Push and hold the ELECTRONIC IGNITOR button untill the

sideburner lights.

6. Once burner has ignited, turn knobto desired setting.

7 If ignition does not occur in 5 seconds, turn the burnercontrol

to(_ OFF,wait 5 minutes, and repeat the lighting procedure.

Sideburner Match Lighting

1. Turn _ OFF all burner control valves.

2. Open sidebumer lid. Turn on

gas at LP cylinder.

3. Place lit match near burner.

4. Turnsideburner knobto

HIGH_. Be sure burner

lights and stays lit.

Burner Flame Check

•Remove cooking grates and flame tamers. Light burners, rotate

knobs from HIGHto LOW.You should see a smaller flame in

LOW position than seen on HIGH. Perform burner flame check

on sideburner, also.Always check flame prior to each use. If

only low flame is seen refer to "Sudden drop or low flame" in

the TroubleshootingSection.

Turning Grill Off

•Turn allknobs to OFF position. Turn LP cylinder off by turning

hand-wheel clockwise to a full stop.

Ignitor Check

•Turn gas off at LP cylinder. Press and hold electronic ignitor

button. "Click" should be heardand spark seen each time

between collector box or burner and electrode. See

"Troubleshooting" if no click or spark.

Valve Check

•important: Makesure gas is off at LP cylinder before

checking valves. Knobs lock in OFF position.To check

valves, first push in knobs and release, knobs should spring

back. If knobs do not spring back, replace valve assembly

beforeusing grill. Turn knobs to LOW position then turn back to

OFF position.Valves should turn smoothly.

Hose Check

•Before each use, check to see if hoses are cut or worn.

Replace damaged hoses before usinggrill. Use only

valve/hose/regulator specified by manufacturer.

General Grill Cleaning

•Do not mistake brown or black accumulation of grease and

smoke for paint. Interiorsof gas grills are not painted at the

factory (and should never be painted). Apply astrong solution

of detergent and water or usea grill cleanerwith scrub brush

on insides of grill lid and bottom. Rinse and allow to completely

air dry. Do not apply a caustic grill/oven cleaner to painted

surfaces.

• Plastic parts: Wash with warm soapy water and wipe dry.

A Donot use citrisot,abrasive cleaners, degreasers or a

concentrated grill cleaner on plastic parts. Damage to and

failure of parts can result.

•Porcelain surfaces: Because of glass-like composition, most

residuecan be wiped away with baking soda/water solution or

specially formulated cleaner. Use nonabrasive scouring powder

for stubborn stains.

•Painted surfaces: Wash with milddetergent or nonabrasive

cleaner and warm soapy water. Wipe dry with a soft

nonabrasive cloth.

•Stainless steel surfaces: Tomaintain your grill's high quality

appearance, wash with mild detergent and warm soapy water

and wipe dry with a soft cloth after each use. Baked-on grease

deposits may require the use of an abrasive plastic cleaning

pad. Use only in direction of brushed finish to avoid damage.

Do not use abrasive pad on areas with graphics.

•Cooking surfaces: If a bristle brushis usedto clean any of

the grill cooking surfaces, ensure no loose bristles remain on

cooking surfaces prior to grilling. It isnot recommendedto

clean cooking surfaces while grill is hot.

cAuTioN

fSP|DNR ALNRT!

SPIDERAND WEBS

INSIDE BURNERTUBE

If you notice that your grill is getting hard to lightor that the

flame isn't asstrong as it should be, takethe time to checkand

clean theventuri's.

CONTROLPANEL SPIDERWEBS

INSIDE VENTURI

BURNER

Insomeareasofthecountry,spidersor smallinsectshavebeen

knowntocreate"flashback"problems.Thespidersspinwebs,build

nestsand layeggsinthegrill'sventuritube(s)obstructingtheflowof

gastotheburner.Thebacked-upgascanigniteintheventuribehind

thecontrolpanel.Thisisknownasa flashbackandit candamage

yourgrillandevencauseinjury.

Topreventflashbacksandensuregoodperformancetheburnerand

venturiassemblyshouldbe removedfromthegrillandcleaned

eforeusewheneverthegrill hasbeenidleforanextendedperiod, j

Storing Your Grill

•Clean cooking grates.

•Store in dry location.

•When LP cylinder is connected to grill, store outdoors in a well-

ventilated space and out of reachof children.

•Cover grill ifstored outdoors. Choose from a variety of grill

covers offered by manufacturer.

•Store grill indoors ONLYif LP cylinder is turned off and

disconnected, removed from grill and stored outdoors.

•When removing grill from storage, follow "Cleaning the Burner

Assembly" instructions before starting grill.

Cleaning the Burner Assembly

Follow these instructions to clean and/or replace partsof burner

assembly or if you have trouble igniting grill,

1. Turn gas off at control knobs and LP cylinder.

2. Remove cooking grates and flame tamers,

3. Remove hitch pinsand carryover tubes from rear of burners,

4. Remove Hitch pin todisengage burner from bracket on

firebox,

5. Detach electrode from burnerwith a flat screw driver by

pressing the electrode clamp out of the burner through the

notch on the clamp, Electrode should remain in firebox,

6. Carefully lift each burner up and away from valve openings,

We suggest three ways to clean the burner tubes. Use the one

easiest for you.

(A) Bend a stiff wire (a light weight coat hangerworks well)

into a small hook. Run the hook through each burner

tube several times.

(B) Use a narrow bottle brushwith a flexible handle (do not

use a brass wire brush), run the brush through each

burner tube several times.

the burner tube and out the burner ports. Check each

port to make sure air comes out each hole.

7. Wire brush entire outer surface of burner to remove food

residue and dirt.

8. Clean any blocked ports with a stiff wire such as an open

paper clip.

9. Check burner fordamage, due to normal wear and corrosion

some holes may become enlarged. If any large cracks or

holes are found replace burner.

VERY IMPORTANT: Burner tubes must reengage valve

openings. See illustrations at right.

10. Attach electrode to burner.

11. Carefully replace burners.

12. Attach burners to brackets on firebox.

13. Reposition carryover tubes and attach to

burners. Replace flame tamers and

cooking grates. Correct

burner-to-valve

engagement

electrode with

)de aflat blade

screwdriver

This warranty only applies to units purchased from an authorized retailer. Manufacturer warrants to the original consumer-purchaser only that this

product shall be fiee from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods

indicated below beginning on the date of purchase*. The manufacturer reserves the right to require that defective parts be returned, postage and or

freight pre-paid by the consumer for review and examination.

SCOPE OF COVERAGE

Stainless Burner

Firebox and Lid

All Other Parts

PERIOD OF COVERAGE

Limited Lifetime

2years from date of purchase*

l year from date of purchase*

TYPE OF FAILURE COVERAGE

PERFORATION, MANUFACTURING,

AND MATERIAL DEFECTS ONLY

*Note: A dated sales reciept WILL be required for warranty service.

The original consumer-purchaser will be responsible for all shipping charges for parts replaced under the terms of this limited warranty.

This limited wananty is applicable in the United States and Canada only; is only available to the original owner of the product and is not transferable.

Manufacturer requires proof of your date of purchase. Therefore, you should retain your sales slip or invoice. Registering your product is not a

substitute for proof of purchase and the manufacturer is not responsible for or required to retain proof of purchase records.

This limited warranty applies to the functionality of the product ONLY and does not cover cosmetic issues such as scratches, dents, corrosions or

discoloring by heat, abrasive and chemical cleaners or any tools used in the assembly or installation of the appliance, surt:ace rust, or the

discoloration of stainless steel surt_aces. RUST is not considered a manufacturing or materials defect.

This limited warranty will not reimburse you for the cost of any inconvenience, food, personal injury or propelly damage.

ITEMS MAN UFACTURER WILL NOT PAY FOR:

1. Shipping cost, standard or expedited, for warranty and replacement parts

2. Service calls to your home.

3. Repairs when your product is used t'or other than normal, single-l'amily household or residential use.

4. Damage, t:ailures, or operating difficulties resulting from accident, alteration, careless handling, misuse, abuse, fire, flood,

acts of God, improper installation or maintenance, installation not in accordance with electrical or plumbing codes, or use

of products not approved by the manul:acturer.

5. Any t'ood loss due to product t'ailures or operating dil'ficulties.

6. Replacement parts or repair labor costs t'or units operated outside the United States or Canada.

7. Pickup and delivery of your product.

8. Repairs to parts or systems resulting from unauthorized modifications made to the product.

9. The removal and/or reinstallation of your product.

DISCLAIMER OF IMPLIED WARRANTIES and LIMITATION OF REMEDIES

Repair or replacement of defective parts is your exclusive remedy under the terms of this limited warranty. Manufacturer will not be responsible for

any consequential or incidental damages arising from the breach of either this limited wmTanty or any applicable implied warranty; or for failure or

damage resulting from acts of God, improper care and maintenance, grease fire, accident, alteration, replacement of parts by anyone other than

Manufacturer, misuse, transportation, commercial use, abuse, hostile environments (inclement weather, acts of nature, animal tampering), improper

installation or installation not in accordance with local codes or printed manufacturer instructions.

THIS LIMITED WARRANTY IS THE SOLE EXPRESS WARRANTY GIVEN BY THE MANUFACTURER. NO PRODUCT PERFORMANCE

SPECIFICATION OR DESCRIPTION WHEREVER APPEARING IS WARRANTED BY MAN UFACTURER EXCEPT TO THE EXTENT SET

FORTH IN THIS LIMITED WARRANTY: ANY IMPLIED WARRANTY PROTECTION ARISING UNDER THE LAWS OF ANY SqWFE,

INCLUDING IMPLIED WARRANTY Ot: MERCHANTABILITY OR FITNESS [:OR A PAt_FICULAR PURPOSE OR USE, IS HEREBY

LIMITED IN DURATION TO THE DURATION OF THIS LIMITED WARRANTY:

Neither dealers nor the retail establishment selling this product has any authority to make any additional warranties or to prmnise remedies

in addition to or inconsistent with those stated above. Manufacturer's maximum liability, in any event, shall not exceed the purchase price of the

product paid by the original consumer.

NOTE: Some states do not allow an exclusion or limitation of incidental or consequential damages, so some of the above limitations or exclusions

may not apply to you. This limited warranty gives you specific legal rights as set foth herein. You may also have other rights which vary from state

to state. In the state of California only; if refinishing or replacement of the product is not commercially practicable, the retailer selling this product or

the Manufacturer will refund the purchase price paid for the product, less the amount directly attributable to use by the original consumer-purchaser

prior to discovery of the nonconformity. In addition, in the state of California only; you may take the product to the retail establishment selling this

product in order to obtain performance under this limited warranty.

If you wish to obtain performance of any obligation under this limited warranty, you should

write to:

Consumer Relations

P. O. Box 1240

Columbus, GA 31902-1240

Consumer returns will not be accepted unless a valid Return Authorization is first acquired. Authorized returns are clearly marked on the outside of

the package with an RA number and the package is shipped freight/postage pre-paid. Consumer returns that do not meet these standards will be

refused.

Table of contents

Other Char-Broil Grill manuals

Char-Broil

Char-Broil Patio Caddie 4754960 User manual

Char-Broil

Char-Broil 463268507 User manual

Char-Broil

Char-Broil 17602047 User manual

Char-Broil

Char-Broil GAS2COAL 4 BURNER 468301421 User manual

Char-Broil

Char-Broil Perfomance 463227315 User manual

Char-Broil

Char-Broil 468100515 User manual

Char-Broil

Char-Broil QUICKSET 463861906 User manual

Char-Broil

Char-Broil 466650414 Classic C-22G1 User manual

Char-Broil

Char-Broil 463230112 User manual

Char-Broil

Char-Broil CBFL-1850/S User manual

Char-Broil

Char-Broil QUICKSET TRADITIONAL 463732004 User manual

Char-Broil

Char-Broil 14601898 User manual

Char-Broil

Char-Broil EDGE 22652143 User manual

Char-Broil

Char-Broil VIBE 535 User manual

Char-Broil

Char-Broil 463611212 User manual

Char-Broil

Char-Broil Classic C-453 User manual

Char-Broil

Char-Broil RED 463250509 User manual

Char-Broil

Char-Broil 463666515 User manual

Char-Broil

Char-Broil 466271509 User manual

Char-Broil

Char-Broil 415.9011211 User manual

Char-Broil

Char-Broil Grill 2 Go 11401587 User manual

Char-Broil

Char-Broil 463722912 User manual

Char-Broil

Char-Broil 463268207 User manual

Char-Broil

Char-Broil 463722714 User manual

Popular Grill manuals by other brands

Orbegozo

Orbegozo GR 2300 instruction manual

bora

bora PT11 Operating and installation instructions

Klarstein

Klarstein 10031664 manual

Garland

Garland MWE3W Installation and operation manual

Nexgrill

Nexgrill 720-0830HK Operating instruction

Kenmore

Kenmore 415.16123800 Use and care guide

Camp Chef

Camp Chef PG24CLAU Warning & instruction booklet

Tucker Barbecues

Tucker Barbecues GTR Series Assembly, installation and operating instructions

Monogram

Monogram ZGG540NCP1SS owner's manual

Equipex

Equipex Sodir Savoy Operation manual

Gaggenau

Gaggenau VR 414 610 use and care manual

Miele

Miele KM 408-1 operating instructions

George Foreman

George Foreman GGR50B owner's manual

AOG

AOG T series quick start guide

Gorenje

Gorenje TG2000CB Instruction manua

Weber

Weber Genesis Silver-B Permamount NG 051701 owner's guide

Glen

Glen SA 3037 user guide

Stalgast

Stalgast 9730100 instruction manual
