Chamberlain LA400 Installation and operating instructions

Typical 4" Post Hole

Acceptable Configurations (will vary based on site conditions)

Typical 6" Post Hole

Can also be used to mount operator if needed

NOTE:

The addition of this hole helps

add up to 30-degrees of movement in

some applications.

Gate Post

Opener Hinge Point

Gate Hinge Point Gate Hinge Point Gate Hinge Point

Gate Hinge PointGate Hinge PointGate Hinge Point

7"

7"

Opener Hinge Point Opener Hinge Point

Gate Post Gate Post

Gate Post Gate Post Gate Post

7"

7"

Opener

Hinge Point

7"

7"

Opener

Hinge Point

7"

7"

Opener

Hinge Point

7"

7"

7"

7"

Addendum to LA400

Owner’s Manual

LA400 BRACKET CONFIGURATIONS

Assemble bracket.

NOTE:

This new bracket is being added to the LA400, offering

greater mounting flexibility.

DETERMINE MOUNTING LOCATION

The gate post bracket assembly can be mounted several places

on the gate post.

Ideally, the distance between and opener hinge points should be

approximately 7" x 7". Place opener against gate post and adjust

the opener until the required dimension is achieved (Figure 1).

Figure 1

Pin

Gate

Bracket

C-Clamp

C-Clamp

Actuator Side

Hairpin Clip

Operator must be level

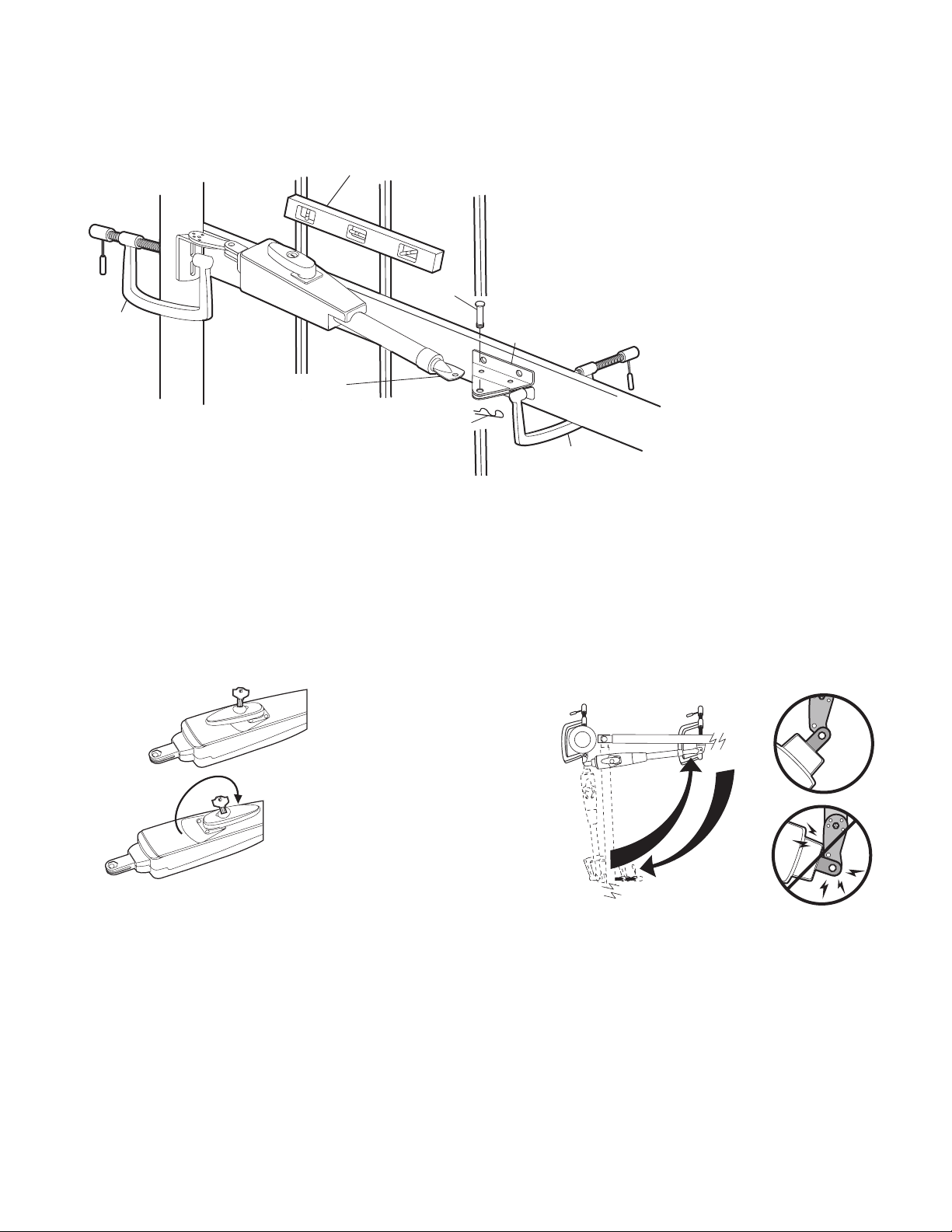

ATTACH THE OPERATOR

Secure brackets to post and gate with c-clamps. Attach operator

arm to brackets with pins and clips provided (Figure 2).

Disengage the operator by inserting the key and rotating the

handle (Figure 3).

Move the gate manually to the fully open and fully closed

positions. It is extremely important that the gate bracket does

not bind with the post bracket (Figure 4).

©2006, The Chamberlain Group, Inc.

01-33464 All Rights Reserved

Figure 2

Figure 3 Figure 4
