Chamberlain DH User manual

APPLICATION REQUIREMENTS:

Replacement of Motor and/or its components for a Model 1/2 HP FDO Operator.

Motor Assembly

Replacement Kit for

1/2 HP FDO-Line Operators

WARNING

CAUTION

WARNING

WARNING

DISCONNECT POWER AT THE FUSE BOX BEFORE

PROCEEDING. IF NECESSARY REMOVE THE OPER-

ATOR FROM ITS MOUNTED POSITION.

OPERATOR MUST BE PROPERLY GROUNDED AND

CONNECTED IN ACCORDANCE WITH LOCAL ELEC-

TRICAL CODES. NOTE: THE OPERATOR SHOULD

BE ON A SEPARATE FUSED LINE OF ADEQUATE

CAPACITY.

ALL ELECTRICAL CONNECTIONS MUST BE MADE

BY A QUALIFIED INDIVIDUAL.

INSTALLATION INSTRUCTIONS

NOTE: Refer to the Owner’s Manual supplied with the

operator for all mounting and wiring instructions.

REMOVE EXISTING MOTOR ASSEMBLY:

Disconnect the wire connections to the motor. Remove

the brake cover and locate the (4) flange nuts securing the

brake assembly to the motor. Remove the (4) flange nuts

and the break assembly and set off to the side. Remove

the (2) bolts securing the motor to the frame and lower

the front of the motor and slide the motor from the frame.

MOUNTING NEW MOTOR ASSEMBLY:

To install the motor assembly, follow the steps outlined

above in reverse order. Reconnect the wires to the motor,

referring to the owners manual and wiring diagrams on

pages 2 and 3.

© 1999, The Chamberlain Group, Inc.

01-16354A All Ri hts Reserved

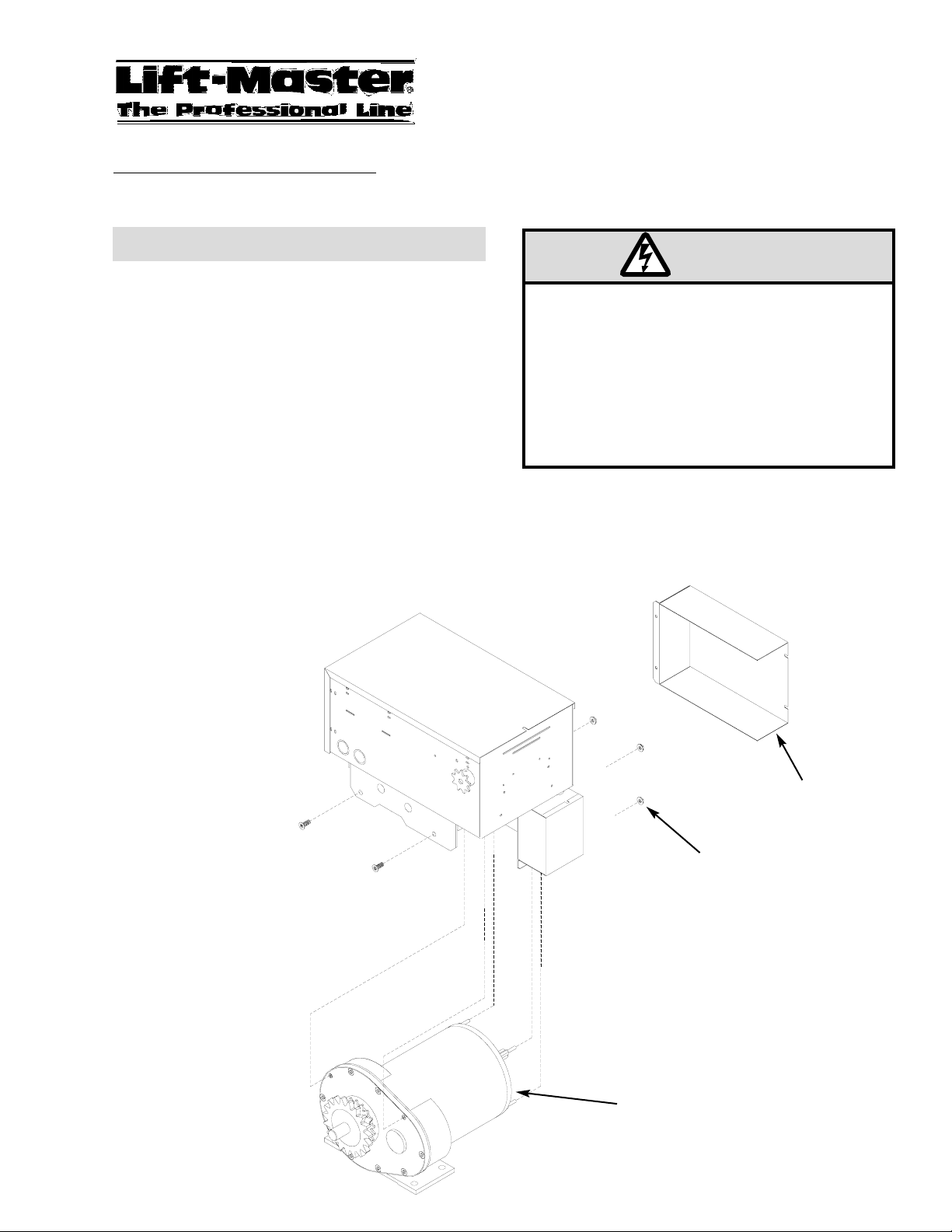

MOTOR ASSEMBLY

BRAKE COVER

FLANGE NUTS

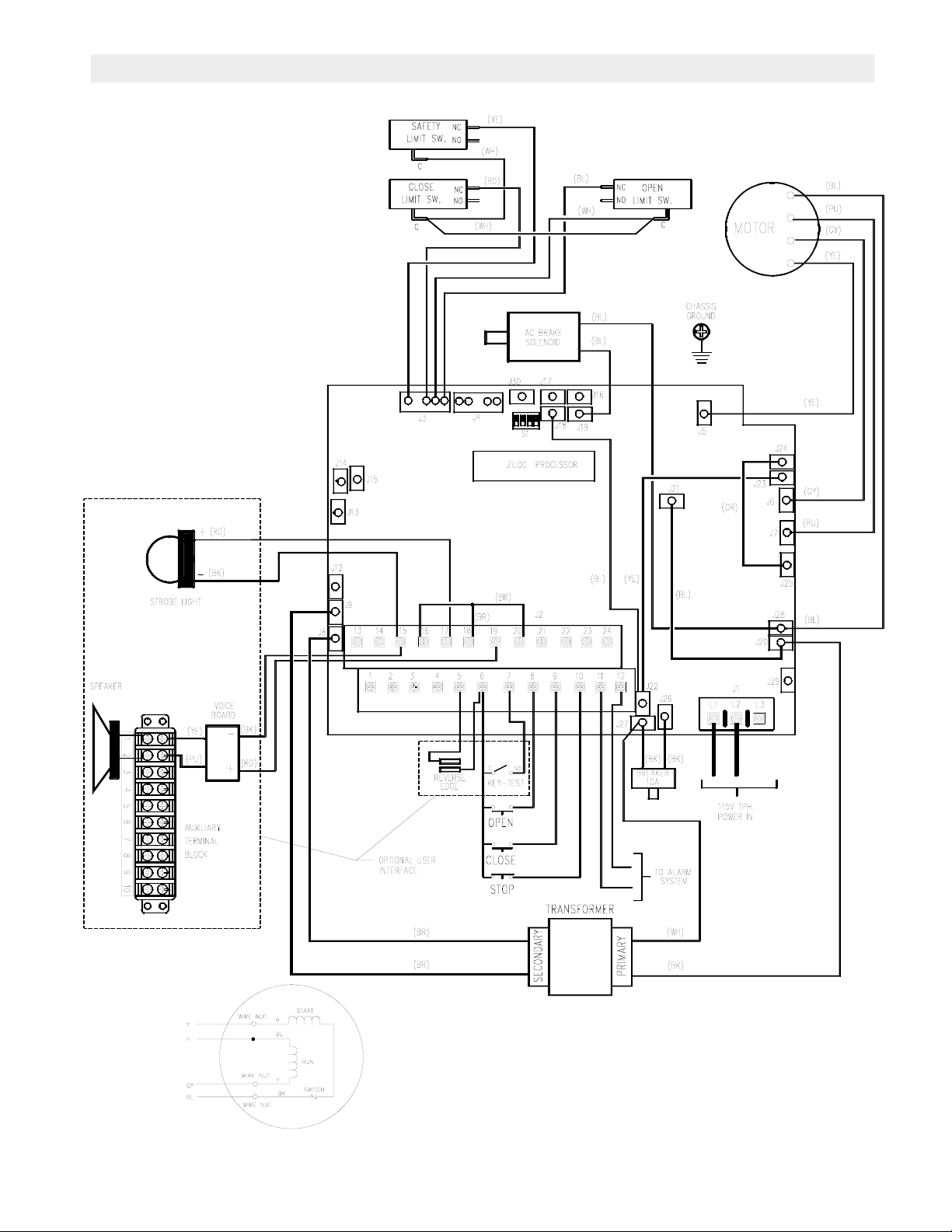

1 PHASE WIRING DIAGRAM (FDOB5011)1 PHASE WIRING DIAGRAM (FDOA5011) 1845 1846

MOTOR CONNECTIONS

MOTOR CONNECTIONS

1 PHASE WIRING DIAGRAM (FDOB5011)1 PHASE WIRING DIAGRAM (FDOA5011) 1845 1846

MOTOR CONNECTIONS

MOTOR CONNECTIONS

© 2000, The Chamberlain Group, Inc.

01-17365C All Rights Reserved MADE IN MEXICO
