Challenger SLFLO80 User manual
Challenger_SLFLO80_100_150_230_300_460_600_Instructions_Rev01
INSTALLATION INSTRUCTION
SLFLO80, SLFLO100, SLFLO150, SLFLO230, SLFLO300, SLFLO460, SLFLO600
lease read these instructions before installation and retain for the user/maintenance engineer for
future reference
Specification
Item Model Input
Voltage
ower
Factor Watt
Color
Temperature
Output
Lumen
Total Watt
Incl Driver
CRI
Input
Current
Dimensions
(mm) Weight
A SLFLO80
100-277
VAC
≥0.9
80W
5000K
10,513 73.6~86.4W
>70
1.0A 320*86*250 2.23kg
B SLFLO100 100W
5000K
14,061 92~108W
>70
1.4A 280*341*87 2.4kg
C SLFLO150 150W
5000K
20,582 138~157W
>70
1.8A 280*341*87 3.0kg
D SLFLO230 230W
5000K
31,060 211~241W
>70
2.8A 435*341*87 4.2kg
E SLFLO300 300W
5000K
41,868 276~315W
>70
3.7A 559*341*88 6.9kg
F SLFLO460 460W
5000K
66,344 437~483W
>70
5.6 A 647*494*127 11.9kg
G SLFLO600 600W
5000K
91,718 570~630W
>70
7.0 A 647*577*124 15.2kg
•Operating Temperature -40°～+40°c
•I 65
A LICATION ITEMS
IM ORTANT
•Installation must be carried out by a skilled electrician who is familiar with the appropriate
standards and technical requirements of the appliance also taking in to consideration the latest
building regulations.
•The person carrying out the installation is to check and verify that the total load on the circuit,
including the rating of the cable, fuse and/or circuit breaker is not exceeded
•Ensure there is adequate ventilation around the luminaire
•Ensure the AC mains supply is isolated when installing or servicing
•This product must be earthed
•DO NOT look or stare at the LED fitting directly when in close proximity once illuminated
•Never modify the luminaire, there are no user serviceable parts inside.
A B C D E F G
Challenger_SLFLO80_100_150_230_300_460_600_Instructions_Rev01
Installation
•Ensure the electrical AC power is OFF before and during installation
•For the AC supply cable and connections a cable that is rated to 90°C should be used
•Ensure the luminaire is securely fixed to a surface/ceiling free from vibration
•Keep enough length of cable to ensure adjusting the angle of the fitting is unhindered

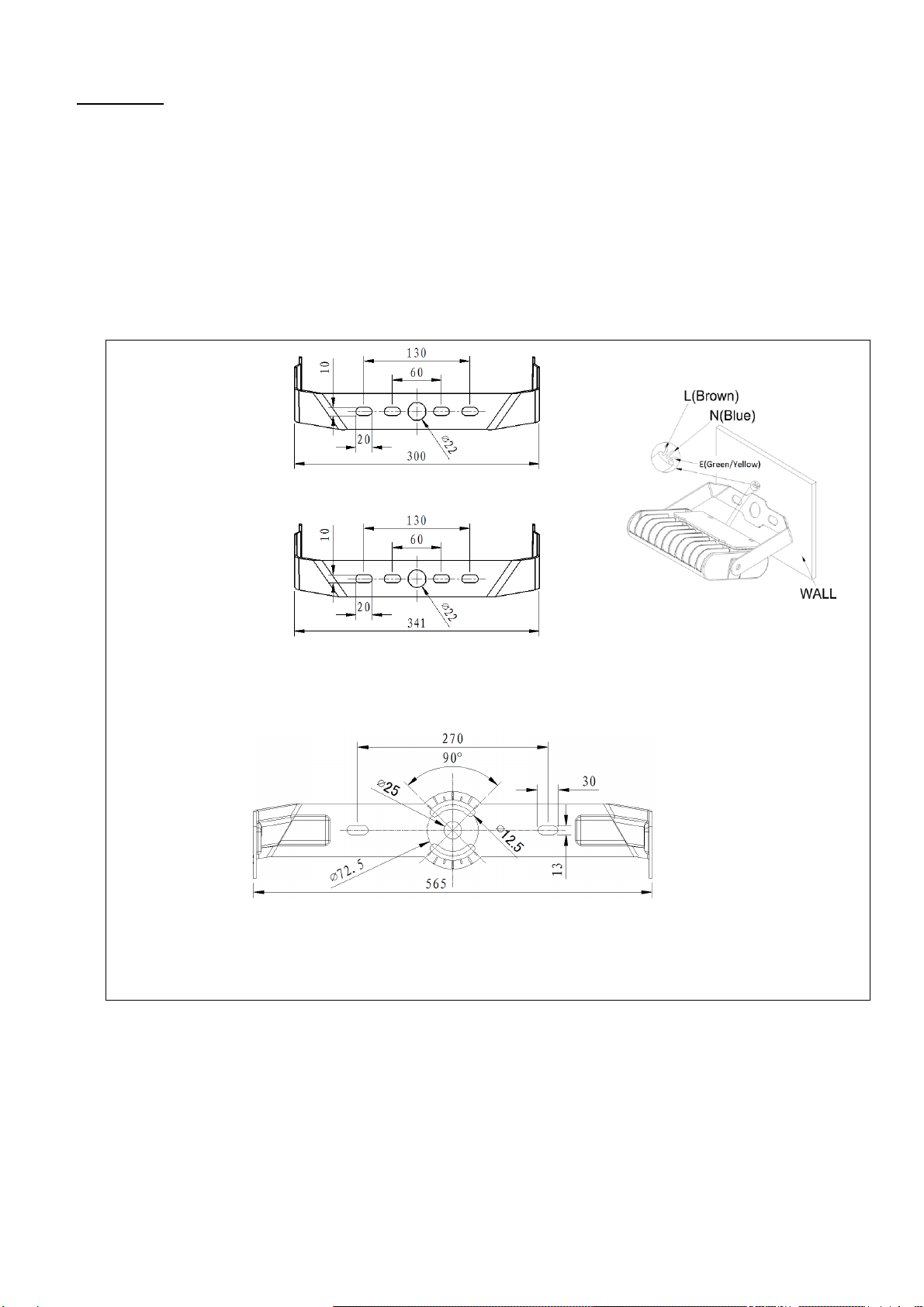

•A suitable I rated junction box is required for the premade AC electrical connections (Brown =
Live, Blue = Neutral and Yellow/Green = Earth), this luminaire require a suitable earth
•Check the lighting fixture is firmly fixed and the allen bolts have been inserted in to the bracket
•Check all the connections are wired and terminated correctly
SLFLO80
SLFLO100
SLFLO150
SLFLO230
SLFLO300
SLFLO460
SLFLO600
Challenger_SLFLO80_100_150_230_300_460_600_Instructions_Rev01
Maintenance
Repairs should only be carried out by a suitably qualified person.
Regular cleaning of luminaires should be carried out at regular intervals not only to ensure good optical
performance but also ensure that dirt does not accumulate to such an extent as to impair the electrical or
thermal safety of the fitting. This should be done with the luminaire switched off/isolated and a soft
damp cloth should be used, do not use any chemicals or abrasives.
Light Source Maintenance: the light source of this luminaire is not replaceable; in case the light source
need to be replaced (e.g. at the end of its life), the whole luminaire shall be replaced.
Warranty:
This product is covered by an extended warranty for 5 years from date of purchase.
The extended warranty is available for installations in the UK or Ireland by a competent person in
accordance with the current building and IEE wiring regulations.
If the defective product is no longer available then Challenger may provide alternatives of similar
specification and quality.
The ambient temperatures and environment and voltage range according to manufacturer specifications
are not exceeded
The product is not exposed to any adverse mechanical stresses or impact
For full terms and conditions in regards to our extended warranty please refer to the website.
Due to our policy of continuous improvement we reserve the right to change specification without prior notice.
Errors and omissions excepted. These instructions have been carefully checked prior to publication. However, no
responsibility can be accepted by Challenger for any misinterpretation of these instructions.
CHALLENGER SECURITY RODUCTS
10 Sandersons Way,
Blackpool, FY4 4NB
Email: enquiries@challenger.co.uk
Web: www.challenger.co.uk
This manual suits for next models
6
