Central Machinery 61700 Assembly instructions
Page 2 For technical questions, please call 1-888-866-5797. Item 61700
Specifications (per Sawhorse)
Wood Top Dimensions 32" x 5-1/2" x 1-1/2"
Height 30"
Maximum Weight Capacity 1000 lb for each Sawhorse
(must be used in pairs)
IMPORTANT SAFETY INFORMATION
Assembly Precautions
1. Assemble only according to these instructions.
Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and
heavy-duty work gloves during assembly.
3. Keep assembly area clean and well lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the
influence of alcohol, drugs or medication.
6. Weight capacity and other product capabilities apply
to properly and completely assembled product only.
Use Precautions
1. This product is not a toy. Do not allow
children to play with or near this item.
2. Use on flat, level, hard surface able to support load.
3. Wear ANSI-approved safety goggles
during assembly and use.
4. Use as intended only. Use at least
two sawhorses to support load.
5. Inspect before every use; do not use
if parts loose or damaged.
6. Secure the workpiece to the sawhorses, if possible.
7. Do not exceed listed weight capacity 1,000 lb weight
capacity, evenly distributed across two sawhorses.
Be aware of dynamic loading!
Sudden load movement may briefly create
excess load causing product failure.
8. Maintain product labels and nameplates.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
9. The warnings, cautions, and instructions discussed
in this instruction manual cannot cover all possible
conditions and situations that may occur. It must
be understood by the operator that common sense
and caution are factors which cannot be built into
this product, but must be supplied by the operator.
Page 3For technical questions, please call 1-888-866-5797.Item 61700

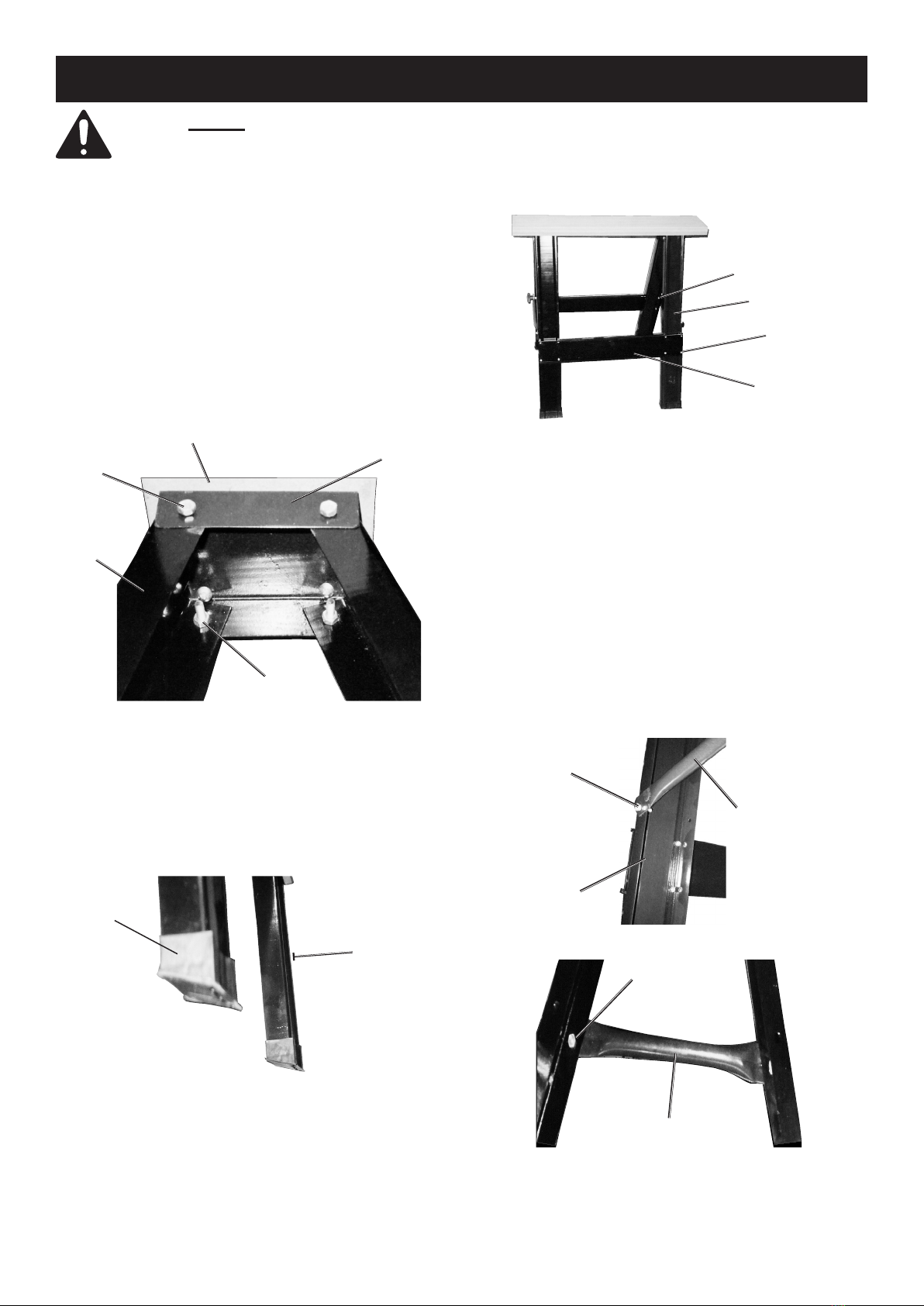

Assembly Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document
including all text under subheadings therein before set up or use of this product.
1. On the Wooden Board (1), measure 3-3/8" from each
end of the Wooden Board. Mark a line with a pencil.
2. Line up the wide end of the Leg Mounting
Bracket (2) with the line. There are four holes in
the primary plate of the Leg Mounting Bracket.
Use four Screws (8) to attach the Bracket to the
Wooden Board through those holes. Repeat
on the opposite end of the Wooden Board.
3. Place the end of a leg into one side of the Leg
Mounting Bracket, lined up with the mounting
holes in the walls of the Bracket. The open side
of the leg should face inward. See Figure A.
Wooden Board (1) Mounting
Bracket (2)
Nut (10)
Leg (3)
Bolt (9)
Figure A
4. Secure the Leg to the Bracket with Bolt (9)
and Nut (10). Tighten enough to allow limited
movement. Repeat with the remaining Legs.
5. Place a Foot (5) on the end of each Leg (3). Note
the angle of the Foot: the longer edge of the Foot
should be on the outer side of the Leg. See Figure B.
Foot (5)
outer
side of
Leg (3)
Figure B
6. Attach the Brace (4) between two of the Legs
on one side of the Sawhorse. See Figure C.
Nut (15)
Leg (3)
Carriage
Bolt (14)
Brace (4)
Figure C
a. Press the flat side of the Brace
against the outside of the Legs.
b. Secure with four Carriage Bolts (14) and Nuts (15).
c. Leave all hardware in this step
slightly loose for now.
d. Repeat on the opposite side.
7. Attach the closed end of the Leg Locking Brace (6)
between two of the Legs on one end of the
Sawhorse, using a Bolt (9), Washer (12), and Nylon
Insert Nut (11). Ensure that the hook opening of
the Leg Locking Brace faces toward the ground.
(See Figure F). Tighten the Bolt and Nut enough
to allow movement. See Figure D and Figure E.
Leg (3)
Bolt (9)
Leg Locking
Brace (6)
Figure D
Leg Locking Brace (6)
Nylon Insert
Nut (10)
Figure E
Page 4 For technical questions, please call 1-888-866-5797. Item 61700
8. Install a Bolt on the opposite Leg.
a. Insert a Bolt through the mounting
holes from the inside of the Leg.
b. Add a Split Lock Washer (13) and Nut to the
outer side of the Leg, leaving the Bolt exposed.
c. Tighten securely.
d. Hook the open end of the Leg Locking
Brace over the exposed Bolt.
e. Twist the Locking Knob (7) on the exposed
threads of the Bolt to clamp the Brace in place.
f. Hand tighten. See Figure F.
Leg Locking
Brace (6)
hook end of
Leg Locking
Brace (6)
Locking Knob (7)
Bolt (9)
Figure F
9. Install another Locking Brace and Bolt
to the opposite pair of legs.
10. Set the Sawhorse up on flat level ground.
Tighten any loose hardware. (This helps to
ensure that the sawhorse will sit level.)
11. Repeat the entire assembly procedure
with the other Sawhorse.
Page 5For technical questions, please call 1-888-866-5797.Item 61700
Operation
Read the ENTIRE IMPORTANT SAFETY INFORMATION section
at the beginning of this manual including all text under subheadings therein
before set up or use of this product.
Inspect tool before use, looking for damaged, loose, and missing parts.
If any problems are found, do not use tool until repaired.
Before use, double check that the Leg Locking Braces are securely attached to the bolts.
Set Up
1. Lay the Sawhorse on the ground, Wooden Board
face down. Pull the Legs out on each side.
2. Loosen both Locking Knobs.
3. Swing the Leg Locking Brace so that it catches
on the exposed Bolt. Repeat on other side.
4. Tighten both Locking Knobs.
5. Carefully turn over the Sawhorse.
6. Repeat on second Sawhorse.
7. WARNING! Conrm that the Leg Locking
Braces are securely attached to the Bolts
and all hardware is tight before every use.
Collapse
1. Loosen the Locking Knobs.
2. Lift up the hooked end of the Leg Locking Brace
and allow the Leg Locking Brace to dangle.
3. Repeat on the opposite side.
4. Close the Sawhorse Legs and
retighten the Locking Knobs.
Maintenance
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:
Do not use damaged equipment. If damage is found, have the problem corrected before further use.
Cleaning, Maintenance, and Lubrication
1. BEFORE EACH USE, inspect the general
condition of the tool. Check for:
• loose hardware,
• misalignment or binding of moving parts,
• cracked or broken parts, and
• any other condition that may
affect its safe operation.
2. AFTER USE, wipe external surfaces
of the tool with clean cloth.
Page 6 For technical questions, please call 1-888-866-5797. Item 61700
Parts List and Diagram
Parts List (Parts for each sawhorse. 2 sawhorses included.)
Part Description Qty
1 Wooden Board 1
2 Leg Mounting Bracket 2
3 Leg 4
4 Brace 2
5 Foot 4
6 Leg Locking Brace 2
7 Locking Knob 2
8 Wood Screw 8
Part Description Qty
9 Bolt - M6 x 3/4" 12
10 Nut - M6 10
11 Nylon Insert Nut - M6 2
12 Washer 4
13 Split Lock Washer 2
14 Carriage Bolt - M5 x 5/16" 16
15 Nut - M5 16
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS DOCUMENT AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Record Serial Number Here:
Note: If product has no serial number, record
month and year of purchase instead.
Note: Some parts are listed and shown for
illustration purposes only, and are not available
individually as replacement parts.
Page 7For technical questions, please call 1-888-866-5797.Item 61700
Assembly Diagram
1
9
9
612
715
14
9
13
9
3
10
10
8
2
45
11
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (888) 866-5797
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
