Wine Cooling System
CT1500ZD, CT2500ZD
CT3500ZD, CT4500ZD
CT6500ZD, CT8500ZD
Installation, Use & Care Manual
w
ww
ww
w.
.a
ap
pe
ex
xw
wi
in
ne
ec
ce
el
ll
la
ar
rs
s.
.c
co
om
m
Read and save these instructions
- 1 -

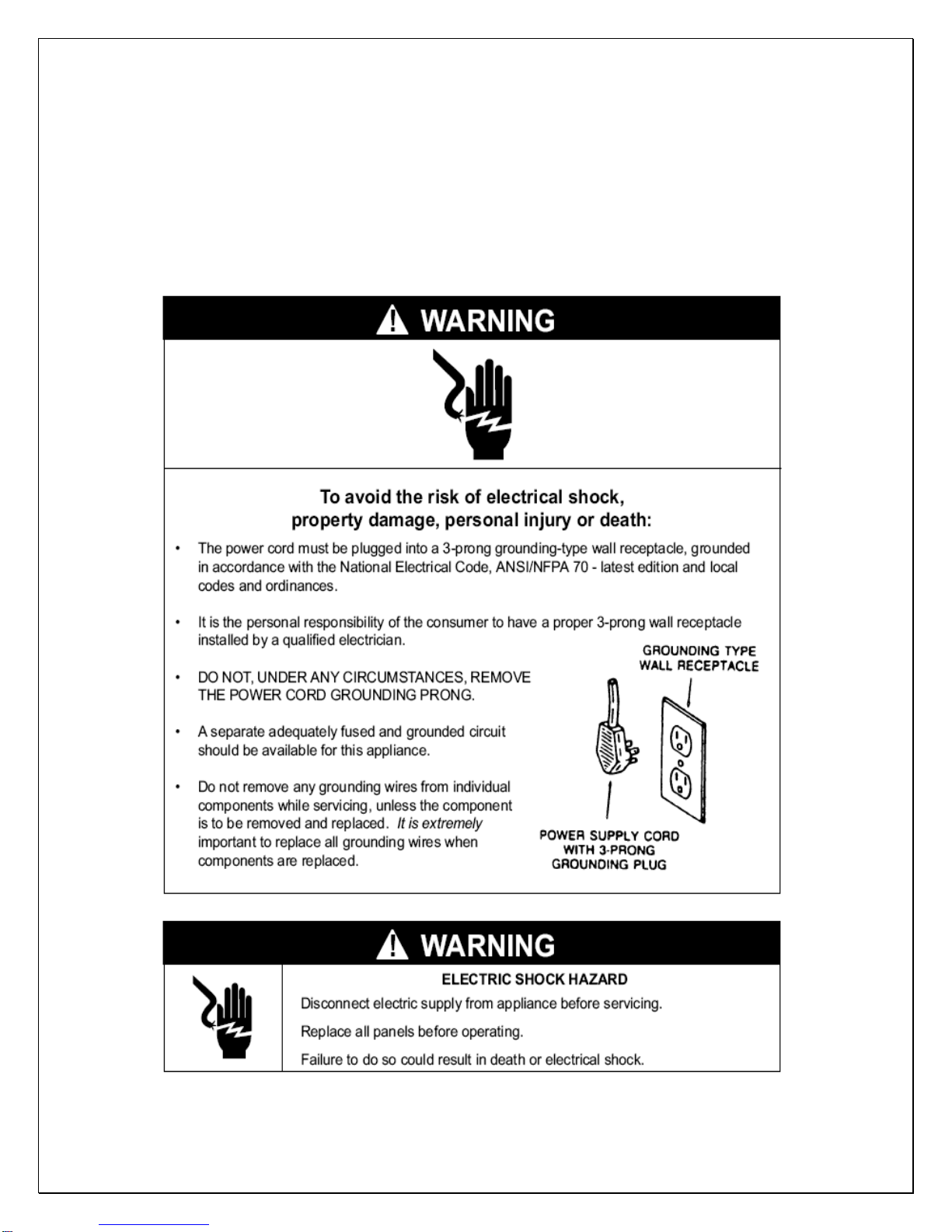

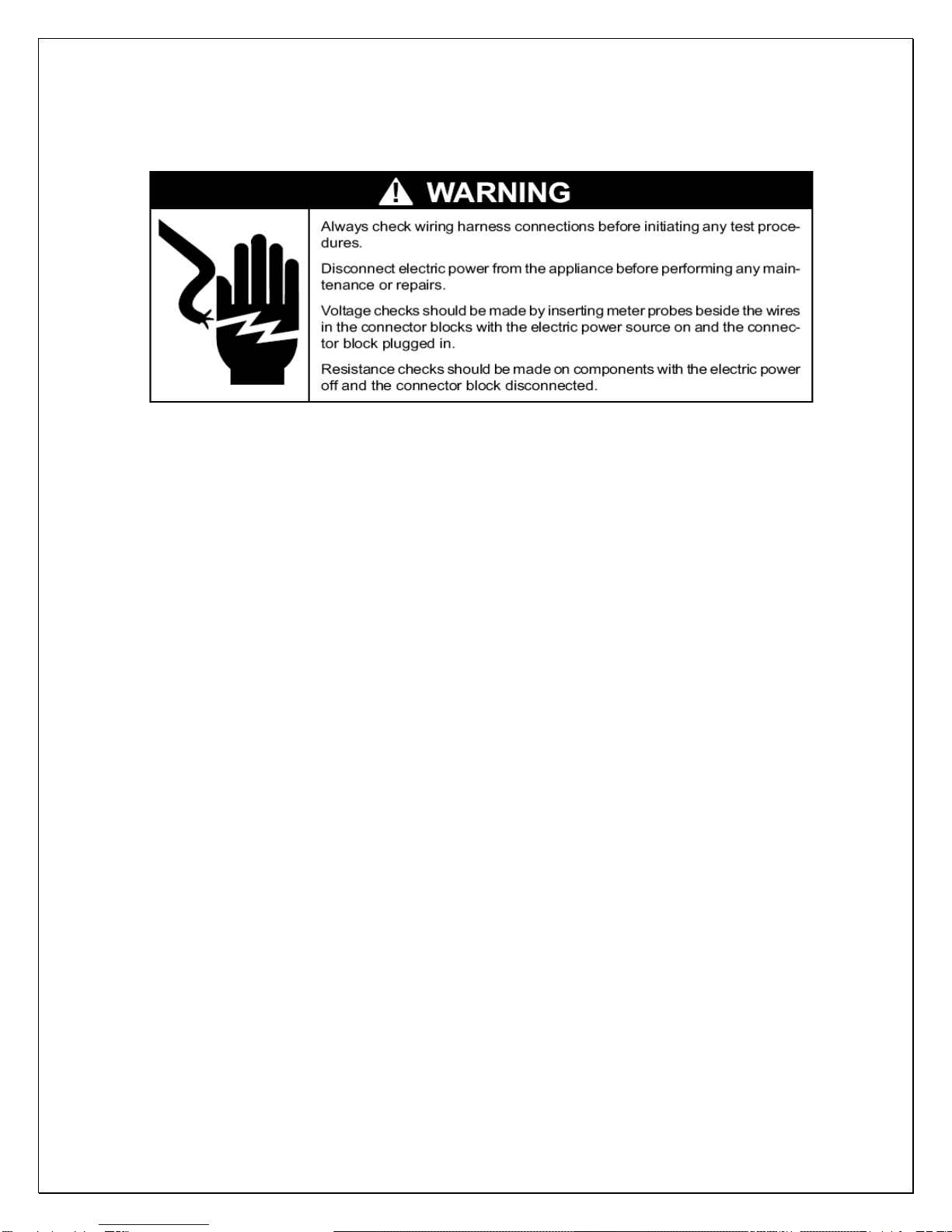

Important Safety Information
NOTES:
•Do not plug in until 24 hours after delivery.
•Do not use a ground fault interrupter (GFI).
•A dedicated 20 AMP circuit for CT1500-2500ZD and 30 AMP for
CT3500~8500ZD are required.
- 2 -
Table of Contents
Features & Specifications.…………………….……………..3
Installation Instructions……………..………………………..6
Temperature & Humidity…………………………..………..16
Care Guide…………………………………………………….20
Troubleshooting………….…………………………………..21
Electrical Diagrams………………..…………………….…24
Customer Support…….…………..…………………….…25
Warranty……………………………………………………….26
- 3 -
Features and Specifications
•ZD series cooling units are designed and used to provide a stable
temperature between 50~65 °F for a properly insulated space.
•The refrigerated space will maintain humidity ranges within 50~70% RH.
•These temperature and humidity ranges are optimized for long term
storage of wine.
•Temperature is controlled and humidity is adjusted using patented
technology.
•Horizontal cold-air supply is optimized for use in the wide cabinets or wine
rooms.
•The unit is self-contained ready for easy installation and use.

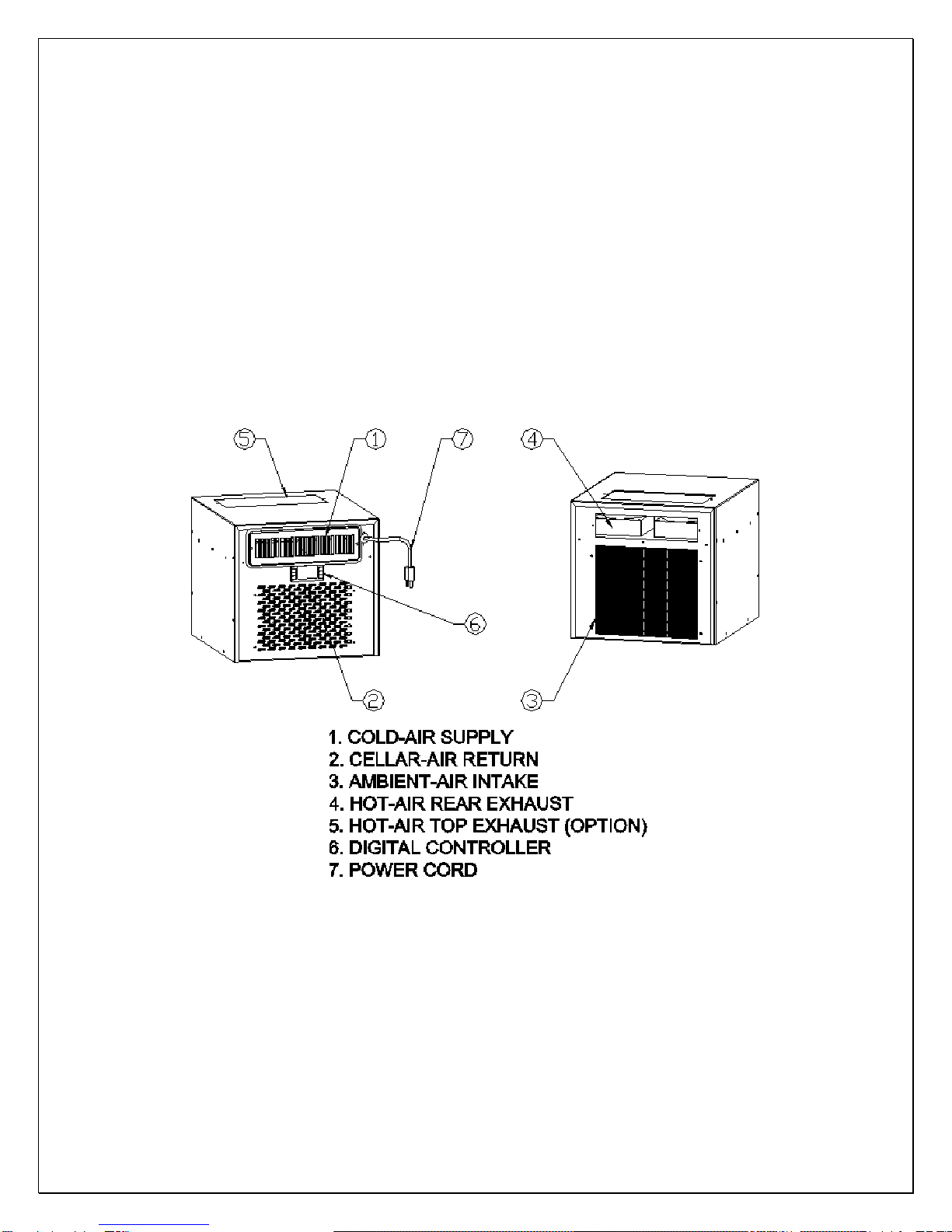

Fig. 1.1 CT1500~2500ZD FEATURE DESCRIPTIONS
- 4 -

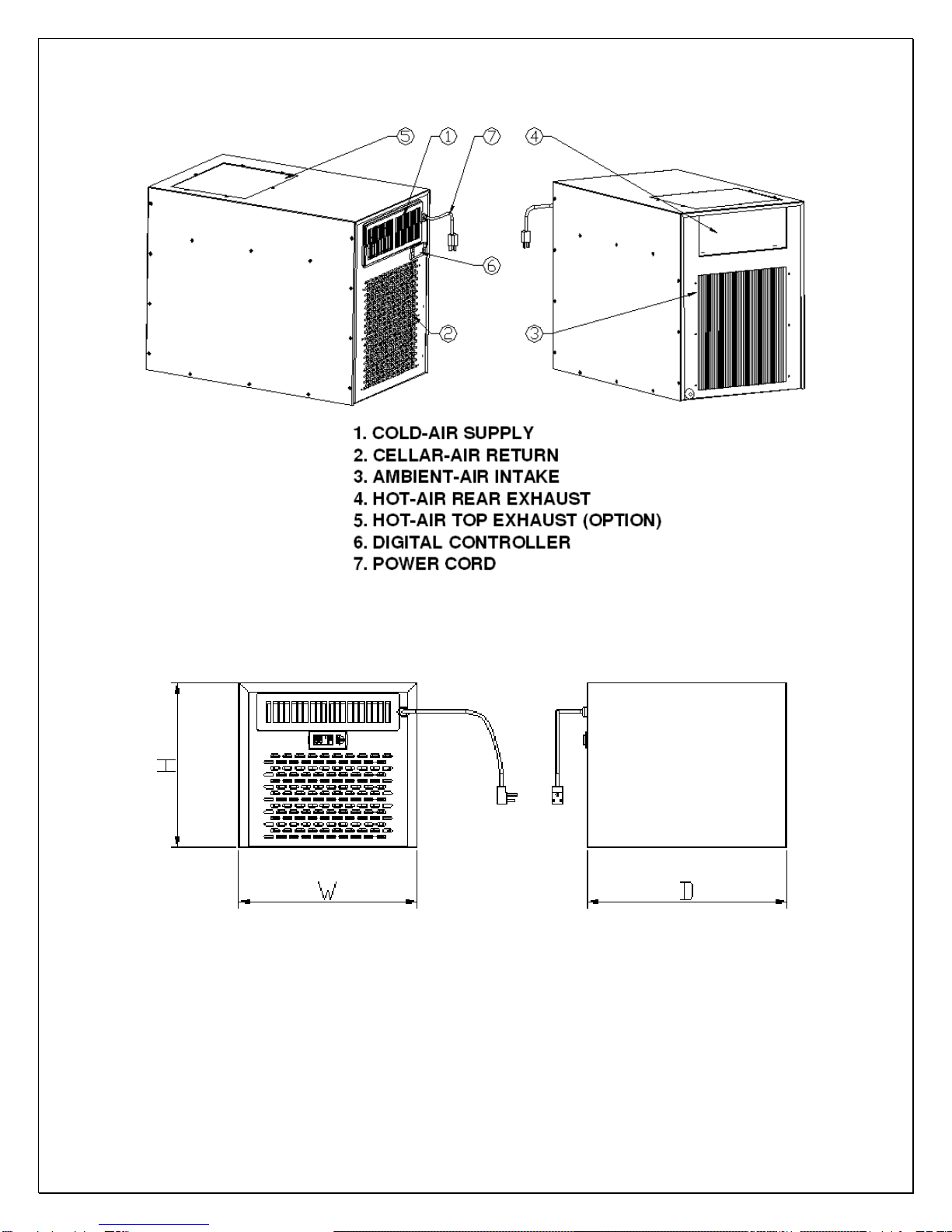

Fig. 1.2 CT3500~8500ZD FEATURE DESCRIPTIONS
Fig. 1.3 CT1500~2500ZD DIMENSIONS
- 5 -

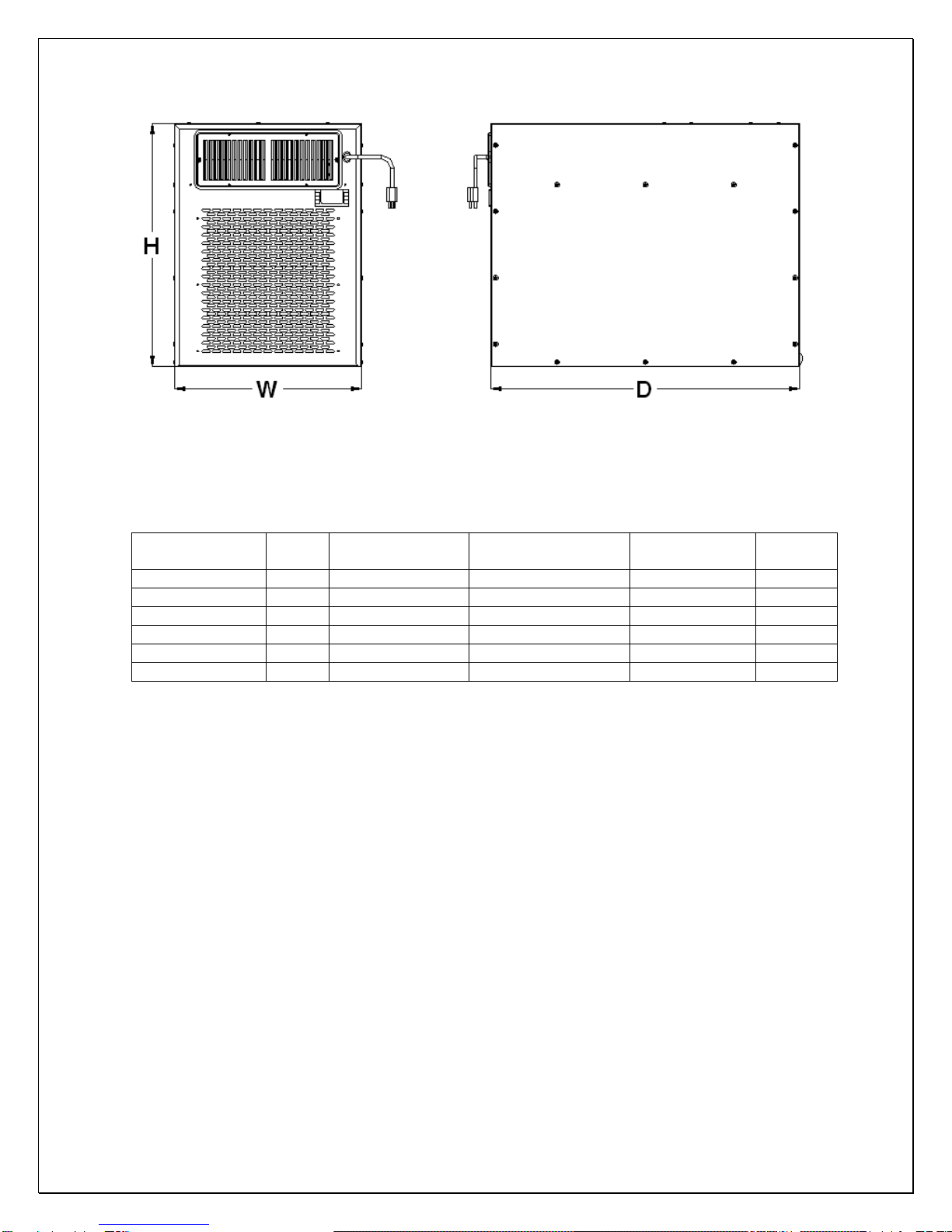

Fig. 1.4 CT3500~8500ZD DIMENSIONS
The specifications and dimensions are listed as follows:
Model CFM
Cellar Size
(cu ft) Dimensions
W”XD”XH” Electrical Weight
(lb)
CT1500ZD 120 90 14.25X16X13.25 115V/60HZ/4A 50
CT2500ZD 180 200 14.25X16X13.25 115V/60HZ/5A 55
CT3500ZD 250 650 14.25X21.25X19.75 115V/60Hz/6A 75
CT4500ZD 250 1000 14.25X21.25X19.75 115V/60Hz/9A 75
CT6500ZD 500 1500 17X28X22 115V/60Hz/14A 110
CT8500ZD 500 2000 17X28X22 115V/60Hz/16A 110
NOTES:
•Also see the voltage, frequency and current specified on the label at the
cooling unit.
•The rated capacity is determined under the cellar and ambient
temperatures of 55°F and 75°F with R13 interior and R19 exterior
insulations. Any lower cellar temperature, higher ambient temperature
and less insulation will cause reducing capacity and may not maintain
55°F.
•The ambient temperatures for CT1500ZD shall not be higher than 78°F
or lower than 50°F in order to operate properly.
•The ambient temperatures for CT2500ZD shall not be higher than 95°F
or lower than 50°F in order to operate properly.
•The ambient temperatures for CT3500~8500ZD shall not be higher than
95°F or lower than 50°F in order to operate properly.
- 6 -
Installation Instructions
NOTES:
•Do not install any ducts onto the supply, return, intake and exhaust.
•Mounting brackets, screws, gaskets and other seal materials are not included.
•Because of potential safety hazards under a certain condition we strongly
recommend against the use of an extension cord. However, if you still select
to use an extension cord, it is absolutely necessary that it is a UL LISTED 3-
wire grounding type appliance extension cord having a 3-blade grounding
plug and a 3-slot receptacle that will plug into the appliance. The marked
rating of the extension cord shall be 115 V, 15 A or equivalent for
CT1500~2500ZD and 115 V, 20 A or equivalent for CT3500~8500ZD and not
greater than 15ft in length.
1. General Instructions
•The cooling unit produces cooling supplied into the cellar, meanwhile it also
generates heat that must be exhausted outside the cellar. So the cold- air
supply with cellar-air return side and the hot-air exhaust with ambient-air
intake side must be separated and sealed. Through-wall installations can
separate these two sides.
•Furthermore, the condenser of cooling unit must intake adequate fresh
ambient-air to work properly. The ambient-air intake and hot-air exhaust must
not be short-circulated. Both of them must remain unobstructed 36” clearance
all around. The area into which the hot air is exhausted must be well
ventilated. If it is not, heat generated by the unit will build up and the unit will
not operate properly.
•Additionally, cold-air supply from the front grille must remain unobstructed 36”
clearance.
•The ambient temperatures shall not be above and below what are specified.
- 7 -
2. CT1500~2500ZD cabinet installation
•Cut a rectangular inside opening with the 1/4” clearance inwards to the width
and height of the cooling unit. By not going through, leave 1/2” lip inside at the
wall to place the gaskets (see Fig 2.1).
•If top exhaust installation, cut another rectangular opening at the top of the
cabinet to the length and width of the top exhaust.
•Install 2 pieces of 1/4” ID wood thread inserts at the ceiling (see Fig.2.1 & 2.2).
•Place the gaskets (1/2” foam tape) on the mounting lip sides (see Fig 2.3).
•If top exhaust installation, place another gaskets along the top exhaust at the
top of the cooling unit (see Fig.2.4).
•Move the cooling unit towards the mounting sides and push to press the
gaskets (see Fig 2.5).
•Use 2 brackets and ¼” screws with 7/16” wrench to secure the cooling unit
(see Fig 2.6).
•Install the cabinet grille on the cabinet exterior wall (see Fig. 2.7).
•Plug the cooling unit in the cabinet receptacle.
•Plug the wine cabinet.

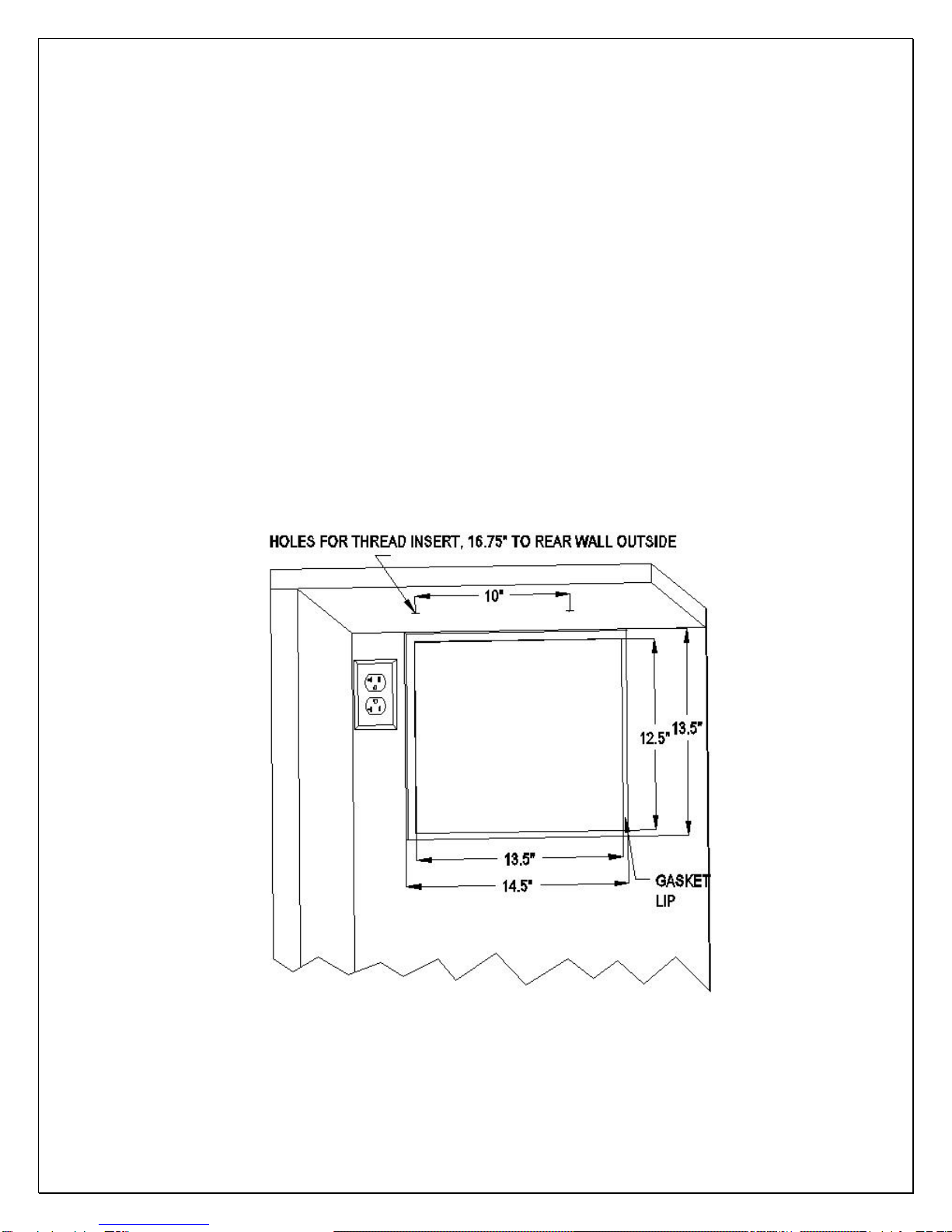

Fig. 2.1 CABINET CUTOUT & GASKET LIP
- 8 -

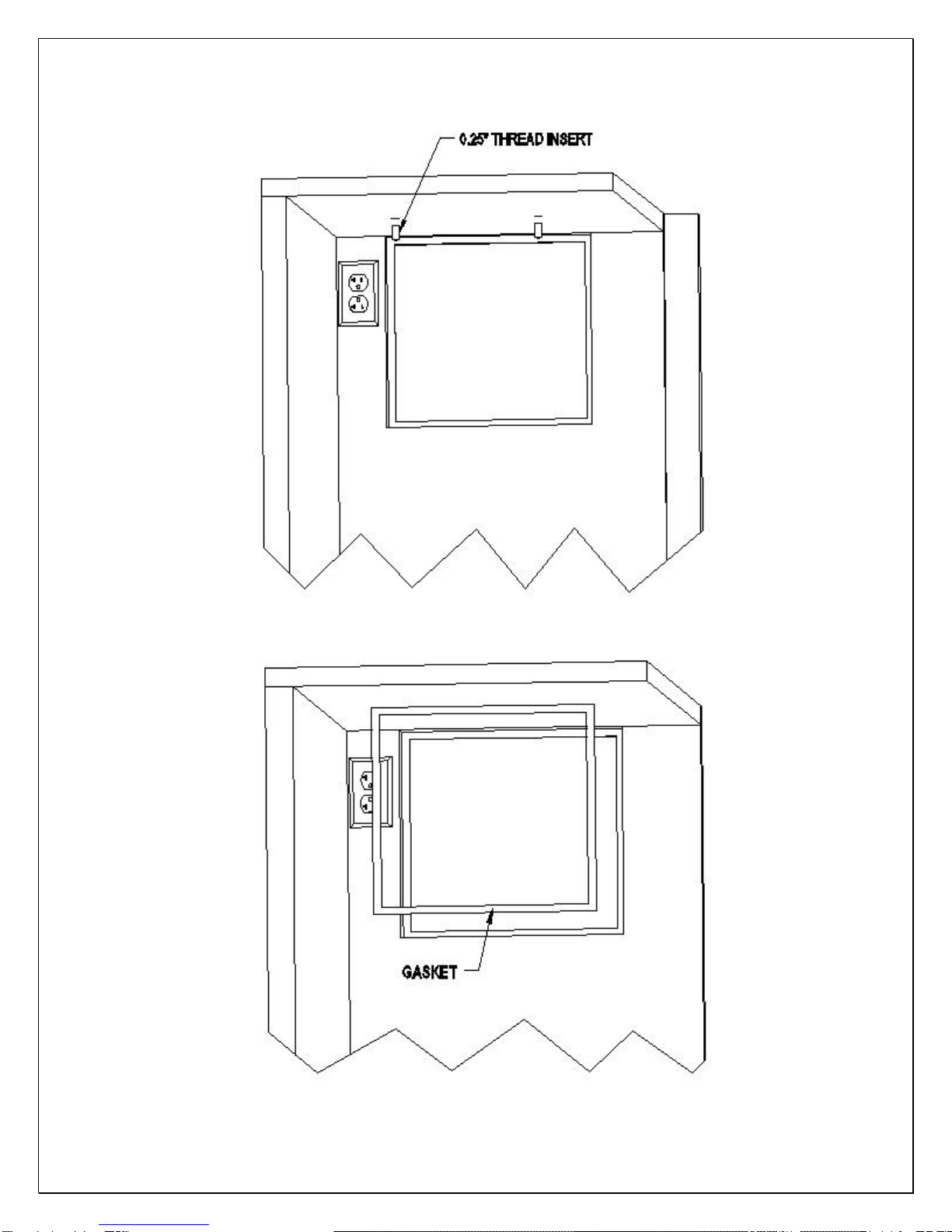

Fig. 2.2 THREAD INSERT
Fig. 2.3 REAR GASKET
- 9 -
Fig. 2.4 TOP EXHAUST GASKET

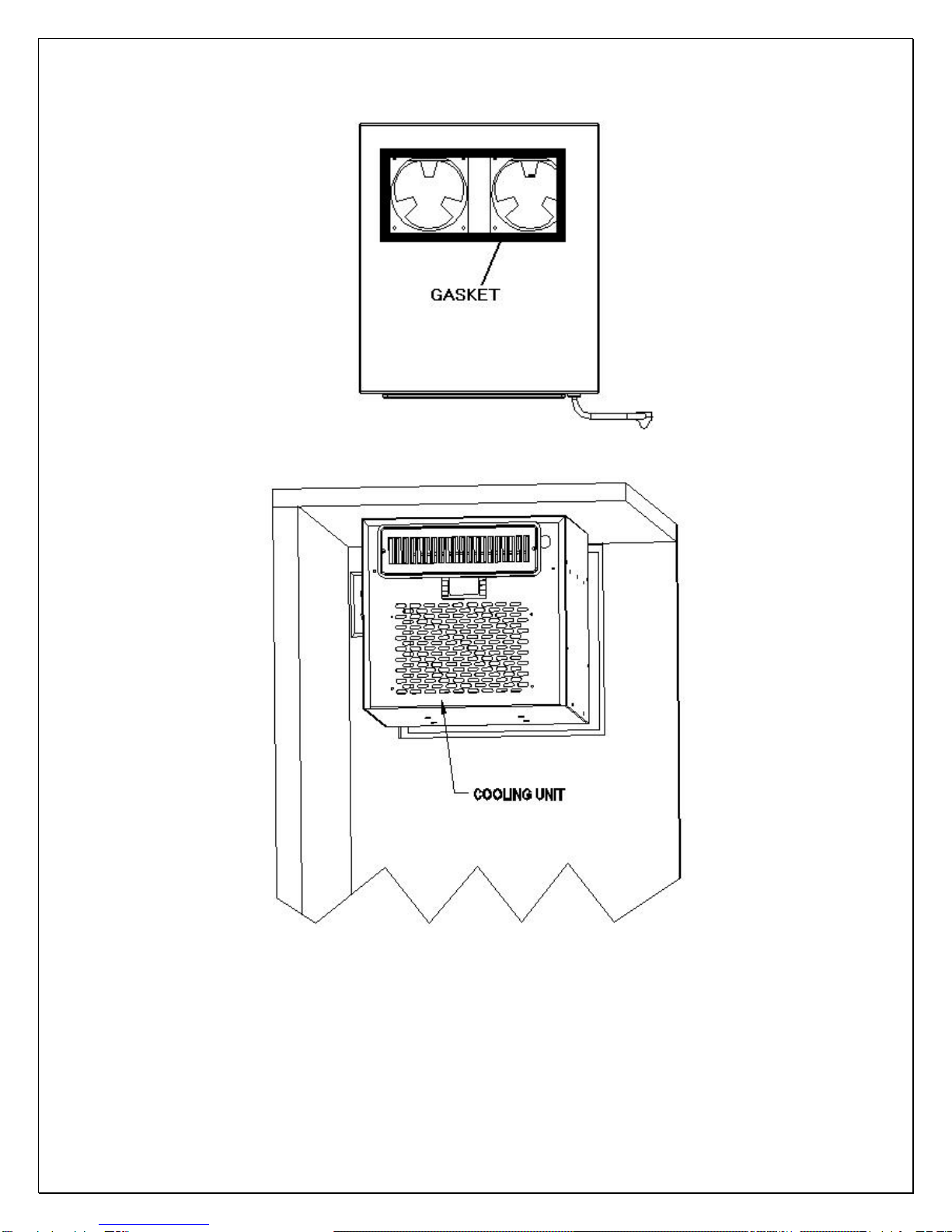

Fig. 2.5 COOLING UNIT MOUNTING
