Celestron PowerSeeker 114EQ User manual

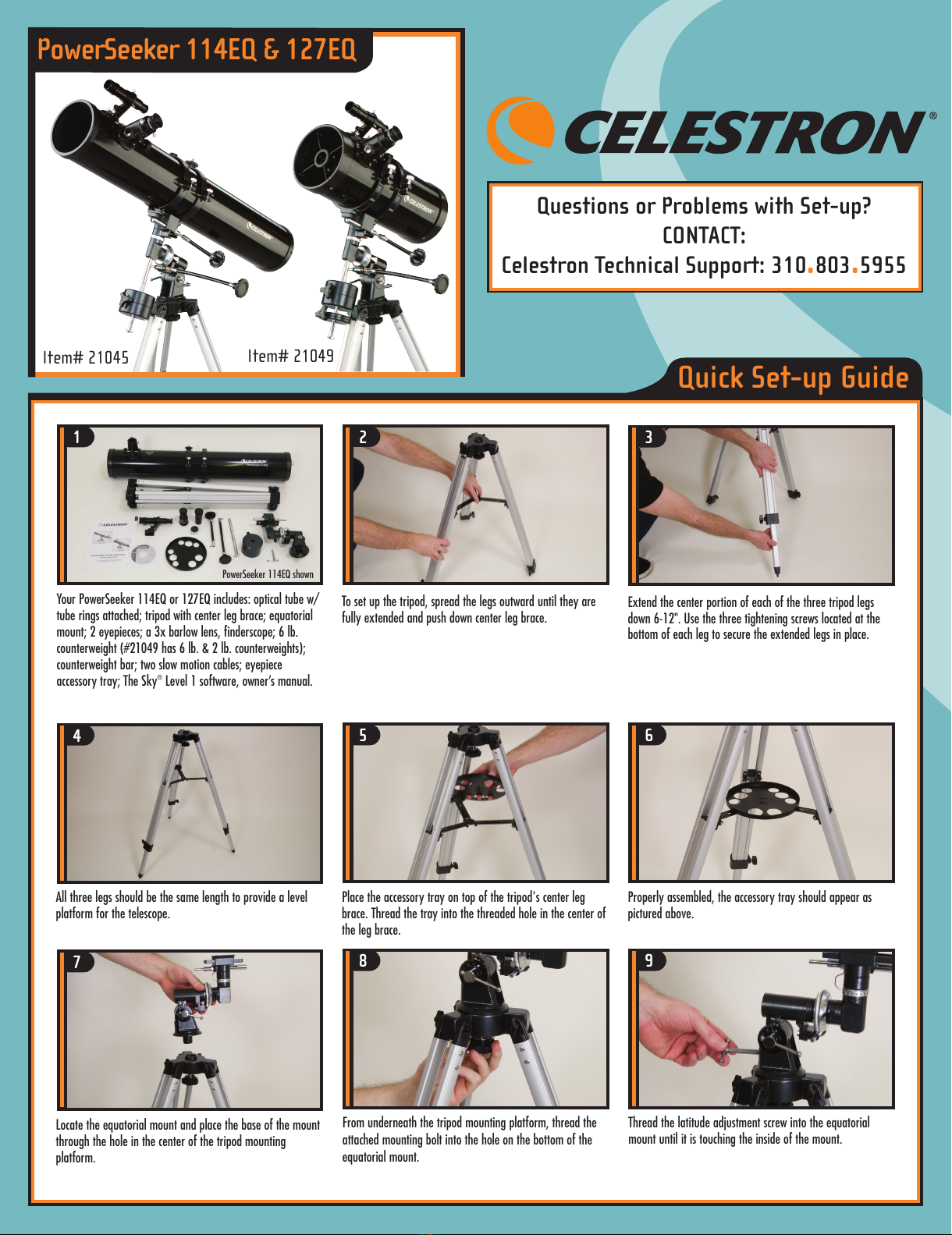

Quick Set-up Guide

PowerSeeker 114EQ & 127EQ

Your PowerSeeker 114EQ or 127EQ includes: optical tube w/

tube rings attached; tripod with center leg brace; equatorial

mount; 2 eyepieces; a 3x barlow lens, finderscope; 6 lb.

counterweight (#21049 has 6 lb. & 2 lb. counterweights);

counterweight bar; two slow motion cables; eyepiece

accessory tray; The Sky®Level 1 software, owner’s manual.

Item# 21045

Questions or Problems with Set-up?

CONTACT:

Celestron Technical Support: 310.803.5955

Item# 21049

All three legs should be the same length to provide a level

platform for the telescope.

Locate the equatorial mount and place the base of the mount

through the hole in the center of the tripod mounting

platform.

Properly assembled, the accessory tray should appear as

pictured above.

From underneath the tripod mounting platform, thread the

attached mounting bolt into the hole on the bottom of the

equatorial mount.

Thread the latitude adjustment screw into the equatorial

mount until it is touching the inside of the mount.

Place the accessory tray on top of the tripod's center leg

brace. Thread the tray into the threaded hole in the center of

the leg brace.

Extend the center portion of each of the three tripod legs

down 6-12". Use the three tightening screws located at the

bottom of each leg to secure the extended legs in place.

To set up the tripod, spread the legs outward until they are

fully extended and push down center leg brace.

PowerSeeker 114EQ shown

All manuals and user guides at all-guides.com

Quick Set-up Guide [cont]

Locate the counterweight bar and counterweight. Slide the

counterweight half way down the counterweight bar and

tighten the locking screw to secure in place.

Thread the threaded end of the counterweight bar into the

Dec axis of the equatorial mount.

The longer cable should attach to the Right Ascension axis

and the shorter cable attaches to the Declination axis --

tighten screw to secure in place.

Before mounting the tube, remove the two knobs on the tube

rings.

Place the tube on the mount by lining up the screws with the

mounting holes on the mount.

Reattach both knobs and tighten to secure in place. The

focuser end of the telescope should be over the

counterweight assembly.

Locate the finderscope and remove plastic caps on front and

back of lens. Remove the knurled nuts on the threaded posts

at the focuser end of the telescope tube.

Slide the chrome end of the slow motion control cables onto

equatorial mount gear shaft and tighten screw to secure in

place.

For detailed usage

information please

consult your owner’s

manual.

Orient the finderscope so that the glass window is facing

towards the front of the tube. Place finderscope over the

posts on the tube and tighten it down with the knurled nuts.

Loosen the screw on the focuser so that it does not obstruct

the inner diameter of the focuser. Remove the plastic cap

covering the end of the focuser.

Insert the chrome barrel of the 20mm eyepiece into the

focuser and tighten the screws.

Remove the lens cap from the front of the telescope. To

observe, look through the eyepiece as shown above.

For additional magnification, you can use the included 3x

barlow. Place the barlow in the focuser in place of the

eyepiece - remove the cap from the barlow.

Place the eyepiece into the barlow and tighten the set screw

to secure in place.
