CDA Rv961 Reference manual

Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY

T : 01949 862 012 F : 01949 862 003 E : customer[email protected] W : www.cda.eu

rv961 Range Cooker

Manual for Installation, Use and Maintenance

Important

This appliance must only be used for the purpose for which it is

intended, i.e. domestic cooking. Any other use could be dangerous

and may lead to premature failure of the appliance.

The CDA Group Ltd cannot be held responsible for injuries or losses

caused by incorrect use or installation of this product. Please note

that CDA reserve the right to invalidate the guarantee supplied with

this product following incorrect installation or misuse of the appliance.

This appliance is not designed to be used by people (including

children) with reduced physical, sensorial or mental capacity, or

who lack experience or knowledge about it, unless they have had

supervision or instructions on how to use the appliance by someone

who is responsible for their safety.

Under no circumstances should any external covers be removed for

servicing or maintenance except by suitably qualiﬁed personnel.

Appliance information:

Please enter the details on the appliance rating plate below for

reference, to assist CDA Customer Care in the event of a fault with

your appliance and to register your appliance for guarantee purposes.

Appliance Model

Serial Number

CE Declarations of Conformity:

This appliance has been designed, constructed and marketed in

compliance with safety requirements of EEC Directive 2006/95/

EEC (Low voltage) and requirements of EMC Directive 2004/108/EEC.

This appliance has been manufactured to the strictest standards and

complies with all applicable legislation, including Electrical safety (LVD)

and Electromagnetic interference compatibility (EMC). Parts intended

to come into contact with food conform to EEC/89/109.4

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE

PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.

At the end of its working life, the product must not be disposed of as

urban waste. It must be taken to a special local authority dierentiated

waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible

negative consequences for the environment and health deriving from

inappropriate disposal and enables the constituent materials to be

recovered to obtain signiﬁcant savings in energy and resources. As a

reminder of the need to dispose of household appliances separately,

the product is marked with a crossed-out wheeled dustbin.

User Information

• Read the instructions carefully before using the cooker.

• Keep the instructions in a safe place for future reference.

• Follow the instructions for ﬁrst use (page 6).

• Always use oven gloves when removing shelves and trays from the

cooker.

• Always grill with the door closed.

• Do not grill food containing fat without using the grill pan grid.

• Do not use the grill pan for roasting.

• Do not place cooking utensils or plates directly on the oven base.

• Do not cover the grill pan grid or the oven walls with aluminium foil.

• Do not store inﬂammable substances or items that cannot withstand

heat (such as wood, paper, cloths, spray cans, etc.) in the storage

drawer.

• Do not attempt to repair the internal workings of your oven.

• Cookers become hot during and immediately after use. Do not

touch the oven internal parts or the hob until the appliance has

been allowed to cool.

• After use, ensure that all the control knobs are switched o.

• Keep children away from the cooker when in use and immediately

after use.

• This cooker has been designed for use only as a cooking appliance.

Any other use (e.g. heating rooms) should be considered incorrect

and therefore dangerous.

• Never put cooking foil or plastic materials on the ceramic surface

when the hob is hot. These materials could melt and cause damage

to the hob.

• Never use the hob top for storage.

• Pan handles should never stand out beyond the edge of the

worktop. This will help ensure children cannot reach them.

• Do not use pans with rough bases (e.g. cast iron) as these may

scratch the hob surface.

• Do not switch on the hob zones without cookware in place.

• Do not lean over the hob when it is in use.

• Follow the cleaning instructions carefully.

• Ensure any base of the saucepan is clean and dry before placing it

on the hob to prevent damage to the surface of the hob.

• The appliance is not intended to be operated by any means of an

external timer or separate remote-control system.

• Do not use the hob if the glass surface is cracked or damaged,

to prevent risk of electric shock. Disconnect it from the power

supply.

When correctly installed, your product meets all safety

requirements laid down for this type of product. However, special

care should be taken around the rear or the underneath of the

appliance as these areas are not designed or intended to be

touched and may contain sharp or rough edges that could cause

injury.

Before First Use

Before using the ovens for the ﬁrst time we recommend that you

clean them with soapy water, rinse carefully and then heat on each

of the below programmes at maximum temperature for the speciﬁed

time. A slightly unpleasant smell may be produced, caused by grease

remaining on the oven elements from the production process.

Please note:

• This range cooker has been ﬁtted with a cooling fan to achieve

maximum eciency and to maintain low surface temperatures. The

cooling fan will switch on automatically when the ovens reach a

preset temperature and switch o automatically when the ovens

have cooled suciently, even after the ovens are switched o.

• The range cooker is equipped with a safety thermostat which will

switch o the ovens to prevent overheating. Overheating can be

caused by incorrect use of an oven or defective components. If

an oven switches o due to overheating, wait for the oven to cool

down before using it again. If the error continues, contact CDA

Customer Care.

15 minutes grill 60 minutes fan oven 60 minutes

conventional oven

Fig. 1

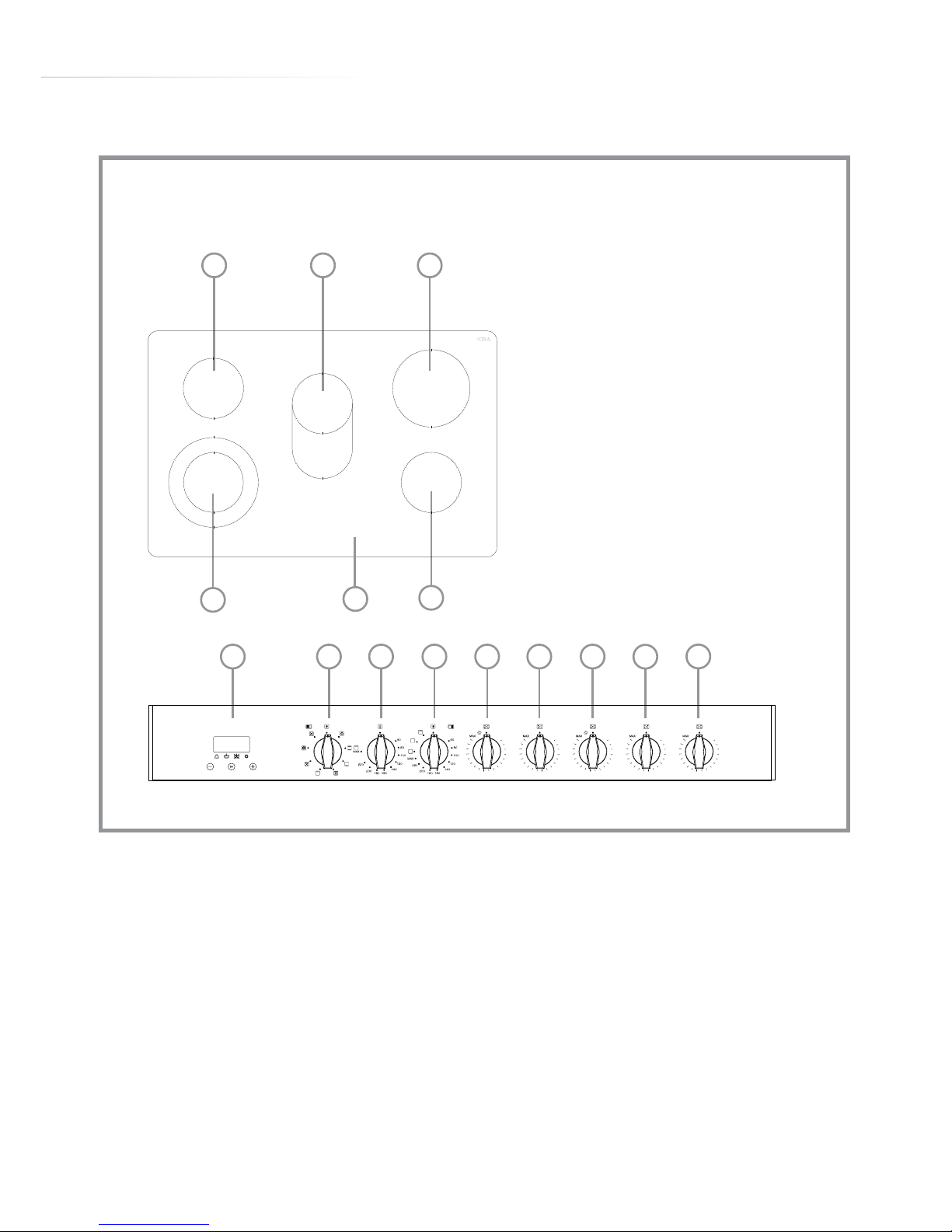

Hob:

1. Front left dual zone 1.0/2.2kW / 140/210mm

2. Rear left zone 1.2kW / 140mm

3. Centre dual zone 1.1/2.0kW 140x250mm

4. Rear right zone 1.8kW / 180mm

5. Front right zone 1.2kW / 140mm

6. Residual heat indicators

Control panel:

7. Timer control

8. Left oven function control

9. Left oven temperature control

10. Right oven function control

11. Front left dual zone control

12. Rear left zone control

13. Centre dual zone control

14. Rear right zone control

15. Front right zone control

7 8 9 10 11 12 13 14

00 00

How to Use the Hob

The ceramic surface of the hob allows fast transmission of heat

vertically from the heating elements under the glass to the pans on

the hob top.

The heat does not spread horizontally, so the hob top remains

relatively cool only a few centimetres from the zone in use.

Please note:

The heating elements are equipped with a temperature limiter that will

switch the element o to prevent damage to the hob.

The temperature limiter may also operate when incorrect pans

are used or pans are poorly positioned. This will aect cooking

performance.

The temperature limiter can be seen in the zone as the straight line

out from the centre of the element. This is not a fault with the hob.

Using the single zones

The heating element is formed of a coil of resistant material which

reaches the required cooking temperature quickly.

Before using the hob, ﬁrst check the hob and the pan are clean and

dry, then place the pan correctly onto the zone.

The power level for each zone can be regulated by turning the

control knob to the required level between 0 (o) and MAX

(maximum).

Using the dual zones

The dual zones are formed of two separate coils of resistant material.

To turn on the dual zone, turn the control knob fully clockwise to

the position.

Residual heat indicators

The hob is equipped with residual heat indicators which warn when

any of the zones are hot to the touch, both during and after cooking.

A light will show on the display to indicate a zone is hot until the zone

is at a safe temperature to touch, when the residual heat indicator will

switch o.

Please note:

You should avoid touching the zones when the hob is in use, or

when a residual heat indicator is on.

In the event of a power cut, the residual heat indicators will illuminate

after the power supply is restored. However, when there is no power

supply to the hob the residual heat indicators will not work, so extra

care must be taken.

Ecient Use of Your Hob

The hob is equipped with zones of dierent sizes, designed to

accommodate most shapes and sizes of pan. For best results, only

use pans with ﬂat bottoms and choose appropriate zones depending

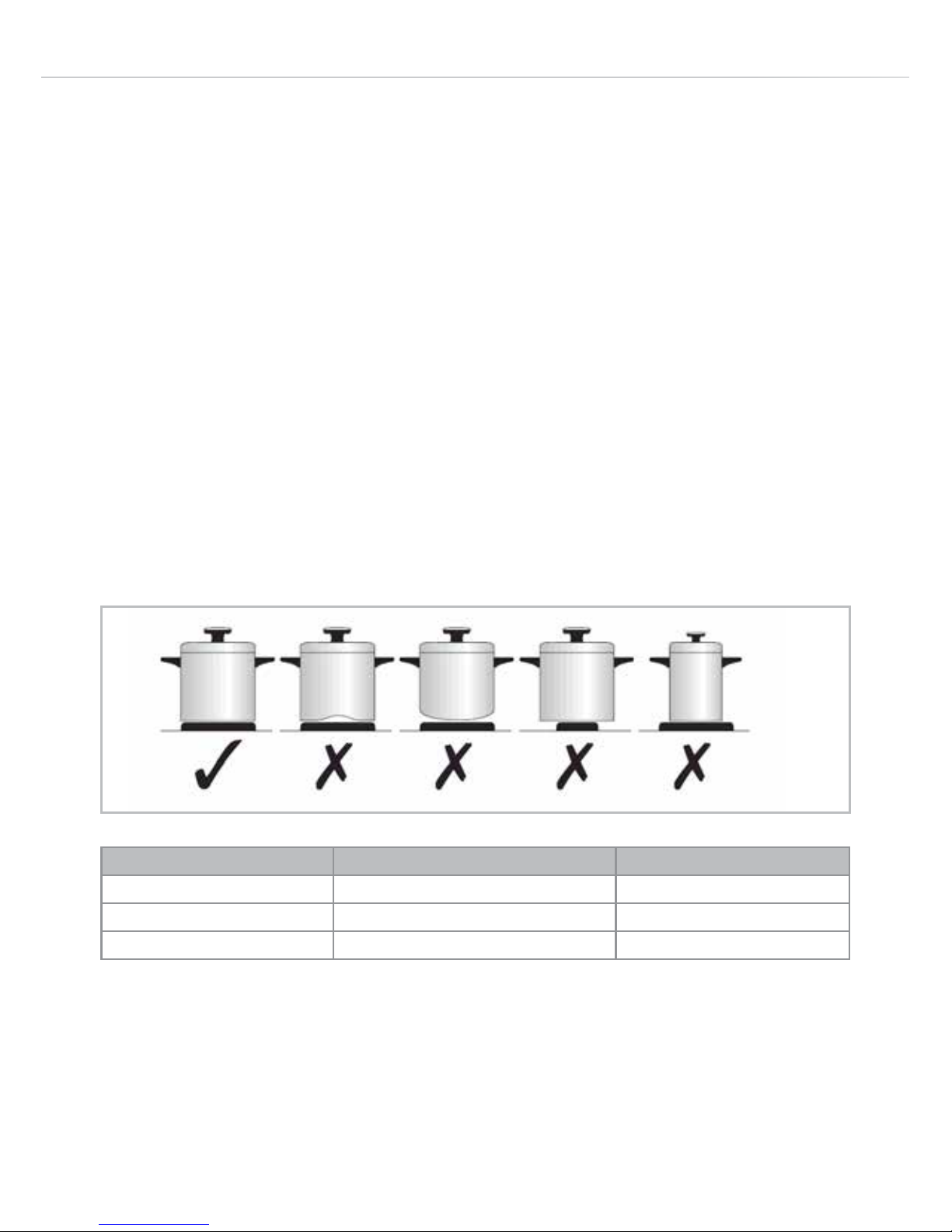

on the sizes of the pans. The most ecient use of the hob is shown

below, where the pans and zones are correctly chosen.

Use pan lids where possible to minimize the energy usage of your

appliance.

Turn o each zone a few minutes before the end of cooking time.

The residual heat in the zones will continue to cook the food for the

remaining cooking time.

It is very important that the pans used on the hob are made of a

suitable material and have the correct type of base. The base should

be ﬂat and smooth, as any rough part on the pan base could scratch

the ceramic hob top.

Zone Size Minimum Pan Size (cm) Maximum Pan Size (cm)

140 mm 14 16

180 mm 16 20

220 mm 20 24

ﬁg.2
