Casio PV-S250 User manual
127
Chapter
11 Data Communication
Data communications capabilities let you transfer data between two CASIO PV
Units, between a PV Unit and a BN-10/BN-20 Unit, or between a PV Unit and a
BN-10A/BN-20A/BN-40A Unit. You can also receive data from a CASIO SF,
CSF, or NX Series Unit, and communicate with a personal computer using PC
sync for Windows.
• See the manual that comes with PC sync for Windows for details on connecting
to a computer and setting up for communication.
Using the Cradle
The PV Unit comes with a cradle that helps to make data communications quicker
and easier. The following procedures describe how to attach the PV Unit to and
detach it from the cradle.

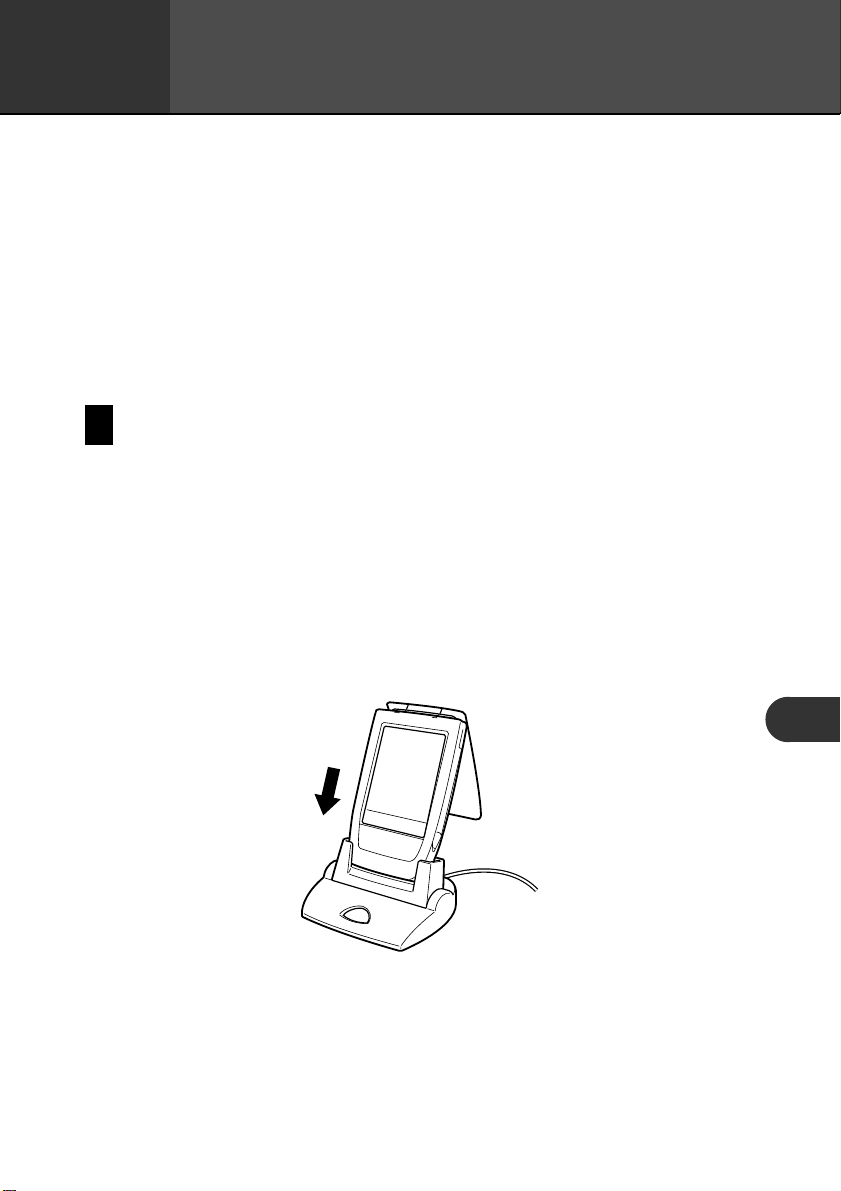

To connect the PV Unit to the cradle
1. Turn off PV Unit power.
2. Place the PV Unit onto the cradle.
• Gently but firmly press down on the PV Unit to ensure that it is inserted
into the cradle as far as it will go.
11
128

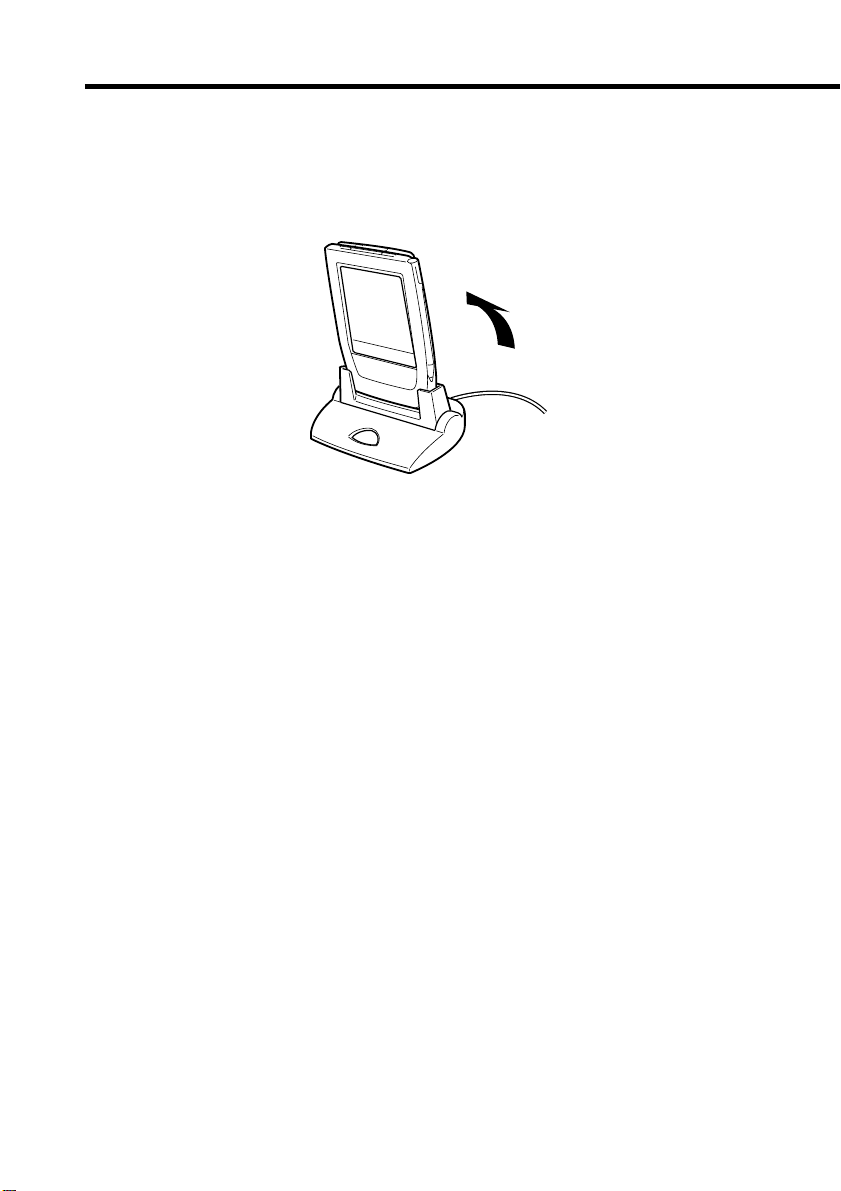

To detach the PV Unit from the cradle
1. Turn off PV Unit power.
2. Angle the PV Unit forward as shown in the illustration, and then lift it
straight up.
129
Chapter 11 Data Communication
Data Communications Between Two PV Units
This section describes how to set up and communicate between two PV Units.

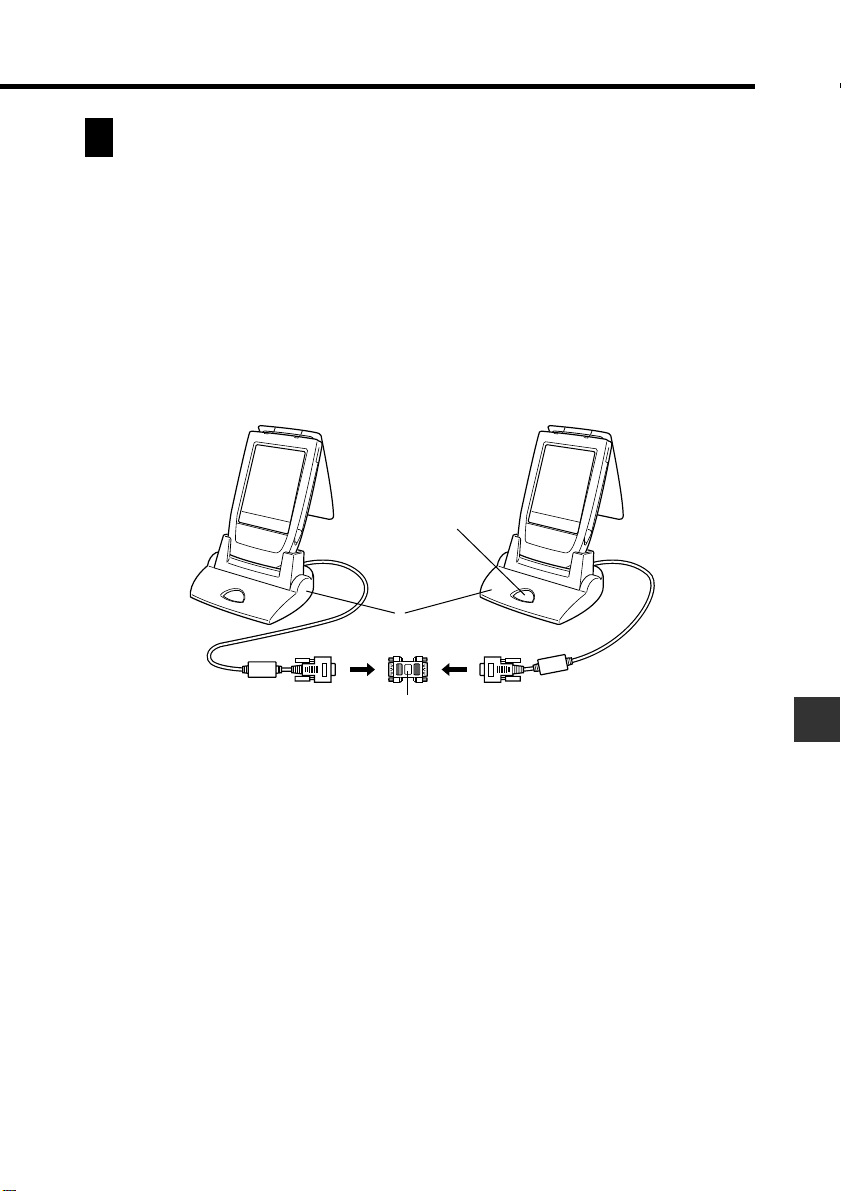

To connect two PV Units
1. Make sure that the power of both units is turned off.
2. Place the PV Units onto their cradles.
• Gently but firmly press down on the PV Units to ensure that they are
inserted into the cradles as far as they will go.
3. Use an optional SB-90 9-9 pin connector to connect the two cradles to
each other.
• All data communication settings must be made on only one of the PV
Units only. This unit is called the host unit, while the other unit is called
the terminal unit.
To send data from the host unit to the terminal unit
1. After connecting the two PV Units, turn on the host unit.
• Terminal unit power should still be off at this time.
2. Display the list view in a mode whose data can be sent with this setup.
• This configuration supports transfer of Contacts (Business, Personal,
Untitled 1-5), Memo (Untitled 1-5), Schedule, To Do, Reminder, Expense
Manager, and Quick-Memo data.
SB-90 9-9 pin connector
Cradles
Host unit Terminal unit
Start button
130
3. Tap the Menu Bar icon to display the menu bar, and then tapSystem –
Data communication.
4. Tap the button next to PocketViewer to specify the data communication
configuration.
5. Tap the button next to Send.
6. Tap Set.
7. Tap the check boxes to specify the data you want to send (checked) and
the data you do not want to send (unchecked).
8. After everything is the way you want it, tap Set.
9. Turn on the power of the terminal unit and then press the Start button
on its cradle to start the data transfer operation.
131
Chapter 11 Data Communication
To receive data from the terminal unit on the host unit
1. Perform steps 1 through 4 under “To send data from the host unit to the
terminal unit”.
2. Tap the button next to Receive.
3. Tap Set.
4. Tap the check boxes to specify the data you want to receive (checked)
and the data you do not want to receive (unchecked).
5. After everything is the way you want it, tap Set.
6. Turn on the power of the terminal unit and then press the Start button
on its cradle to start the data transfer operation.
132
Notes
• The above procedures can be used to send or receive all data in specific
modes only. You cannot send or receive individual data items.
• Data communication can be interrupted at any time by pressing Esc.
This causes the message Stopped! to appear on the displays of both
units.
• The message Communication error! appears on the displays of both
units whenever data communication is interrupted due to cable
disconnection, line noise, or other abnormal condition.
• If the secret memory area is accessed on a unit receiving data, the received
data is stored in the secret memory area, regardless of the memory area
the data is in on the sending unit.
• Transferring data from the PV-S250/PV-S450 to a PV-100 or PV-200
causes all euro symbols to be replaced by spaces.
• The size of the PV-S250/PV-S450 screen is 160 ·160 dots. Transferring
PV-S250/PV-S450 Quick-Memo data to a PV-100 or PV-200, which
both have 98(V) ·124(H)-dot screens, causes the right side and bottom
part of the Quick-Memo image to be cut off in order to fit the PV-100/
PV-200 screen.
Data Communications Between a PV Unit and
a BN Unit
This section describes how to set up and communicate between a PV Unit and a
BN Unit (BN-10/BN-20 or BN-10A/BN-20A/BN-40A).

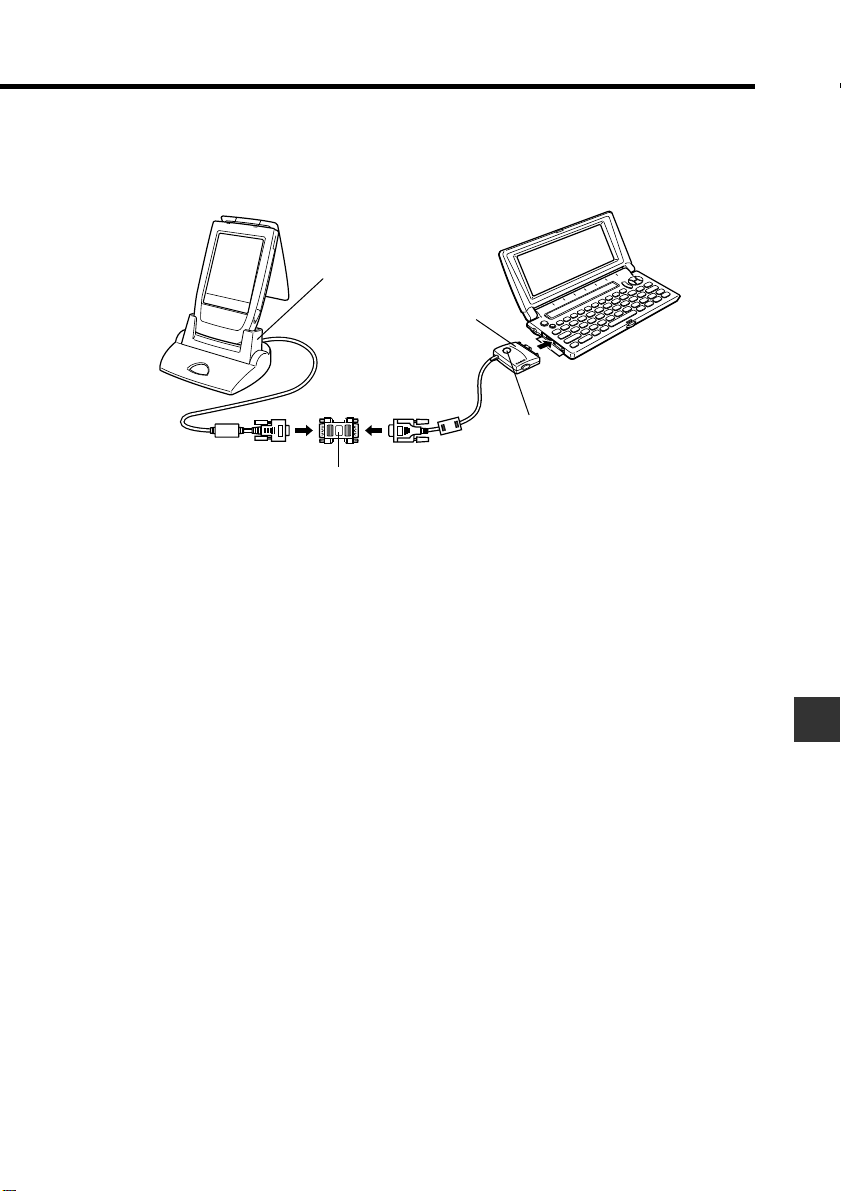

To connect a PV Unit to a BN Unit
1. Make sure that the power of both units is turned off.
2. Open the cover of the Mini Cradle port of the BN Unit, and connect its
Mini Cradle to the port.
3. Place the PV Unit onto its cradle.
• Gently but firmly press down on the PV Unit to ensure that it is inserted
into the cradle as far as it will go.
133
Chapter 11 Data Communication
4. Use an optional SB-90 9-9 pin connector to connect the PV Unit cradle
to the BN Unit Mini Cradle.
• All data communication settings must be made on the PV Unit, which is
the host unit. The BN Unit is the terminal unit.
To send data from the PV Unit to the BN Unit
1. After connecting the two units, turn on the PV Unit.
• BN Unit power should still be off at this time.
2. Display the list view in a mode whose data can be sent with this setup.
• This configuration supports transfer of Contacts (Business, Personal),
Memo, Schedule, To Do, and Reminder data.
• Calendar and Expense Manager data cannot be transferred.
• Contacts Untitled 1-5 data is transferred as Personal data.
• Memo Untitled 1-5 data is transferred as Memo data (no category).
3. Tap the Menu Bar icon to display the menu bar, and then tapSystem –
Data communication.
Cradle
Host unit (PV Unit) Terminal unit (BN Unit)
Mini Cradle
START button
SB-90 9-9 pin connector
134
4. Tap the button next to BUSINESS NAVIGATOR to specify the data
communication configuration.
5. Tap the button next to Send.
6. Tap Set.
7. Tap the check boxes to specify the data you want to send (checked) and
the data you do not want to send (unchecked).
8. After everything is the way you want it, tap Set.
9. Turn on the power of the BN Unit and then press the START button on
its cradle to start the data transfer operation.
• The following shows the relationship between data when sent from the
PV Unit to a BN Unit.
Mode
Contacts
To Do
Memo
Quick-Memo
Expense
Manager
PV Unit
Untitled 1-5
Category names
Item (field) names
Category names
Due date
Untitled 1-5
Category names
BN Unit
PERSONAL
• Check Contacts (1-5) as the data
type to send this data.
Not transferred
Not transferred
Not transferred
Due date
MEMO
•Check Memo (1-5) as the data
type to send this data.
Not transferred
No corresponding BN Mode
Not transferred. Use the data communication software
that comes with the PV Unit to transfer this data.
135
Chapter 11 Data Communication
To receive data from the BN Unit on the PV Unit
1. Perform steps 1 through 4 under “To send data from the PV Unit to the
BN Unit”.
2. Tap the button next to Receive.
3. Tap Set.
4. Tap the check boxes next to specify the data you want to receive (checked)
and the data you do not want to receive (unchecked).
5. After everything is the way you want it, tap Set.
6. Turn on the power of the BN Unit and then press the START button on
its cradle to start the data transfer operation.
Notes
• The above procedures can be used to send or receive all data in specific
modes only. You cannot send or receive individual data items.
• Data communication can be interrupted at any time by tapping Esc.
This causes the message Stopped! to appear on the displays of both
units.
• The message Communication error! appears on the displays of both
units whenever data communication is interrupted due to cable
disconnection, line noise, or other abnormal condition.
• If the secret memory area is accessed on a unit receiving data, the received
data is stored in the secret memory area, regardless of the memory area
the data is in on the sending unit.
136
• Transferring data from the PV-S250/PV-S450 to the BN Unit causes all
euro symbols to be replaced by spaces.
• The following shows the relationship between data when received by
the PV Unit from a BN Unit.
• The Company entry of the PV Unit is equivalent to the Employer entry
of a BN Unit.
Receiving Data From an SF/CSF/NX Series Unit
This section describes how to set up and receive data from an SF/CSF/NX Series
Unit. Note that you cannot send data from a PV Unit to an SF/CSF/NX Series
Unit. In this configuration, you must set a number of communication parameters
for correct operation.
To connect a PV Unit and an SF/CSF/NX Series Unit
1. Make sure that the power of both units is turned off.
2. Place the PV Unit onto its cradle.
• Gently but firmly press down on the PV Unit to ensure that it is inserted
into the cradle as far as it will go.
3. Open the cover of the data communications jack of the SF/CSF/NX
Series Unit, and connect an optional SB-90 3-9 pin cable.
Mode
Contacts
Scheduler
Memo
PV Unit
Personal
Business
Schedule
To Do
Reminder
Memo (Untitled 1)
BN Unit
PERSONAL
BUSINESS
SCHEDULE
TO DO
REMINDER
MEMO
