DM-100

Operation

Manual

Tablebeast

Modification

23

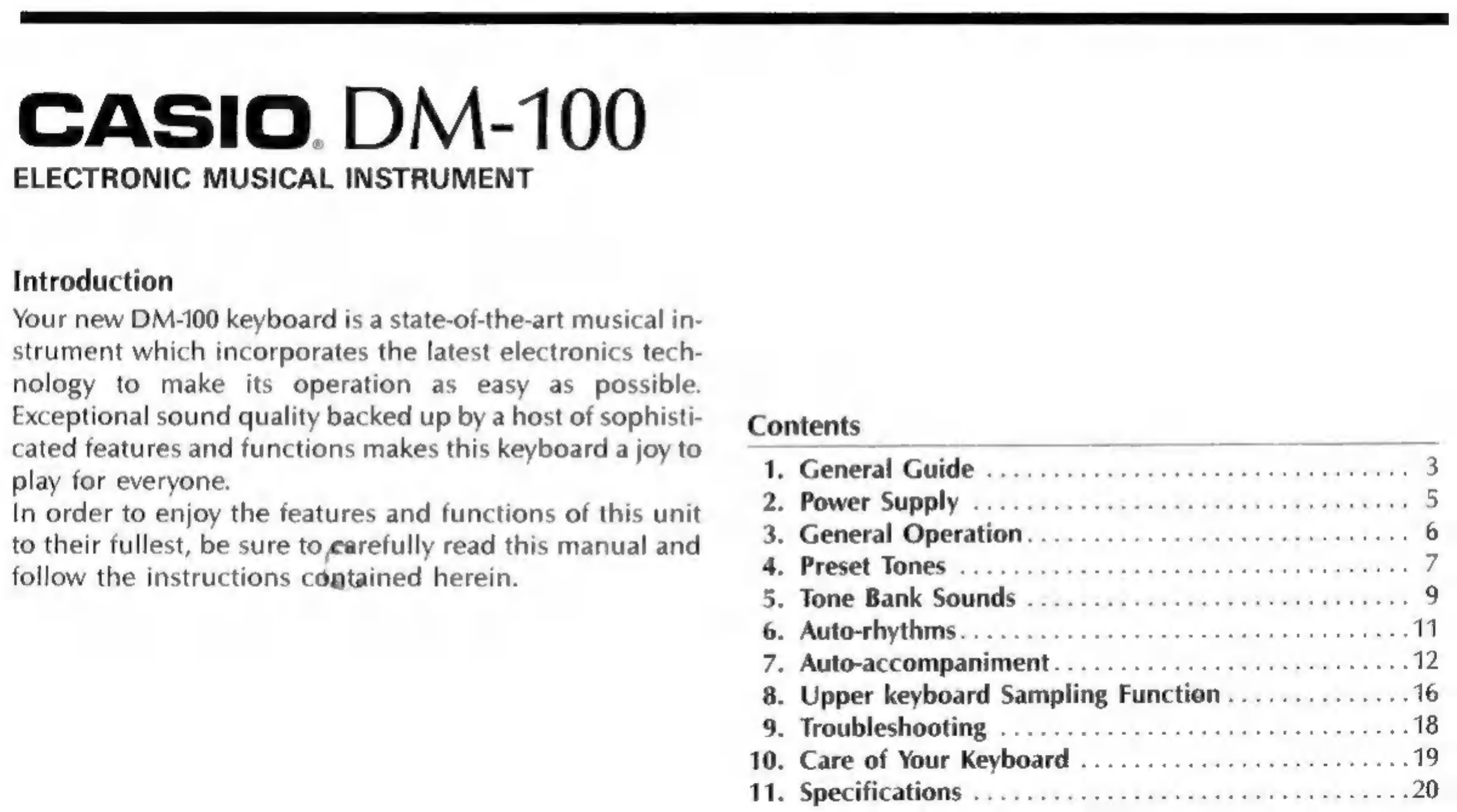

CASIO.

DM-100

ELECTRONIC

MUSICAL

INSTRUMENT

Introduction

Your

new

DM-100

keyboard

is

a

state-of-the-art

musical

in-

strument

which

incorporates

the

latest

electronics

tech-

nology

to

make

its

operation

as

easy

as

possible.

Exceptional

sound

quality

backed

up

by

a

host

of

sophisti-

cated

features

and

functions

makes

this

keyboard

a

joy

to

play

for

everyone.

In

order

to

enjoy

the

features

and

functions

of

this

unit

to

their

fullest,

be

sure

to

carefully

read

this

manual

and

follow

the

instructions

contained

herein.

.

General

Guide

.

.

Power

Supply

.

General

Operation...

.

Preset

Tones

......

.

Tone

Bank

Sounds

.

.

Auto-rhythms......

.

Upper

keyboard

Sampling

Function

.

.

Troubleshooting

.

Care

of

Your

Keyboard

.

2DO5w9uecunR9N

——

Contents

Auto-accompaniment

.

Specifications

.....

1.

General

Guide

0000000

OO

©

9

®®

DEO

000

ETEEN]

Sedes

=

CELLE

E

M-i

TE

EEEE

eeo

e

DDO

0200

Q

Built-in

speakers

@

Power

switch

©

Main

volume

slider

@

Lower

volume

slider

©

Upper

volume

slider

Q

Accomp

volume

slider

@

Casio

Chord

selector

Q

Tempo

control

buttons

©

Demo

button

@

Rhythm

selectors

@

Rhythm

select

button

@

Upper

tone

selectors

@

Lower

tone

selectors

@

Sample

buttons

@

Tone

select

button

@

Tone

Bank

button

@

Sample

tune

buttons

@

Effect

select

button

@

Built-in

microphone

€»

Sampling

long

button

@

Sampling

button

@

Clear

key

®

Loop

key

6D

Reverse

key

®

Envelope

keys

®

Intro/ending

button

@

Start/stop

button

®

Synchro/fill-in

button

1.

General

Guide

se

NAS

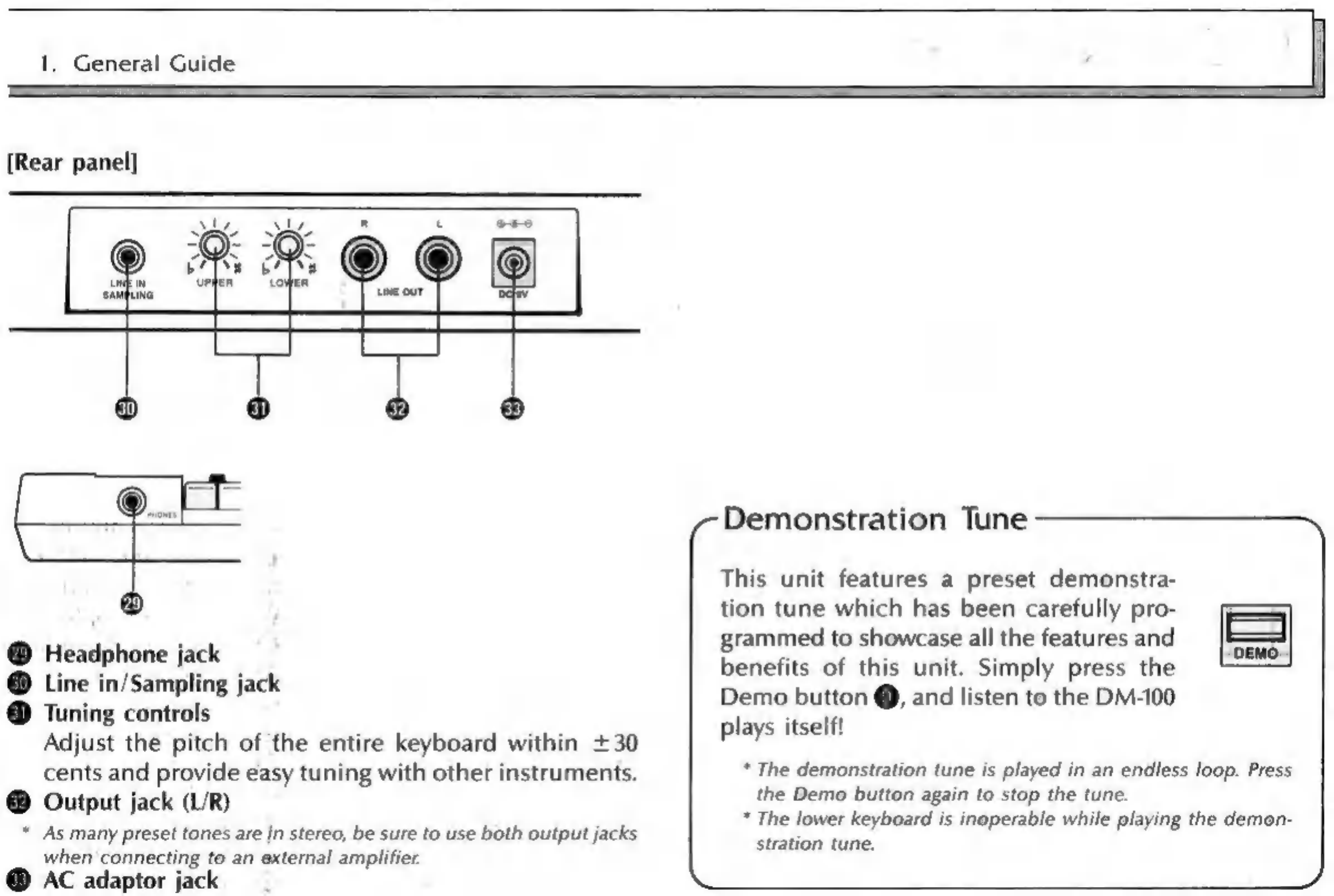

[Rear

panel]

UNE

our

Demonstration

Tune

This

unit

features

a

preset

demonstra-

tion

tune

which

has

been

carefully

pro-

grammed

to

showcase

all

the

features

and

benefits

of

this

unit.

Simply

press

the

Demo

button

@,

and

listen

to

the

DM-100

®

Headphone

jack

@®

Line

in/Sampling

jack

@

Tuning

controls

$ : 2

dps

lays

itself!

Adjust

the

pitch

of

the

entire

keyboard

within

+30

pay

cents

and

provide

easy

tuning

with

other

instruments.

*

The

demonstration

tune

is

played

in

an

endless

loop.

Press

@

Output

jack

(L/R)

the

Demo

button

again

to

stop

the

tune.

*

The

lower

keyboard

is

inoperable

while

playing

the

demon-

As

many

preset

tones

are

in

stereo,

be

sure

to

use

both

output

jacks

stration-

turie.

when

connecting

to

an

external

amplifier.

@®

AC

adaptor

jack

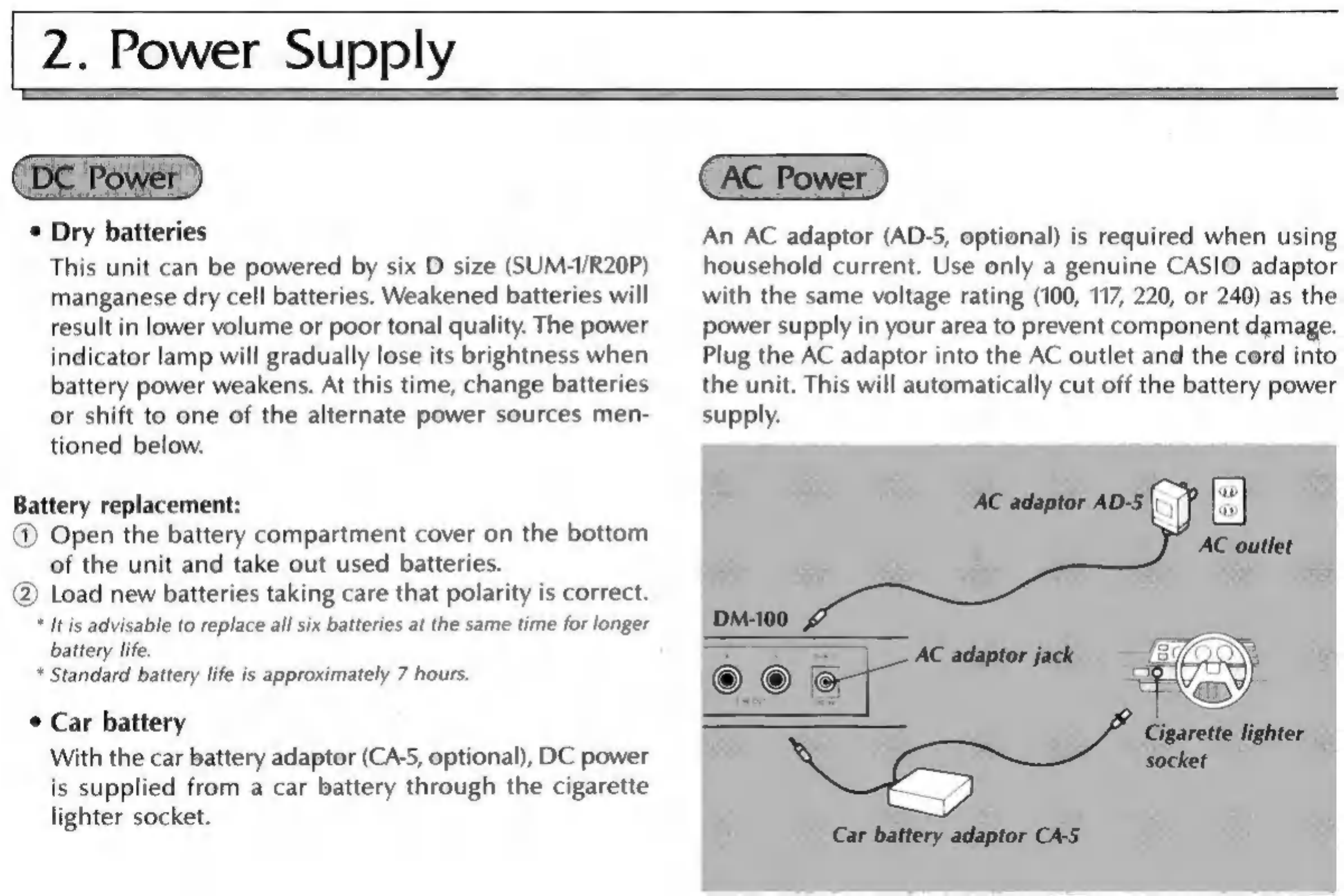

2.

Power

Supply

*

Dry

batteries

This

unit

can

be

powered

by

six

D

size

(SUM-I/R20P)

manganese

dry

cell

batteries.

Weakened

batteries

will

result

in

lower

volume

or

poor

tonal

quality.

The

power

indicator

lamp

will

gradually

lose

its

brightness

when

battery

power

weakens.

At

this

time,

change

batteries

or

shift

to

one

of

the

alternate

power

sources

men-

tioned

below.

Battery

replacement:

@

Open

the

battery

compartment

cover

on

the

bottom

of

the

unit

and

take

out

used

batteries.

(2)

Load

new

batteries

taking

care

that

polarity

is

correct.

*

It

is

advisable

to

replace

all

six

batteries

at

the

same

time

for

longer

battery

life.

*

Standard

battery

life

is

approximately

7

hours.

*

Car

battery

With

the

car

battery

adaptor

(CA-5,

optional),

DC

power

is

supplied

from

a

car

battery

through

the

cigarette

lighter

socket.

An

AC

adaptor

(AD-5,

optional)

is

required

when

using

household

current.

Use

only

a

genuine

CASIO

adaptor

with

the

same

voltage

rating

(100,

117,

220,

or

240)

as

the

power

supply

in

your

area

to

prevent

component

damage.

Plug

the

AC

adaptor

into

the

AC

outlet

and

the

cord

into

the

unit.

This

will

automatically

cut

off

the

battery

power

supply.

2.

Power

Supply

x

Auto

power

off

function

Power

is

automatically

cut

off

approximately

6

minutes

after

the

last

operation

of

the

unit.

Power

supply

can

be

restored

by

switching

power

OFF

and

then

ON

again.

CAUTIO:

*

Use

only

genuine

CASIO

adaptors

to

avoid

risk

of

damage.

*

Remove

batteries

from

the

battery

compartment

when

the

unit

is

not

used

for

extended

periods.

(Battery

leak-

age

can

damage

electrical

parts.)

*

The

adaptor

may

become

warm

when

left

connected

to

an

outlet.

This

is

normal,

but the

adaptor

should

be

disconnected

when

not

in

use.

*

THE

FOLLOWING

CONDITION

CAN

CAUSE

BATTERIES

TO

BURST:

1.

Use

of

adaptors

other

than

genuine

CASIO

adaptors.

2.

loading

batteries

with

polarities

reversed.

3.

General

Operation

@

Turn

the

power

switch

ON.

(2)

Adjust

the

volume

levels

(Main,

Lower,

Upper)

with

respective

volume

controls.

(8)

Select

one

of

20

preset

tones

for

the

lower

keyboard

(see

“Preset

Tones",

page

7)

or

one

of

the

210

Tone

Bank

sounds

(see

"Tone

Bank

Sound",

page

9).

Lower

volume

slider

Main

volume

slider

Upper

volume

slider

-

m

m"

Power

switch

lon

=

[^

z

=

——

Accomp

—

volume

F,

- "

^

slider

POWER

Wam

=

owen

UPPER

ACCOMP

volte

YOUU

voume

—

VOLUME

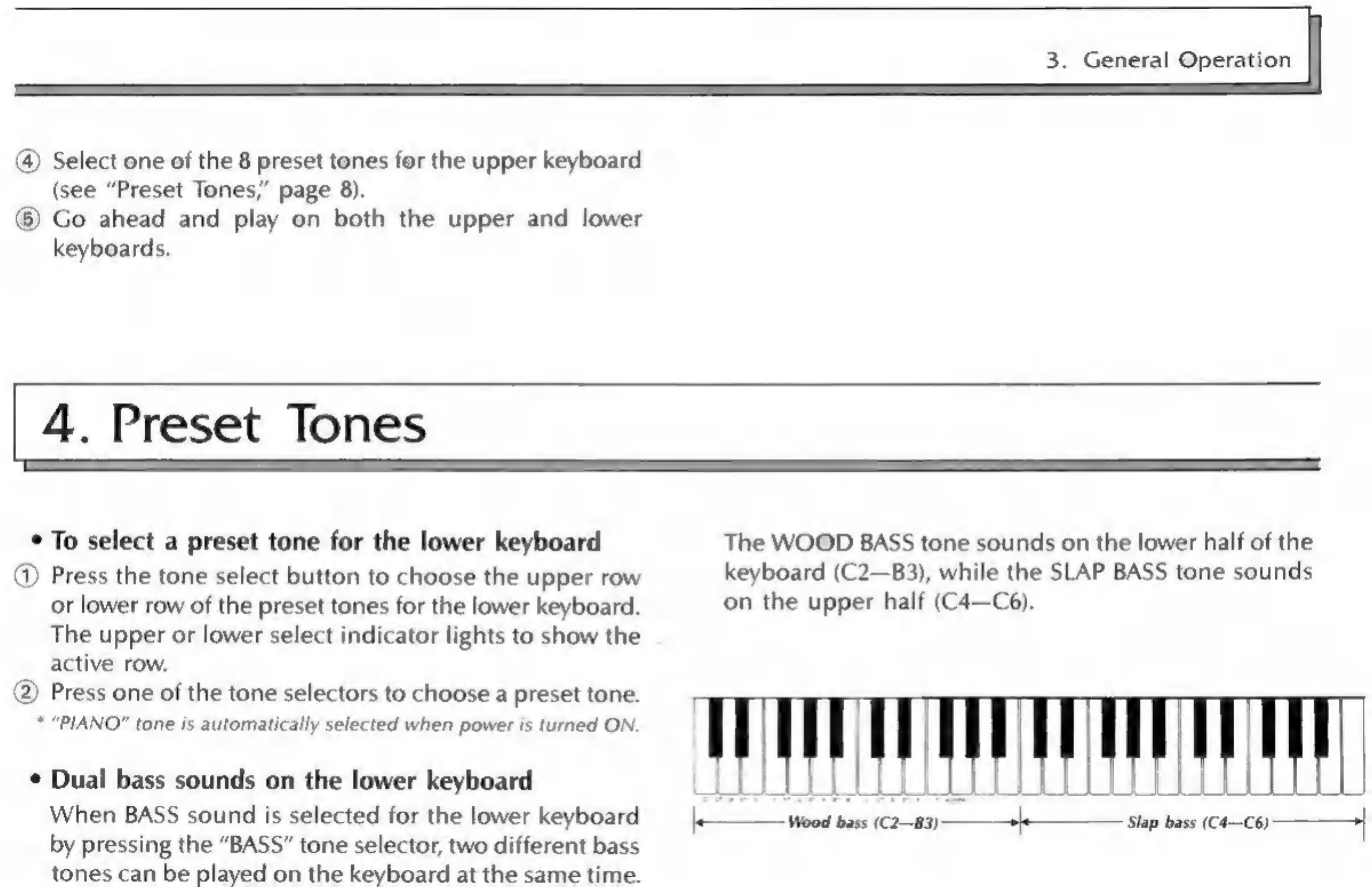

3.

General

Operation

|

(4)

Select

one

of

the

8

preset

tones

for

the

upper

keyboard

(see

“Preset

Tones,’

page

8).

(8

Go

ahead

and

play

on

both

the

upper

and

lower

keyboards.

4.

Preset

Tones

*

To

select

a

preset

tone

for

the

lower

keyboard

@

Press

the

tone

select

button

to

choose

the

upper

row

or

lower

row

of

the

preset

tones

for

the

lower

keyboard.

The

upper

or

lower

select

indicator

lights

to

show

the

active

row.

(2)

Press

one

of

the

tone

selectors

to

choose

a

preset

tone.

*

“PIANO”

tone

is

automatically

selected

when

power

is

turned

ON.

*

Dual

bass

sounds

on

the

lower

keyboard

When

BASS

sound

is

selected

for

the

lower

keyboard

by

pressing

the

"BASS"

tone

selector,

two

different

bass

tones

can

be

played

on

the

keyboard

at

the

same

time.

The

WOOD

BASS

tone

sounds

on

the

lower

half

of

the

keyboard

(C2—B3),

while

the

SLAP

BASS

tone

sounds

on

the

upper

half

(C4—C6).

LL

[e

—

Wood

bass

(C2—B3)

—ele—

siap

bass

(C4—C6)

——À4

He

4.

Preset

Tones

*

Percussion

sounds

on

the

lower

keyboard

When

PERCUSSION

sound

is

selected

for

the

lower

keyboard

by

pressing

the

"PERCUSSION"

button,

the

lower

keyboard

keys

can

be

used

to

play

a

total

of

49

different

built-in

percussion

sounds.

These

sounds

are

assigned

to

respective

keys

as

shown

below;

tom

1/2/3/4/mixed

synth.

tom

1/2/3

cow

bell

1/2

triangle

open/mute

timbales;

high

mute/

high/low/mixed

computer

game

sound

12/3

agogo

high/low

bass

drum

1/2

snare

drum

1/2

gated

snare

drum

rim

shot

closed

hihat

1/2

open

hihat

1/2

crash

cymbal

1/2/3/mixed

synth.

cymbal

1/2/3

ride

cymbal

1/2

gong

1/2

©000000000

© ©

00000

*

To

select

a

preset

tone

for

the

upper

keyboard

Press

one

of

the

upper

tone

selectors.

“PIANO”

tone

is

automatically

selected

when

power

is

turned

ON.

*

Sample

buttons

1~4

can

be

used

to

select

sounds

which

you

have

assigned

to

them

through

sampling.

When

sampling

is

not

carried

out,

the

sample

memory

banks

contain

the

following

sounds;

Sample

1:

Piano

Sample

2:

Vibraphone

Sample

3:

Guitar

Sample

4:

Pipe

Organ

5.

Tone

Bank

Sounds

à

The

lower

keyboard

features

Casio's

innovative

"Tone

*

Bank"

feature,

which

lets

you

choose

from

an

amaz-

ing

total

of

210

different

sound

combinations.

To

create

these

layered

sounds,

the

Tone

Bank

function

actually

inte-

grates

the

characteristics

of

the

20

preset

sounds

which

are

produced

by

the

new

PCM

sound

source

to

create

entirely

new

and

distinct

sounds

which

can

be

selected

through

the

following

procedure.

*

To

select

Tone

Bank

sounds

on

the

lower

keyboard

(D

Select

any

of

the

20

preset

tone.

When

selecting

Tone

Bank

sounds,

the

tone

initially

selected

is

used

as

a

base,

or

"Primary"

sound.

*

When

the

Primary

sound

is

selected,

the

keyboard

features

10-note

polyphony.

(2)

Press

the

Tone

Bank

button.

This

activates

the

Tone

Bank

function,

allowing

you

to

choose

a

Secondary

sound

to

integrate

with

the

Primary

sound

you

just

selected.

*

After

the

Tone

Bank

button

is

pressed,

the

keyboard

changes

to

5-note

polyphony.

(8)

Select

any

other

of

the

20

preset

tones.

The

characteris-

tics

of

this

"Secondary"

sound

is

automatically

integrat-

ed

with

those

of

the

"Primary"

sound

already

selected.

To

select

a

different

secondary

sound

The

secondary

sound

can

be

changed

at

any

time,

as

long

as

the

Tone

Bank

function

is

selected.

Simply

select

a

different

preset

tone—the

primary

sound

re-

mains

the

same.

To

select

a

different

primary

sound

The

primary

sound

can

be

changed

by

first

turning

the

Tone

Bank

function

OFF

(press

Tone

Bank

button

so

that

indicator

goes

out),

selecting

any

other

preset

tone,

and

finally

turning

the

Tone

Bank

function

back

ON.

The

secondary

tone

remains

the

same

in

this

case.

5.

Tone

Bank

Sounds

|

<

Example

of

Tone

Bank

Operation

@)

Select

the

preset

ORGAN

tone

by

JAZZ

pressing

the

corresponding

tone

selec-

tor.

(This

is

the

“Primary”

sound.)

Initially,

the

ORGAN

tone

can’

be

played

with

10-note

polyphony.

@

Press

the

Tone

Bank

button.

The

ORGAN

tone

can

now

be

played

with

5-note

polyphony.

*

Indicator

lights

Tone

bank

button

NOTE:

When

power

is

turned

ON,

the

PIANO

tone

is

auto-

matically

selected

in

Tone

Bank

memory.

Because

of

this,

procedure

(2)

above

causes

the

ORGAN

tone

to

be

inte-

grated

with

the

PIANO

tone.

@

Select

the

preset

CHORUS

tone

by

CHORUS

pressing

the

corresponding

tone

selec-

E

tor.

(This

is

the

"Secondary"

sound.)

MERC

Now,

the

"ORGAN

+

CHORUS”

inte-

grated

Tone

Bank

sound

can

be

played

with

5-note

polyphony.

®

®

Next,

try

changing

the

Secondary

sound

by

selecting

the

preset

FLUTE

tone.

The

“ORGAN

+

FLUTE”

integrat-

ed

Tone

Bank

sound

can

be

played

with

5-note

polyphony.

Next,

try

changing

the

Primary

sound

by

first

pressing

the

Tone

Bank

button

once

again

to

turn

the

Tone

Bank

func-

tion

OFF

temporarily.

The

preset

ORGAN

tone

can

once

again

be

played

with

10-note

polyphony.

Select

a

new

Primary

sound—the

STRINGS

tone

for

example,

and

turn

the

Tone

Bank

function

back

ON.

As

the

secondary

sound

(FLUTE)

does

not

change

in

this

case,

you

can

now

play

the

“STRINGS

+

FLUTE”

integrated

Tone

Bank

sound

with

5-note

poly-

phony.
