Casio EX-Z700 - EXILIM Digital Camera Installation guide
E-1
ENGLISH
Basic Reference
EX-Z700
Congratulations on your selection of the CASIO EX-Z700
Digital Camera! This Basic Reference provides you with the
general information you need to start using the EX-Z700.
For more detailed information, see the EX-Z700 User’s
Guide, which is in digital form as a PDF file on the CD-
ROM that comes bundled with the EX-Z700. Note that to
view the EX-Z700 User’s Guide, you will have to install
AdobeRReader. Consult your dealer or CASIO distributor if
you are unable to open to display the PDF format User’s
Guide on the CD-ROM.
•Be sure to keep all user documentation handy for future
reference.
CONTENTS
Unpacking ......................................................... E-2
Quick Start Guide ............................................. E-3
General Guide ................................................... E-7
Monitor Screen Contents .............................. E-11
Menu Reference ............................................. E-15
Troubleshooting ............................................. E-17
Precautions ..................................................... E-18
E-2
Unpacking
Check to make sure that all of the items shown below are included with your camera. If something is missing, contact your
dealer as soon as possible.
Rechargeable Lithium Ion
Battery (NP-40)
USB Cradle
(CA-29)
USB Cable Basic Reference
Camera Strap
Special AC Adaptor
(AD-C52S)
AC Power Cord
*
*The shape of the AC
power cord plug varies
according to country or
geographic area.
CD-ROM AV Cable
E-3
Quick Start Guide
First, charge the battery!
1.
Load the battery into the camera.
2.
Place the camera onto the USB cradle to charge the
battery.
•It takes about 180 minutes to achieve a full charge.
1
2
3
Stopper
2
[CHARGE] lamp
Charging: Lights red
Charging Complete: Lights green
1
AC adaptor
AC power cord
USB cradle
E-4
To configure display language and clock settings
1.
Press the power button to turn on the camera.
2.
Use [왖], [왔], [왗], and [왘] to select the language you
want.
3.
Press [SET] to register the language setting.
4.
Use [왖], [왔], [왗], and [왘] to select the geographical
area you want, and then press [SET].
5.
Use [왖] and [왔] to select the city you want, and then
press [SET].
6.
Use [왖] and [왔] to select the summer time (DST)
setting you want, and then press [SET].
7.
Use [왖] and [왔] to select the date format setting you
want, and then press [SET].
8.
Set the date and the time.
9.
Press [SET] to register the clock settings and exit the
setting screen.
•Be sure to configure the following settings before
using the camera to record images.
•If you make a mistake when setting the language
or clock with the following procedure, you will
need to use the camera’s menu to individually
change the language or clock settings.
DISP
SET
[왖]
[왔]
[왗][왘]
[SET]
2, 3, 4, 5, 6, 7, 8, 9
1
E-5
To record an image
1.
Press [ ] (REC).
•This enters the REC (recording) mode.
2.
Point the camera at the subject, use the monitor
screen to compose the image, and then press
the shutter button half way.
•When the camera finishes its Auto Focus operation, the
focus frame will turn green and the operation lamp
lights green.
3.
Holding the camera still, gently press the
shutter button all the way down.
The camera’s built in memory can record only a few images and is intended for testing the camera or for emergency
purposes only. Using a memory card provides more capacity you can use to store more images, high-quality and
large-size images, and longer movies. In order to be able to use a commercially available memory card, you first
need to format it using the camera’s formatting procedure.
1
3
2
8
N
06
06
/
12
12
/
24
24
12
12
:38
38
2
Operation lamp
Focus frame
Auto recording icon
E-6
To delete an imageTo view a recorded image
1.
Press [ ] (PLAY).
2.
Press [왔] ( ).
3.
Use [왗] and [왘] to display the image you want to
delete.
4.
Use [왖] and [왔] to select “Delete”.
•To exit the image delete operation without deleting anything,
select “Cancel”.
5.
Press [SET] to delete the image.
1.
Press [ ] (PLAY).
•This enters the PLAY (playback) mode.
2.
Use [왗] and [왘] to scroll through the
images.
1
2
1
2, 3, 4, 5
E-7
2Shutter button
3Power button
4Microphone
5AF assist light/self-timer lamp
•Assists the Auto Focus operation whenever you are
shooting where lighting is dim.
•There are two lamp flash patterns.
Pattern 1 flashes once per second and Pattern 2
flashes twice per second.
6Lens
7Flash
Meaning
Self-timer countdown (10 to 3 seconds)
Self-timer countdown (3 to 0 seconds)
Self-timer Lamp
Red
Pattern 1
Pattern 2
■Front
General Guide
The following illustrations show the names of each
component, button, and switch on the camera.
Camera
6
45
3
2
7
1
1Zoom controller
REC mode : Selects the zoom factor.
PLAY mode : Switches between the actual-size image
screen, 9-image screen, calendar screen,
and enlarged screen.
E-8
■Back
8Operation lamp
9[] (PLAY mode) button
0[] (REC mode) button
A[BS] (BEST SHOT) button
Enters the BEST SHOT mode and displays a sample
scene in the REC mode. Use this mode to select a
sample scene for automatic camera setup.
BStrap ring
C[왖][왔][왗][왘]
•[왔] ( ) (Flash/Delete) button
REC mode: Cycles through the flash mode settings.
: Auto Flash
: Flash Off
: Flash On
: Soft Flash
: Red-eye reduction
PLAY mode: Displays the delete menu.
•[왖] (DISP) button
Cycles through available display settings.
D[SET] button
E[MENU] button
Displays the REC mode menu or PLAY mode menu.
FMonitor Screen
A
B
C
F
90
8
DISP
SET
[왖]
[왔]
[왗][왘]
[SET]
ED
E-9
1Camera connector
2[USB] lamp
3[USB] button
Press to establish or terminate a USB connection with a
computer.
4[PHOTO] button
Press to start or stop a slideshow.
5[CHARGE] lamp
USB cradle
■Front
■Bottom
GStopper
HMemory card slot
IBattery compartment
JBattery cover
KTripod screw hole
*Use this hole when attaching to a tripod.
LConnector
When you place the camera onto the USB cradle, make
sure the USB cradle’s camera connector enters this
connector.
MSpeaker
G
IJKLM
H
5
1
2
3
4
E-10

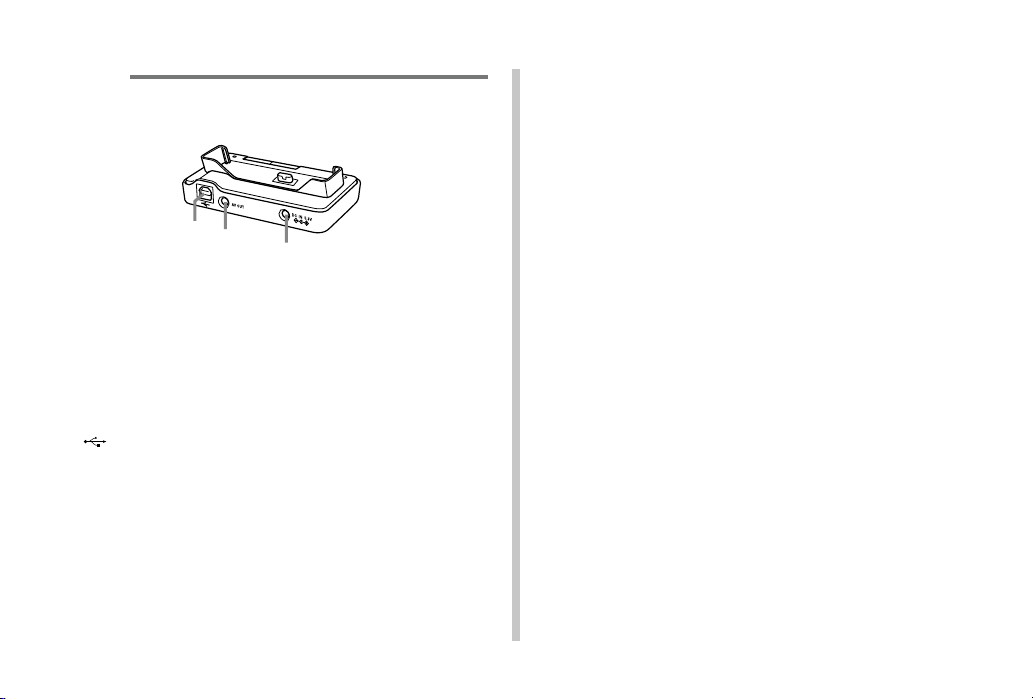

■Back
6[DC IN 5.3V] (AC adaptor connector)
Connects the bundled AC adaptor here.
7[AV OUT] (AV output port)
Connects the AV cable here. The other end of the AV
cable connects to a TV.
8[] (USB port)
Connects the special USB cable here. The other end of
the USB cable connects to a computer’s USB port.
6
7
8
