Casablanca M8539-01 User manual

www.CasablancaFanCo.com 1.888.227.2178

Table of Contents

Congratulations on purchasing your new

Casablanca® ceiling fan! It will provide

comfort and performance in your home

or ofce for many years. This installation

and operation manual contains complete

instructions for installing and operating

your fan.

We are proud of our work and appreciate

the opportunity to supply you with the

best ceiling fan available anywhere in the

world.

To register your fan, please visit:

www.CasablancaFanCo.com/register

Save your receipt for proof of purchase.

PAGE

30 inches

7 feet

PAGE

What to Expect with

Your Installation Ceiling Bracket

Ladder

PAGE

Tools Needed

Operation,

Maintenance &

Cleaning Troubleshooting

PAGE

Downrod

PAGE

Blades

Switch Housing &

Light Kit

PAGE

Ceiling Options

PAGE

Remote Control

Canopy

PAGE

Wiring

www.CasablancaFanCo.com 1.888.227.2178

What to Expect with Your Installation

Know your wiring

If you are unfamiliar

with wiring, use a

qualied electrician.

You may need a

friend to help you.

Check box to see

fan weight

Assess location

30 inches

from blade tip to

nearest wall or

obstruction 7 feet

From bottom

edge of blade

to the oor

Select a downrod length

Assess ceiling angle

Ceilings that are more

than 34° will require an

angled mounting kit.

See page 3 for details.

Must be able to

secure the fan to

building structure or

fan-rated outlet box

Standard Downrod

for ceilings 8-10 feet high

Shorter Downrod

for fans installed close to ceiling

Longer Downrod

for ceilings 10 feet or higher

w.1 - To reduce the risk of re, electrical shock, or personal

injury, mount fan directly from building structure and/or an

outlet box marked acceptable for fan support of 70 lbs (31.8 kg)

and use the mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or

servicing your fan, disconnect the power by turning off the

circuit breakers to the outlet box and associated wall switch

location. If you cannot lock the circuit breakers in the off

position, securely fasten a prominent warning device, such as a

tag, to the service panel.

w.3 - To reduce the risk of re, electrical shock, or motor damage,

use only Casablanca Solid State Speed Controls.

w.4 - To reduce the risk of personal injury, do not bend the blade

brackets when installing the blade brackets, balancing the blades,

or cleaning the fan. Do not insert foreign objects in between

rotating fan blades.

c.1 - All wiring must be in accordance with national and local

electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring,

use a qualied electrician.

c.2 - Use only Casablanca replacement parts.

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and if not

installed and used in accordance with the instructions may cause

harmful interference to radio communications.

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

CAUTIONS

www.CasablancaFanCo.com 1.888.227.2178

Tools Needed

Ladder

Power Drill

(optional)

9/64” Drill Bit

(optional)

Screwdrivers

Pliers Wire Strippers

If mounting to a support structure, you will also need these tools.

www.CasablancaFanCo.com 1.888.227.2178

If you have an angled ceiling:

1. You will need a longer downrod (sold separately).

2. If your ceiling angle is greater than 34°, you will

also need an Angled Mounting Kit (sold separately).

Guide Touches

BOTH Ceiling & Wall

Guide Touches Wall

but

NOT Ceiling

You need BOTH

a Longer

Downrod &

an Angled

Mounting Kit

You need ONLY

a Longer

Downrod

*most common

If you have a at ceiling:

Hang your fan by a standard downrod (included).

Ceiling Options

Support

Structure

Ceiling

Outlet Box

(required)

Angled

Mounting

Style

Standard

Mounting

Style

Support

Structure

Ceiling

Outlet Box

(required)

Use Standard Mounting

or Low-Prole Mounting

to hang the fan from a at ceiling.

Use Angled Mounting

to hang the fan from a

vaulted or angled ceiling.

34OCEILING

WALL

OPTION

Standard

Mounting

OPTION 2

Angled

Mounting

2 3

SLIDE

toward ceiling

PLACE

against wall

FOLD

on dotted line

34°

Use the three steps below to determine if your ceiling angle is greater than 34°

1.888.227.2178

www.CasablancaFanCo.com

www.CasablancaFanCo.com 1.888.227.2178

Ceiling Bracket

Refer to warning w.1 on pg. 2

To avoid possible electrical shock, before

installing your fan, disconnect the power by

turning off the circuit breakers to the outlet

box associated with the wall switch location.

For angled ceilings, point

opening toward peak.

If you are unable to do this,

call Technical Support at

1-888-227-2178.

Make sure all four bumpers are

still attached.

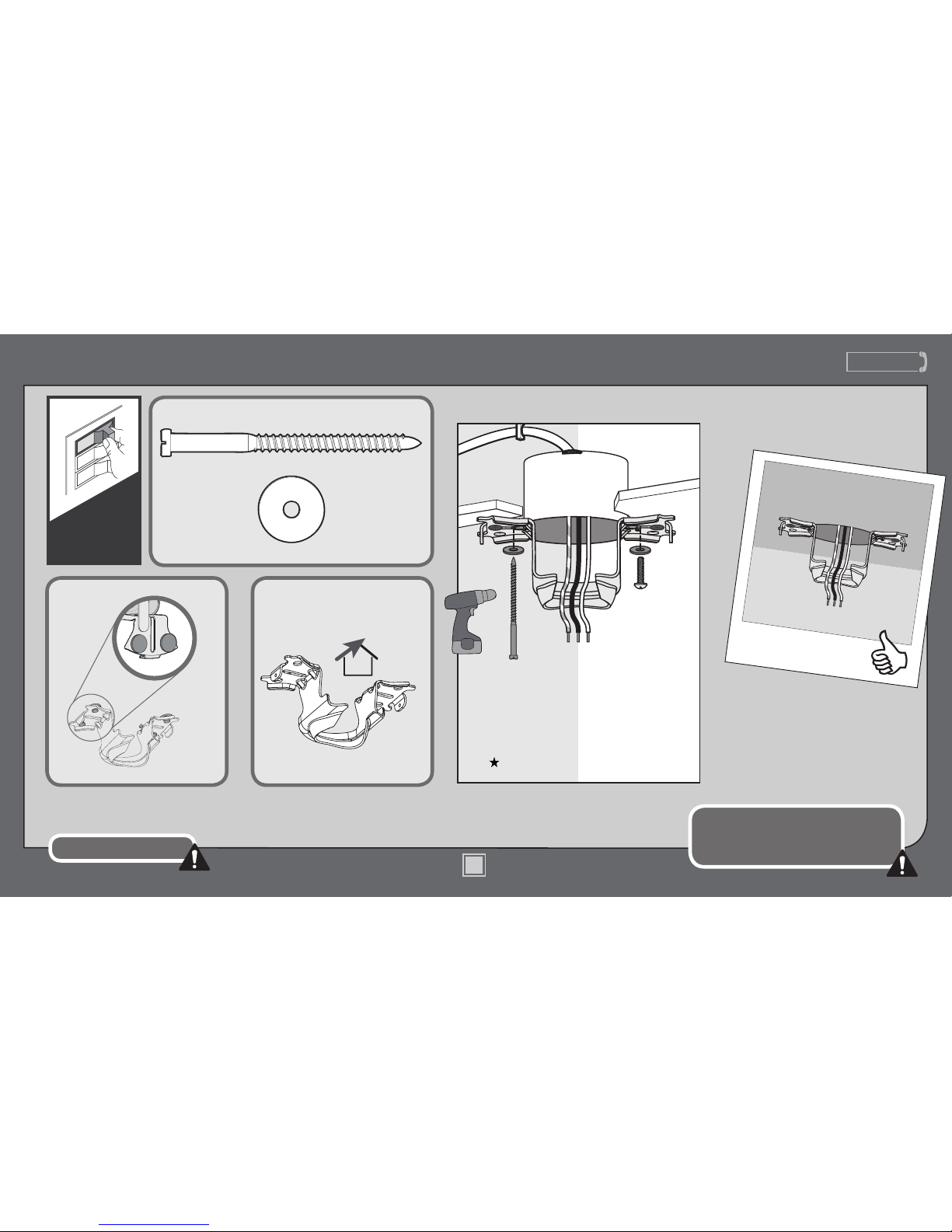

Use wood screws

(included) when securing

to support structure with

approved electrical outlet

box. Drill 9/64” pilot holes

in support structure to aid

in securing ceiling bracket

with hardware found in

the hardware bag.

Use machine screws

(provided with outlet

box) when securing to

existing ceiling fan-rated

outlet box. Make sure

it is securely installed

and is acceptable for fan

support of 31.8 kg (70 lbs)

or less.

OFF

Turn Power

www.CasablancaFanCo.com 1.888.227.2178

Downrod

Slide

1 2 3 4 5

678910

Sold Separately

Longer

Downrod

for angled

ceilings or

ceilings 10’ or

higher

Shorter

Downrod

for fans installed

close to ceiling

Standard

Downrod

for ceilings 8-10’ high

For Standard MountFor Low Prole

For Standard Mount

skip to next page

If you need a different downrod length follow these steps:

Steps 1-5 to remove standard downrod pipe

Steps 6-10 to reassemble with new pipe

Included

(pre-assembled)

www.CasablancaFanCo.com 1.888.227.2178

Downrod (continued)

KEEP!

8”

3/8”

(not to scale)

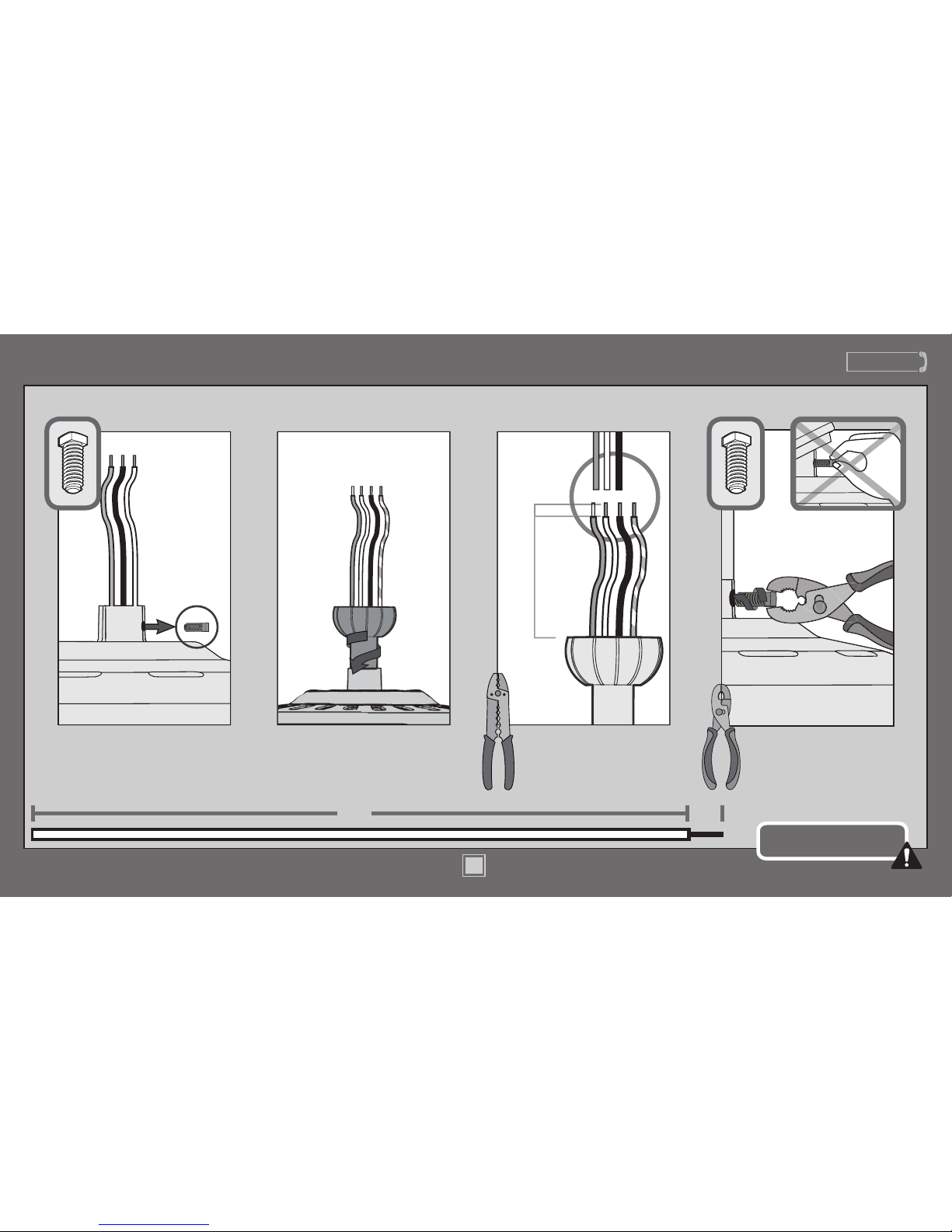

Remove the pre-installed

setscrew so that the downrod

can be inserted.

Hand tighten the downrod (at

least 4-5 full turns) until it stops.

The wires can be cut, but

leave at least 8” extending

from the top of the downrod.

8” 3/8”

Tighten the setscrew

with pliers. DO NOT

HAND TIGHTEN.

If the setscrew is not tightened

securely, the fan may fall.

www.CasablancaFanCo.com 1.888.227.2178

Downrod (continued)

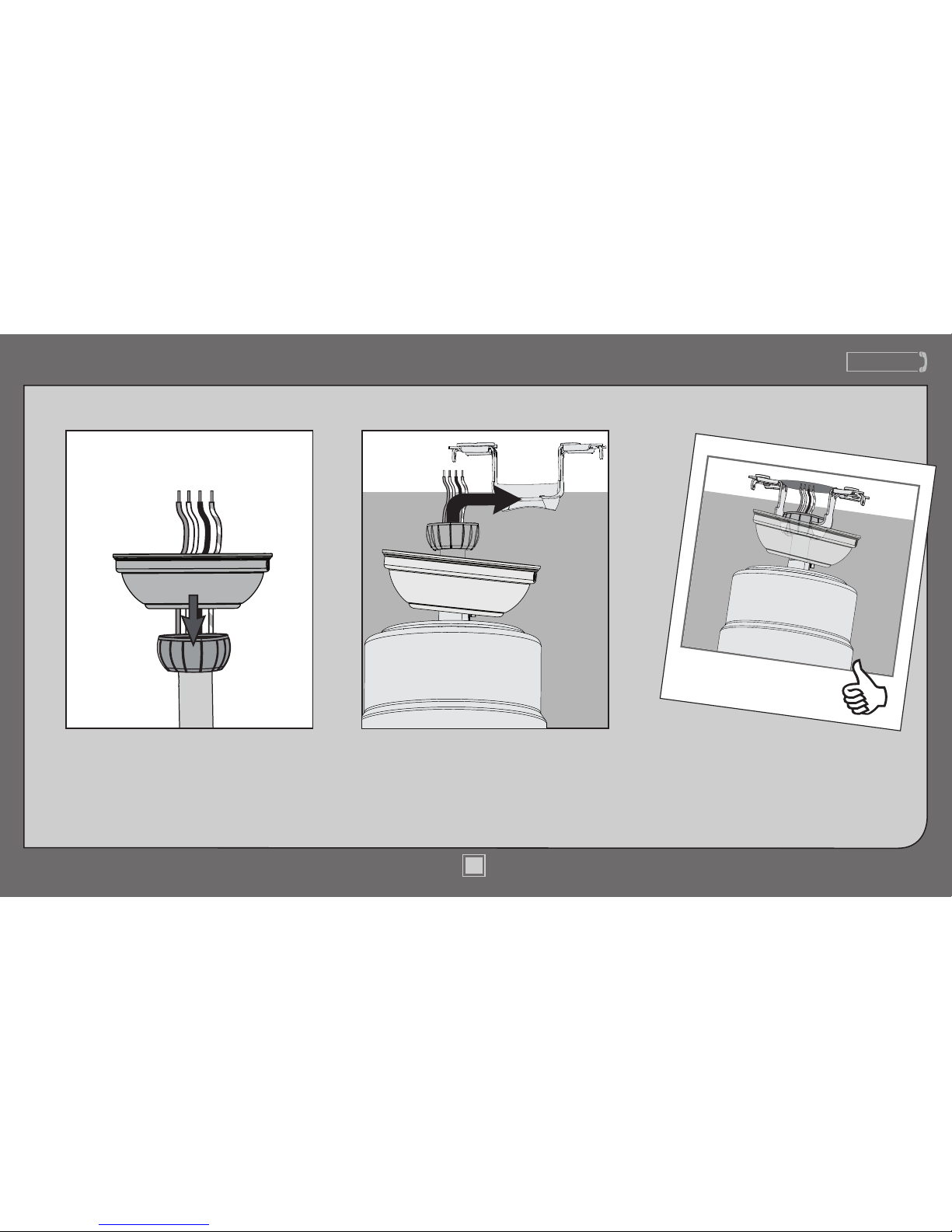

Put the wires and downrod through the

canopy. Let the canopy sit loosely on top

of the fan.

DO NOT PICK THE FAN UP BY THE

CANOPY OR WIRES. Place the downrod

ball into the slot in the ceiling bracket.

www.CasablancaFanCo.com 1.888.227.2178

Wiring

Turn the splices upward and push them carefully back through the hanger bracket

into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

Refer to CAUTION c.1 on pg. 2

green/yellow

stripe (grounding)

green/yellow

stripe

green/yellow stripe

Using an orange wire connector

from the hardware bag:

Connect the 3 grounding wires

(green, green/yellow stripe, or bare

copper) coming from the ceiling,

downrod, and ceiling bracket.

Note: To connect the wires, hold

the bare metal leads together and

place a wire connector over them,

then twist clockwise until tight.

Note: If using the optional Low

Prole canopy, you may need to

carefully tilt the fan assembly at an

angle while connecting the wires.

Be sure to tilt the fan AWAY from

the opening in the ceiling bracket

and ensure the fan does not fall.

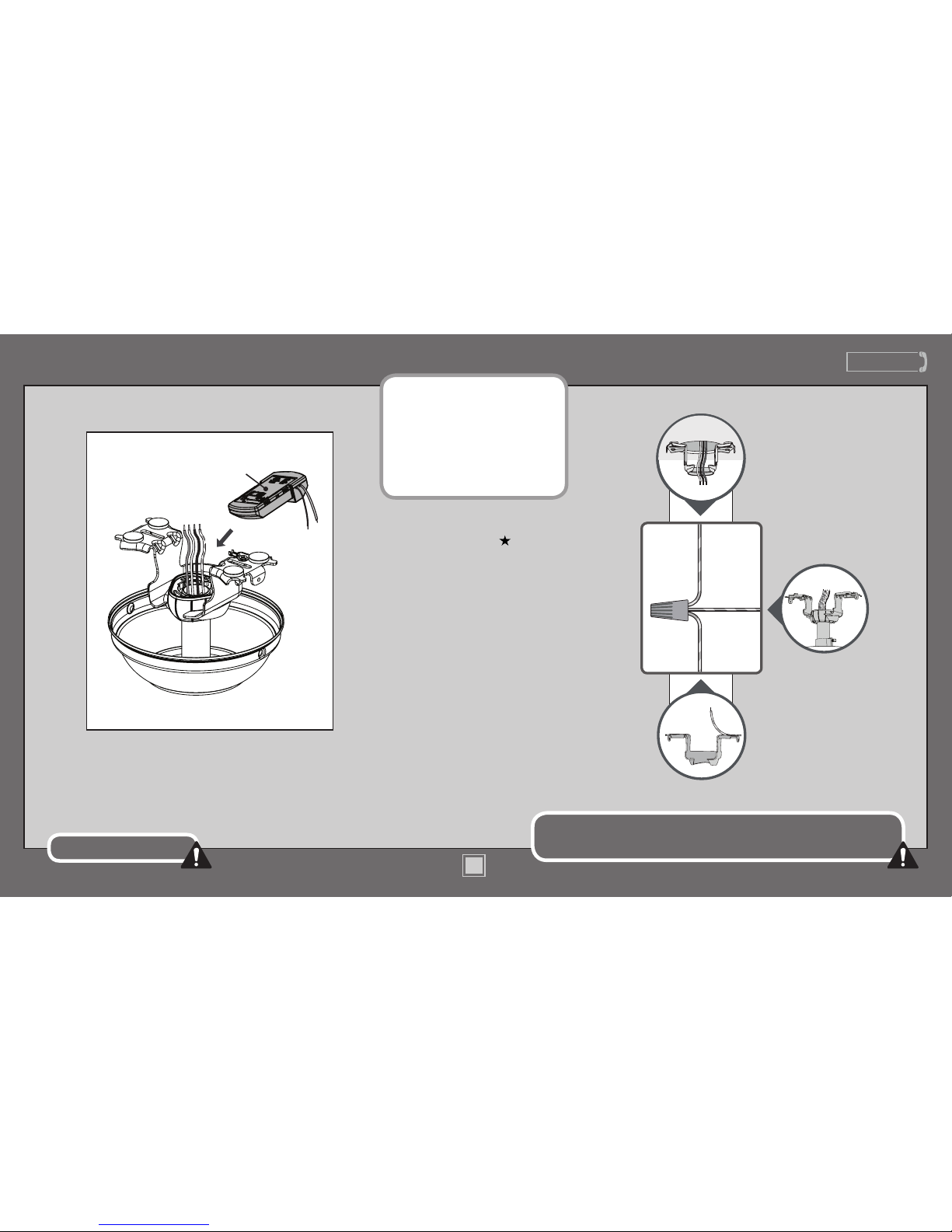

Place the receiver on top of the downrod

assembly as shown.

Receiver

www.CasablancaFanCo.com 1.888.227.2178

Turn the splices upward and push them carefully back through the hanger bracket

into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

Refer to CAUTION c.1 on pg. 2

Wiring (continued)

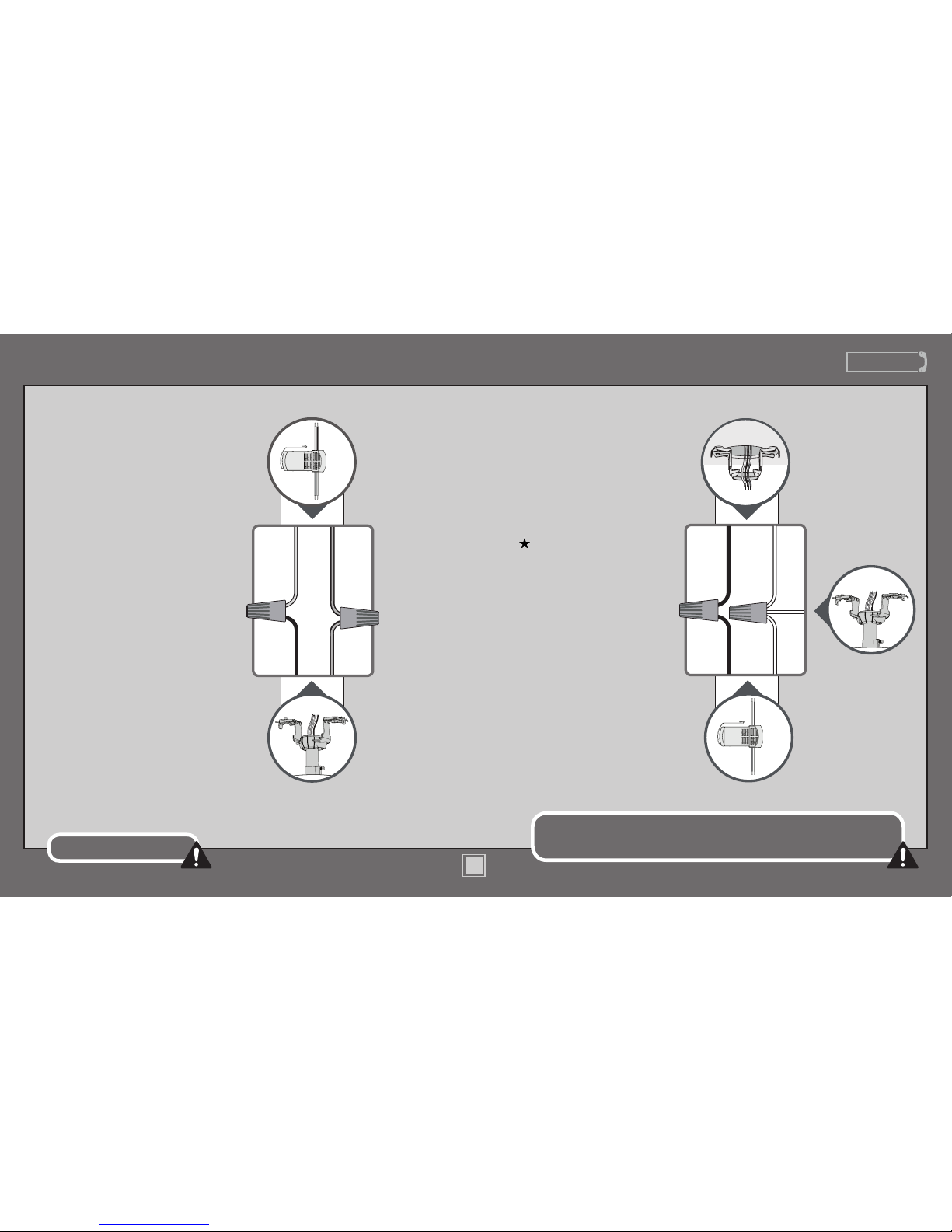

Using the orange wire connectors

from the hardware bag:

• Connect the black (ungrounded)

wire from the ceiling to the black

wire from the receiver.

• Connect the white (grounded)

wire from the ceiling to both the

white wire from the receiver and

the white wire from the fan.

black

blue

yellow

blue

Using the orange wire connectors

from the remote control hardware bag:

• Connect the yellow wire from

the receiver to the black wire

from the fan.

• Connect the blue wire from the

receiver to the blue wire (or

possibly black with white stripe

wire) from the fan.

black

(ungrounded)

white (grounded)

black

white
