Casablanca M6020-01 User manual
www.CasablancaFanCo.com 1.888.227.2178
30 inches
7 feet
PAGE
2
What to Expect with
Your Installation Ceiling Bracket
Ladder
PAGE
3
Tools Needed
PAGE
6
Hanging the Fan
PAGE
8
Motor Housing
PAGE
9
Blades
Table of Contents
PAGE
7
PAGE
5
Preparation
PAGE
4
Wiring
PAGE
10
Switch Housing
Congratulations on purchasing your new
Casablanca® ceiling fan! It will provide
comfort and performance in your home
or ofce for many years. This installation
and operation manual contains complete
instructions for installing and operating
your fan.
We are proud of our work and appreciate
the opportunity to supply you with the
best ceiling fan available anywhere in the
world.
To register your fan, please visit:
www.CasablancaFanCo.com/register
Save your receipt for proof of purchase.
PAGE
13
Maintenance
& Cleaning Troubleshooting
?
?
?
12
PAGE
1
M6020-01 • 06/25/15 • © 2013–2015 Casablanca Fan Company
www.CasablancaFanCo.com 1.888.227.2178
M6020-01 • 06/25/15 • © 2013–2015 Casablanca Fan Company
What to Expect with Your Installation
Know your wiring
If you are unfamiliar
with wiring, use a
qualied electrician.
You may need a
friend to help you.
Check box to see
fan weight
Assess location
30 inches
from blade tip
to nearest wall
or obstruction 7 feet
from bottom
edge of blade
to the oor
w.1 - To reduce the risk of re, electrical shock, or
personal injury, mount fan directly from building
structure and/or an outlet box marked acceptable for
fan support of 70 lbs (31.8 kg) and use the mounting
screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing
or servicing your fan, disconnect the power by turning
off the circuit breakers to the outlet box and associated
wall switch location. If you cannot lock the circuit
breakers in the off position, securely fasten a prominent
warning device, such as a tag, to the service panel.
w.3 - To reduce the risk of re, electrical shock, or motor
damage, use only Casablanca Solid State Speed Controls.
w.4 - To reduce the risk of personal injury, do not bend the
blade brackets when installing the blade brackets, balancing
the blades, or cleaning the fan. Do not insert foreign objects
in between rotating fan blades.
c.1 - All wiring must be in accordance with national and
local electrical codes ANSI/NFPA 70. If you are unfamiliar
with wiring, use a qualied electrician.
c.2 - Use only Casablanca replacement parts.
Read and Save These Instructions
This product conforms to UL Standard 507.
WARNINGS
CAUTIONS
Must be able to
secure the fan to
building structure or
fan-rated outlet box
2
www.CasablancaFanCo.com 1.888.227.2178
Tools Needed
Ladder
Power Drill
(optional)
9/64” Drill Bit
(optional)
Screwdrivers
If mounting to a support structure, you will also need these tools.
3
M6020-01 • 06/25/15 • © 2013–2015 Casablanca Fan Company
www.CasablancaFanCo.com 1.888.227.2178
Ceiling Bracket
OFF
Refer to warning w.1 on pg. 2
To avoid possible electrical shock, before installing your fan,
disconnect the power by turning off the circuit breakers to the
outlet box associated with the wall switch location.
Turn Power
4
Use wood screws
(included) when securing
to support structure with
approved electrical outlet
box. Drill 9/64” pilot holes
in support structure to aid
in securing ceiling bracket
with hardware found in
the hardware bag.
Use machine screws
(provided with outlet
box) when securing to
existing ceiling fan-rated
outlet box. Make sure
it is securely installed
and is acceptable for fan
support of 31.8 kg (70 lbs)
or less.
Make sure all four bumpers are still attached.
Bumper
M6020-01 • 06/25/15 • © 2013–2015 Casablanca Fan Company
www.CasablancaFanCo.com 1.888.227.2178
Ceiling Bracket (continued) Preparation
Time Saver Tip: Get a helper
to insert grommets, found in
the hardware bag, into the
blades while you’re doing the
next couple of steps.
www.CasablancaFanCo.com 1.888.227.2178
5
M6020-01 • 06/25/15 • © 2013–2015 Casablanca Fan Company
6
www.CasablancaFanCo.com 1.888.227.2178
M6020-01 • 06/25/15 • © 2013–2015 Casablanca Fan Company
Hanging the Fan
While holding the wires out of the way, lift
the motor assembly and place the square
hanger into the opening in the ceiling
bracket. Be sure the ground wire attached
to the hanger faces out of the large
opening in the ceiling bracket.
Locking
Screw
Ground
Wire
Note: Fan style may vary.
Once the motor is in the ceiling
bracket, use the two locking screws
found in the hardware bag to secure
the motor to the ceiling bracket.
Screw
Hole
www.CasablancaFanCo.com 1.888.227.2178

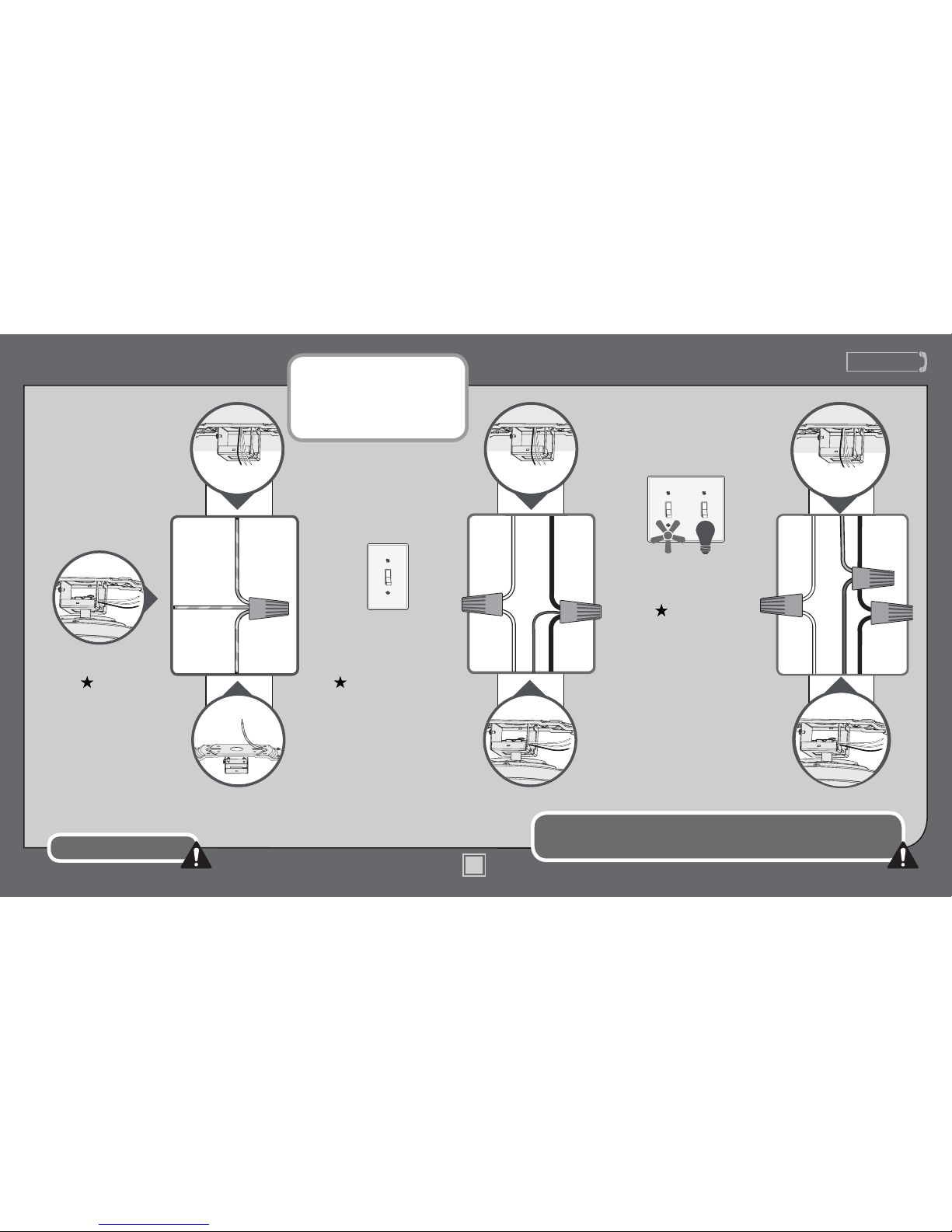

Wiring
F
R
O
M
F
A
N
F
R
O
M
C
E
I
L
I
N
G
B
R
A
C
K
E
T
F
R
O
M
F
A
N
Using an orange wire
connector from
the hardware
bag, connect the 3
grounding wires (green,
green/yellow stripe, or
bare copper) coming
from the ceiling, fan,
and hanging bracket.
(Grounding) Green/Yellow
Stripe
Green/Yellow
Stripe
White
Black
(Grounded)
Note: To connect the wires,
hold the bare metal leads
together and place a wire
connector over them, then twist
clockwise until tight.
Using the orange wire
connectors from
the hardware bag, connect
the black wire (ungrounded)
from the ceiling to the black
and the blue wires from the
fan. Connect the white wire
(grounded) from the ceiling to
the white wire from the fan.
Using the orange wire
connectors from
the hardware bag,
connect the white wire
(grounded) from the
ceiling to the white wire
from the fan.
Connect the black wire
(ungrounded) from the
ceiling to the black wire
from the fan. Connect the
second (ungrounded) wire
from the ceiling to the blue
wire from the fan.
F
R
O
M
F
A
N
White
(Ungrounded)
Black
Blue
(Grounded)
F
R
O
M
C
E
I
L
I
N
G
(Ungrounded)
Blue
For Dual Switches
For a Single Switch
F
R
O
M
C
E
I
L
I
N
G
Turn the splices upward and push them carefully back through the hanger bracket
into the outlet box. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the outlet box.
Refer to CAUTION c.1 on pg. 2
F
R
O
M
C
E
I
L
I
N
G
7
M6020-01 • 06/25/15 • © 2013–2015 Casablanca Fan Company
(Ungrounded)
www.CasablancaFanCo.com 1.888.227.2178
With a Phillips head screwdriver, install
the four motor housing screws found
in the hardware bag. Tighten all four
screws securely.
Motor Housing
Screw
Holes
Motor
Housing
Screw
Indentation
Notch
Raise the motor housing up over the motor
and ceiling bracket. Turn the motor housing
so the screw holes align and the indentation
in the housing locks into place with the notch
in the ceiling bracket. The motor housing is
not secured until the next step is complete.
Do not leave unattended.
8
M6020-01 • 06/25/15 • © 2013–2015 Casablanca Fan Company
www.CasablancaFanCo.com 1.888.227.2178
M6020-01 • 06/25/15 • © 2013–2015 Casablanca Fan Company
Blades
9
Insert grommets found in the hardware
bag into the holes in the blades, then
secure each blade to a blade iron with
screws found in the hardware bag.
Lightly attach the blade irons to the
motor with screws found in
the hardware bag, then securely
tighten after both screws are attached.
10
www.CasablancaFanCo.com 1.888.227.2178
M6020-01 • 06/25/15 • © 2013–2015 Casablanca Fan Company
Feed the wire plug through the center
hole of the upper switch housing, then
wrap keyhole slots around the screws and
twist counterclockwise.
Screw two housing assembly screws
from the hardware bag halfway into
the motor housing. It does not matter
which two screw holes you choose.
Make sure the upper switch housing is securely
attached to the mounting plate. Failure to properly
secure all 3 assembly screws could result in the
switch housing xture falling.
Switch Housing
Insert the third screw, found in
the hardware bag, into place and
then tighten all three screws.
