What to Expect with Your Installation

Know your wiring

If you are unfamiliar

with wiring, use a

qualied electrician.

You may need a

friend to help you.

Check box to see

fan weight

Assess location

30 inches

from blade tip

to nearest wall

or obstruction 7 feet

from bottom

edge of blade

to the oor

Select a downrod length

Assess ceiling angle

Must be able to

secure the fan to

building structure or

fan-rated outlet box

Standard Downrod

for ceilings 8-10 feet high

Shorter Downrod

for fans installed close to ceiling

Longer Downrod

for ceilings 10 feet or higher

Ceiling angles greater

than 34° will require an

Angled Mounting Kit.

See page 4 for details.

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

CAUTIONS

w.1 - To reduce the risk of re, electrical shock, or personal

injury, mount fan directly from building structure and/or an

outlet box marked acceptable for fan support of 70 lbs (31.8 kg)

and use the mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or

servicing your fan, disconnect the power by turning off the

circuit breakers to the outlet box and associated wall switch

location. If you cannot lock the circuit breakers in the off

position, securely fasten a prominent warning device, such as a

tag, to the service panel.

w.3 - To reduce the risk of re, electrical shock, or motor damage,

use only Hunter Speed Controls.

w.4 - To reduce the risk of personal injury, do not bend the blade

brackets when installing the blade brackets, balancing the blades,

or cleaning the fan. Do not insert foreign objects in between

rotating fan blades.

c.1 - All wiring must be in accordance with national and local

electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring,

use a qualied electrician.

c.2 - Use only Hunter replacement parts.

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and if not

installed and used in accordance with the instructions may cause

harmful interference to radio communications.

www.HunterFan.com 1.888.830.1326

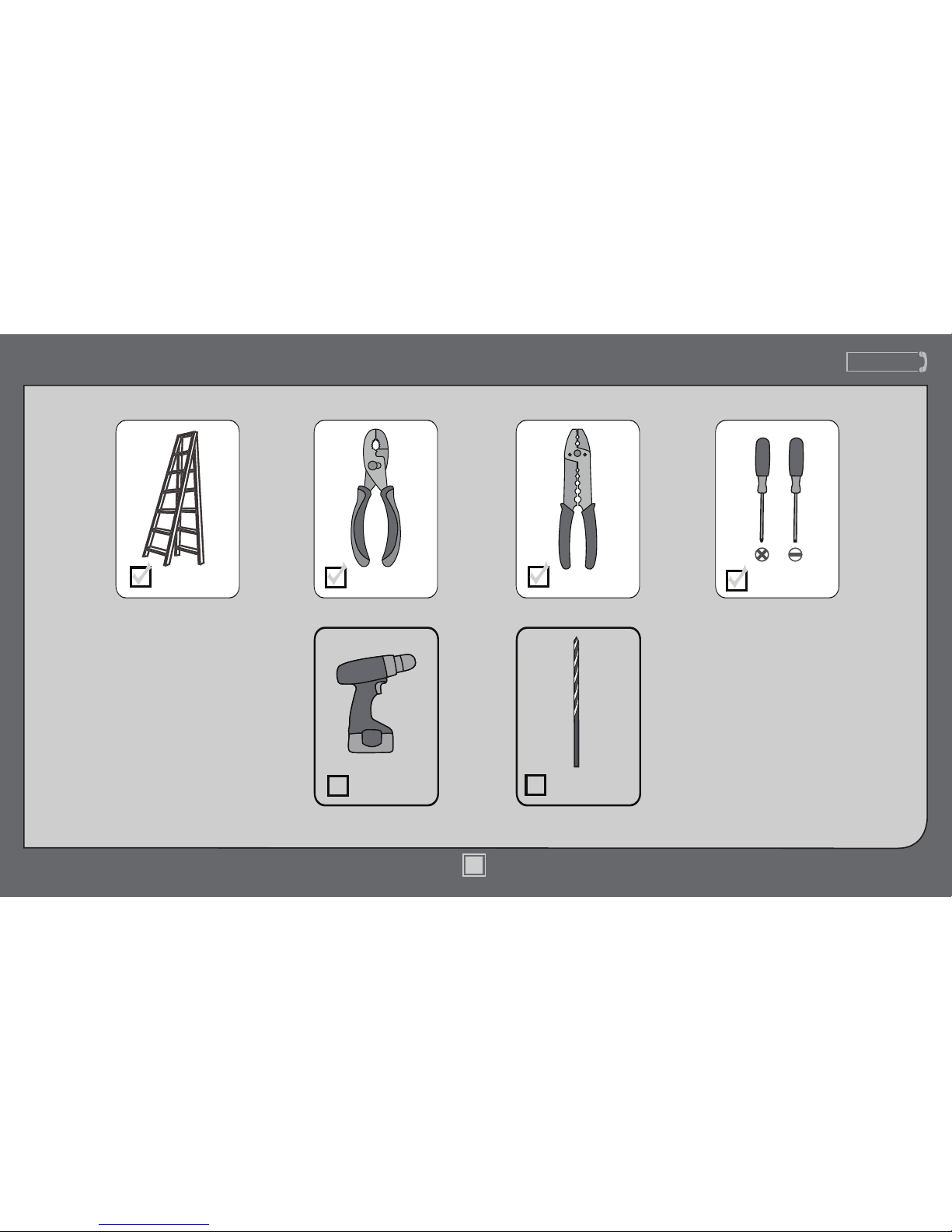

Tools Needed

Ladder

Power Drill

(optional)

9/64” Drill Bit

(optional)

Screwdrivers

Pliers Wire Strippers

If mounting to a support structure, you will also need these tools.

M0081-01 • 05/14/14 • © Hunter Fan Company

www.HunterFan.com 1.888.830.1326

M0081-01 • 05/14/14 • © Hunter Fan Company

1.866.268.1936

If you have an angled ceiling:

1. You will need a longer downrod (sold separately).

2. If your ceiling angle is greater than 34°, you will

also need an Angled Mounting Kit (sold separately).

Guide Touches

BOTH Ceiling & Wall

Guide Touches Wall

but

NOT Ceiling

You need BOTH

a Longer

Downrod &

an Angled

Mounting Kit

You need ONLY

a Longer

Downrod

*most common

If you have a at ceiling:

Hang your fan by a standard downrod (included).

Mounting Options

Use Standard Mounting

or Low-Prole Mounting

to hang the fan from a at ceiling.

Use Angled Mounting

to hang the fan from a

vaulted or angled ceiling.

34OCEILING

WALL

OPTION

Standard

Mounting

OPTION 2

Angled

Mounting

2 3

SLIDE

toward ceiling

PLACE

against wall

FOLD

on dotted line

34°

Use the three steps below to determine if your ceiling angle is greater than 34°

www.HunterFan.com

Support

Structure

Ceiling

Outlet Box

(required)

Angled

Mounting

Style

Standard

Mounting

Style

Support

Structure

Ceiling

Outlet Box

(required)

M0081-01 • 05/14/14 • © Hunter Fan Company

www.HunterFan.com 1.888.830.13261.888.830.1326

www.HunterFan.com

Ceiling Bracket

Refer to warning w.1 on pg. 2

To avoid possible electrical shock, before

installing your fan, disconnect the power by

turning off the circuit breakers to the outlet

box associated with the wall switch location.

For angled ceilings, point

opening toward peak.

If you are unable to do this,

call Technical Support at

1-888-830-1326.

Make sure all four bumpers are

still attached.

Use wood screws

(included) when securing

to support structure with

approved electrical outlet

box. Drill 9/64” pilot holes

in support structure to aid

in securing ceiling bracket

with hardware found in

the hardware bag.

Use machine screws

(provided with outlet

box) when securing to

existing ceiling fan-rated

outlet box. Make sure

it is securely installed

and is acceptable for fan

support of 31.8 kg (70 lbs)

or less.

OFF

Turn Power

M0081-01 • 05/14/14 • © Hunter Fan Company

www.HunterFan.com 1.888.830.13261.888.830.1326

www.HunterFan.com

Preparation

Remove the shipping blocks from the

motor. Save the screws. They will be

needed for blade iron installation.

Note: Some fans will have a shipping

ring instead of shipping blocks. Please

remove the ring and save the screws.

Time Saver Tip: Get a helper

to insert grommets, found in

the hardware bag, into the

blades while you’re doing the

next couple of steps.

If you are installing multiple remote-controlled

fans on the same circuit breaker,

you may need to perform a few extra steps to

prevent interference or faulty operation of your

remote controls.

Go to www.HunterFan.com/FAQs and click

“How do I properly install multiple remote-

controlled fans?” for more information.

M0081-01 • 05/14/14 • © Hunter Fan Company

1.888.830.1326

Downrod

Slide

1 2 3 4 5

678910

Sold Separately

Included

Longer

Downrod

for angled

ceilings or

ceilings 10’ or

higher

Shorter

Downrod

for fans installed

close to ceiling

Standard

Downrod

for ceilings 8-10’ high

Option 1Option 2

Option 3

skip to next page

If you need a different downrod length follow these steps:

Steps 1-5 to remove standard downrod pipe

Steps 6-10 to reassemble with new pipe

Included

(pre-assembled)

www.HunterFan.com

M0081-01 • 05/14/14 • © Hunter Fan Company

KEEP!

8”

3/8”

(not to scale)

Remove the pre-installed

setscrew so that the downrod

can be inserted.

Hand tighten the downrod (at

least 4-5 full turns) until it stops.

The wires can be cut, but

leave at least 8” extending

from the top of the downrod.

Downrod (continued)

8” 3/8”

Tighten the setscrew

with pliers. DO NOT

HAND TIGHTEN.

If the setscrew is not tightened

securely, the fan may fall.

1.888.830.1326

www.HunterFan.com

M0081-01 • 05/14/14 • © Hunter Fan Company

1.888.830.1326

M0081-01 • 05/14/14 • © Hunter Fan Company

www.HunterFan.com

Downrod (continued)

DO NOT PICK THE FAN UP BY THE

CANOPY OR WIRES. Place the downrod

ball into the slot in the ceiling bracket.

Put the wires and downrod through the

canopy. Let the canopy sit loosely on top

of the fan.

www.HunterFan.com 1.888.830.1326

Wiring

Turn the splices upward and push them carefully back through the hanger bracket

into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

Refer to CAUTION c.1 on pg. 2

Using an orange wire

connector from

the hardware

bag, connect the

3 grounding wires

(green, green/yellow

stripe, or bare copper)

coming from the

ceiling, downrod, and

hanging bracket.

green/yellow

stripe (grounding)

green/yellow

stripe

green/yellow stripe

black

blue

yellow

blue

Note: To connect the

wires, hold the bare

metal leads together and

place a wire connector

over them, then twist

clockwise until tight.

Using the orange

wire connectors

from the remote

control hardware

bag, connect the blue

wire from the receiver

to the blue wire (or

possibly black with

white stripe wire) from

the fan. Connect the

yellow wire from the

receiver to the black

wire from the fan.

Using the orange wire

connectors from

the hardware bag,

connect the black wire

(ungrounded) from

the ceiling to the black

wire from the receiver.

Connect the white

wire (grounded) from

the ceiling to both the

white wire from the

receiver and the white

wire from the fan.

black

(ungrounded)

white (grounded)

black

white

Other manuals for CEILING FAN

Table of contents

Other Casablanca Fan manuals

Casablanca

Casablanca CEILING FAN User manual

Casablanca

Casablanca Perseus Service manual

Casablanca

Casablanca FOUR SEASONS III User manual

Casablanca

Casablanca Capistrano 54029 Instruction manual

Casablanca

Casablanca Silhouette II User manual

Casablanca

Casablanca Trident User manual

Casablanca

Casablanca Le Grande User manual

Casablanca

Casablanca Heritage 59527 User manual

Casablanca

Casablanca 59065 User manual

Casablanca

Casablanca AURORA II User manual

Casablanca

Casablanca WAILEA User manual

Casablanca

Casablanca 19 Century User manual

Casablanca

Casablanca ESTRADA User manual

Casablanca

Casablanca Compass Point 54010 User manual

Casablanca

Casablanca 42900-01W User manual

Casablanca

Casablanca Stealth User manual

Casablanca

Casablanca Reverie User manual

Casablanca

Casablanca FOUR SEASONS III User manual

Casablanca

Casablanca Cottage Wet User manual

Casablanca

Casablanca 54005 User manual

Casablanca

Casablanca Verrazano User manual

Casablanca

Casablanca Zephair User manual

Casablanca

Casablanca Adelaide 54116 User manual

Casablanca

Casablanca Marrakesh User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
