Casablanca 54022 User manual

www.CasablancaFanCo.com 1.888.227.2178

PAGE

30 inches

7 feet

PAGE

What to Expect with

Your Installation Ceiling Bracket

Installation

Ladder

PAGE

Tools Needed

Wiring Canopy

Maintenance &

Cleaning Troubleshooting

DownrodPreparation

PAGE

Blades Switch Housing Light Kit

Congratulations on purchasing

your new Casablanca® ceiling

fan! It will provide comfort and



for many years. This installation

and operation manual contains

complete instructions for installing

and operating your fan.

We are proud of our work and

appreciate the opportunity to

supply you with the best ceiling fan

available anywhere in the world.

To register your fan please visit:

www.CasablancaFanCo.com/register

Table of Contents

Operation

PAGE

Mounting Options



www.CasablancaFanCo.com 1.888.227.2178

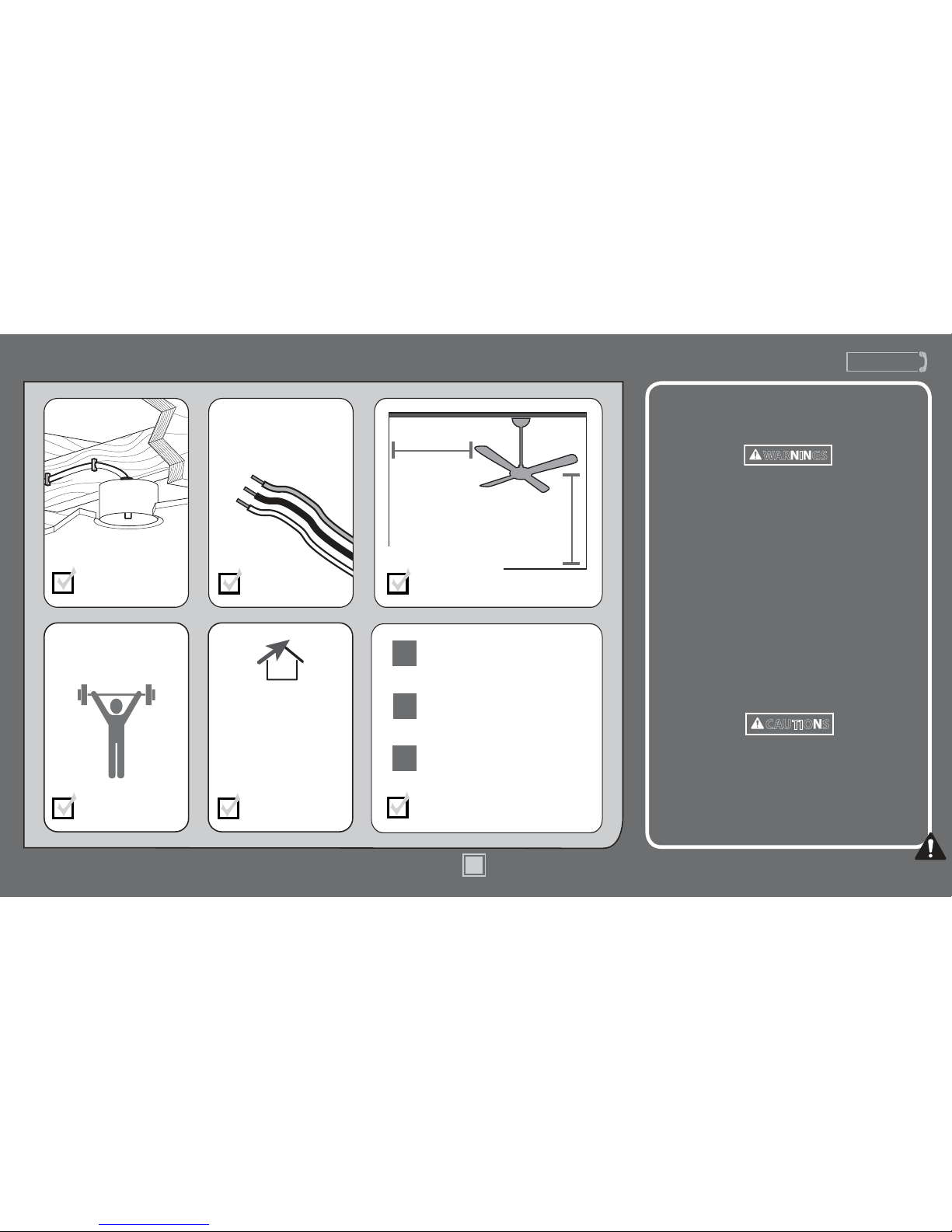

What to Expect with Your Installation

Know your wiring

If you are unfamiliar

with wiring, use a



You may need a

friend to help you.

Check box to see

fan weight

Assess location

30 inches

from blade tip to

nearest wall or

obstruction 7 feet

From bottom

edge of blade



Select a downrod length

Assess ceiling angle

Must be able to

secure the fan to

building structure or

fan-rated outlet box

Standard Downrod

for ceilings 8-10 feet high

Shorter Downrod

for fans installed close to ceiling

Longer Downrod

for ceilings 10 feet or higher



personal injury, mount fan directly from building

structure and/or an outlet box marked acceptable for

fan support of 70 lbs (31.8 kg) and use the mounting

screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing

or servicing your fan, disconnect the power by turning

off the circuit breakers to the outlet box and associated

wall switch location. If you cannot lock the circuit

breakers in the off position, securely fasten a prominent

warning device, such as a tag, to the service panel.

w.3 - 

damage, use only Casablanca Solid State Speed Controls.



blade brackets when installing the blade brackets, balancing

the blades, or cleaning the fan. Do not insert foreign objects

in between rotating fan blades.

c.1 - All wiring must be in accordance with national and

local electrical codes ANSI/NFPA 70. If you are unfamiliar



c.2 - Use only Casablanca replacement parts.

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

CAUTIONS

Ceiling angles greater



Angled Mounting Kit.





www.CasablancaFanCo.com 1.888.227.2178



Tools Needed

Ladder

Power Drill

(optional)



(optional)

Screwdrivers

Pliers Wire Strippers

If mounting to a support structure, you will also need these tools.

www.CasablancaFanCo.com 1.888.227.2178



If you have an angled ceiling:

1. You will need a longer downrod (sold separately).

 will

also need an Angled Mounting Kit (sold separately).

Guide Touches

BOTH Ceiling & Wall

Guide Touches Wall

but

NOT Ceiling

You need BOTH

a Longer

Downrod &

an Angled

Mounting Kit

You need ONLY

a Longer

Downrod

*most common



Hang your fan by a standard downrod (included).

Mounting Options

Support

Structure

Ceiling

Outlet Box

(required)

Angled

Mounting

Style

Standard

Mounting

Style

Support

Structure

Ceiling

Outlet Box

(required)

Use Standard Mounting

or 



Use Angled Mounting

to hang the fan from a

vaulted or angled ceiling.

34OCEILING

WALL

OPTION

Standard

Mounting

OPTION 2

Angled

Mounting

2 3

SLIDE

toward ceiling

PLACE

against wall

FOLD

on dotted line



Use the three steps below to determine if your ceiling angle is greater than 34°

1.888.227.2178



www.CasablancaFanCo.com 1.888.227.2178

1.888.227.2178

www.CasablancaFanCo.com

Ceiling Bracket Installation

OFF



are still attached.

For angled ceilings, point

opening toward peak.

Refer to warning w.1 on pg. 2

To avoid possible electrical shock, before

installing your fan, disconnect the power by

turning off the circuit breakers to the outlet

box associated with the wall switch location.

If you are unable to do this,

call Technical Support at

1-888-227-2178.

Use wood screw

(included) when securing

to support structure with

approved electrical outlet



in support structure to aid

in securing ceiling bracket

with hardware found in

the hardware bag.

Use machine screw

(provided with outlet

box) when securing to

existing ceiling fan-rated

outlet box. Make sure

it is securely installed

and is acceptable for fan

support of 31.8 kg (70 lbs)

or less.

Turn Power



www.CasablancaFanCo.com 1.888.227.2178

Ceiling Bracket Installation (continued) Preparation

Remove the shipping blocks from

the motor. 

They will be needed for blade iron

installation.

1.888.227.2178

www.CasablancaFanCo.com

Time Saver Tip:

Get a helper

to insert grommets, found in

the hardware bag, into the

blades while you’re doing the

next couple of steps.



www.CasablancaFanCo.com 1.888.227.2178

Downrod

Slide

1 2 3 4 5

678910

Sold Separately

Included

Longer

Downrod

for angled

ceilings or

ceilings 10’ or

higher

Shorter

Downrod

for fans installed

close to ceiling

Standard

Downrod

for ceilings 8-10’ high

Option 1Option 2

Option 3

skip to next page

If you need a different downrod length follow these steps:

Steps 1-5 to remove standard downrod pipe

Steps 6-10 to reassemble with new pipe

Included

(pre-assembled)



www.CasablancaFanCo.com 1.888.227.2178

KEEP!

8”

3/8”

(not to scale)

Remove the pre-installed

setscrew so that the downrod

can be inserted.

Hand tighten the downrod (at



The wires can be cut, but



from the top of the downrod.

Downrod (continued)

 

Tighten the setscrew

with pliers. DO NOT

HAND TIGHTEN.

If the setscrew is not tightened

securely, the fan may fall.



www.CasablancaFanCo.com 1.888.227.2178



Downrod (continued)

DO NOT PICK THE FAN UP BY THE

CANOPY OR WIRES. Place the downrod

ball into the slot in the ceiling bracket.

Put the wires and downrod through the

canopy. Let the canopy sit loosely on top

of the fan.

www.CasablancaFanCo.com 1.888.227.2178

Wiring

Turn the splices upward and push them carefully back through the hanger bracket

into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

Refer to CAUTION c.1 on pg. 2

Using an orange wire

connector from

the hardware bag,

connect the 3 grounding

wires (green, green/

yellow stripe, or bare

copper) coming from the

ceiling, downrod, and

hanging bracket.

(grounding) Green/Yellow

Stripe

Green/Yellow

Stripe

White

Black

(grounded)

Note: To connect the wires,

hold the bare metal leads

together and place a wire

connector over them, then twist

clockwise until tight.

Using the orange wire

connectors from

the hardware bag, connect

the black wire (ungrounded)

from the ceiling to the black

and the blue wires from the

fan. Connect the white wire

(grounded) from the ceiling to

the white wire from the fan.

Using orange wire

connectors from

the hardware bag,

connect the white wire

(grounded) from the

ceiling to the white wire

from the fan.

Connect the black wire

(ungrounded) from the

ceiling to the black wire

from the fan. Connect the

second (ungrounded) wire

from the ceiling to the blue

wire from the fan.

White

(Ungrounded)

Black

Blue

(Grounded)

(Ungrounded)

Blue

For Dual Switches

For a Single Switch

(ungrounded)


