Carrier 25VNA Operation manual

Product Data

25VNA

InfinityrVariable Speed Heat Pump

with GreenspeedtIntelligence

2to5NominalTons

Carrier’s 25VNA with GreenspeedtIntelligence is a breakthrough

product providing up to 13 HSPF heating efficiency and up to 20.5

SEER cooling efficiency. The variable speed capacity control

results in strong heating capacity as the outdoor temperature drops

resulting in less reliance on auxiliary heat. Lower speed operation,

when needed in cooling, for enhanced comfort and

dehumidification.

This product has been designed and manufactured to meet Energy

Starrcriteria for energy efficiency when matched with appropriate

coil components. Refer to the combination ratings in the Product

Data for system combinations that meet Energy Starrguidelines.

NOTE:Ratings contained in this document are subject to

change at any time. Always refer to the AHRI directory

(www.ahridirectory.org) for the most up--to--date ratings

information.

INDUSTRY LEADING

FEATURES / BENEFITS

Energy Efficiency

S16.8 -- 20 SEER/11.4 -- 16 EER/10.3 -- 13.0 HSPF

SMicrotube Technologytrefrigeration system

SIndoor air quality accessories available

Sound

SSound level as low as 58 dBA in low speed (Silencer System II).

Comfort

SVariable speed compressor with capacity range from 40--100%

SAir cooled Inverter variable speed drive

— System requires Infinity Control with Greenspeed

capability (SYSTXCCUID01--V or SYSTXCCUIZ01--V

or newer)

Reliability

SPuronrrefrigerant -- environmentally sound, won’t deplete the

ozone layer and low lifetime service cost.

SFront--seating service valves

SGreenspeed Intelligence actively monitors critical system

parameters

SHigh pressure switch

SSuction pressure transducer

SElectronic expansion valve (EXV) for heating, TXV for cooling

SFilter drier (field installed)

SExternal Muffler (field installed)

SInternal crankcase heater standard

Flexibility and installation:

S2 control wires to outdoor unit

SMinimum and Maximum airflow adjustments

SCompressor Heating RPM control

SHybrid Heattdual fuel capable

Durability

WeatherArmor Ultratprotection package:

SSolid, Durable sheet metal construction

SSteel louver coil guard

SBaked--on, complete outer coverage, powder paint

Applications

SLong--line -- up to 250 feet (76.2 m) total equivalent length, up

to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft.

(24.38 m) evaporator above condenser (See Longline Guide for

more information.)

MODEL NUMBER NOMENCLATURE

12 3 4 5 6 78 9 10 11 12 13

N N A A A/N N N N A/N A/N A/N N N

25 V N A 0 36 A 0 0 3 0

Product

Series

Product

Family Tier Major

Series SEER Cooling

Capacity Variations Open Open Voltage Minor

Series

25=HP V=VSHP N=

Infinity Series A = Puron 20= SEER 1,000 Btuh

(nominal) A=Standard 0=Not

Defined

0=Not

Defined 3=208/230---1 0, 1, 2...

This product has been designed and manufactured to

meet Energy Star®criteria for energy efficiency when

matched with appropriate coil components. However,

proper refrigerant charge and proper air flow are critical

to achieve rated capacity and efficiency. Installation of

this product should follow all manufacturing refrigerant

charging and air flow instructions. Failure to confirm

proper charge and air flow may reduce energy

efficiency and shorten equipment life.

Use of the AHRI Certified

TM Mark indicates a

manufacturer’s

participation in the

program For verification

of certification for individual

products, go to

www.ahridirectory.org.

the environmentally sound refrigerant

STANDARD FEATURES

FEATURES

Unit Size --- Voltage, Series

24---30 36 ---30 48---30 60 ---30

Puron Refrigerant X X X X

Louvered Coil Guard X X X X

Field Installed Filter Drier / External Muffler X X X X

Front Seating Service Valves X X X X

Internal Pressure and Temperature Protection X X X X

Long Line capability X X X X

Suction Pressure Transducer X X X X

High Pressure Switch X X X X

Crankcase Heater X X X X

Low ambient cooling down to 0_F capability

with Infinity Control X X X X

Utility Interface Connections X X X X

Enhanced Diagnostics with Infinity Control X X X X

Deluxe Sound Blanket X X X X

Outdoor Air Temperature Sensor X X X X

X=Standard

25VNA

REFRIGERANT PIPING LENGTH LIMITATIONS

Maximum Line Lengths:

The maximum allowable total equivalent length for heat pumps varies depending on the vertical separation. See the tables below for

allowable lengths depending on whether the outdoor unit is on the same level, above or below the outdoor unit.

Maximum Line Lengths for Heat Pump Applications

MAXIMUM ACTUAL LENGTH

ft (m)

MAXIMUM EQUIVALENT LENGTH{

ft (m)

MAXIMUM VERTICAL SEPARA-

TION ft (m)

Units on equal level 200 (61) 250 (76.2) N/A

Outdoor unit ABOVE

indoor unit 200 (61) 250 (76.2) 200 (61)

Outdoor unit BELOW

indoor unit See Table ’Maximum Total Equivalent Length: Outdoor Unit BELOW Indoor Unit’

{Total equivalent length accounts for losses due to elbows or fitting. See the Long Line Guideline for details.

Maximum Total Equivalent Length{-- Outdoor Unit BELOW Indoor Unit

Size

Liquid Line

Diameter

w/ TXV

HP with PuronrRefrigerant --- Maximum Total Equivalent Length{

Vertical Separation ft (m) Outdoor unit BELOW indoor unit;

0 --- 2 0

(0 --- 6.1)

21 --- 30

(6.4 --- 9.1)

31 --- 40

(9.4 --- 12.2)

41 --- 50

(12.5 --- 15.2)

51 --- 60

(15.5 --- 18.3)

61 --- 70

(18.6 --- 21.3)

71 --- 80

(21.6 --- 24.4)

024

HP with

Puron

3/8 250* 250* 250* 250* 250* 250* 250*

036

HP with

Puron

3//8 250* 250* 250* 250* 250* 250* 250*

048

HP with

Puron

3/8 250* 250* 250* 250* 230 160 --- ---

060

HP with

Puron

3/8 250* 225* 190 150 110 --- --- --- ---

* Maximum actual length not to exceed 200 ft (61 m)

{Total equivalent length accounts for losses due to elbows or fitting. See the Long Line Guideline for details.

--- --- = o u t s i d e a c c e p t a b l e r a n g e

LONG LINE APPLICATIONS

An application is considered Long Line when the refrigerant level in the system requires the use of accessories to maintain acceptable

refrigerant management for systems reliability. Defining a system as long line depends on the liquid line diameter, actual length of the tubing,

and vertical separation between the indoor and outdoor units.

For Heat Pump systems, the chart below shows when an application is considered Long Line. Beyond these lengths, long line accessories

are required:

HP WITH PURONrREFRIGERANT LONG LINE DESCRIPTION ft (m)

Beyond these lengths, long line accessories are required

Liquid Line Size Units On Same Level Outdoor Below Indoor Outdoor Above Indoor

3/8 80 (24.4) 20 (6.1) vertical or 80 (24.4) total 80 (24.4)

Note: SeeLongLineGuidelinefordetails

COOLING CAPACITY LOSS TABLE

Nominal

Size

(Btuh)

Line OD

(in.)

25VNA Cooling Capacity Loss (%)

Total Equivalent Line Length (ft)

25 50 75 80 100 125 150 175 200 225 250

24000

5/8 0.5 1.2 1.8 1.9 2.4 3.0 3.7 4.3 4.9 5.5 6.2

3/4 0.1 0.4 0.6 0.7 0.8 1.1 1.3 1.5 1.8 2.0 2.3

7/8 0.0 0.1 0.3 0.3 0.4 0.5 0.6 0.7 0.8 1.0 1.1

36000

5/8 1.1 2.4 3.7 4.0 5.0 6.3 7.7 9.0 10.3 11.6 12.9

3/4 0.3 0.8 1.3 1.4 1.8 2.3 2.8 3.2 3.7 4.2 4.7

7/8 0.0 0.3 0.5 0.6 0.8 1.0 1.3 1.5 1.8 2.0 2.3

48000

3/4 0.7 1.6 2.4 2.6 3.2 4.1 4.9 5.7 6.5 7.4 8.2

7/8 0.3 0.7 1.1 1.2 1.6 2.0 2.4 2.8 3.2 3.6 4.1

11/8 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

60000

3/4 1.0 2.3 3.5 3.8 4.8 6.0 7.3 8.5 9.8 11.0 12.3

7/8 0.4 1.0 1.7 1.8 2.3 2.9 3.5 4.2 4.8 5.4 6.0

11/8 0.0 0.1 0.3 0.4 0.5 0.7 0.8 1.0 1.2 1.4 1.5

Rating Line Size in Bold

TE Length Greater than 80 ft requires Long Line Accessory Liquid Line Solenoid

25VNA

EQUIPMENT SIZING GUIDELINES

If primary load is cooling, size the same as any other air conditioning system. If primary load is heating, use the chart below for maximum

size for heating.

MAXIMUM RECOMMENDED EQUIPMENT SIZE -- HEATING

COOLING LOAD (tons) MAXIMUM RECOMMENDED EQUIPMENT SIZE FOR HEATING*

236

2.5 36

348

3.5 60

460

560

* Make sure duct work is capable of delivering required airflow . Make sure combination rating exists for desired combination.

MIN/MAX AIRFLOW TABLES

The indoor airflow delivered by this system varies significantly

based on outdoor temperature, indoor unit combination, and

system demand. The airflows on these tables are for duct design

considerations. Duct systems capable of these ranges will ensure

the system will deliver full capacity at all outdoor temperatures.

Minimum and maximum airflows can be adjusted from these

numbers in the Infinity Control Heat Pump Setup screen.

Cooling --- Comfort Mode Minimum Cooling

(Dehum or Zoning)

Size Max Capacity Min Capacity

24 726 651 398

36 1168 651 398

48 1394 1186 693

60 1650 1186 693

Cooling --- Efficiency Mode

Size Max Capacity Min Capacity

24 949 830

36 1334 830

48 1593 1355

60 1885 1355

Heating --- Comfort Mode

Size Max Capacity Min Capacity

24 698 440

36 1140 451

48 1354 751

60 1354 751

Heating --- Efficiency Mode

Size Max Capacity Min Capacity

24 900 750

36 1350 750

48 1600 890

60 1750 901

25VNA

PHYSICAL DATA

UNIT SIZE SERIES 24 --- 30 36 --- 30 48 --- 30 60 --- 30

Operating Weight lb (kg) 324 (147) 324 (147) 334 (152) 334 (152)

Shipping Weight lb (kg) 367 (167) 367 (167) 375 (170) 375 (170)

Compressor Type Variable Speed Scroll

REFRIGERANT Puron®(R ---410A)

Control TXV (Puron®Hard Shutoff)

Charge lb (kg) 13.12 (5.95) 13.12 (5.95) 13.30 (6.03) 13.30 (6.03)

Outdoor Htg Exp. Device EXV EXV EXV EXV

COND FAN Forward Swept Propeller Type, Direct Drive

Air Discharge Vertical

Air Qty (CFM) 2700 4269 4350 5000

Motor HP 1/3 1/3 1/3 1/3

Motor RPM 500---900 500---900 500---900 500 ---900

COND COIL

Face Area (Sq ft) 30.25 30.25 30.25 30.25

Fins per In. 20 20 20 20

Rows 2 2 2 2

Circuits 8 8 9 9

VALVECONNECT.(In.ID)

Vapor 7/8 7/8 7/8 7/8

Liquid 3/8

REFRIGERANT TUBES (In. OD)

Rated Vapor* 7/8 7/8 1 --- 1 / 8 1 --- 1 / 8

Max Liquid Line 3/8

* Units are rated with 25 ft (7.6 m) of lineset length. See Vapor Line Sizing and Cooling Capacity Loss table when using other sizes and lengths of lineset.

Note: See unit Installation Instruction for proper installation.

ACCESSORIES

KIT NUMBER KIT NAME 24---30 36---30 48---30 60---30

KHAEM0101EMI ELECTRO--- MAGNETIC INTERFERENCE

KIT X X X X

KHALS0401LLS SOLENOID VALVE X X X X

KHASS0606MPK* SNOW STAND X X X X

KSASF0101AAA SUPPORT FEET X X X X

KSATX0301PUR TXV X X

KSATX0401PUR TXV X

KSATX0501PUR TXV X

STANDARD CRANKCASE HEATER S S S S

x = Accessory S = Standard * Available from RCD

CONTROLS

SYSTXCCITN01 Infinity Touch Control (non---Wi---Fi)

SYSTXCCITW01 Infinity Touch Control with Wi--- Fi & Wireless Access Point

SYSTXCCUID01 ---V Infinity Control Deluxe 7--- Day Programmable (Wall---mounted system control.)

SYSTXCCUIZ01---V Infinity Control Deluxe Zoning 7---Day Programmable (Wall---mounted control for a multi--- zone system.)

SYSTXCC4ZC01 Infinity 4---Zone Damper Control Module (Wall---mounted control for a four--- zone system.)

SYSTXCCSMS01 Infinity Smart Sensor (Optional wall control used to monitor temperature and/or fan control in an individual zone.)

SYSTXCCRRS01 Infinity Remote Room Sensor (Monitors temperature in an individual zone.)

SYSTXCCRCT01 or

SYSTXCCRWF01 Infinity System Access Module (Hardware for wireless access and control via internet.)

SYSTXCCNIM01 Infinity Network Interface Module (Connects Heat Recovery and Energy Recovery Ventilators on non---zoning

applications.)

SYSTXX0LBP01 Decorative Back Plate for Infinity Control (Decorative wall plate.)

25VNA

ACCESSORY USAGE GUIDELINE

ACCESSORY

REQUIRED FOR

LOW--- AMBIENT COOLING APPLICA-

TIONS

(Below 55°F/12.8_C)

REQUIRED FOR LONG LINE AP-

PLICATIONS*

(Over 80 ft/24.38 m)

REQUIRED FOR SEA COAST

APPLICATIONS (Within 2

miles/3.22 km)

Crankcase Heater Standard Standard Standard

Evaporator Freeze Protection Standard with InfinitytControl No No

Liquid---Line Solenoid Valve No Yes No

Low--- Ambient Control Standard with Infinity Control No No

Puron Refrigerant Balance Port Hard ---

ShutOff TXV Ye s {Ye s{Ye s {

Support Feet Recommended No Recommended

Winter Start Control Standard with Infinity Control No No

* For tubing set lengths between 80 and 200 ft. (24.38 and 60.96 m) horizontal or 20 ft. (6.10 m) vertical differential (total equivalent length), refer to the Long

Line Guideline—Air Conditioners and Heat Pumps using Puron®Refrigerant.

{Required on all indoor units. Standard on all new Greenspeed™ compatible fan coils and furnace coils.

Accessory Description and Usage (Listed Alphabetically)

1. Compressor Start Assist

The inverter drive gently starts the variable speed compressor at all

times. No other start device is compatible with this unit.

2. Crankcase Heater

Compressor motor winding resistance heater which is internal to

compressor to keep the lubricant warm during off cycles. Improves

compressor lubrication on restart and minimizes the chance of

liquid slugging.

Usage:

Used in low ambient cooling applications.

Used in long line applications.

3. Liquid--Line Solenoid Valve (LLS)

An electrically operated shutoff valve which stops and starts

refrigerant liquid flow in response to compressor operation. It is to

be installed at the outdoor unit to control refrigerant off cycle

migration in the heating mode.

Usage Guideline:

An LLS is required in all long line heat pump

applications to control refrigerant off cycle migration in

the heating mode. See Long Line Guideline.

Suggested for all commercial applications.

4. Snow Stand

Coated wire rack which supports unit 18 in. (457.2 mm) above

mounting pad to allow for drainage from unit base.

Usage Guideline:

Suggested in the following applications:

Heat pump installations in heavy snowfall areas.

Heat pump installations in snow drift locations.

Heat pump installations in areas of prolonged

subfreezing temperatures.

All commercial installations.

5. Thermostatic Expansion Valve (TXV) Bi--Flow

A modulating flow--control valve which meters refrigerant liquid

flow rate into the evaporator in response to the superheat of the

refrigerant gas leaving the evaporator.

Usage Guideline:

Accessory required to meet AHRI rating and system

reliability, where indoor not equipped.

Required in all heat pump applications designed with

Puron refrigerant.

6. Electro--Magnetic Interference Kit

Usage Guideline:

May be required to address radio frequency interference

for equipment, such as HAM radios, operating between 6

and30mHz.

25VNA

ELECTRICAL DATA

UNIT

S I Z E ---

VOLTAGE,

SERIES

V/PH

OPER VOLTS* COMPR FAN

MCA

MIN

WIRE

SIZE{

MIN

WIRE

SIZE{

MAX

LENGTH

ft (m)}

MAX

LENGTH

ft (m)}

MAX

FUSE*

*or

CKT

BRK

AMPS

MAX MIN LRA RLA FLA 60°C75°C60°C75°C

24 --- 30

208---230 ---1 253 197

24 16.5 2.9 23.5 12 12 52 (15.9) 50 (16.2) 30

36 --- 30 24 16.5 2.9 23.5 12 12 52 (15.9) 50 (16.2) 40

48 --- 30 42 27.0 2.9 36.6 8 8 84 (25.6) 80 (24.3) 50

60 --- 30 42 27.0 2.9 36.6 8 8 84 (25.6) 80 (24.3) 50

* Permissible limits of the voltage range at which the unit will operate satisfactorily

{If wire is applied at ambient greater than 30_C , c o n s u l t t a b l e 3 1 0 --- 1 6 o f t h e N E C ( N F PA 7 0 ) . T h e a m p a c i t y o f n o n --- m e t a l l i c --- s h e a t h e d c a b l e ( N M ) ,

trade name ROMEX, shall be that of 60_C conditions, per the NEC (NFPA 70) Article 336 ---26. If other than uncoated (no ---plated), 60 or 75_C

insulation, copper wire (solid wire for 10 AWG or smaller, stranded wire for larger than 10 AWG) is used, consult applicable tables of the NEC (NFPA 70).

}Length shown is as measured 1 way along wire path between unit and service panel for voltage drop not to exceed 2%.

* * T i m e --- D e l a y f u s e .

FLA --- Fu l l L o a d A m p s

LRA --- L o c k e d R o t o r A m p s

M C A --- Minimum Circuit Amps

RLA --- RatedLoadAmps

NOTE: Control circuit is 24---V on all units and requires external power source. Copper wire must be used from service disconnect to unit.

All motors/compressors contain internal overload protection.

Complies with 2010 requirements of ASHRAE Standards 90.1

SOUND POWER LEVEL (dBA)

Unit Size --- Voltage, Series

Typical Octave Band

Spectrum

(without tone adjust-

ment)

Min Speed

Cooling

Max Speed

Cooling

*Min Speed

Heating

*Max Speed

Heating

024 --- 30

Freq (Hz) 1800 RPM 3200 RPM 1800 RPM 5700 RPM

125 62.0 63.0 63.0 73.5

250 57.0 56.5 61.5 63.0

500 54.5 57.5 58.5 66.0

1000 52.0 58.0 54.5 63.5

2000 47.5 54.0 51.5 64.5

4000 44.5 48.0 48.0 59.5

8000 52.5 54.5 54.0 61.5

Sound Rating (dBA) 58 63 62 71

036 --- 30

Freq (Hz) 1800 RPM 4500 RPM 1800 RPM 6850**

125 62.0 64.5 63.0 67.0

250 57.0 60.5 61.5 67.5

500 54.5 61.0 58.5 69.0

1000 52.0 61.0 54.5 67.0

2000 47.5 56.0 51.5 67.0

4000 44.5 51.0 48.0 63.0

8000 52.5 54.5 54.0 61.5

Sound Rating (dBA) 58 65 62 75

048 --- 30

Freq (Hz) 1800 RPM 3450 RPM 1800 RPM 6300**

125 62.0 70.0 66.0 73.5

250 60.5 67.5 63.0 69.5

500 56.0 67.0 63.0 73.5

1000 59.0 63.0 58.0 72.0

2000 54.0 60.0 53.5 66.5

4000 52.5 56.0 50.0 65.5

8000 58.5 58.5 57.0 63.0

Sound Rating (dBA) 65 70 64 76

060 --- 30

Freq (Hz) 1800 RPM 4250 RPM 1800 RPM 6300**

50 62.0 65.0 66.0 73.5

100 60.5 67.5 63.0 69.5

200 56.0 67.5 63.0 73.5

400 59.0 66.5 58.0 72.0

800 54.0 61.0 53.5 66.5

1600 52.5 60.5 50.0 65.5

3150 58.5 59.0 57.0 63.0

Sound Rating (dBA) 65 72 64 76

NOTE: Tested in compliance with AHRI 270---2008 but not listed with AHRI.

* 024 & 036 tested at 44_F Outdoor Air Temperature. 048 & 060 tested at 40_F

**Testable RPM limited by outdoor temp. Max unit RPM is 6500 for the 4 ton and 7000 for the 3 and 5 ton.

CHARGING SUBCOOLING (TXV--TYPE EXPANSION DEVICE)

UNIT SIZE --- VOLTAGE, SERIES REQUIRED SUBCOOLING _F(_C ) --- S e e U I

24 --- 30

Subcooling recommendation displayed on UI in Charging Mode must be followed

36 --- 30

48 --- 30

60 --- 30

25VNA

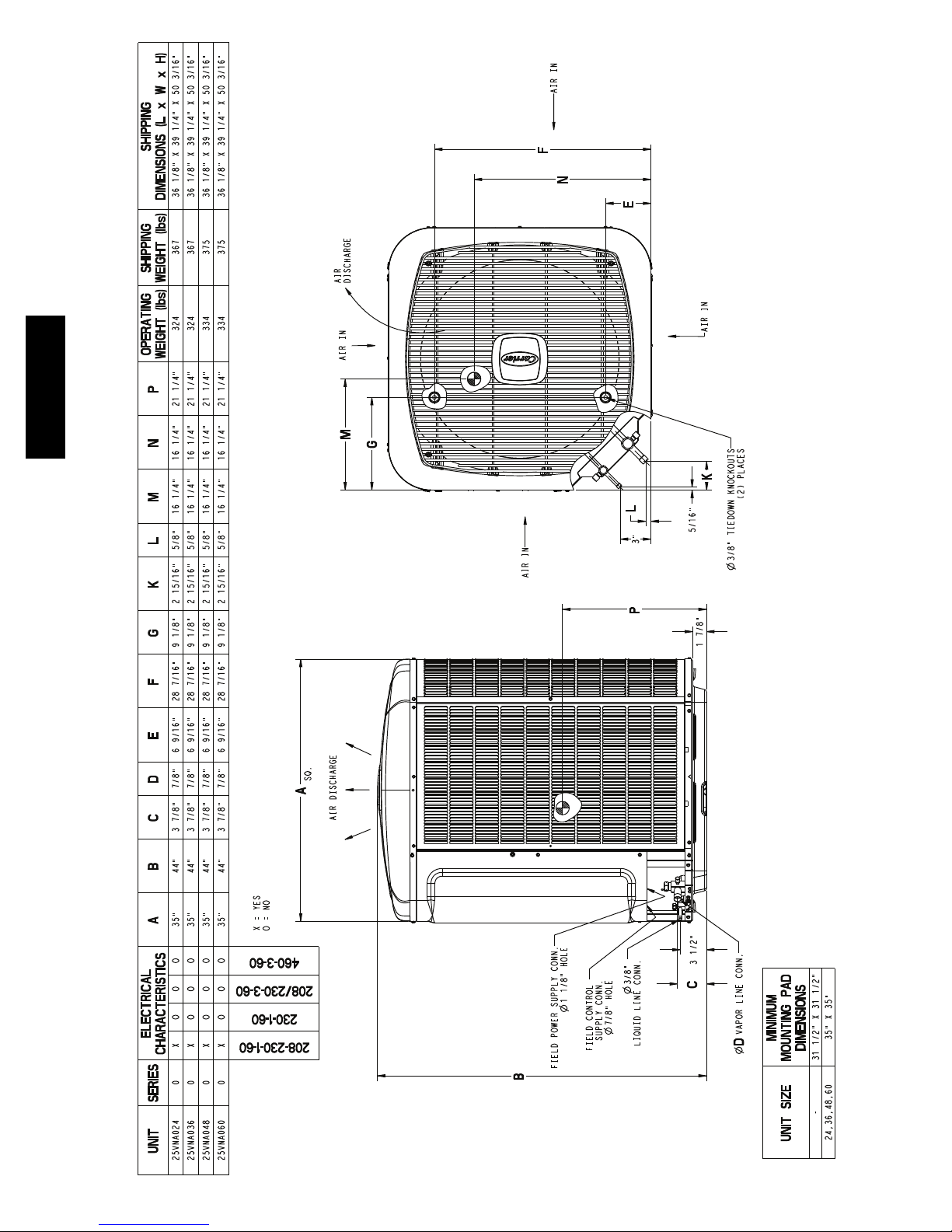

DIMENSIONS -- ENGLISH

25VNA

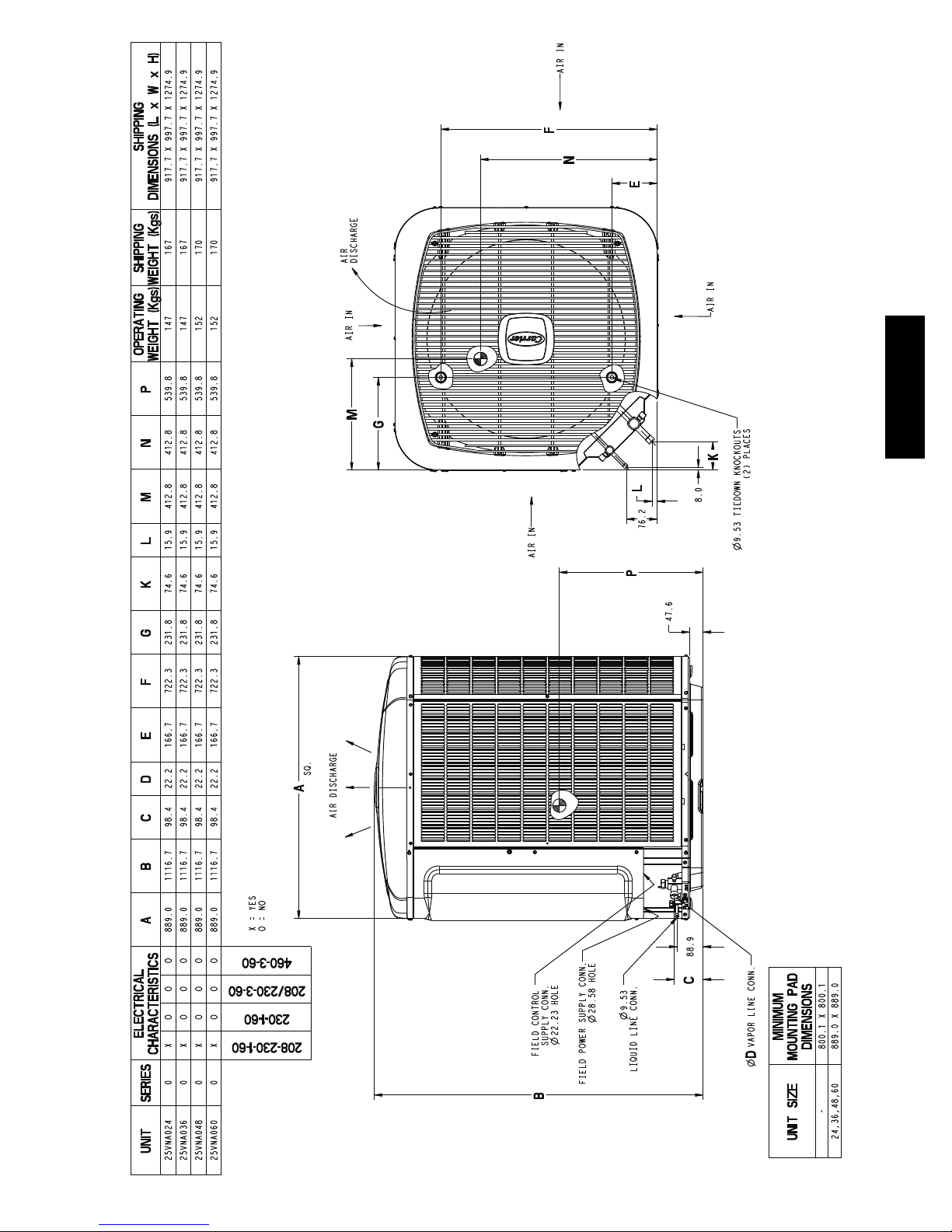

DIMENSIONS -- SI

25VNA

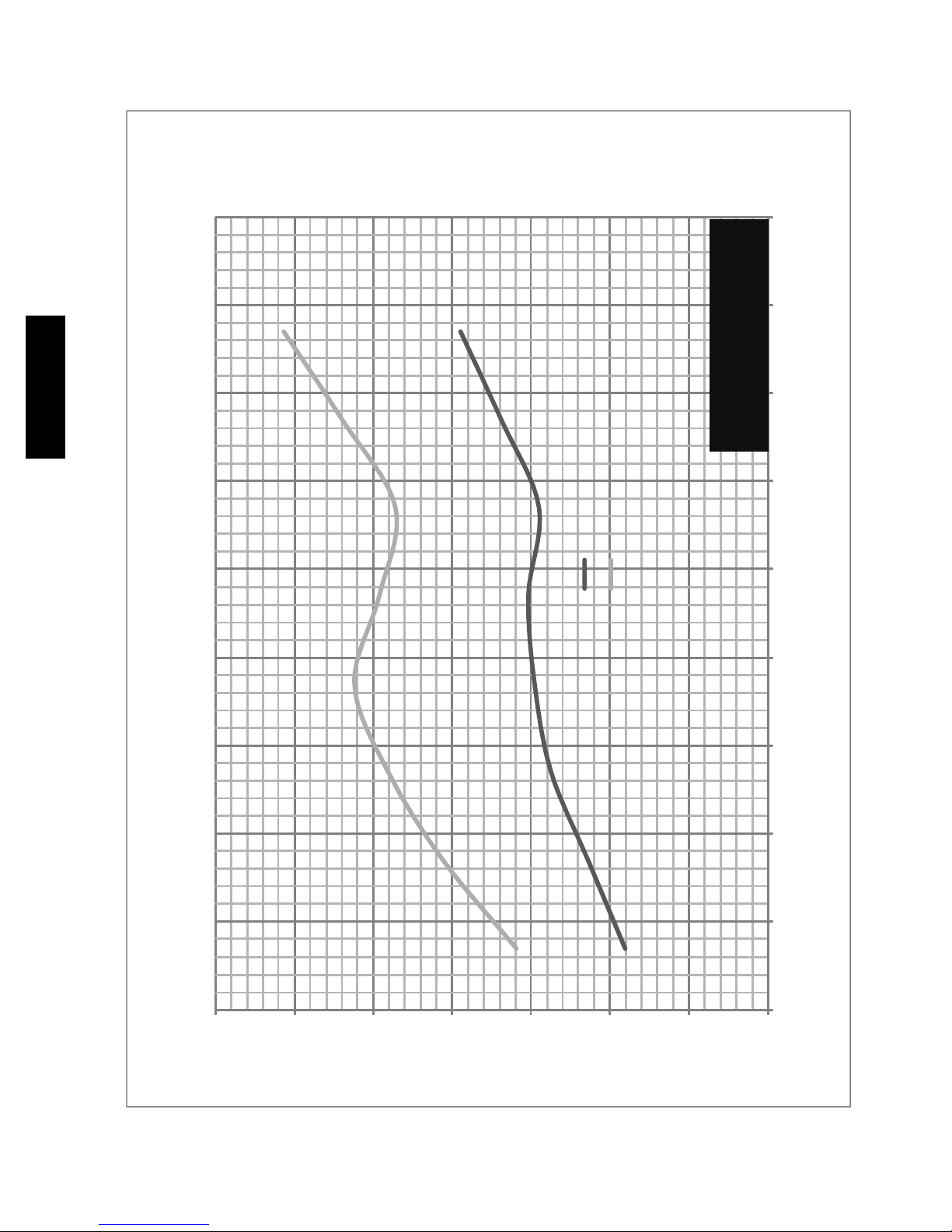

25VNA BALANCE POINT WORKSHEET

0.00

5.00

10.00

15.00

20.00

25.00

30.00

35.00

-10 0 10 20 30 40 50 60 70 80

BUILDING HEAT LOSS, UNIT INTEGRATED HEATING CAPACITY, MBTUH

OUTDOOR TEMPERATURE F (C)

25VNA024 BALANCE POINT WORK SHEET

(MINIMUM & MAXIMUM HEATING CAPACITIES)

Minimum Capacies

Maximum Capacies

0.00

2.9

5.9

8.8

(-23.3)

(-17.8)

(-12.2)

(-6.7)

(-1.1)

(4.4)

(10)

(15.6)

(21.1)

(26.7)

BASED ON INDOOR ENT. AIR AT

70°F (21.1°C )

25VNA

Other manuals for 25VNA

Table of contents

Other Carrier Heat Pump manuals

Carrier

Carrier 50HJQ014 Dimensions and installation guide

Carrier

Carrier WeatherMaster 50HCQA05 Installation and user guide

Carrier

Carrier 38QW Dimensions and installation guide

Carrier

Carrier CH16NA User manual

Carrier

Carrier CRPWREXH030A01 User manual

Carrier

Carrier 38TH Instructions and recipes

Carrier

Carrier Weathermaster III 38HQ Dimensions and installation guide

Carrier

Carrier 48XZ Guide User manual

Carrier

Carrier 38BQ Dimensions and installation guide

Carrier

Carrier 25HBR3 Operation manual

Carrier

Carrier 50EN Manual

Carrier

Carrier WSHP Open v3 Quick setup guide

Carrier

Carrier 50HQ Dimensions and installation guide

Carrier

Carrier 50TCQD14 User manual

Carrier

Carrier 12K User manual

Carrier

Carrier 50PEC09-18 Aquazone Dimensions and installation guide

Carrier

Carrier 25HBA3 Series Manual

Carrier

Carrier 38YV Infinity 2000 User manual

Carrier

Carrier GT-PX Quick start guide

Carrier

Carrier WEATHERMAKER 50TFQ008 Dimensions and installation guide

Carrier

Carrier 38AH044 38AH044-134 Quick guide

Carrier

Carrier 50ZHA Guide User manual

Carrier

Carrier XCT 7 40VU005~018C-7S-QEE Installation instructions

Carrier

Carrier AQUAZONE PCV015-060 Quick guide

Popular Heat Pump manuals by other brands

MICROWELL

MICROWELL HP 1000 GREEN Installation and user manual

Sanyo

Sanyo SAP120FCH Service manual

Daikin

Daikin EHYHBH05AA Operation manual

Panasonic

Panasonic WH-SDF03E3E5 Design handbook

Bryant

Bryant 544B Specifications

Airxcel

Airxcel 45000 Series Installation, operation and maintenance instructions

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Service manual

Dimplex

Dimplex LI 16I-TUR Installation and operating instruction

TGM

TGM CTV14CN018A Technical manual

Kokido

Kokido K2O K880BX/EU Owner's manual & installation guide

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Installation and service instructions

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Installation and service instructions for contractors

Ariston

Ariston NIMBUS user manual

Weishaupt

Weishaupt WWP L 7 Installation and operating instruction

GE Zoneline AZ85H09EAC datasheet

Bryant

Bryant Preferred Series installation instructions

Daikin

Daikin altherma EJHA04AAV3 installation manual

Bryant

Bryant 549B Series Installation, Start-Up and Service Instructions
