Carrier 58CLA Operation manual

58CLA

L o w --- B o y O i l F u r n a c e

Input Capacities: 70,000 thru 154,000 BTUH

Series 140

Product Data

A06626

THE LATEST IN OIL FURNACE

TECHNOLOGY

The model 58CLA combines high efficiency and quiet operation

with oil heating technology. The 58CLA is available in 2 sizes.

Each size can be fired at 3 different rates by a simple nozzle and

pump pressure change. Unit 58CLA105 covers input ranges from

70,000 to 105,000 BTUH. Unit 58CLA120 covers input ranges

from 119,000 to 154,000 BTUH. The furnace design is a

low--boy style for upflow applications, where overhead space is

limited.

The components of the 58CLA are the finest in the industry. The

unit uses a Beckett oil burner with a UTEC ignition controller,

“clean--cut” oil pump and fan cycler timer.

The 58CLA is a standard part of a quality--built home. This high

efficiency furnace will provide years of quality service to home

builders and homeowners alike.

As with other Carrier furnaces, this model is designed to work as

part of a total home comfort system which includes elements for

cooling, air cleaning, humidification, ventilation, and zoning.

58CLA FEATURES/BENEFITS

Beckett Oil Burner and UTEC Controls

SHigh quality Beckett oil burner with “clean--cut” pump

allows safe and efficient combustion of oil.

SUTEC ignition control and fan timer board provide reliable

operation and easy connection of thermostat and accessory

wiring.

Casing

SMade of 18--gauge painted steel for years of durability.

SCabinet features an insulated enclosure for the burner and

controls.

Insulation and Soundproofing

SUnique sound trap along with insulated walls efficiently

captures most combustion and vibration noise to make this

unit one of the quietest on the market.

Combustion Products Venting

SRear flue outlet.

SUnit may be vented using Type L vent material and a

factory--built metal or masonry chimney.

SUnit may also be sidewall vented with an approved power

venter.

Adjustable Blower Speed

S4--speed blower for precise airflow selection of heating or

cooling operation.

Constant Low--Speed Blower Switch

SAllows continual low--speed air circulation through the home

to maximize comfort while maintaining efficiency.

SAir is constantly filtered and stagnant air is avoided.

SThis option can be controlled by the homeowner.

Combustion Chamber/Heat Exchanger

SComposed mainly of stainless and aluminized steel, the

unique combination combustion chamber/heat exchanger

resists corrosion, overheating, and deterioration.

SHeat transfer properties make it highly efficient.

SAll seams are tightly welded for leak--free operation.

Certifications

S58CLA unit is CSA certified.

SThe efficiency is GAMA efficiency rating certified.

COMBUSTION CHAMBER/

HEAT EXCHANGER

A96369

CONTROL CENTER

A96370

OIL BURNER

A03172

UNUSED

LEADS

1233

H

U

E

A

C

O

N

C

O

L



H

E

A

T



GWR Y C

MODEL NUMBER NOMENCLATURE

58CLA 105 120 12

Riello Burner

L o w --- B o y O i l F u r n a c e

Series

Cooling Size Airflow

(Nominal 400 CFM per 12,000

Btuh Cooling)

12 --- 1200 CFM

Input Capacity

105 --- 70,000 Btuh with 0.40 gph nozzle

91,000 Btuh with 0.50 gph nozzle

105,000 Btuh with 0.65 gph nozzle

120 --- 119,000 Btuh with 0.75 gph nozzle

140,000 Btuh with 0.85 gph nozzle

154,000 Btuh with 1.00 gph nozzle

ama

B140.0--- B140.4--- UL727

157971

58CLA

;;

;;;

568

UNUSED

LEADS

123

H

U

E

A

C

O

N

C

O

L



H

E

A

T



GWRYC

A96281

1. Heavy--duty blower circulates air across the heat exchanger to transfer heat into the home.

2. Access door to air filters and blower.

3. Air filters

4. Unique silencer system controls combustion noise.

5. Return--air plenum

6. Stainless steel combustion chamber

7. Heat exchanger designed and shaped to efficiently transfer heat from furnace into the home.

8. Supply--air plenum

9. Fully insulated internal walls to minimize heat loss.

10. High limit control to prevent overtemperature.

11. Manual switch to allow user control of constant low--speed blower operation.

12. Adjustable electronic fan timer control (inside) has low voltage electrical terminal strip for easy connection of thermostat, cooling

control, electronic air cleaner, and humidifier.

13. Aesthetic removable cover. Hides and protects burner and controls.

14. High--performance oil burner

58CLA

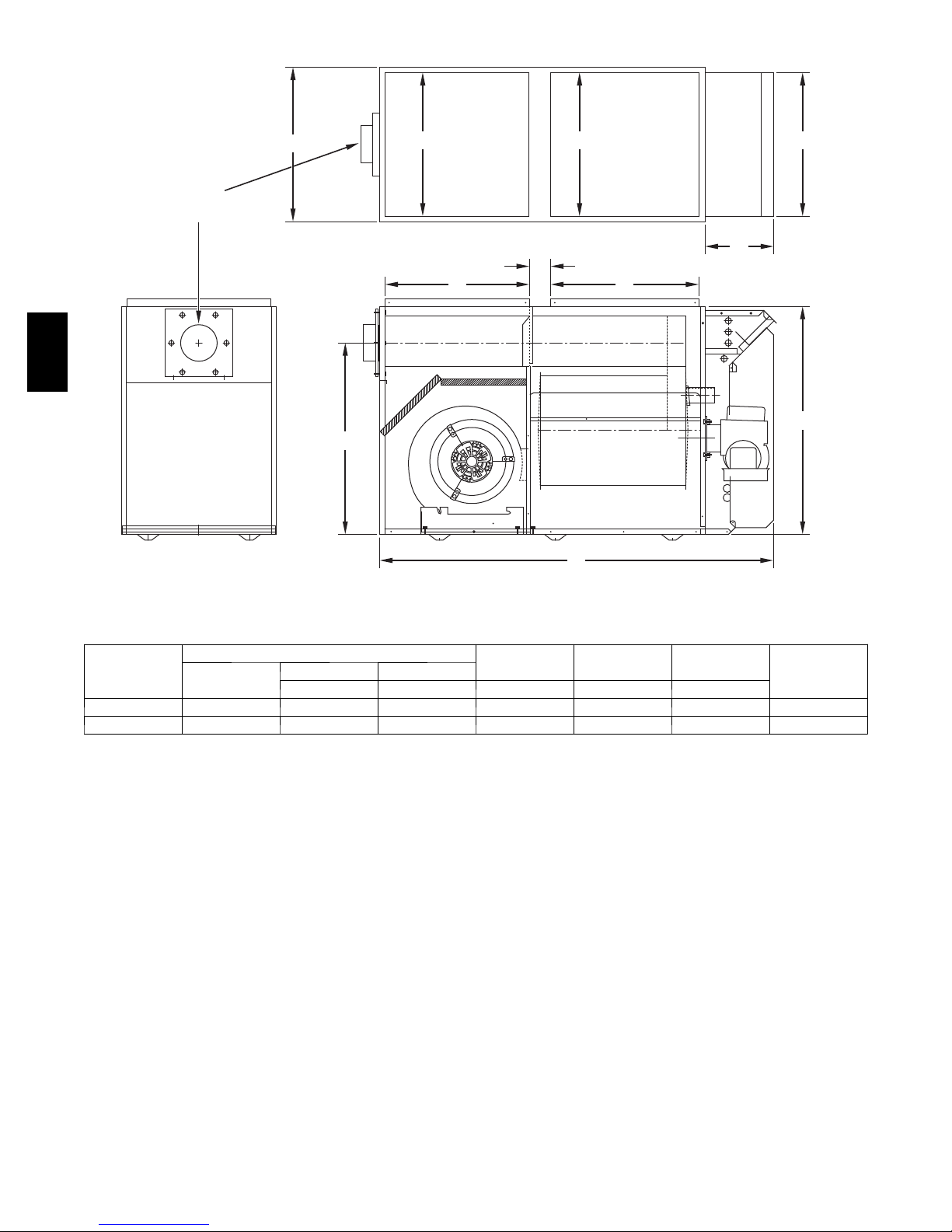

PHYSICAL DATA

10"

1/4

″20"20"20"

VENT

CONN

A98009

DIMENSIONS (IN.)

UNIT

SIZE

UNIT DIMENSIONS FLUE HEIGHT RETURN

OPENING

SUPPLY

OPENING VENT

CONN

Width Depth Height

A B C D E

105---12 21---1/4 53---3/4 31 --- 1/2 26---1/2 20 20 5

120---20 21---1/4 60---3/16 34---3/4 28---3/8 22 24 6

58CLA

RATINGS AND PERFORMACE

UNIT SIZE 105---12 120---20

INPUT (BTUH)* 70,000 91,000 105,000 119,000 140,000 154,000

HEATING CAPACITY 57,000 74,000 85,000 97,000 115,000 126,000

NOZZLE 0.50 --- 70W 0.55 --- 70B 0.65 --- 70B 0.75 --- 70B 0.85 --- 70B 0.85 --- 70B

PRESSURE (PSIG) 100 140 130 130 140 170

FIRING RATE (GPH) 0.50 0.65 0.75 0.85 1.00 1.10

AFUE% 80.5 80.5 80.5 80.0 80.0 80.0

OIL PUMP STAGES 1 1 1 1 1 1

HEATING TEMP RISE _F55--- 85 55--- 85 55--- 85 55--- 85 55--- 85 55--- 85

COOLING CFM @ 0.5--- IN. WC STATIC PRESSURE 1250 1250 1250 1865 1865 1865

HEATING CFM @ 0.2--- IN. WC STATIC PRESSURE 840 1130 1425 1555 1890 2080

RECOMMENDED HEATING BLOWER SPEED M e d --- L o w M e d --- H i g h High M e d --- L o w M e d --- L o w High

BURNER MODEL (3450 RPM){BECKETT

A F G --- F 3

BECKETT

A F G --- F 3

BECKETT

A F G --- F 3

BECKETT

A F G --- F 3

BECKETT

A F G --- F 3

BECKETT

A F G --- F 6

* Capacity and AFUE in accordance with U.S. Government DOE test procedures.

{Beckett AFG---F6 requires field supplied and replacement burner firing head.

--- Shaded cells are as Factory Shipped.

UNIT SIZE 105---12 120---20

DIRECT --- DRIVE MOTOR Hp (PSC) 1/3 3/4

MOTOR FULL LOAD AMPS 6.2 9.5

R P M ( N o m i n a l ) --- S P E E D S 1075---4 1075---4

BLOWER WHEEL DIAMETER X WIDTH (In.) 10 x 8 12 x 10

SHIPPING WEIGHT (LB) 235 260

FILTER SIZE (In.) --- (Disposable) (2) 12 x 20 x 1 (2) 16 x 20 x 1

AIR DELIVERY --CFM (WITH FILTERS)

UNIT SIZE BLOWER

MOTOR HP SPEED EXTERNAL STATIC PRESSURE (in wc)

0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9

105---12 1/3 PSC

High 1425 1350 1305 1250 1170 1030 925 805

M e d --- H i g h 1130 1045 1000 950 885 820 745 670

M e d --- L o w 840 810 770 740 685 635 580 500

Low 725 730 740 745 730 715 690 665

120---20 3/4 PSC

High 2080 2040 1965 1865 1700 1575 1475 1335

M e d --- H i g h 1890 1860 1770 1675 1550 1450 1330 1215

M e d --- L o w 1555 1475 1395 1320 1210 1135 1050 940

Low 1220 1165 1080 1000 925 855 780 655

ELECTRICAL DATA

UNIT SIZE 105---12 120---20

U N I T V O LT S --- H E R T Z --- P H A S E 1 1 5 --- 6 0 --- 1 1 1 5 --- 6 0 --- 1

OPERATING VOLTAGE RANGE (Min---Max)* 104 --- 132 104 --- 132

MAXIMUM UNIT AMPS 12.2 15.7

MINIMUM WIRE SIZE (AWG) 14 12

MAXIMUM WIRE LENGTH (Ft){26 26

MAXIMUM FUSE SIZE OR CKT BKR (Amps)}15 20

TRANSFORMER (24v) 40va 40va

EXTERNAL CONTROL POWER AVAILABLE Heating 40va 40va

Cooling 30va 30va

AIR CONDITIONING RELAY Standard Standard

* Permissible limits of the voltage range at which the unit will operate satisfactorily.

{Length is a measured one way along wire path between unit and service panel for maximum 2% voltage drop.

}Time---delay fuse type is recommended.

58CLA

CLEARANCE TO COMBUSTIBLES

UNIT APPLICATION L O W --- B O Y

SIDES Furnace 1

Supply Plenum and Warm--- Air Duct Within 6 Ft of Furnace 1

BACK Service Clearance 19

TOP Furnace Casing or Plenum 2

Horizontal Warm---Air Duct Within 6 Ft of Furnace 2

FLUE PIPE Horizontally or Below Pipe 4

Vertically Above Pipe 9

FRONT 8

BOTTOM* 0

*Floor may be combustible.

NOTE: Adequate service clearance should be provided over and above these dimensions as required.

58CLA

ACCESSORIES

CONTROLS:

THERMOSTATS

AND ZONING

A97432

ENERGY/HEAT

RECOVERY

VENTILATOR

A94336

HUMIDIFIER

A91365

Available in programmable

and non ---programmable

models, Carrier thermostats

maintain a constant, com-

fortable temperature level in

the home.

For the ultimate in home

comfort, Carrier’s 2, 4, and

8---zone systems allow tem-

perature control of individu-

al “zones” of the home.

This is accomplished

through a series of elec-

tronic dampers and remote

room sensors. The 4---zone

system is shown.

Carrier’s energy or heat recov-

ery ventilators exhaust stale in-

door air and provide fresh out-

door air to the home while mini-

mizing heat loss and humidity

level. Especially useful for

today’s tighter constructed

houses.

Energy recovery ventilator is

shown.

ELECTRONIC OR

MECHANICAL

AIR CLEANER

A97380

Cleans the air of smoke, dirt,

and many pollens commonly

found. Saves decorating and

cleaning expenses by keeping

carpets, furniture, and drapes

cleaner.

Electronic air cleaner is

shown.

By adding moisture to winter ---dry air,

Carrier humidifier can often improve

comfort and keeps woodwork, wall-

paper, and paint in better condition.

Moisturizing household air also helps

to retain normal body heat and pro-

vides comfort at lower temperatures.

FURNACE ACCESSORIES

KLABV0201DET Blocked Vent Shutoff Kit

PROGRAMMABLE THERMOSTAT SELECTION

TSTATCCSAC01 Thermostat, Manual Changeover, 5---2 Day Programmable, °F/°C , 1 --- S t a g e H e a t / 1 --- S t a g e C o o l

TSTATCCSHP01 Thermostat, Manual Changeover, 5---2 Day Programmable, °F/°C , 2 --- S t a g e H e a t / 1 --- S t a g e C o o l

NON---PROGRAMMABLE THERMOSTAT SELECTION

TSTATCCBAC01 Thermostat, Non --- Programmable, °F/°C , 1 --- S t a g e H e a t / 1 --- S t a g e C o o l

TSTATCCBHP01 Thermostat, Non --- Programmable, °F/°C , 2 --- S t a g e H e a t / 1 --- S t a g e C o o l

ZONING CONTROL SELECTION

ZONECC2KIT01---B Comfort Zone II--- B --- 2 Zone Kit/Temperature and Humidity Control

ZONECC4KIT01---B Comfort Zone II--- B --- 4 Zone Kit/Temperature and Humidity Control

ZONECC8KIT01---B Comfort Zone II--- B --- 8 Zone Kit/Temperature and Humidity Control

HEALTHY HOME SOLUTIONS

EACBAXCC0014 Electronic Air Cleaner --- 120V, 1400 CFM

EACBAXCC0020 Electronic Air Cleaner --- 120V, 2000 CFM

EACBAXCC2020 Electronic Air Cleaner --- 240V, 2000 CFM

HUMCCSBP2312 Humidifier --- 12 g./day, 24V Standard, Small Bypass

HUMCASBP2312 Humidifier --- 12 g./day, 24V Automatic, Small Bypass

HUMCCLBP2317 Humidifier --- 17 g./day, 24V Standard, Large Bypass

HUMCALBP2317 Humidifier --- 17 g./day, 24V Automatic, Large Bypass

HUMCCLFP1318 Humidifier --- 18 g./day, 24V Standard, Fan Powered

HUMCALFP1318 Humidifier --- 18 g./day, 24V Automatic, Fan Powered

HRVCCSHA1100 Heat Recovery Ventilator --- Small Horizontal Unit, 100 CFM

HRVCCSVA1100 Heat Recovery Ventilator --- Small Vertical Unit, 100 CFM

HRVCCLHA1150 Heat Recovery Ventilator --- Large Horizontal Unit, 150 CFM

HRVCCLHA1250 Heat Recovery Ventilator --- Large Horizontal Unit, 250 CFM

HRVCCSVU1150 Heat Recovery Ventilator --- Small Vertical Unit, 150 CFM

HRVCCSVU1200 Heat Recovery Ventilator --- Small Vertical Unit, 200 CFM

HRVCCLVU1150 Heat Recovery Ventilator --- Large Vertical Unit, 150 CFM

HRVCCLVU1200 Heat Recovery Ventilator --- Large Vertical Unit, 200 CFM

HRVCCLVU1330 Heat Recovery Ventilator --- Large Vertical Unit, 330 CFM

ERVCCSHA1100 Energy Recovery Ventilator --- Small Horizontal Unit, 100 CFM

ERVCCSVA1100 Energy Recovery Ventilator --- Small Vertical Unit, 100 CFM

ERVCCLHU1150 Energy Recovery Ventilator --- Large Horizontal Unit, 150 CFM

ERVCCLHU1200 Energy Recovery Ventilator --- Large Horizontal Unit, 200 CFM

EZXCABCC1016 Media Filter Cabinet --- 1600 CFM (Replacement Filter: EXPXXFIL0016)

EZXCABCC1020 Media Filter Cabinet --- 2000 CFM (Replacement Filter: EXPXXFIL0020)

58CLA

TYPICAL INSTALLATION

OIL TANK

FLUE

PIPE

A/C COIL

SUPPLY-AIR DUCT

IR CONDITIONER

OR HEAT PUMP

AIR FLOW

RETURN-AIR

DUCT

LOW-BOY OIL

FURNACE

CHIMNEY

A98010

Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.

Catalog No: 58CLA---5PD

Replaces: 58CLA--- 4PD

Printed in U.S.A. Edition Date: 09/09

58CLA

Other manuals for 58CLA

Table of contents

Other Carrier Furnace manuals

Carrier

Carrier 58EFA Installation and user guide

Carrier

Carrier OBL098 User manual

Carrier

Carrier GAS FURNACE 58MXA Instructions and recipes

Carrier

Carrier 58CMR Guide

Carrier

Carrier Deluxe 58SX Dimensions and installation guide

Carrier

Carrier N92MSN Guide

Carrier

Carrier 59TP6B Guide

Carrier

Carrier DELUXE 58SXC Operation manual

Carrier

Carrier 58TP0B Guide

Carrier

Carrier 58DH Dimensions and installation guide

Carrier

Carrier PG8JEA Guide

Carrier

Carrier 58TUA Instructions and recipes

Carrier

Carrier GAS FURNACE 58MXA Installation and user guide

Carrier

Carrier 58SP0A Operation manual

Carrier

Carrier 339282-769 thru 772 User manual

Carrier

Carrier 170 Series Installation and user guide

Carrier

Carrier UPFLOW INDUCED-COMBUSTION FURNACES 58PAV Operation manual

Carrier

Carrier 58MCA Instructions and recipes

Carrier

Carrier Infinity 59TN6A Operation manual

Carrier

Carrier 58RAV Series Instructions and recipes

Carrier

Carrier Deluxe 58SXB Operator's manual

Carrier

Carrier bryant 915SB Guide

Carrier

Carrier 58CTW Guide

Carrier

Carrier 58WAV Guide

Popular Furnace manuals by other brands

Armstrong

Armstrong EG7H SERIES Installation and maintenance instructions

Payne

Payne PG92ESA Installation, start-up, operating and service and maintenance instructions

SUPREME

SUPREME FEM10-M2301CM-A Installation instructions and homeowner's manual

Ingersoll-Rand

Ingersoll-Rand S9V2B080D4VSAC/D Installer's guide

Johnson Controls

Johnson Controls TM9T User's information manual

Fluke

Fluke 9118A user manual

Lennox

Lennox EL195UHE Elite Series Unit information

Intertherm

Intertherm M7RL Series user manual

HDG

HDG Pelletmaster 15 Operation manual

Pinnacle

Pinnacle Aero Bella AB-716C-QH User's manual and operating instructions

Nortek

Nortek MG2S Series installation instructions

VERDER

VERDER CARBOLITE GERO ABF 8/28 Installation, operation and maintenance instructions

Goodman

Goodman GMV9 Installation & operating instructions

SUPREME

SUPREME SUP10-M2301C Installation instructions and homeowner's manual

Dettson

Dettson AMT400B34-SM1PMA Installation instructions and homeowner's manual

Evcon

Evcon DGD 60 MBH installation instructions

Trane

Trane S8B1A026M2PSAB Installer's guide

Hart Sceintific

Hart Sceintific 9113 user manual
