DeVilbiss Compact HVLP Manual Gun

Parts Identification

16430 N. Scottsdale Road, Suite 450, Scottsdale, Arizona 85254 / Office: 480.781.5250

Gun Daily Maintenance and Cleaning

1. Flush gun with proper cleaning solvent

2. Use stiff bristle brush dipped into solvent to clean exterior of

gun wipe clean with rag

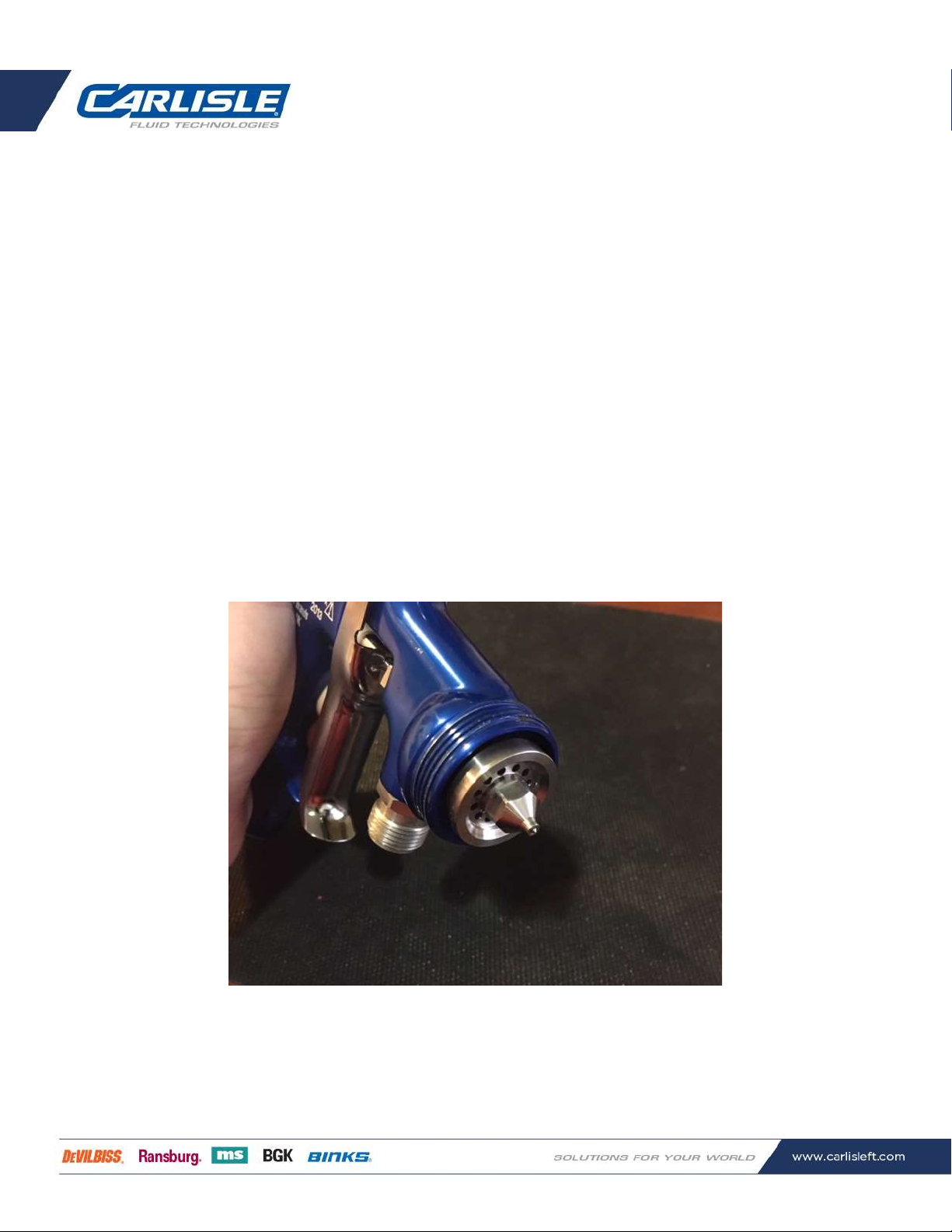

3. Remove air cap and place in clean container of solvent

4. With gun facing down clean fluid tip with brush and solvent,

wipe clean. Make sure solvent does not enter air passages

trigger air to blow solvent from gun.

16430 N. Scottsdale Road, Suite 450, Scottsdale, Arizona 85254 / Office: 480.781.5250

5. Clean air cap with stiff brush and solvent

6. Inspect air cap to ensure fan and atomization holes are clean

and free of any debris

DO NOT COMPLETELY SOAK GUN IN SOLVENT FOR EXTENDED

PERIODS OF TIMETHIS WILL CAUSE PAINT AND DEBRIS TO

ENTER THE AIR PASSAGES OF THE GUN CAUSING INCREASED

MAINTENANCE AND DOWN TIME.

16430 N. Scottsdale Road, Suite 450, Scottsdale, Arizona 85254 / Office: 480.781.5250

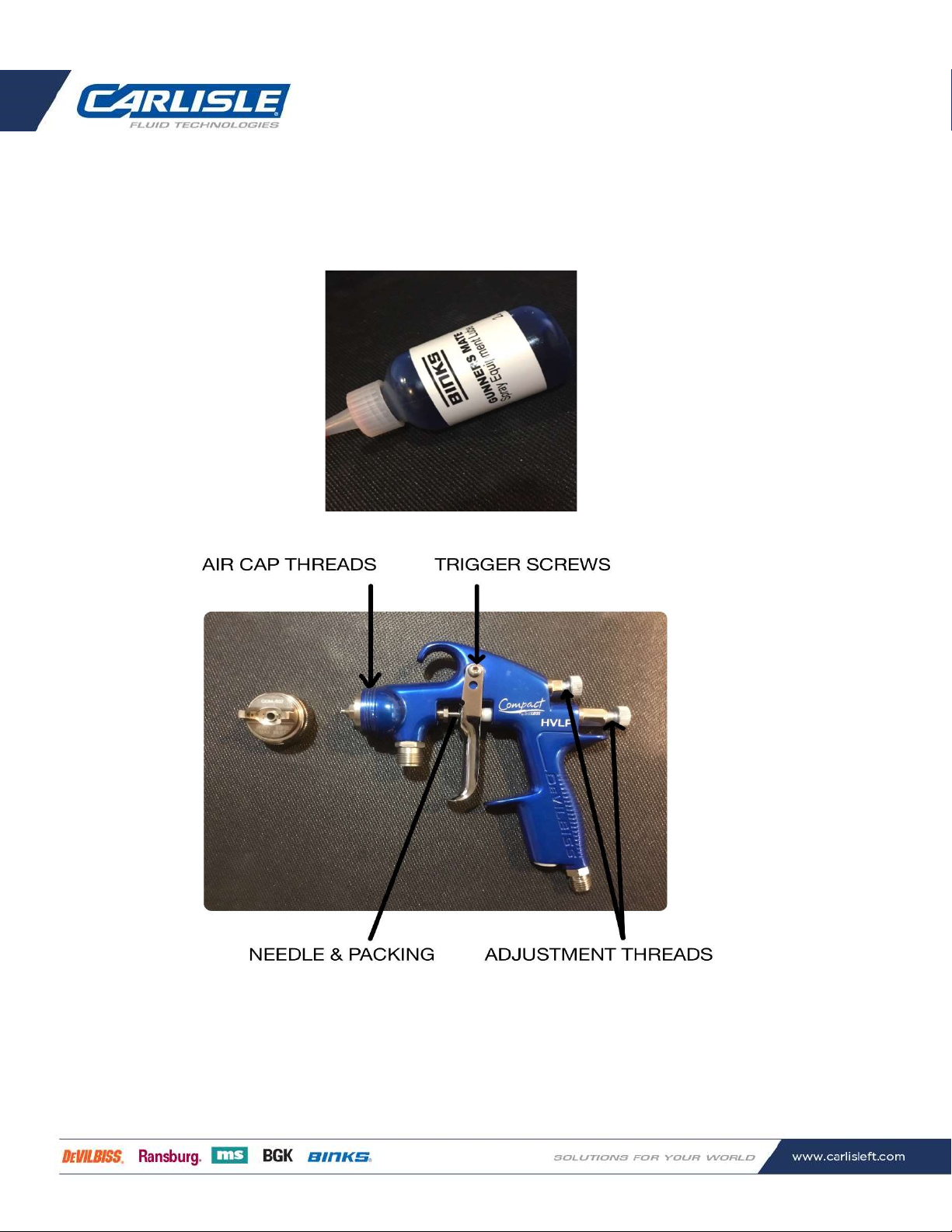

7. Apply Binks Gunners Mate to areas shown below. A few

additional drops may be used on exterior of gun to make

cleaning easier

16430 N. Scottsdale Road, Suite 450, Scottsdale, Arizona 85254 / Office: 480.781.5250

Weekly Gun Cleaning and Maintenance

1. Clean gun following daily instructions

2. Remove needle by turning needle adjustment knob counterclockwise

until knob and spring disengage from gun. Remove needle.

3. Inspect needle for any damage. Replace if damaged. Clean

needle with solvent wipe clean with cloth. Apply a few drops of

gun lube to needle and spring.

16430 N. Scottsdale Road, Suite 450, Scottsdale, Arizona 85254 / Office: 480.781.5250

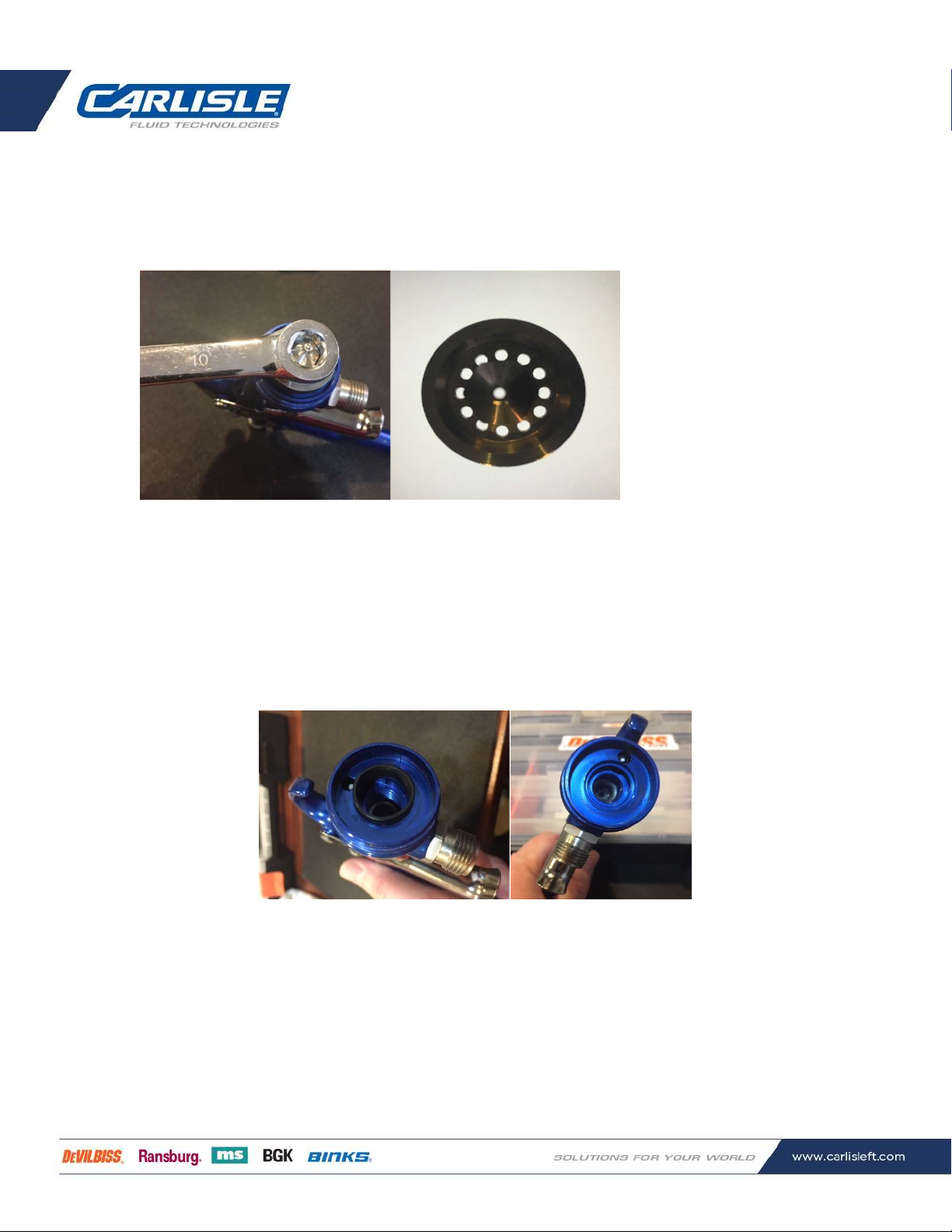

4. Using a 10mm wrench remove fluid tip inspect for damage and

clean. Use gun-cleaning brush if necessary to remove paint

from air and fluid holes.

5. Remove black air separator seal, clean, inspect for damage. If

necessary clean gun head interior with gun-cleaning brush. It

may necessary to remove the packing nut to thoroughly clean

fluid passage.

6. Reassemble gun. Make sure separator seal and fluid tip are in

place before needle is inserted back into the gun.

Tightening fluid tip while needle is in place will cause damage

to needle

16430 N. Scottsdale Road, Suite 450, Scottsdale, Arizona 85254 / Office: 480.781.5250

Compact Gun Replacement Parts

Maintenance

Air Valve Service Kit

Replace As Needed

The air valve will need to be replaced when air is leaking

from seal(s) when the trigger is not engaged. It is

important to replace all parts in the kit even though some

of the parts may be seem to be in good condition. Proper

daily cleaning and lubrication will increase air valve life

16430 N. Scottsdale Road, Suite 450, Scottsdale, Arizona 85254 / Office: 480.781.5250

The picture below illustrates the location for the air valve

parts. Use brass tool to remove old seals and replace new

seals. See next page for detail step-by-step instructions.

Ensure seals are facing the proper direction

16430 N. Scottsdale Road, Suite 450, Scottsdale, Arizona 85254 / Office: 480.781.5250

Compact Gun Replacement Parts

Maintenance

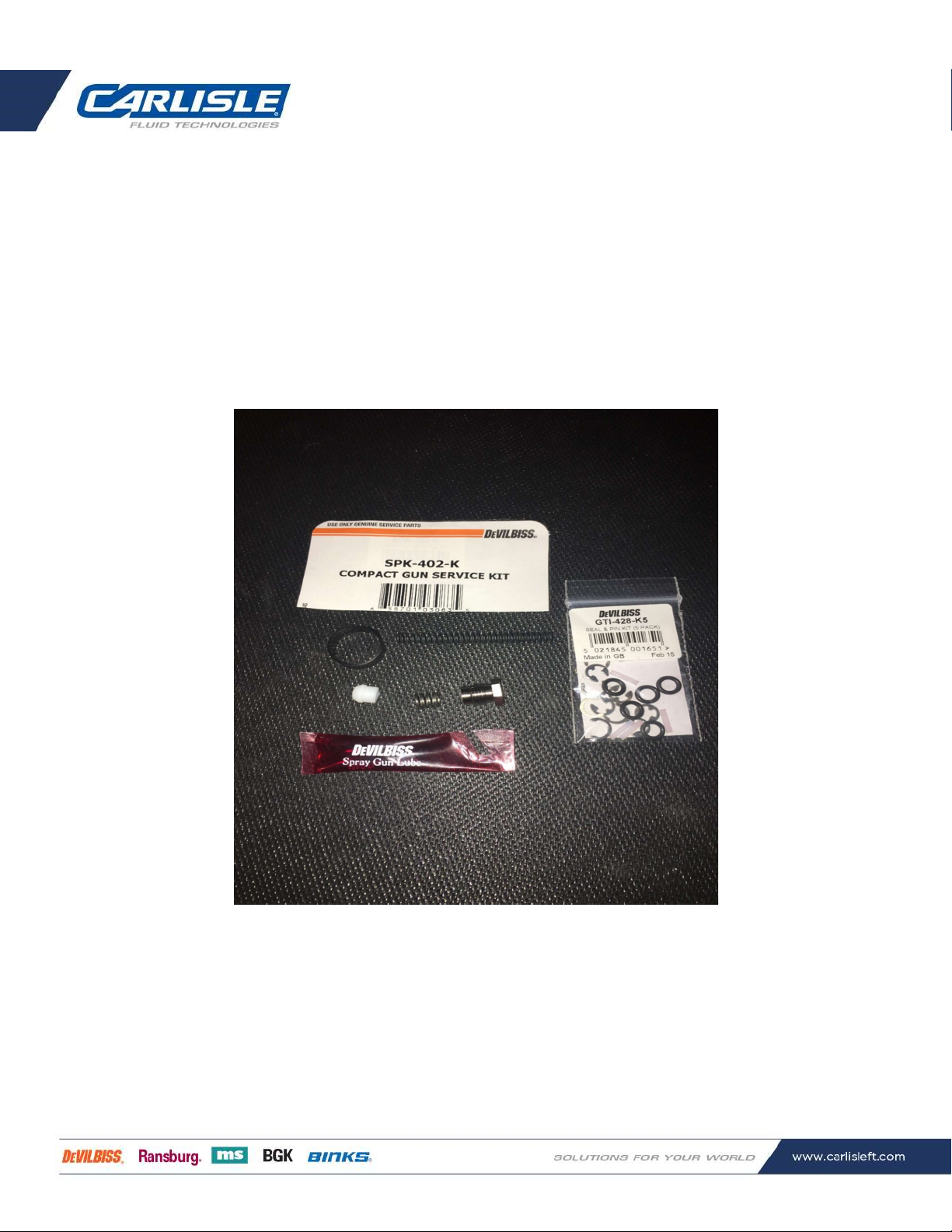

Gun Service Kit

Replace As Needed

The Gun Service Kit contains a replacement needle spring,

air separator, packing nut assembly, and seal kit for the

Fan Pattern Adjustment Valve.

16430 N. Scottsdale Road, Suite 450, Scottsdale, Arizona 85254 / Office: 480.781.5250

To remove Fan Adjustment Valve turn knob

counterclockwise to full open position and use wrench to

remove complete assembly. Clean and inspect for damage

to stem.
