Cardini RH9T165 User manual
RANGEHOOD
INSTRUCTION MANUAL
Read this manual carefully before operation
Note: Pictures in this manual are for reference only.
RH9T165
Contents
Warnings................................................................ 3
01
02
03
04
05
07
08
09
Installation instruction ............................................ 6
Safety warning.......................................................
Maintenance......................................................... 11
Main parameters.................................................. 1
2
1
Troubleshooting..................................................
Contents.................................................................
06
First use..............................................................
Warranty & Service................................................14
2
5
10
3
4
Warnings
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a
person responsible for their safety. Children shall
not play with the appliance. Cleaning and user
maintenance shall not be carried out by children
without supervision. If the supply cord is damaged, it
must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a
hazard.
There shall be adequate ventilation of the room when
the rangehood is used at the same time as appliances
burning gas or other fuels.
Please do not use corrosive detergent for cleaning. The
proper function of the unit is conditioned by the
regularity of the maintenance.
To protect the main body from the corrosive effects of the
accumulation of dirt, the rangehood should be
cleaned with hot water with non-corrosive detergent
every two months.
There is a fire risk if cleaning is not carried out in
accordance with the instructions.
Do not allow flames directly under the rangehood.
The air must not be discharged into a flue that is used
for exhausting fumes from appliances burning gas or
other fuels.
The minimum distance between the supporting surface
for the cooking vessels on the hob and the lowest part of
the range hood. (When the range hood is located above a
gas appliance, this distance shall be at least 65 cm. If the
instructions for installation for the gas hob specify a
greater distance, this has to be taken into account. The
distance of 65 cm can be reduced for:
3
3
Warnings
non-combustible parts of range hoods, and
parts operating at safety extra low voltage,
4
Provided these parts do not give access to live parts if
deformed;)
Regulations concerning the discharge of air have to be
fulfilled.
The appliance will function correctly with 4 hob elements
being used simultaneously.
CAUTION : Accessible parts may become hot.
When the mains supply is initially connected or immediately
after a power failure, the rangehood will commence a self
inspection cycle. The top glass panel of the rangehood will
automatically open and close once. Please keep your
hands well clear of the glass panel to avoid injury
This appliance is not intended for use by young children or an
infirm person without supervision.
Young children should be supervised to ensure they do not play with
the appliance.
Plug the power cord into a socket outlet with an earthing continuity
terminal.
The rangehood is for home use only and isn't suitable for barbecue,
roast shop and other commercial purposes.
The rangehood and filters should be cleaned regularly in accordance
with the instructions.
Do not use open flame, or allow oil to go beneath the appliance.
If any fault occurs with the appliance, please email the after-sales
service department - [email protected]
Please keep the room ventilated.
Prior to any maintenance or cleaning operation, please ensure the
power is turned off.
If the supply cord is damaged, it must be replaced by the manufacturer,
service agent or similarly qualified person in order to avoid a hazard.
The replaced power cord should be provided by manufacturer or seller.
If the plug or cord is damaged, please email the after-sales service
center.
There is a fire risk if cleaning is not carried out in accordance with the
instructions.
In the case of damaged wiring, please refer to the manufacturer, after-
sale service personnel or other qualified technicians.
Use the unit in accordance with the instructions to avoid any fire
hazard.
The exhaust air must not be introduced into a smoke flue or chimney
that is used for exhausting fumes from appliances burning gas.
Follow the local laws applicable for external air evacuation.
When the upper glass panel is closing, please keep your hands well
clear to avoid injury.
When the steam generator is working, be very careful of hot steam out
of the rangehood.
Safety Warning
5
Installation instruction
Determine location
Rangehood should be installed horizontally, directly above the
cooktop. Refer to the installation diagram below:
Note: all dimensions are mm.
905~915
482
Cupboard
Flue Cover
Suspended
ceiling
Exhaust pipe
430
Line for Installation
840~940
6
Top glass panel
Bottom glass panel Rangehood
Cooktop
FRONT VIEW
220
405
105
Schematic diagram of the hole
size for the exhaust pipe at the
ceiling
Ф200248
320
Note: This installation height is only applicable to
electric stove, if installed above the gas stove,
the installation height should be in accordance
with the installation height requirements of gas
stove.
7
SIDE VIEW
Installation plate
Expansion bolt
840~940
Installation instruction
lnstallation plate
570
430
8
After hanging the rangehood on the installation plate, fasten two
screws M5X16 to avoid
the rangehood sliding off accidentally.
Accessories
Note: 2x decorative flue covers
supplied 1 x 482mm and 1 x 320mm
1
5
4
3
2
6
7
8
10
11
9
12
Rangehood body
Exhaust pipe fixed ring
Exhaust pipe
Check valve
Check valve Sealing gasket
Installation plate
Expansion bolt (8 x 60)
Screws (M5x16)
Screws (ST4.2x16)
Water cup
Filter cotton for water cup
(replaced every 2 years)
Oil cup
1
1
1
1
1
2
4
2
4
1
5
1
1
2
3
4
5
6
7
8
9
10
11
12
9
Qty
Note: Flue covers are supplied in a
separate package
7 X Screws(M5*50)

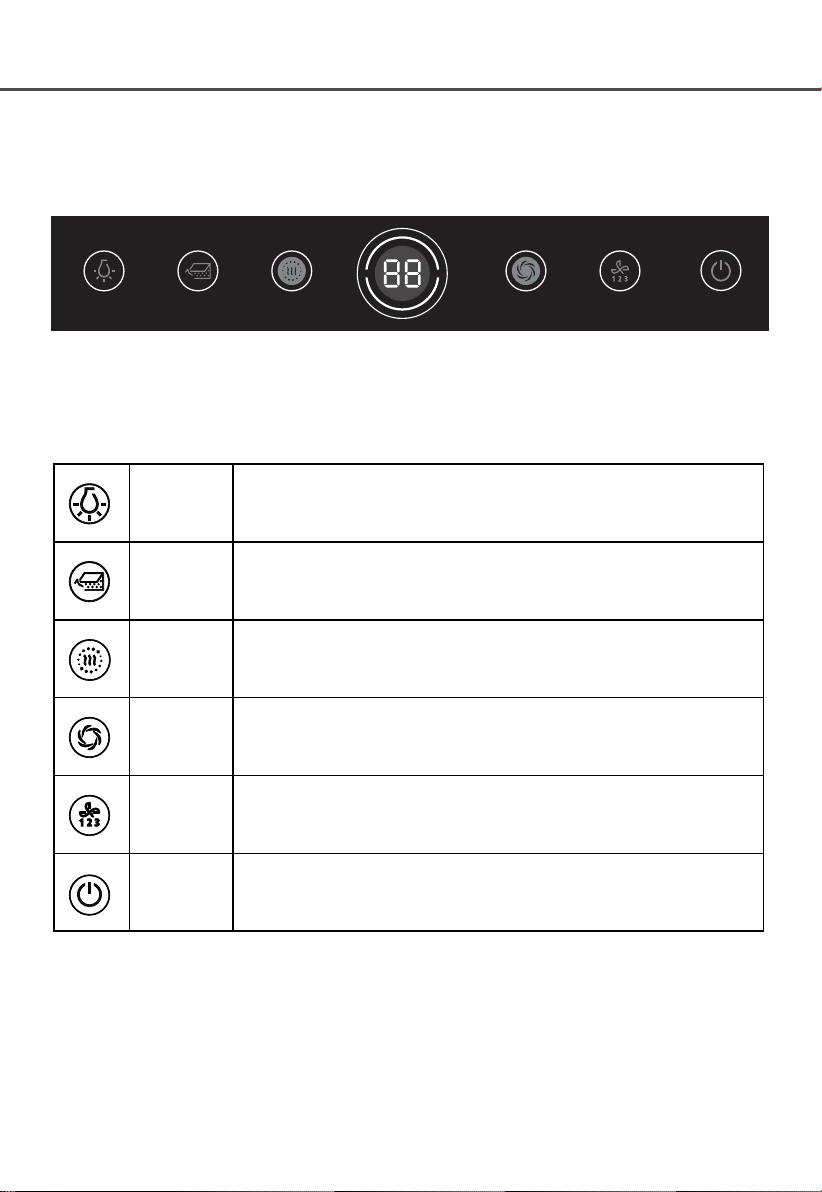

First Use
Rangehood can be used immediately after the power is connected.
Light Short press: Turn on the light;
Long press: Adjust the brightness.
Washing Long press: Open the panel;
Long press: Close the panel.
Steam
washing
Long press: Start;
Long press and two short presses: Cancel the indicator
light reminder.
Boost Short press: Startup (09 speed), return to 03 speed after 5 min,
please select manually if needed to continue.
Speed Short press: Adjust speed (as clock flashes, adjust the clock).
Power
1st Short press: Startup (3 speed);
2nd Short press: Delay 3 min;
3rd Short press: OFF immediately.
Short press: 0.5 second
Long press: 2~3 seconds
10
