CHAPTER 4. PARTS CATALOG
CONTENTS
PowerShot SD100/DIGITAL IXUS II/IXY DIGITAL 30
Casing Parts ----------------------------------------------------------------------------------------------------------------------- Pg1
Internal Parts-1 ------------------------------------------------------------------------------------------------------------------- Pg2
Internal Parts-2 ------------------------------------------------------------------------------------------------------------------- Pg3
Optical Unit ----------------------------------------------------------------------------------------------------------------------- Pg4
Fuse -------------------------------------------------------------------------------------------------------------------------------- Pg5
Accessories-1 ------------------------------------------------------------------------------------------------------------------------- Pg6
Accessories-2 ------------------------------------------------------------------------------------------------------------------------- Pg7
Accessories-3 ------------------------------------------------------------------------------------------------------------------------- Pg8
Service Tools-1 ----------------------------------------------------------------------------------------------------------------------- Pg9
Service Tools-2 ---------------------------------------------------------------------------------------------------------------------- Pg10
Category of CLASS
A: Frequency of use: High
B: Frequency of use: Middle
C: Frequency of use: Low
D: Safety-related critical parts
E: Consumable parts
F: Standard screws and washers
S: Supply of the parts is limited
Y: Service Tools
PowerShot SD100
DIGITAL IXUS II
IXY DIGITAL 30
Pg1 Casing Parts
1
18
18
18
18
16
15
17
18
14
18
19
2
3
4
5
6
7
9
10
11
13
12
8
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
PowerShot SD100
DIGITAL IXUS II
IXY DIGITAL 30
Pg1
1 CD1-4691-000 B 1 COVER, DC COUPLER
2 CD1-4683-000 B 1 COVER, BATTERY
3 CM1-1506-000 B 1 FRONT COVER UNIT IXY DIGITAL 30
CM1-1507-000 B 1 FRONT COVER UNIT PowerShot SD100
CM1-1508-000 B 1 FRONT COVER UNIT DIGITAL IXUS II
4 CD1-4665-000 B 1 RING, STRAP
5 CD1-4653-000 C 1 RUBBER, FINDER
6 CM1-1513-000 B 1 REAR COVER UNIT
7 CD1-4710-000 C 1 BRUSH, MODE
8 XG8-1500-551 C 1 BALL, MODE DIAL
9 CD1-4708-000 B 1 DIAL, MODE
10 CD1-4705-000 B 1 BUTTON, KEY (+)
11 CD1-4727-000 C 1 CUSHION, KEY (+)
12 CD1-4711-000 C 1 SPACER, LCD
13 CD1-4690-000 B 1 COVER, JACK
14 CY1-6289-000 B 1 PLATE, BODY NUMBER #13011 xxxxx
CY1-6293-000 B 1 PLATE, BODY NUMBER (CH), CHINA #13651 xxxxx
15 CD1-4706-000 C 1 SCREW
16 CD1-4729-000 C 1 SCREW
17 XA1-7140-167 F 1 SCREW
18 CD1-4248-000 C 10 SCREW
19 CD1-4731-000 C 1 SCREW
PowerShot SD100
DIGITAL IXUS II
IXY DIGITAL 30
Pg2
14
1
2
3
4
15
14
14
13
12
5
6
7
8
9
10
11

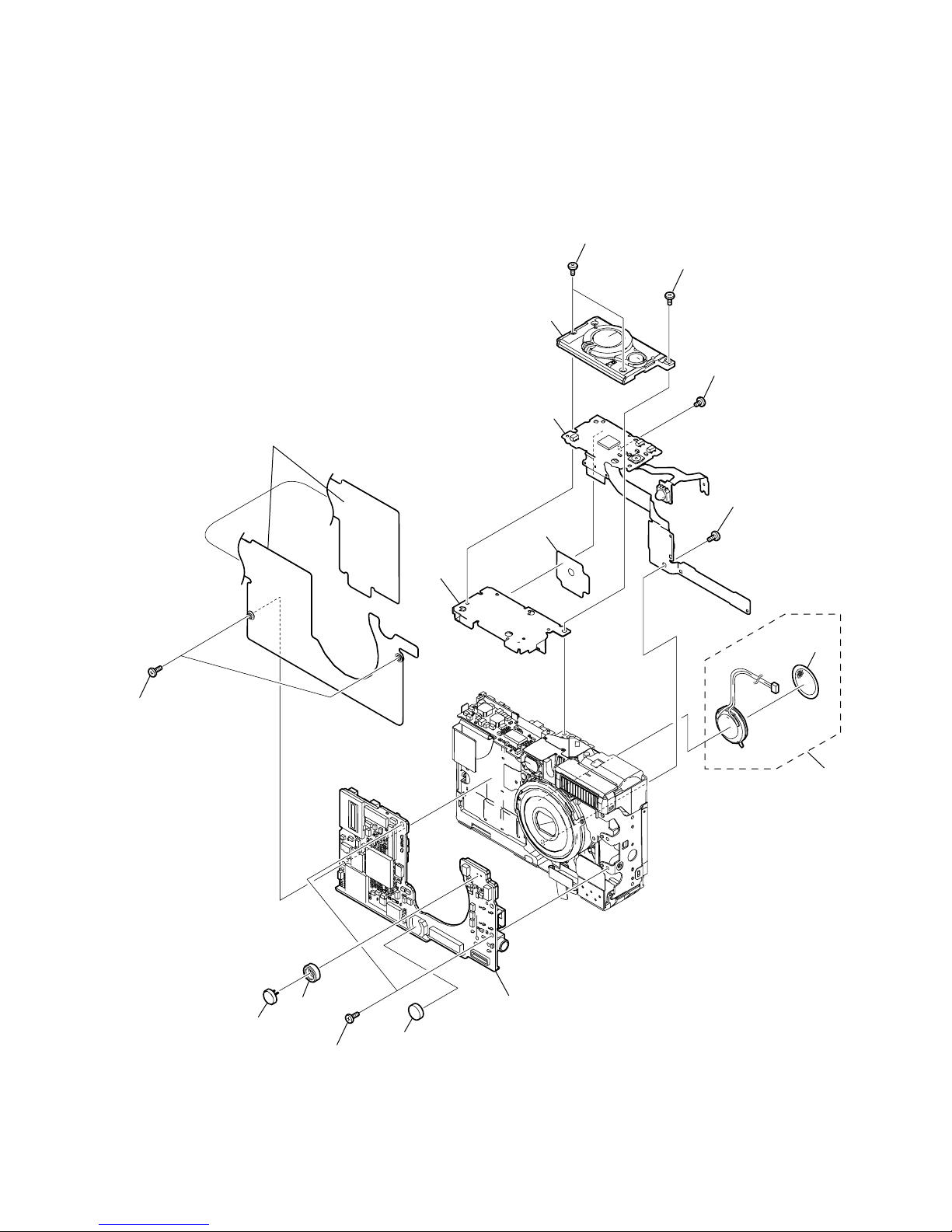

Internal Parts-1
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
PowerShot SD100
DIGITAL IXUS II
IXY DIGITAL 30
Pg2
1 CM1-1496-000 C 1 PCB ASS’Y, MAIN
2 WK1-5140-000 C 1 BATTERY, LITHIUM (2ND)
3 CD1-4241-000 C 1 HOLDER, MICROPHONE
4 WR1-5084-000 C 1 MICROPHONE UNIT
5 CL1-1115-000 C 1 SHIELD SHEET UNIT
6 CD1-4712-000 C 1 PLATE, OPERATION
7 CD1-4726-000 C 1 TAPE, MODE DIAL
8 CM1-1498-000 C 1 OPERATION KEY UNIT
9 CM1-1512-000 B 1 SHUTTER BUTTON UNIT
10 CM1-2112-000 C 1 SPEAKER SHEET UNIT
11 CM1-1511-000 C 1 SPEAKER UNIT
12 XA1-7170-409 F 2 SCREW
13 XA1-7140-257 F 2 SCREW
14 XA1-7170-307 F 4 SCREW
15 XA1-7170-167 F 1 SCREW
PowerShot SD100
DIGITAL IXUS II
IXY DIGITAL 30
Pg3
1
13
14
15
12
17
12
18
12
12
16
13
14
3
4
5
6
7
8
10
9
11
2
See Pg4
Internal Parts-2
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
PowerShot SD100
DIGITAL IXUS II
IXY DIGITAL 30
Pg3
1 CD1-4686-000 C 1 SOCKET, TRIPOD
2 CD1-4685-000 C 1 PLATE, TRIPOD
3 CD1-4684-000 C 1 FRAME, MAIN
4 CM1-1502-000 C 1 FINDER UNIT
5 CM1-1503-000 C 1 BATTERY BOX UNIT
6 CD1-4682-000 C 1 SHEET, DC
7 CM1-1497-000 C 1 PCB ASS’Y DC/SD
8 CM1-1499-000 C 1 FLASH UNIT
9 WG2-5242-000 C 1 PANEL, LCD
WG2-5242-001 C 1 PANEL, LCD (SELECTION)
10 CD1-4689-000 C 1 FRAME, LCD
11 CD1-4687-000 C 1 BASE, RSW
12 XA4-5170-309 F 6 SCREW
13 CD1-4694-000 C 2 SCREW
14 XA4-9170-359 F 2 SCREW
15 XA4-9140-359 F 1 SCREW
16 XA1-7170-167 F 1 SCREW
17 XA1-7170-307 F 1 SCREW
18 XA1-7170-357 F 4 SCREW
PowerShot SD100
DIGITAL IXUS II
IXY DIGITAL 30
Pg4
1
2
3
4
5
5
6
7
8
9
Optical Unit
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
PowerShot SD100
DIGITAL IXUS II
IXY DIGITAL 30
Pg4
1 CD1-4607-000 C 1 CAP, BASE BARREL
2 CD1-4622-000 C 1 SHEET, LENS BARREL
3 CM1-1284-000 B 1 FRONT CAP UNIT
4 CD1-4637-000 C 2 PLATE, BARRIER
5 CS8-5282-000 C 2 SPRING, BARRIER CLOSE
6 CD1-4634-000 C 1 BASE, BARRIER
7 CD1-4635-000 C 1 RING, BARRIER DRIVE
8 CS8-5283-000 C 1 SPRING, BARRIER OPEN
9 CM1-1283-000 C 1 OPTICAL UNIT
PowerShot SD100
DIGITAL IXUS II
IXY DIGITAL 30
Fuse
Pg5
1
DC/SD PCB ASS'Y
