CHAPTER 4. PARTS CATALOG
CONTENTS
PowerShot S330/DIGITAL IXUS 330/IXY DIGITAL 300a
Casing Parts ----------------------------------------------------------------------------------------------------------------------- Pg1
Internal Parts-1 ------------------------------------------------------------------------------------------------------------------- Pg2
Internal Parts-2 ------------------------------------------------------------------------------------------------------------------- Pg3
OPTICAL UNIT ----------------------------------------------------------------------------------------------------------------- Pg4
Accessories ---------------------------------------------------------------------------------------------------------------------------- Pg5
Service Tools -------------------------------------------------------------------------------------------------------------------------- Pg8
PowerShot S330
DIGITAL IXUS 330
IXY DIGITAL 300a
Pg1
1
9
2
11
11
11
12
12
10
6
11
(7)
(8)
11
5
4
3
Casing Parts
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
PowerShot S330
DIGITAL IXUS 330
IXY DIGITAL 300a
Pg1
Category of CLASS
A: Frequency of use: High
B: Frequency of use: Middle
C: Frequency of use: Low
D: Safety-related critical parts
E: Consumable parts
F: Standard screws and washers
S: Supply of the parts is limited
1 CM1-1411-000 B 1 FRONT COVER UNIT POWERSHOT S330
CM1-1412-000 B 1 FRONT COVER UNIT DIGITAL IXUS 330
CM1-1407-000 B 1 FRONT COVER UNIT IXY DIGITAL 300a
2 CD1-3688-000 B 1 COVER, JACK
3 CD1-3689-000 B 1 COVER, DC COUPLER
4 CD1-3687-000 B 1 COVER, BATTERY
5 CY1-6155-000 B 1 PLATE, BODY NUMBER
6 CM1-1408-000 B 1 REAR COVER UNIT
7 CD1-3644-000 C 1 LOCK, CF COVER
8 CS8-5208-000 C 1 SPRING, LOCK
9 CD1-4302-000 B 1 RING, STRAP
10 CL1-1087-000 B 1 CENTER COVER UNIT POWERSHOT S330
CL1-1088-000 B 1 CENTER COVER UNIT DIGITAL IXUS 330
CL1-1086-000 B 1 CENTER COVER UNIT IXY DIGITAL 300a
11 CD1-3111-000 F 10 SCREW
12 CB1-8788-000 F 3 SCREW
PowerShot S330
DIGITAL IXUS 330
IXY DIGITAL 300a
Pg2
18
12
8
19
18
20
20
6
5
4
7
9
10
11
12
14
(15)
(22)
13
19
16
17 21
3

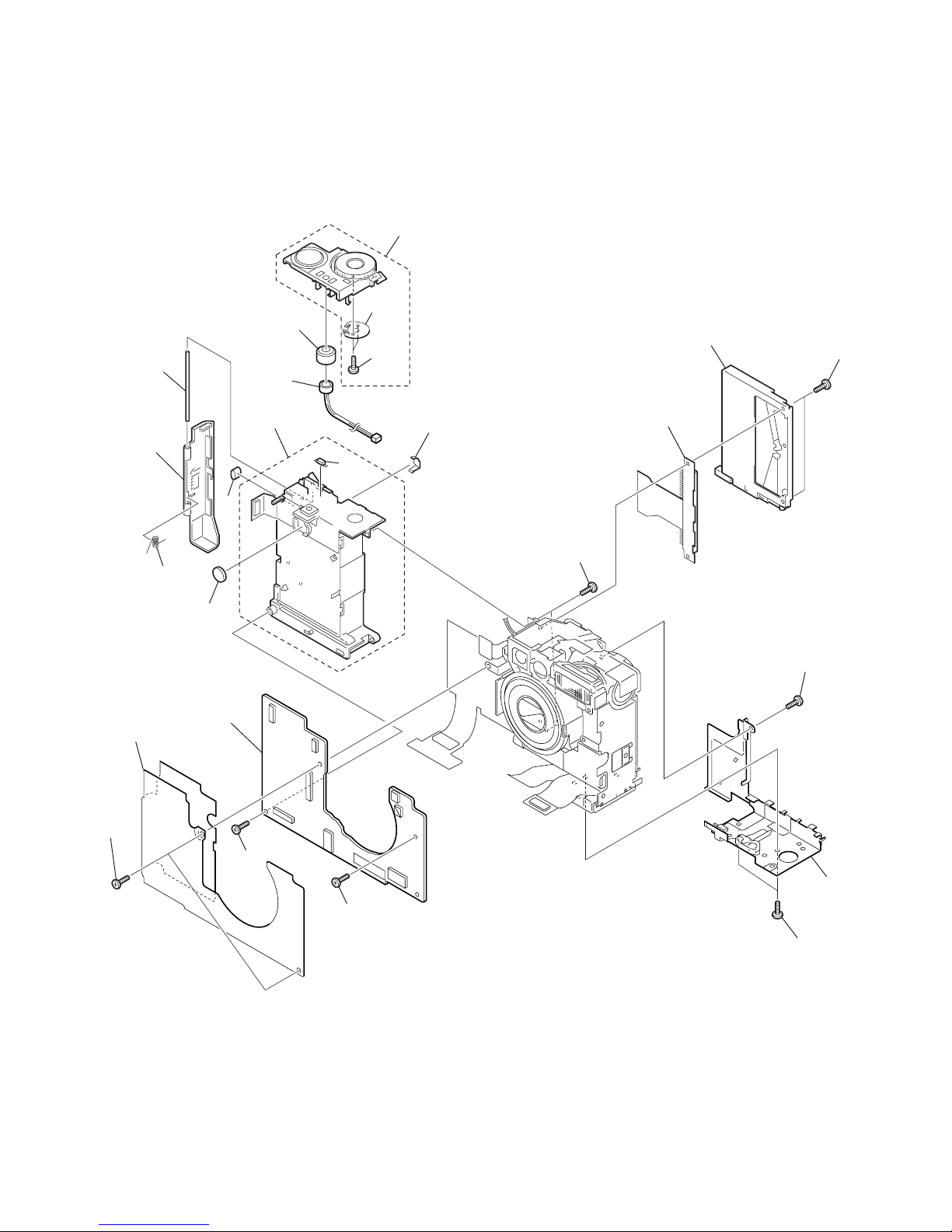

Internal Parts-1
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
PowerShot S330
DIGITAL IXUS 330
IXY DIGITAL 300a
Pg2
1 CL1-1035-000 C 1 SHEET, SHIELD
2 CM1-1403-000 C 1 PCB ASS’Y, MAIN
3 CM1-1405-000 C 1 OPERATION KEY UNIT
4 CD1-3647-000 C 1 SHAFT, CF
5 CD1-3646-000 B 1 COVER, CF
6 CS8-6156-000 C 1 SPRING, CF
7 CK2-1220-000 C 1 GASKET (CIRCUIT PROTECTER)
8 WK1-5132-000 C 1 BATTERY, LITHIUM (2ND)
9 CM1-1417-000 C 1 BATTERY BOX UNIT
10 WD1-5064-000 C 1 FUSE, MATSU.DENKI UNHH206
11 CD1-3663-000 C 1 BUSH, MIC.
12 CM1-1193-000 C 1 MICROPHONE UNIT
13 CD1-3701-000 C 1 CLIP, MODE
14 CM1-1410-000 B 1 MODE BASE UNIT
15 CD1-3656-000 C 1 BRUSH, MODE
16 CM1-1406-001 C 1 CF FPC UNIT
17 WS3-5698-000 C 1 CF EJECT UNIT
18 XA1-7170-357 F 3 SCREW
19 XA4-9170-359 F 3 SCREW
20 CD1-3108-000 F 3 SCREW
21 CD1-3105-000 F 2 SCREW
22 XA4-9140-207 F 2 SCREW
PowerShot S330
DIGITAL IXUS 330
IXY DIGITAL 300a
Pg3

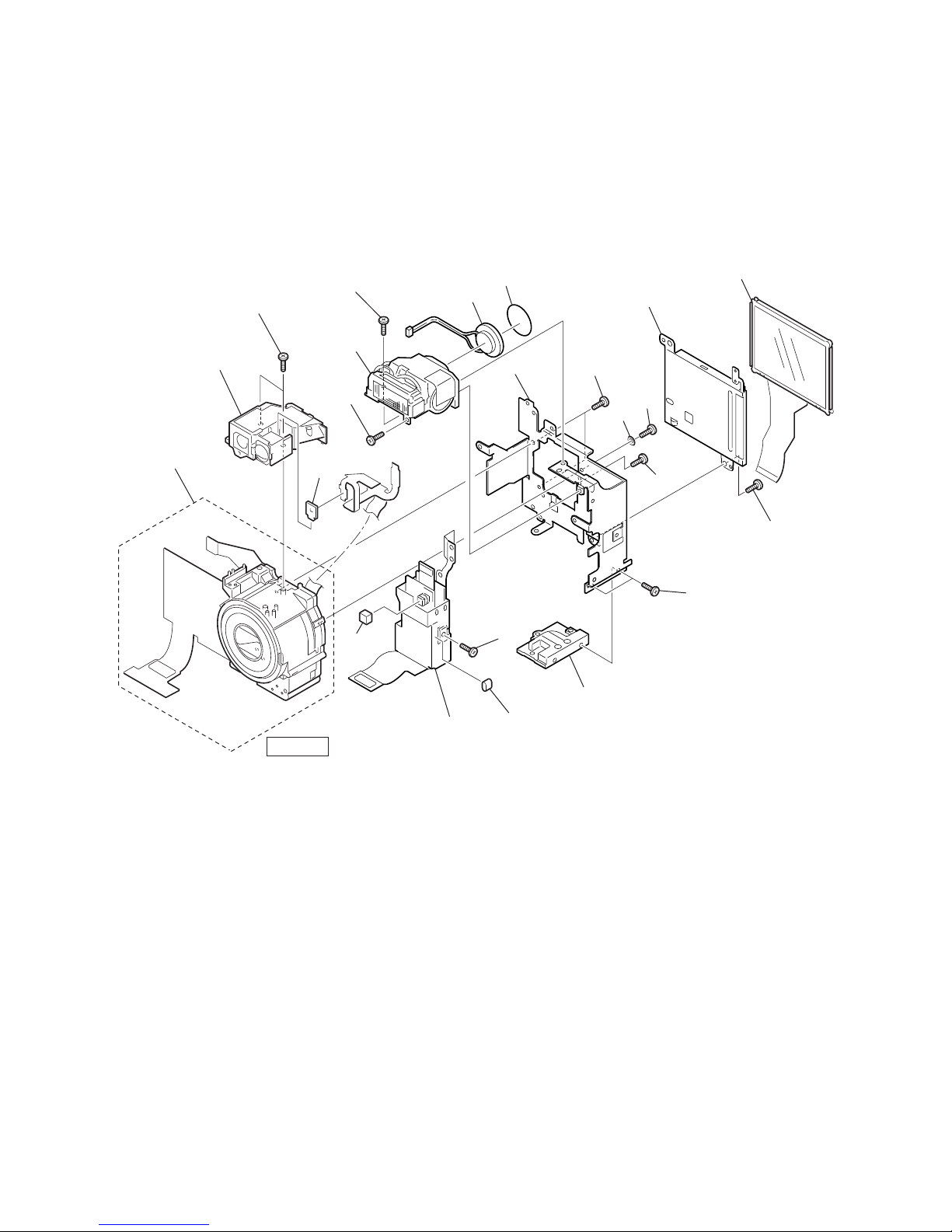

Internal Parts-2
1
2
3
14
15
15 12
13
4
16
20 17
16
18
19
18
9
8
67
5
10
11
See Pg4
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
PowerShot S330
DIGITAL IXUS 330
IXY DIGITAL 300a
Pg3
1 CM1-1416-000 B 1 OPTICAL UNIT
2 CM1-1144-000 B 1 FINDER UNIT
3 CD1-3565-000 C 1 HOLDER, LED
4 CM1-1414-000 B 1 FLASH UNIT
5 CB1-8846-000 C 1 CAP, TRIGGER
6 CM1-1401-000 C 1 DC/DC CONVERTER UNIT
7 CK2-1220-000 C 1 GASKET (CIRCUIT PROTECTER)
8 CD1-4295-000 C 1 FRAME, MAIN
9 CD1-3685-010 C 1 BASE, TRIPOD
10 CM1-1409-000 C 1 BACK LIGHT UNIT
11 WG2-5227-000 C 1 PANEL, LCD
WG2-5227-001 C 1 PANEL, LCD (SELECTION)
12 CM1-1418-000 C 1 SPEAKER UNIT
13 CD1-4320-000 C 1 CLOTH
14 XA4-9140-359 F 2 SCREW
15 XA1-7170-307 F 2 SCREW
16 XA4-5170-309 F 3 SCREW
17 CD1-3553-000 F 1 SCREW
18 XA1-7170-357 F 3 SCREW
19 CD1-3108-000 F 1 SCREW
20 CD1-3554-000 F 1 WASHER, WAVE
PowerShot S330
DIGITAL IXUS 330
IXY DIGITAL 300a
Pg4
1
2
3
4
5
6
7
9
8
10
OPTICAL UNIT
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
PowerShot S330
DIGITAL IXUS 330
IXY DIGITAL 300a
Pg4
1 CD1-4309-000 B 1 CAP, BARREL 1
2 CD1-3595-000 B 1 ADHESIVE TAPE, FRONT
3 CD1-3577-000 B 1 CAP, FRONT
4 CD1-3574-000 B 2 PLATE, BARRIER
5 CD1-3579-000 C 1 BASE, BARRIER
6 CS8-5236-000 C 1 SPRING, BARRIER CLOSE
7 CD1-3575-000 C 1 PLATE, BARRIER DRIVE
8 CS8-5235-000 C 1 SPRING, BARRIER OPEN
9 CD1-3576-000 C 1 RING, BARRIER DRIVE
10 XA4-5140-357 F 1 SCREW
PowerShot S330
DIGITAL IXUS 330
IXY DIGITAL 300a
Pg5
Wrist Strap WS-110 Battery Pack NB-1LH
USB Interface Cable
IFC-300PCU
AV Cable AVC-DC100Battery Charger
CB-2LS/2LSE
CF Card FC-8M
Canon Digital Camera
Solution Disk,
ArcSoft Camera Suite Disk
DC Coupler DR-500
AC Cable
N.S
N.S
N.S
N.S
N.S
1
3
4
2
N.S
TERMINAL COVER
NB-1LH
5
N.Sl : N.S Stand for No Stock (Product available)
Accessories-1
