Canon TS-E 45mm 1:2.8 Instruction Manual

PARTS

CATALOG

TS-E 45mm 1:2.8

REF.NO.C21-6231

REF.No.C21-6231 P A R T S L I S T Pg.5

NEW PART.NO. CLASS QTY DESCRIPTION PAGE

97-5906-000 E 3 SPRING, COIL 3,4

CA2-0539-000 E 1 RED MOUNTING INDEX 4

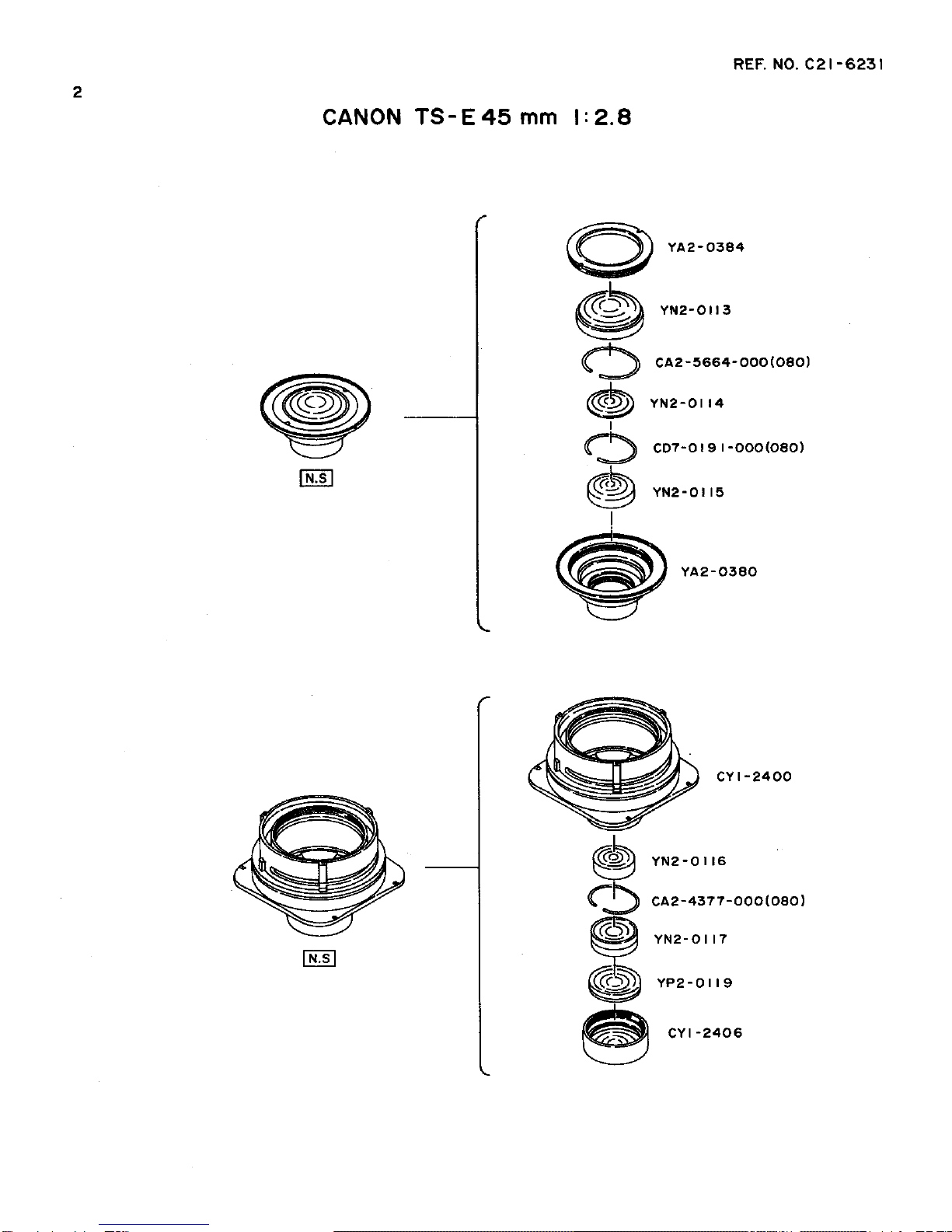

CA2-4377-000 (080) E 1 RING, SNAP 2

CA2-4583-000 D 1 CONTACT ASS'Y 4

CA2-4585-000 E 3 SCREW, MOUNT STOPPER 4

CA2-4586-000 E 2 SCREW 4

CA2-5533-000 E 1 STUD 4

CA2-5664-000 (080) E 1 RING, SNAP 2

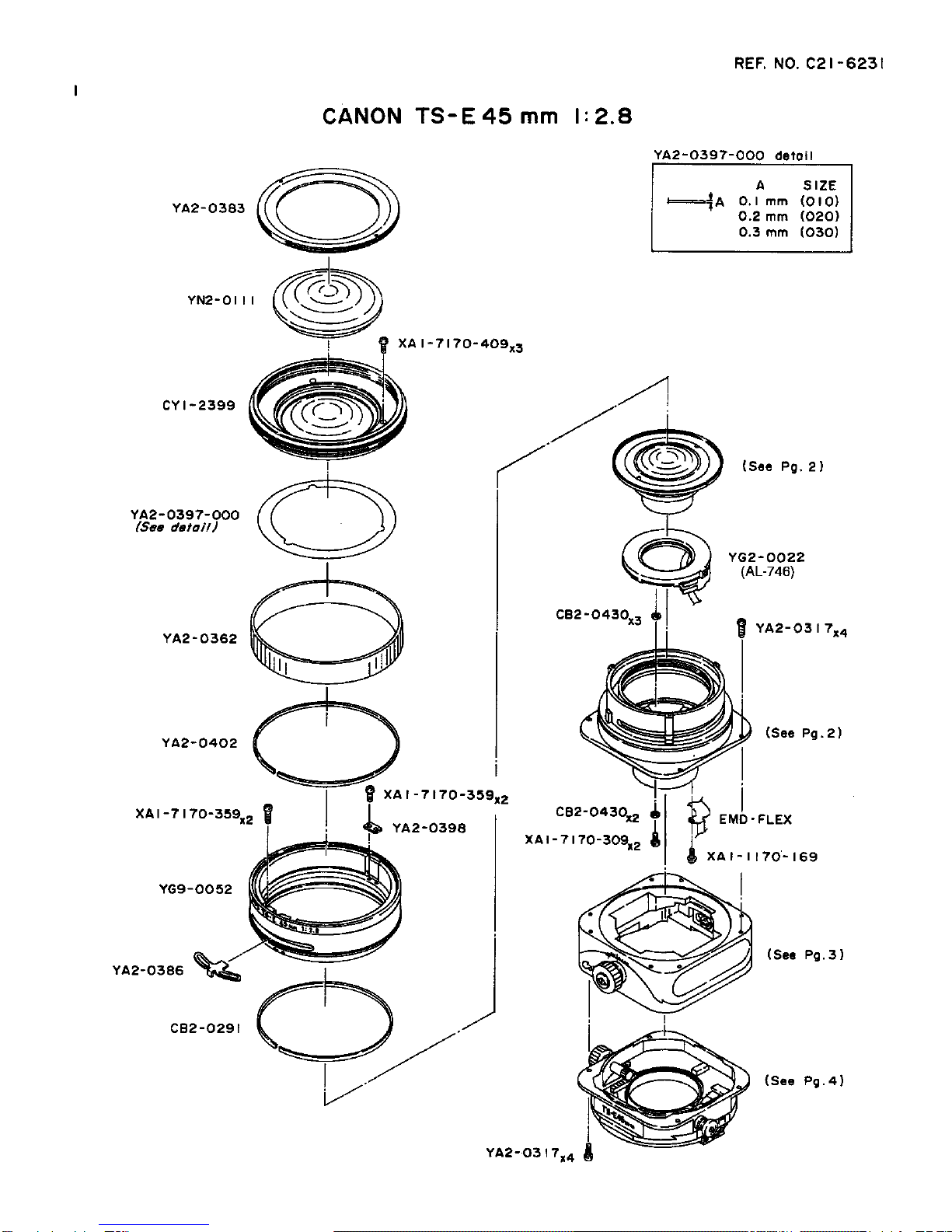

CB2-0291-000 E 1 SHIELD, DUST 1

CB2-0430-000 E 5 COLLAR 1

CD7-0191-000 (080) E 1 RING, SNAP 2

CY1-2179-000 (200) E 1 MOUNT, LENS 4

CY1-2399-000 E 1 LENS, G2 ASS'Y 1

CY1-2400-000 E 1 HELICOID ASS'Y 2

CY1-2401-000 E 1 TILTING MEMBER UNIT 3

CY1-2402-000 E 1 SHIFT MEMBER UNIT 4

CY1-2406-000 E 1 LENS G10 ASS'Y 2

CY3-1054-000 E 1 SHIFT BASE ASS'Y 4

CY3-1057-000 E 1 TILT BASE ASS'Y 3

XA1-1170-167 2 SCREW PH1.7X1.6 4

XA1-1170-169 3 SCREW, CROSS-RECESS, PH 1,4

XA1-1170-509 2 SCREW, CROSS-RECESS, PH 3,4

XA1-1200-187 2 SCREW, M2X1.8 4

XA1-1201-209 4 SCREW 3

XA1-7170-259 2 SCREW, CROSS-RECESS, PH 4

XA1-7170-309 2 SCREW, CROSS-RECESS, PH 1

XA1-7170-359 4 SCREW, CROSS-RECESS, PH 1

XA1-7170-409 3 SCREW, CROSS-RECESS, PH 1

XA1-7200-406 2 SCREW, CROSS-RECESS, PH 4

XA1-7200-456 2 SCREW, CROSS-RECESS, PH 4

XA4-1170-357 2 SCREW, CROSS-RECESS, PH 4

XA6-1170-259 2 SETSCREW, SLOTTED, HLCP 3,4

XD1-1103-623 1 WASHER 3

XD1-1103-625 1 WASHER 4

XD3-2160-052 2 PIN 3,4

XG8-1100-582 3 BALL, STEEL 3,4

XG8-1100-602 1 BALL, STEEL 4

YA2-0246-000 E 1 SEAT, MOUNT 4

YA2-0249-000 E 1 COLLAR, ASSEMBLY 4

YA2-0251-000 E 1 STOPPER, REVOLVING 4

YA2-0252-000 E 1 HOLDER, STOPPER 4

YA2-0253-000 E 1 SPRING, PLATE 4

YA2-0254-000 E 2 SPRING, COIL 3

YA2-0255-000 E 1 PACK, SHIFT 4

YA2-0258-000 E 1 PINION, SHIFT 4

YA2-0260-000 D 1 KNOB, SHIFT 4

YA2-0261-000 D 2 NUT, LOCK 3,4

YA2-0262-000 E 2 WASHER, SPRING 3,4

YA2-0263-000 D 2 COLLAR, ADJUSTING 3,4

YA2-0265-000 E 1 CLAMP, SHIFT 4

YA2-0268-000 E 1 SPRING, PLATE 4

YA2-0270-000 D 2 KNOB, TILT CLAMP 3,4

YA2-0274-000 E 1 RACK, TILT 3

YA2-0275-000 E 1 PINION, TILT 3

YA2-0276-000 E 2 SCREW, SHAFT 3

REF.No.C21-6231 P A R T S L I S T Pg.6

NEW PART.NO. CLASS QTY DESCRIPTION PAGE

YA2-0279-000 E 2 WASHER 3,4

YA2-0283-000 E 2 LIGHT SHIELD 3

YA2-0284-000 D 1 KNOB, TILT 3

YA2-0286-000 E 2 WASHER 3,4

YA2-0287-000 E 2 SHAFT, TILT CLAMP 3,4

YA2-0288-000 E 1 WASHER 3

YA2-0290-000 D 1 COVER, BACK 4

YA2-0295-000 E 2 SCREW, CROSS-RECESS, PH 4

YA2-0299-000 E 1 SPRING, COIL 4

YA2-0317-000 8 SCREW, CROSS-RECESS, PH 1

YA2-0362-000 E 1 RING, RUBBER 1

YA2-0380-000 E 1 BARREL, LENS 2

YA2-0383-000 E 1 RING, BAFFLE 1

YA2-0384-000 E 1 COLLAR, ASSEMBLY 2

YA2-0386-000 E 1 KEY, FOCUSING 1

YA2-0391-000 E 1 BARREL, LIGHT SHIELD 4

YA2-0397-000 (010) E 1 WASHER, ADJUSTING 1

YA2-0397-000 (020) E 1 WASHER, ADJUSTING 1

YA2-0397-000 (030) E 1 WASHER, ADJUSTING 1

YA2-0398-000 E 1 STOPPER, FOCUSING 1

YA2-0402-000 E 1 SHIELD, DUST 1

YG2-0022-000 E 1 POWER DIAPHRAGM UNIT 1

YG2-0026-000 E 1 MAIN CBA 4

YG9-0052-000 E 1 FOCUSING RING UNIT 1

YH1-0038-000 E 1 MIF FLEX 4

YN2-0111-000 E 1 LENS,G1 1

YN2-0113-000 E 1 LENS,G3 2

YN2-0114-000 E 1 LENS,G4 2

YN2-0115-000 E 1 LENS,G5 2

YN2-0116-000 E 1 LENS,G6 2

YN2-0117-000 E 1 LENS,G7 2

YP2-0119-000 E 1 LENS,G8/9 2
