Canon Tele Super 55 User manual
ULTRA TELEPHOTO
ZOOM LENS
ACHIEVING 1480mm
TELE SUPER 55
HIGH MTF PERFORMANCE
The next generation of 16:9 format has
become more widespread world-wide.
The height of the 16:9 format is 20%
shorter than that of the current 4:3
format, thus the scanning lines are 20%
greater(Fig.1). As a result, higher
resolution is required for the 16:9
format. In order to achieve this, the
TELE SUPER55 provides the
optimum balance of aberrations by Hi-
UD glasses (High Index Ultra Low
Dispersion glass) and Canon's unique
fluorite. The TELE SUPER55 succeeds
in having the higher MTF
performance, correspondent to 6MHz,
necessary for the 16:9 format.
CANON "CROSSOVER" SYSTEM
All the Super series of lenses, including
the new TELE SUPER 55 are now
optionally available with
"CROSSOVER" compatibility. The 4
position extender turret incorporates a
0.8x "CROSSOVER" unit in addition
to the normal extenders i.e. 1.0x, 1.5x,
or 2.0x (Fig.2). When the CCD
switches to the 4:3 mode, the extender
turret rotates to the 0.8x position. The
0.8x "CROSSOVER" unit reduces the
diameter from 11mm to 9mm thus
shortening the focal length to produce
an identical picture angle. In essence,
the 0.8x "CROSSOVER" unit acts as a
1.0x extender for the switched 4:3
aspect ratio. Fig.3 shows the relation
between focal length and the
magnification of the extenders.
PJ55x13.5B IE 13.5-740mm 1:2.0
TELE SUPER
55
597.9
F.B.=48 in air
122 122
125
135.5
150
DIMENSIONS
The "TELE Super 55" which features the incredible focal length of 740mm at the tele-end and 1,480mm with 2.0x extender, is
perfect for sports and other live events.The new and improved "TELE Super 55" can include Canon's optional "Crossover System"
which accommodates for the loss of wide angle in the 4:3 mode in some of the dual aspect ratio switchable camera systems.
The redesigned circuitry of the "TELE Super 55" realizes improvements in RF noise protection and its improved mechanical design
offers a modern look with easy accessibility for user friendly maintenance.
Fig.1
1X
2X
0.8X
1.5X
or Spare
(Option)
Crossover
(optional)
Fig.2
CROSSOVER SYSTEM
16:9 Scanning Lines
16:9 (dia 11mm) 4:3 (dia 9mm)
Extender
Focal Length
F stop Extender
Focal Length
F stop
0.8X 1.0X
11.1-611mm
2.0
1.0X
13.5-740mm
2.0 1.2X
13.5-740mm
2.0
2.0X
27-1480mm
4.0 2.4X
27-1480mm
4.0
ULTRA TELEPHOTO
ZOOM LENS
ACHIEVING 1480mm
Fig.3
4:3
16:9
80%
100%
16 : 9
Zoom Ratio
Built-in Extender
Range of Focal Length
Maximum Relative
Aperture
Angular Field of View
Minimum Object
Distance (M.O.D.)
Object Dimensions
at M.O.D.
Size
Weight (Approx.)
Built-in Pattern Projector
NORMAL 4 : 3
1.02.01.02.01.01.22.4
55
13.5740mm 271480mm 13.5740mm 271480mm 11.1611mm 13.5740mm 271480mm
1:2.0 at 13.5291mm
1:4.1 at 740mm
1:4.0 at 27
582mm
1:8.2 at 1480mm 1:2.0 at 13.5
291mm
1:4.1 at 740mm 1:4.0 at 27
582mm
1:8.2 at 1480mm 1:2.0 at 11.1
311mm
1:3.4 at 611mm 1:2.0 at 13.5
291mm
1:4.1 at 740mm 1:4.0 at 27
582mm
1:8.2 at 1480mm
36.1
27.5
at 13.5mm
0.68
0.51
at 740mm 18.5
13.9
at 27mm
0.34
0.26
at 1480mm 39.1
22.6
at 13.5mm
0.74
0.42
at 740mm 20.1
11.4
at 27mm
0.37
0.21
at 1480mm 36.1
27.5
at 11.1mm
0.68
0.51
at 611mm 29.9
22.6
at 13.5mm
0.56
0.42
at 740mm 15.2
11.4
at 27mm
0.28
0.21
at 1480mm
5.0m from front lens vertex
319.8
239.9cm at 13.5mm
5.8
4.3cm at 740mm
162.7
122.0cm at 27mm
3.0
2.2cm at 1480mm
348.7
196.1cm at 13.5mm
6.3
3.5cm at 740mm
174.4
98.1cm at 27mm
3.2
1.8cm at 1480mm
319.8
239.9cm at 11.1mm
5.8
4.3cm at 611mm
261.5
196.1cm at 13.5mm
4.7
3.5cm at 740mm
130.8
98.1cm at 27mm
2.4
1.8cm at 1480mm
244(W)258(H)598.5(L)mm
19.5kg(43.0lbs)
optionally available
SWITCHABLE 4 : 3 (with crossover unit)
Note ; TELE SUPER 55 for 1/2 inch cameras is also available.
For details , please contact Canon office.
SPECIFICATIONS
ACCESS WINDOW FOR
EASY MAINTENANCE
•Easy adjustment of lens functions (Built-
in pattern projector, Iris gain) through a
large-size window.
EXCELLENT SERVO SYSTEM
•Faster and quieter servo system
•••maximum speed zoom:0.8 sec
focus:1.0 sec
•Low power consumption
ULTRA TELEPHOTO ;
ACHIEVING 740MM
1,480MM (with 2X Extender )
COUNTERMEASURES AGAINST
"GHOSTING" AND "FLARES"
•New coatings and anti-reflection paint achieve
the elimination of "ghosting" and "flares"
COUNTERMEASURES AGAINST RADIO
FREQUENCY NOISE
(INTERFERENCE)
SERVO SYSTEM MATCHING ROBOTIC
REQUIREMENTS
•High resolution zoom and focus servo - 12 bit repeatability
10 BIT IRIS COMPATIBILITY
•High resolution iris control
4-POSITION TURRET
(built in extender, pattern projector,
master lens, crossover unit).
•Micro Computer Controlled Turret.
*Built in Effect Filter available as
option e.g Cross, Sunny, etc.
VERSATILE
ZOOM/FOCUS
CONTROLLERS
(See figure on the next page )
•New ergonomic design.
•Countermeasures against dust,
rain, and radio interference.
CROSSOVER COMPATIBILITY (Optional)
•For use with 16:9/4:3 switchable cameras.

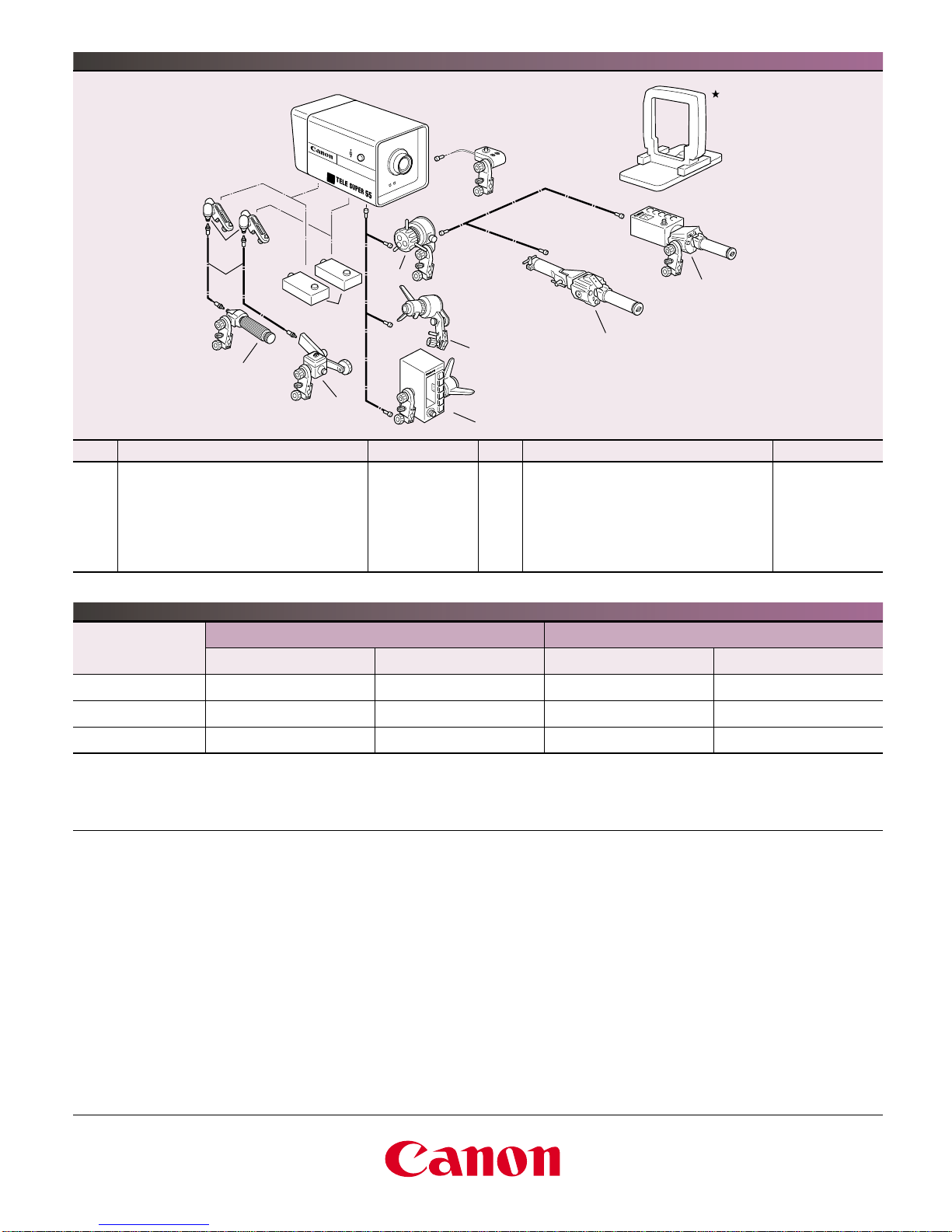

OPERATION SYSTEM
NO. DESCRIPTION CODE
3 Servo Module SMJ-NO2
Flexible Zoom Controller FZP-T61
Flexible Focus Controller FFP-T61
Flexible Cable 30"
Flexible Module FMJ-452
BG2-5205
BG2-1558
BG2-1557
BG2-5305
4
5
6
7
LENS SYSTEM
1-b
1-a
Switch Box
(Optional)
2-a
2-b
4
3
5
6
7
2-c
5
6
1
Lens Supporter
(optional)
APPLICATION
Manual Flexible Cable Drive Flexible Cable Drive 4, 6, 7 5, 6, 7
Semi-Servo Servo Flexible 1, 3 5, 6, 7
OPERATION
ZOOM FOCUS ZOOM FOCUS
COMPOSITION
NO. DESCRIPTION CODE
1-a Zoom Demand ZDJ-A01
Zoom Demand W/Shot Box ZPJ-A01
Focus Demand FDJ-I01
Focus Demand FDJ-H01
Focus Demand W/Shot Box FPJ-K02
BG2-5122
BG2-5529
BG2-5001
BG2-5003
BG2-5506
1-b
2-a
2-b
2-c
Full-Servo Servo Servo 1, 3 2, 3
PUB. BE98-201 0398D3 PRINTED IN JAPAN
North & South America
Canon USA, Inc.
Broadcast Equipment Div. (Headquarters)
400 Sylvan Avenue Englewood Cliffs, NJ 07632
Tel:(201)816-2900
/
(800)321-4388
Fax:(201)816-2909
Chicago
100 Park Blvd. Itasca, IL 60143
Tel:(630)250-6231 Fax:(630)250-0399
Atlanta
5625 Oakbrook Pkwy. Norcross, GA 30093
Tel:(770)849-7895 Fax:(770)849-7888
Los Angeles
15955 Alton Parkway lrvine, CA 92718
Tel:(714)753-4330 Fax:(714)753-4337
Dallas
3200 Regent Blvd. lrving, TX 75063
Tel:(972)409-8871 Fax:(972)409-8879
Latin America
Tel:(954)349-6975 Fax:(201)816-2909
Canada
Canon Canada, Inc.
Optics Division 6390 Dixie Road Mississauga,
Ontario Canada, L5T 1P7
Tel:(905)795-2012 Fax:(905)795-2140
Brasil
Canon Do Brasil Industiria
Comercio Ltda Av. Do Caf, 277 6-Andar Torreé
B Vila Guarani, Sao Paulo Cep:04311-000
Tel:55-11-5070-7103 Fax:55-11-5070-7301
Europe/Africa/Middle East
The Netherlands Headquarters
Canon Europa N.V.
TV Products Department Bovenkerkerweg 59-61
1185 XB Amstelveen
Tel:+31(0)20-5458905 Fax:+31(0)20-5458203
Email:tvprod @ cenv. canon.nl
Home Page address:
www. europe. canon. com/products/tvprod/
France
Canon Photo Video France
11, 'Le Doublon'AV, Dubonnet 92407 Courbevoie-
Cedex
Tel:+33(0)1-49040608 Fax:+33(0)1-49040699
E-mail:dp @ cpv. canon. fr
United Kingdom
Canon UK LTD.
TV Products Department Unit 1a, The Fleming
Centre Fleming Way Crawley West Sussex RH10
2NN
Tel:+44(0)1293-524-358 Fax:+44(0)1293-562-008
E-mail:TV_lenses @ cuk. canon. co. uk
Germany
Canon Euro Photo
Industrial Products Department Siemensring
90-92 47877 Willich
Tel:+49(0)2154-495491 Fax:+49(0)2154-495498
E-mail:[email protected]
Australia
Canon Australia Pty. Ltd.
Optical Products Division 1 Thomas Holt Drive
North Ryde, NSW 2113
Tel:+61(0)2-9805-2000 Fax:+61(0)2-9805-2444
Asia
Canon Singapore PTE. LTD.
2 Alexandra Road #03-01A Delta House
Singapore 159919
Tel:(65)276-6864 Fax:(65)271-4226
Japan
Canon Inc.
20-2, Kiyohara-Kogyo-Danchi, Utsunomiya-shi,
Tochigi-ken, 321-3292
Tel:+81(0)28-667-8669 Fax:+81(0)28-667-8672
Specifications subject to change without notice.
