Canon EF 28mm 1:2.8 Instruction Manual

PARTS

CATALOG

EF 28mm 1:2.8

REF.NO.C21-5281

REF.No.C21-5281 P A R T S L I S T Pg.1

NEW PART.NO. CLASS QTY DESCRIPTION

CA2-4544-000 E 1 WASHER, DUST SHIELD

CA2-4565-000 E 1 SHEET, SHIELD

CA2-4569-000 E 1 SCREW

CA2-4582-000 D 1 COVER, BACK

CA2-4583-000 D 1 CONTACT ASS'Y

CA2-4585-000 E 1 SCREW, MOUNT STOPPER

CA2-4586-000 E 2 SCREW

CA2-4587-001 E 1 SCREW, BLIND

CA2-4807-000 D 1 RING, NAME

CA2-4808-000 D 1 RING, FRONT

CA2-6154-000 E 1 SHEET, SHIELD

CG2-0261-000 E 1 MAIN FLEX CBA (Old)

CG2-0261-020 E 1 MAIN FLEX CBA (New)

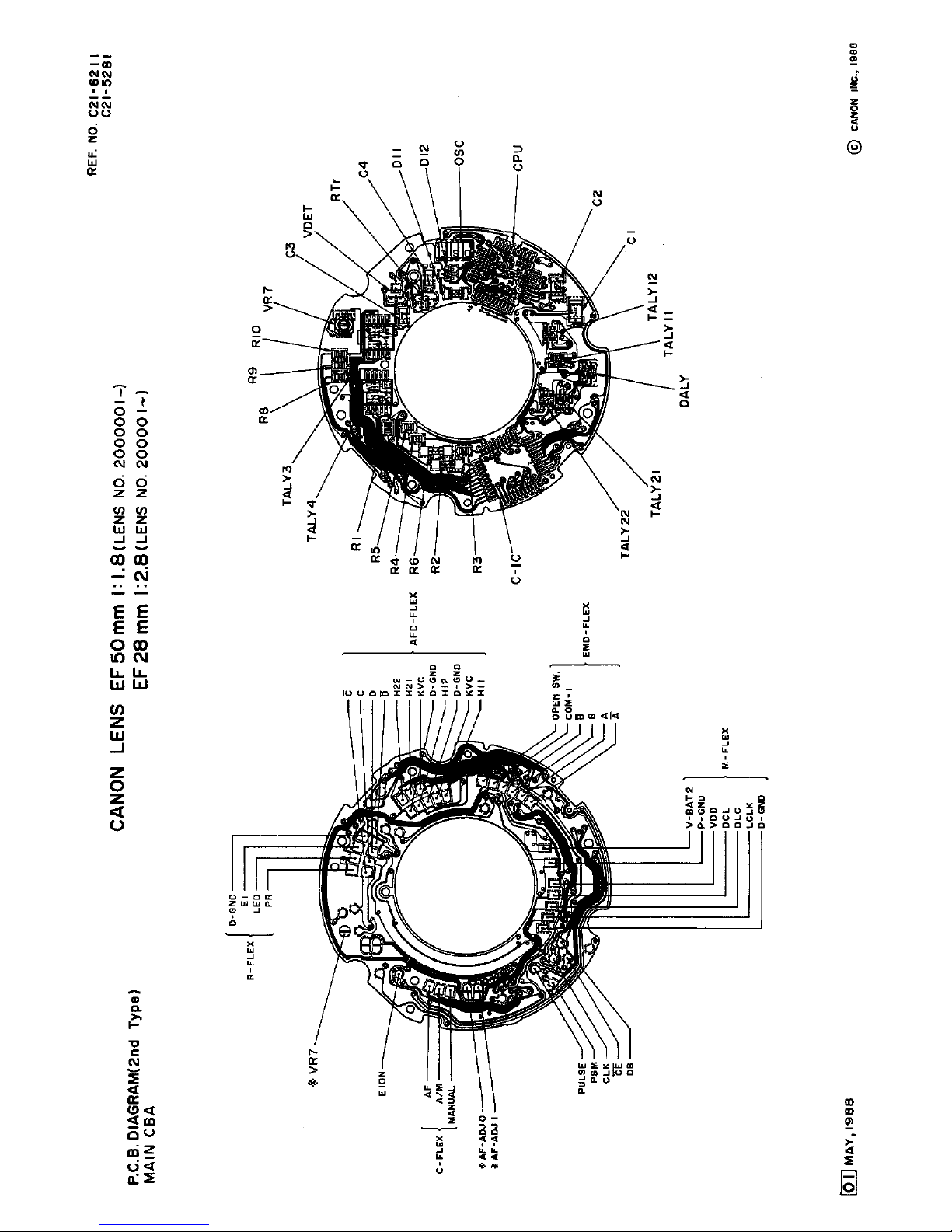

CG2-0262-000 E 1 MIAN CBA

CH1-0632-000 E 1 M-FLEX

CY1-2178-000(002) E 1 WASHER, MOUNT

CY1-2178-000(005) E 1 WASHER, MOUNT

CY1-2179-000(170) E 1 MOUNT, LENS

CY1-2179-000(180) E 1 MOUNT, LENS

CY1-2179-000(190) E 1 MOUNT, LENS

CY1-2179-000(200) E 1 MOUNT, LENS

CY1-2179-000(210) E 1 MOUNT, LENS

CY1-2179-000(220) E 1 MOUNT, LENS

CY1-2179-000(230) E 1 MOUNT, LENS

CY1-2179-000(240) E 1 MOUNT, LENS

CY1-2179-000(250) E 1 MOUNT, LENS

CY1-2179-000(260) E 1 MOUNT, LENS

CY1-2638-000 D 1 RING, MANUAL FOCUSING

CY1-2640-000 C 1 FRONT LENS UNIT

X91-1737-300 3 SCREW, CROSS-RECESS, PH

XA4-4170-309 1 SCREW, CROSS-RECESS, PH

XA4-4200-456 3 SCREW, CROSS-RECESS, PH

YG9-0519-000 D 1 RING, INDEX

REF.No.C21-5281 P A R T S L I S T Pg.2

NEW PART.NO. CLASS QTY DESCRIPTION

CA2-4543-000 D 1 KEY, HELICOID

CA2-4545-000 D 1 RUBBER, STOPPER

CA2-4546-000 D 1 SCREW, HELICOID STOPPER

CA2-4549-000 D 1 RACE, BALL (Old)

CA2-4550-000 E 1 WASHER, CUPPED (Old)

CA2-4551-000 D 1 RACE, THREADED (Old)

CA2-4552-000 D 1 RETAINER (Old)

CA2-4555-000 E 1 HOLDER, SENSOR

CA2-4559-000 E 1 LEVER, CLUTCH

CA2-4560-000 E 1 SPACER

CA2-4563-000 E 1 HOLDER, FLEX

CA2-4588-000 E 1 HELICOID, OUTER (New)

CA2-4804-000 E 1 RING, SCALE (Old)

CA2-4811-000 E 1 RING, SCALE (New)

CG2-0254-000 D 1 AF DRIVE UNIT (Old)

CG2-0254-020 D 1 AF DRIVE UNIT (New)

CG2-0257-000 D 1 POWER, DIAPHRAGM

CG9-5128-000 E 1 PHOTO REFLECTOR CBA

CG9-5177-000 D 1 FRAME, SWITCH KNOB (Old)

CG9-5177-060 D 1 A/M SWITCH ASS'Y (New)

CG9-5179-000 E 1 SWITCH UNIT

CG9-5284-000 E 1 RING

CY1-2186-000 D 1 FOCUSING UNIT (Old)

CY1-2506-000 D 1 FOCUSING PARTS SET

CY1-2686-000 D 1 COVER, A/M SWITCH

WG8-0213-000 E 1 PHOTO REFLECTOR

X91-1738-090 1 SCREW, CROSS-RECESS, PH

X91-1738-100 2 SCREW, CROSS-RECESS, PH

XA1-1170-159 1 SCREW, CROSS-RECESS, PH

XA1-7140-209 1 SCREW, CROSS-RECESS, PH

XA4-4170-457 1 SCREW, CROSS-RECESS, PH

XG8-1100-592 30 BALL, STEEL (Old)

REF.No.C21-5281 P A R T S L I S T Pg.3

NEW PART.NO. CLASS QTY DESCRIPTION

CA2-4559-001 E 1 LEVER, CLUTCH

CA2-4563-001 E 1 HOLDER, FLEX

CA2-6151-000 E 1 SPACER

CG2-0352-000 D 1 AF DRIVE UNIT

CG2-0353-000 D 1 POWER DIAPHRAGM UNIT

CG9-5177-000 D 1 FRAME, SWITCH KNOB (Old)

CG9-5177-060 D 1 A/M SWITCH ASS'Y (New)

CY1-2275-000 D 1 FOCUSING UNIT

CY1-2686-000 D 1 COVER, A/M SWITCH

WG8-0213-000 E 1 PHOTO REFLECTOR

X91-1738-090 1 SCREW, CROSS-RECESS, PH

X91-1738-100 2 SCREW, CROSS-RECESS, PH

XA4-6170-357 1 SCREW, CROSS-RECESS, PH

YG9-0015-000 E 1 SWITCH UNIT

YG9-0020-000 E 1 PHOTO REFLECTOR CBA
