Canon EF 24mm 1:2.8 Instruction Manual

PARTS

CATALOG

EF 24mm 1:2.8

REF.NO.C21-5301

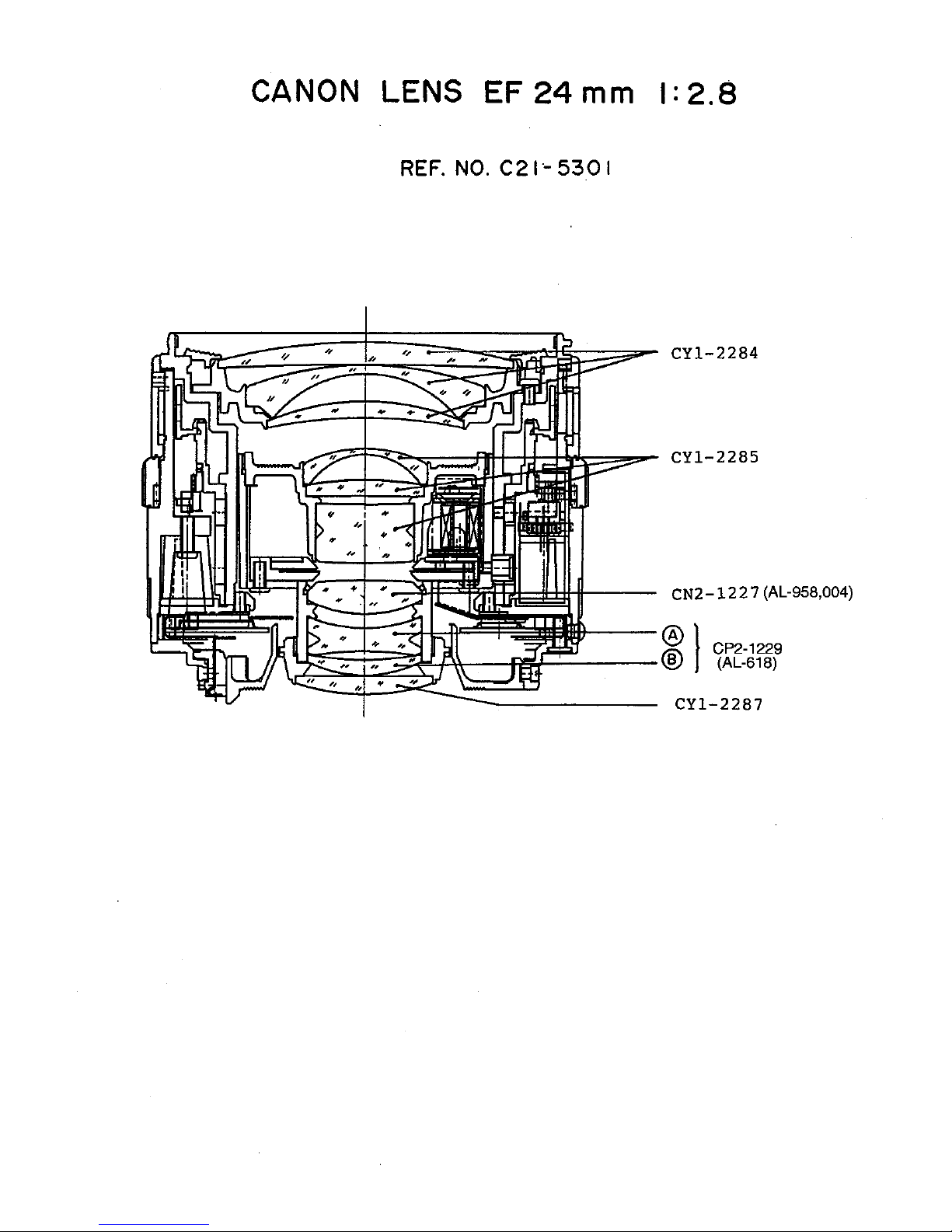

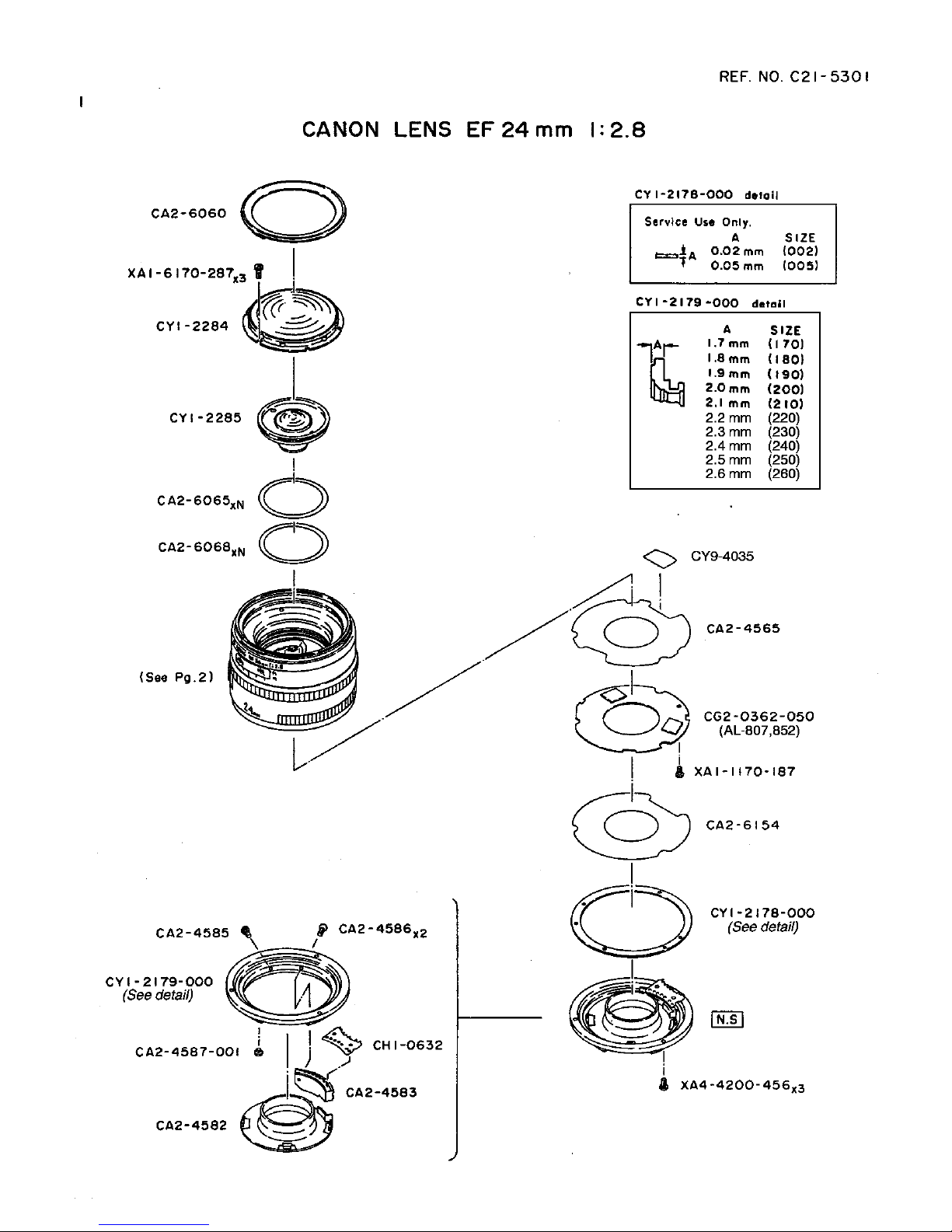

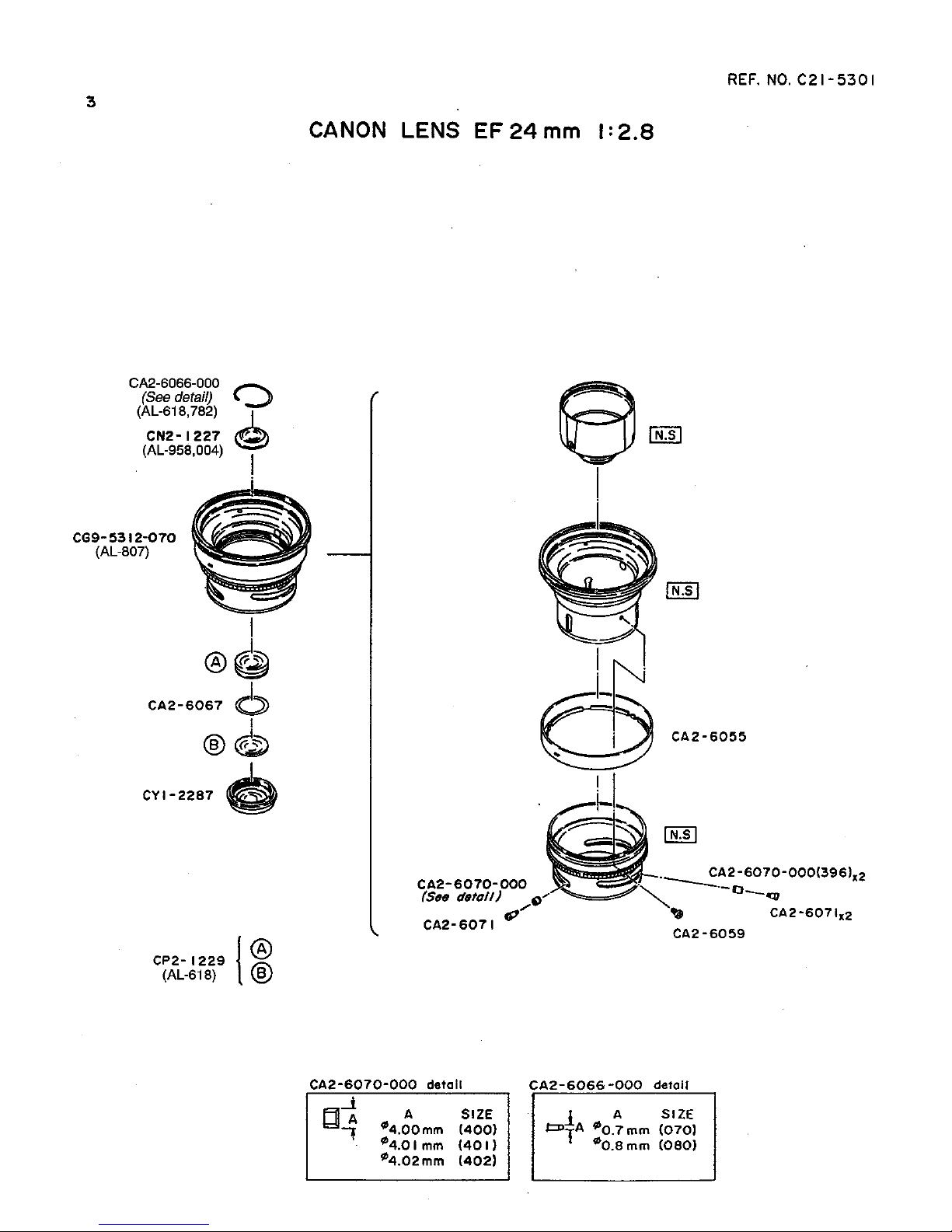

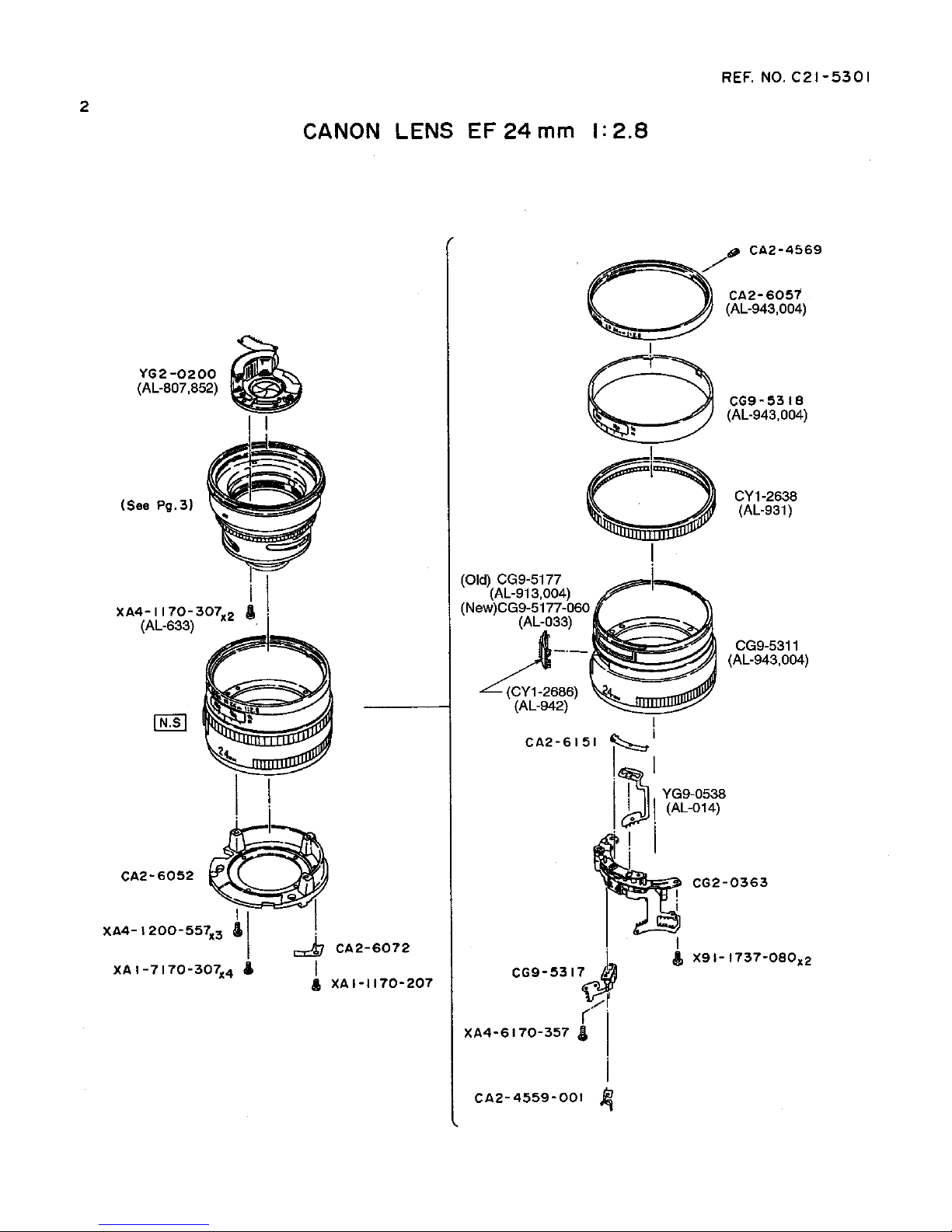

REF.No.C21-5301 P A R T S L I S T Pg.4

NEW PART.NO. CLASS QTY DESCRIPTION PAGE

CA2-4559-001 F 1 LEVER, CLUTCH 2

CA2-4565-000 E 1 SHEET, SHIELD 1

CA2-4569-000 E 1 SCREW 2

CA2-4582-000 D 1 COVER, BACK 1

CA2-4583-000 D 1 CONTACT ASS'Y 1

CA2-4585-000 E 1 SCREW, MOUNT STOPPER 1

CA2-4586-000 E 2 SCREW 1

CA2-4587-001 E 1 SCREW, BLIND 1

CA2-6052-000 E 1 BASE, BARREL 2

CA2-6055-000 E 1 RING, SCALE 3

CA2-6057-000 D 1 RING, NAME 2

CA2-6059-000 E 1 SCREW, FOCUS STOPPER 3

CA2-6060-000 D 1 RING, FRONT 1

CA2-6065-000 E 1 SPACER 1

CA2-6066-000 (070) E 1 RING, SNAP 3

CA2-6066-000 (080) E 1 RING, SNAP 3

CA2-6067-000 E 1 SPACER, G8/9 3

CA2-6068-000 E 1 SPACER 1

CA2-6070-000 (396) E 2 COLLAR 3

CA2-6070-000 (400) E 1 COLLAR, ADJUSTING 3

CA2-6070-000 (401) E 1 COLLAR, ADJUSTING 3

CA2-6070-000 (402) E 1 COLLAR, ADJUSTING 3

CA2-6071-000 E 3 SCREW 3

CA2-6072-000 E 1 HOLDER, EMD-FLEX 2

CA2-6151-000 E 1 HOLDER, SENSOR 2

CA2-6154-000 E 1 SHEET, SHIELD 1

CG2-0362-050 D 1 MAIN CBA 1

CG2-0363-000 D 1 AF DRIVE UNIT 2

CG9-5177-000 D 1 FRAME, SWITCH KNOB (OLD) 2

CG9-5177-060 D 1 A/M SWITCH ASS'Y (NEW) 2

CG9-5311-000 D 1 BARREL, MAIN 2

CG9-5312-070 D 1 FOCUSING UNIT 3

CG9-5317-000 E 1 SWITCH UNIT 2

CG9-5318-000 D 1 RING, INDEX 2

CH1-0632-000 E 1 M-FLEX 1

CN2-1227-000 E 1 LENS, G7 3

CP2-1229-000 E 1 LENS, G8/9 3

CY1-2178-000 (002) E 1 WASHER, MOUNT 1

CY1-2178-000 (005) E 1 WASHER, MOUNT 1

CY1-2179-000 (170) E 1 MOUNT, LENS 1

CY1-2179-000 (180) E 1 MOUNT, LENS 1

CY1-2179-000 (190) E 1 MOUNT, LENS 1

CY1-2179-000 (200) E 1 MOUNT, LENS 1

CY1-2179-000 (210) E 1 MOUNT, LENS 1

CY1-2179-000 (220) E 1 MOUNT, LENS 1

CY1-2179-000 (230) E 1 MOUNT, LENS 1

CY1-2179-000 (240) E 1 MOUNT, LENS 1

CY1-2179-000 (250) E 1 MOUNT, LENS 1

CY1-2179-000 (260) E 1 MOUNT, LENS 1

CY1-2284-000 D 1 LENS/BARREL 1

CY1-2285-000 E 1 LENS/BARREL 1

CY1-2287-000 D 1 LENS/BARREL 3

CY1-2638-000 D 1 RING, MANUAL FOCUSING 2

CY1-2686-000 D 1 COVER, A/M SWITCH 2

CY9-4035-000 1 TAPE, INSULATOR 1

REF.No.C21-5301 P A R T S L I S T Pg.5

NEW PART.NO. CLASS QTY DESCRIPTION PAGE

X91-1737-080 2 SCREW, CROSS-RECESS,PH 2

XA1-1170-187 1 SCREW, CROSS-RECESS, PH 1

XA1-1170-207 1 SCREW, CROSS-RECESS,PH 2

XA1-6170-287 3 SCREW, CROSS-RECESS,PH 1

XA1-7170-307 4 SCREW, CROSS-RECESS,PH 2

XA4-1170-307 2 SCREW, CROSS-RECESS,PH 2

XA4-1200-557 3 SCREW, CROSS-RECESS,PH 2

XA4-4200-456 3 SCREW, CROSS-RECESS,PH 1

XA4-6170-357 1 SCREW, CROSS-RECESS,PH 2

YG2-0200-000 D 1 POWER DIAPHRAGM UNIT 2

YG9-0538-000 E 1 PHOTO REFLECTOR CBA 2
