Candy 34001426 CDNE 063 User manual
REFRIGERATORS
34001426 CDNE 063
Service Manual
34001426 CDNE 063 1116 (15/04/2011)
Ref. Descrizione - Description - Beschreibung - Descripcion
Fine
Ending
Fin
End
Fin
Inizio
Beginning
Debut
Begin
Inicio
Ricambio
Part No.
Piece
E-Teil
Pieza
Copyright 2011 Gias S.r.L.
3 Refriger.thermostat box 92959089
8a Adjustable levelling foot 41025764
9 Refrigerator thermostat 41032908
12 Thermostat knob 41033986
14a Lampholder with switch 92746189
16 Inner light lampcover 41033989
18 Inner light switch pusher 92636190
18b Light switch pusher lever 92959154
28 Condenser 41027371
30 Clip-clamp 92663442
42b Compressor fixing plate 92854157
44 Drip water evaporat.tray 41033071
45a Rear foot 92473404
48 Inner light bulb 92235803
49g Door trade-mark plate 41033629
49n Refrigerator door compl.(Tall end cap) 41033576
50 Freezer door complete 41033577
58 Eggs holder 41033642
58g Bottle support 41006092
59 Lower bottles shelf 41021076
81 Refrigerator gasket 41028817
82 Freezer gasket 41028814
93 Jars door rail 91602620
109 Upper hinge (R/H) 41033268
109a Upper hinge (L/H) 41033269
111c Door safety holder (R/H) 41005685
111d Door safety holder (L/H) 41005690
111e Upper door sleeve for hinge 41010607
112c Middle hinge 41033267
113d Lower hinge 41033266
115 Spacer 92434190
34001426 CDNE 063 1116 (15/04/2011)
Ref. Descrizione - Description - Beschreibung - Descripcion
Fine
Ending
Fin
End
Fin
Inizio
Beginning
Debut
Begin
Inicio
Ricambio
Part No.
Piece
E-Teil
Pieza
Copyright 2011 Gias S.r.L.
124b 3 ways Dryer Filter 41012883
127b Freezer evaporator 41025725
128 Defrostin.heating element 41033195
128b Drain hose heating strip 92894609
149 Crisper 41020553
149n Crisper handle/Front piece 41020554
151 Crisper glass shelf 41033313
151a Crisper glass shelf trim 41021168
151q Crisper glass shelf trim air grate 41021167
153c Glass shelf 41032662
153g Glass shelf front trim 41031706
158g Multipurpose drawer supp. 91623447
160b Middle/upper basket 41022315
161 Lower basket 41020462
162 Basket front piece 41022228
162f Upper basket front piece 41022235
201a Hinge hole plug 92678572
201c Plug 92957026
251 Evaporator cover panel 41008720
251c Evapora.cover-Upper panel 41025622
251e Cover gasket (Evaporator/fan support) 41030211
251o Evaporator cover panel trim 41022530
251p Evaporator cover panel (Refrigerator) 41035499
252 Fan motor 91211136
253b Refrigerator Fan Buffer 91620020
255 Rear stirrup 92941731
257 Fan 41027845
258a Self sticking gasket 92959170
258b Self sticking gasket 10x15 92058171
284 Dashboard 41033328
284a Stopper for screw hole 41010657
34001426 CDNE 063 1116 (15/04/2011)
Ref. Descrizione - Description - Beschreibung - Descripcion
Fine
Ending
Fin
End
Fin
Inizio
Beginning
Debut
Begin
Inicio
Ricambio
Part No.
Piece
E-Teil
Pieza
Copyright 2011 Gias S.r.L.
288b Dashboard plate 41033644
292a Evaporat.panel protection 41008730
330 Ice cubes tray 92952449
360 Compressor cross piece 92871789
383f Spacer 41035333
412 Refriger.insulating piece 41035498
422n Circuit plate 41030049
423 Electr.plate cover box 41026157
423a Control board barrier 41034735
428d Freez.tempe.reading probe 41014267
512c Thermostat harness 41027669

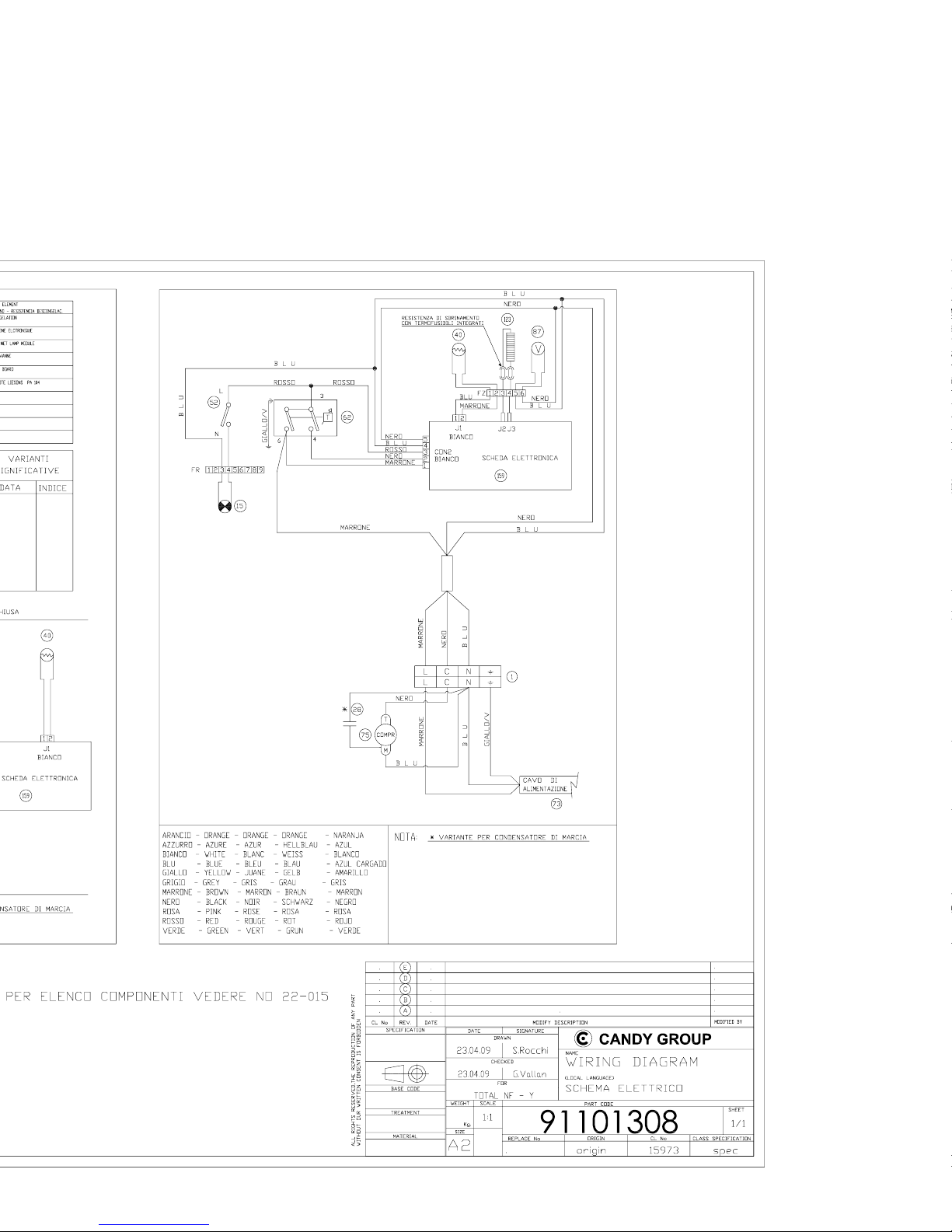

999 Wiring diagram 91101308
